Description:

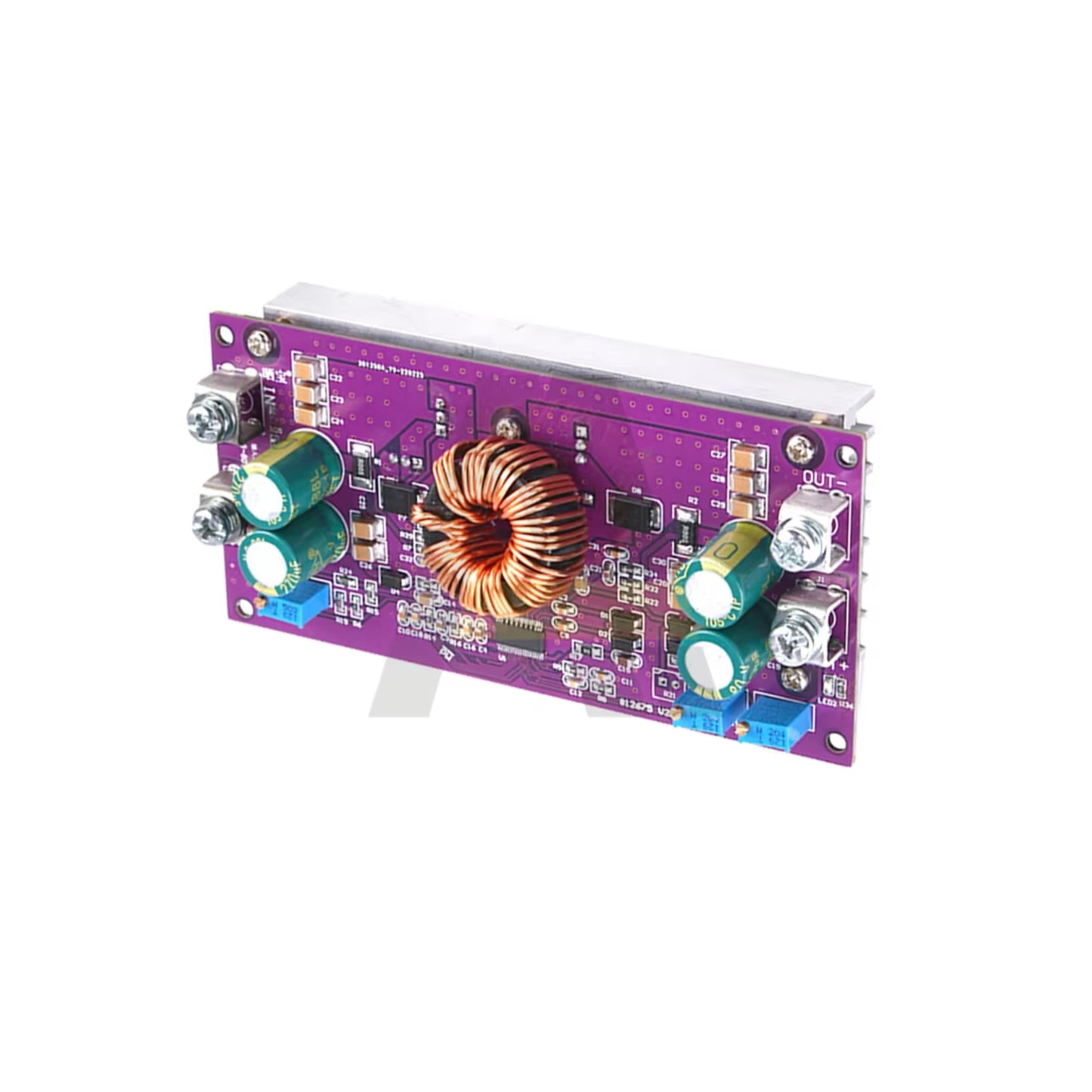

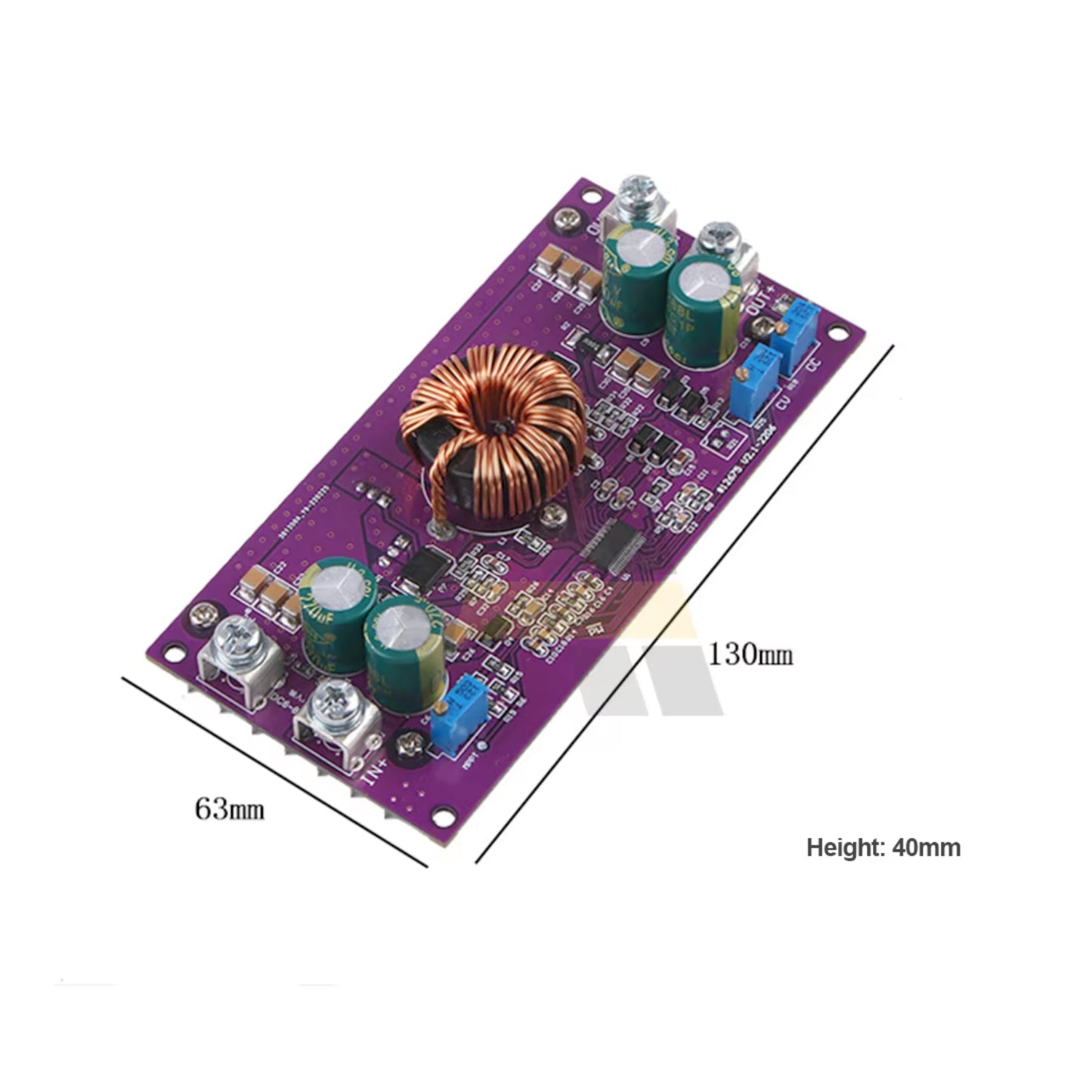

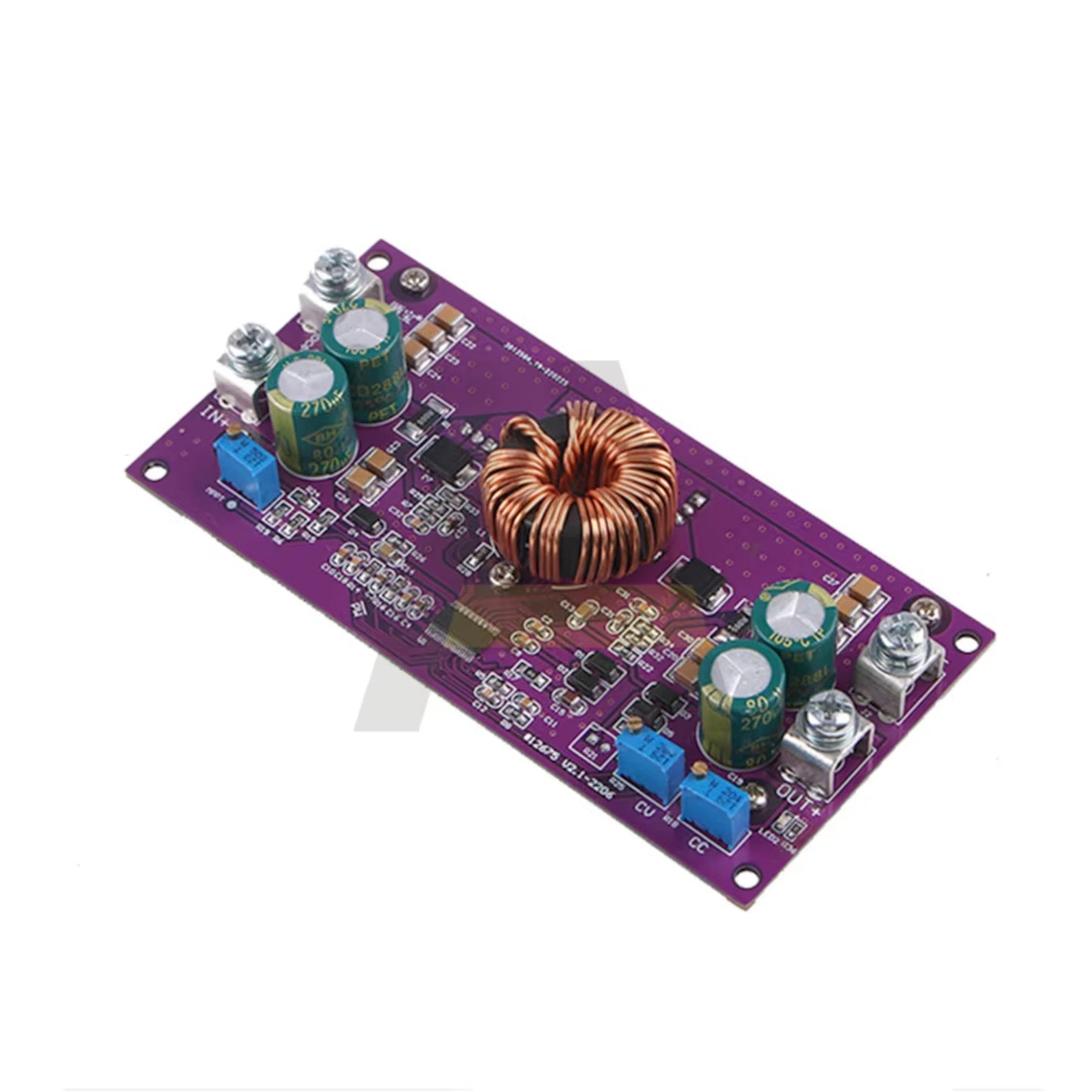

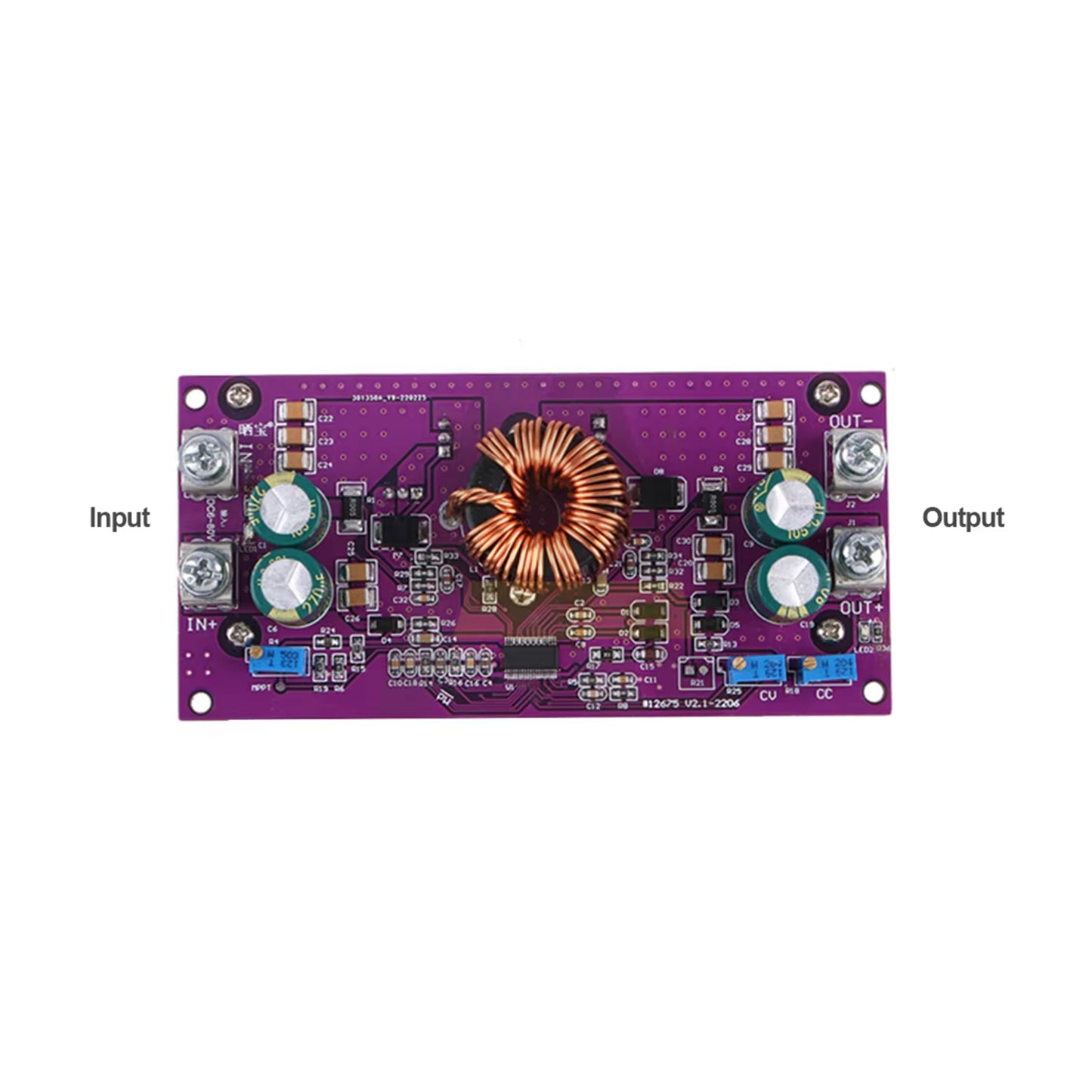

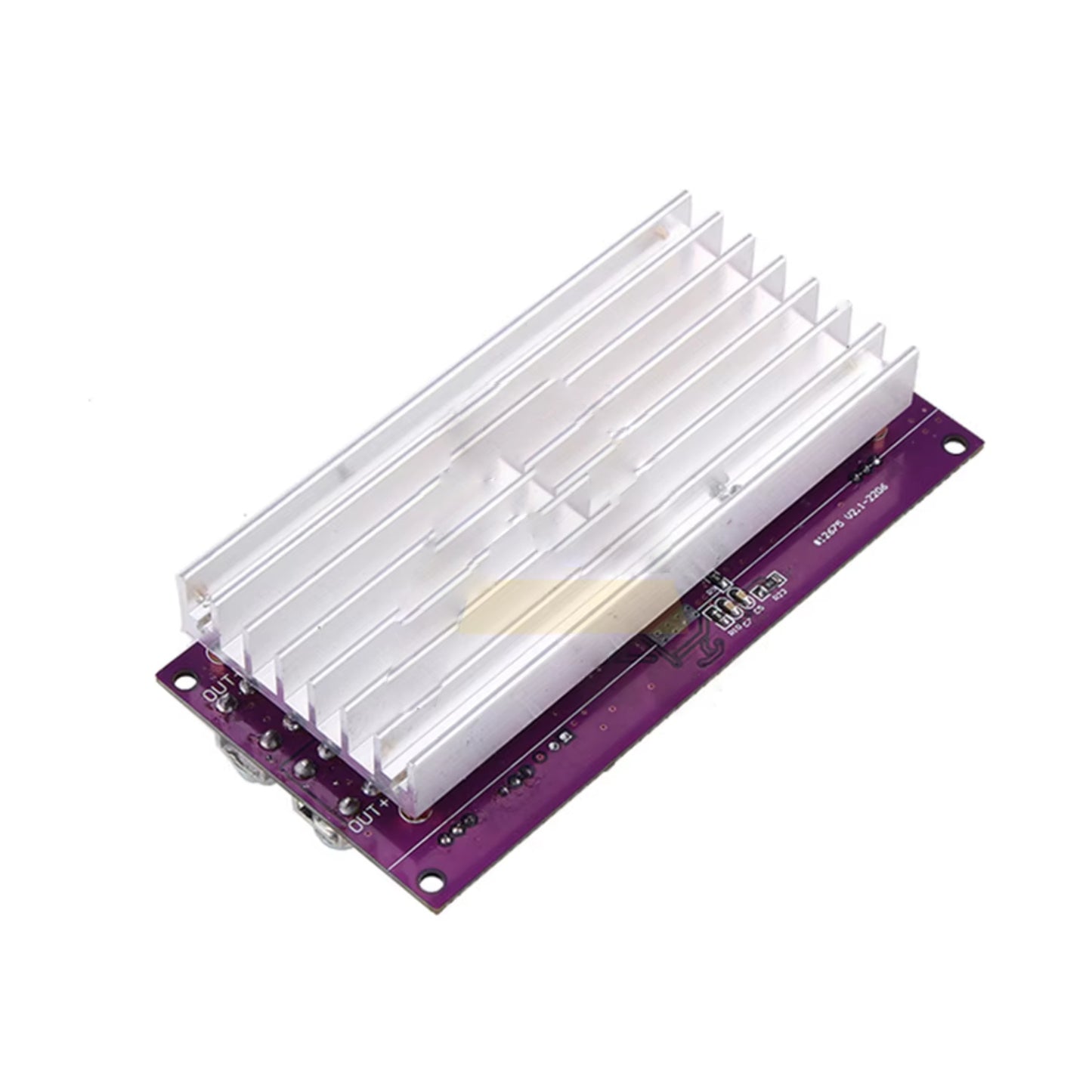

The LT8705 250W Automatic Buck-Boost Module is a high-performance DC/DC converter designed for demanding applications. Featuring synchronous rectification and a wide input/output voltage range 6V-80V. this versatile module enables efficient power conversion in various scenarios. Its 20A output current capacity and 1-50W output power make it suitable for a wide range of loads
Specifications:
- Model: LT8705 250W Automatic Buck-Boost Module 20A
- Type: 250 Automatic Pressure Lifting Module
- Type: DC/DC Converters
- Output Current: 6V-80V
- Output Power: 1 - 50W
- Input Voltage: 6v-80V Input
- Output Voltage Regulation: 1.3-80V
- Power Control: Current Mode Control
- Input Current Adjustable: Adjustable rRnge 0.5-15A
- Input Voltage Adjustable: 9-60V This function is suitable for MPPT solar panel use
- Output Current Adjustment: 0.5-15A(strongly recommended to use within 15A, relatively stable point, waveform will not jitter)
Features:
- With high input working voltage above 60V, can withstand 80V pulse voltage.
- High output current: the output current can reach 15A for a long time, the maximum current is 20A.
- With input and output voltage regulation function: the input voltage regulation is suitable for tracking the maximum power point voltage of the solar panel, which realizes the function of maximum power point tracking to a certain extent.
- Adjustable input and output current: the adjustable input current is suitable for constant current source. The adjustable output current is especially suitable for high-current charging of batteries, and high-current charging of lithium iron batteries, which basically covers all batteries.
Package Included:
1 x LT8705 Automatic Buck-Boost Module
