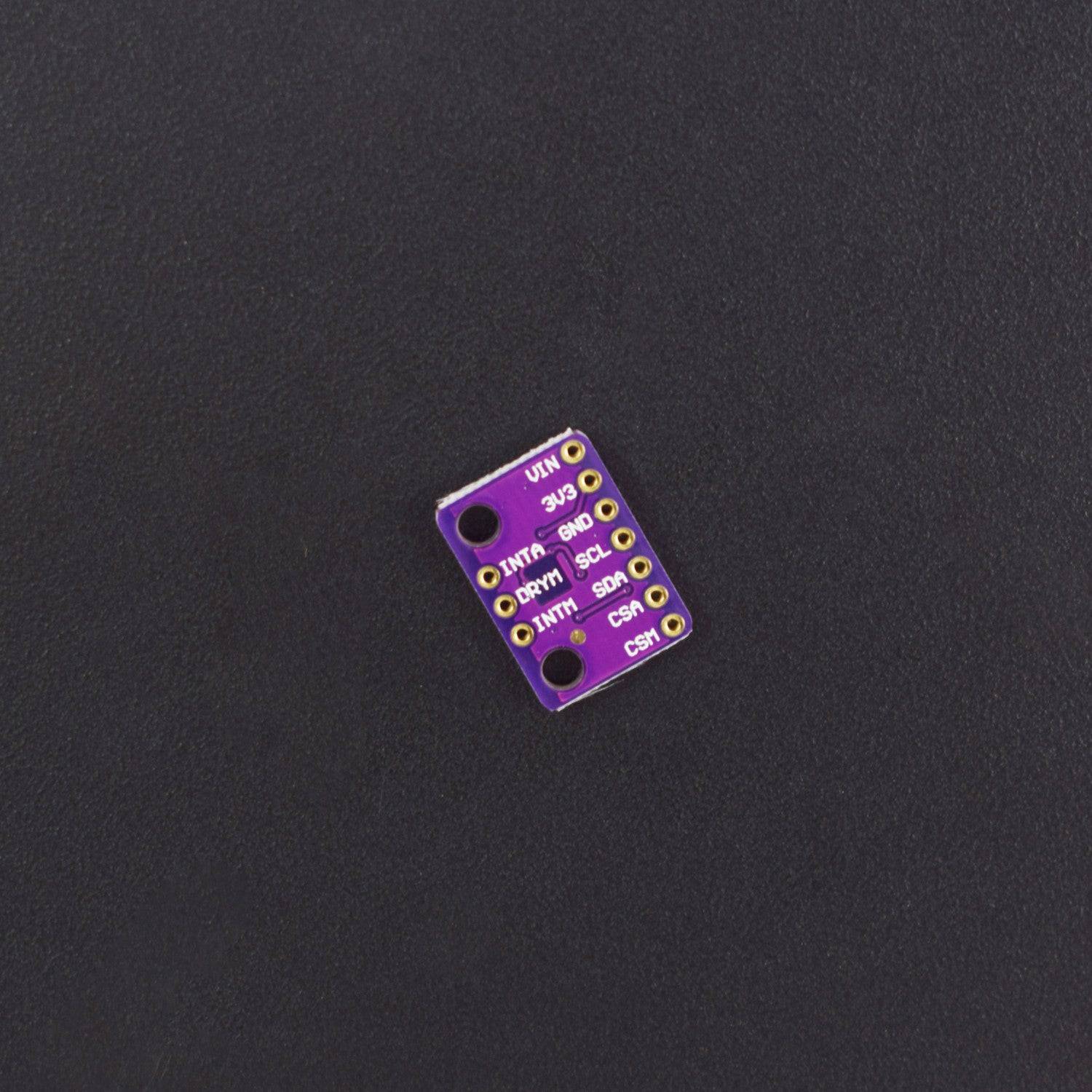

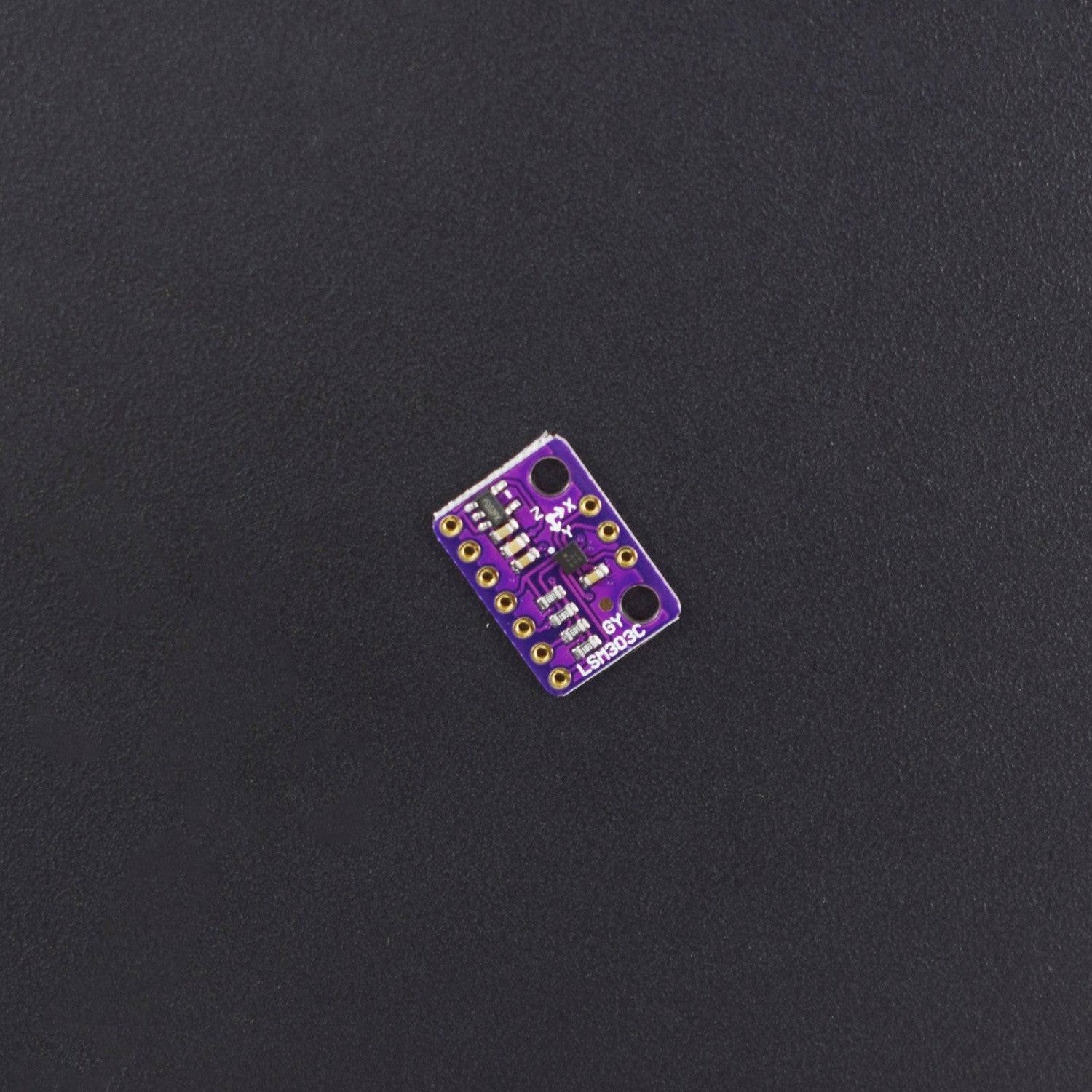

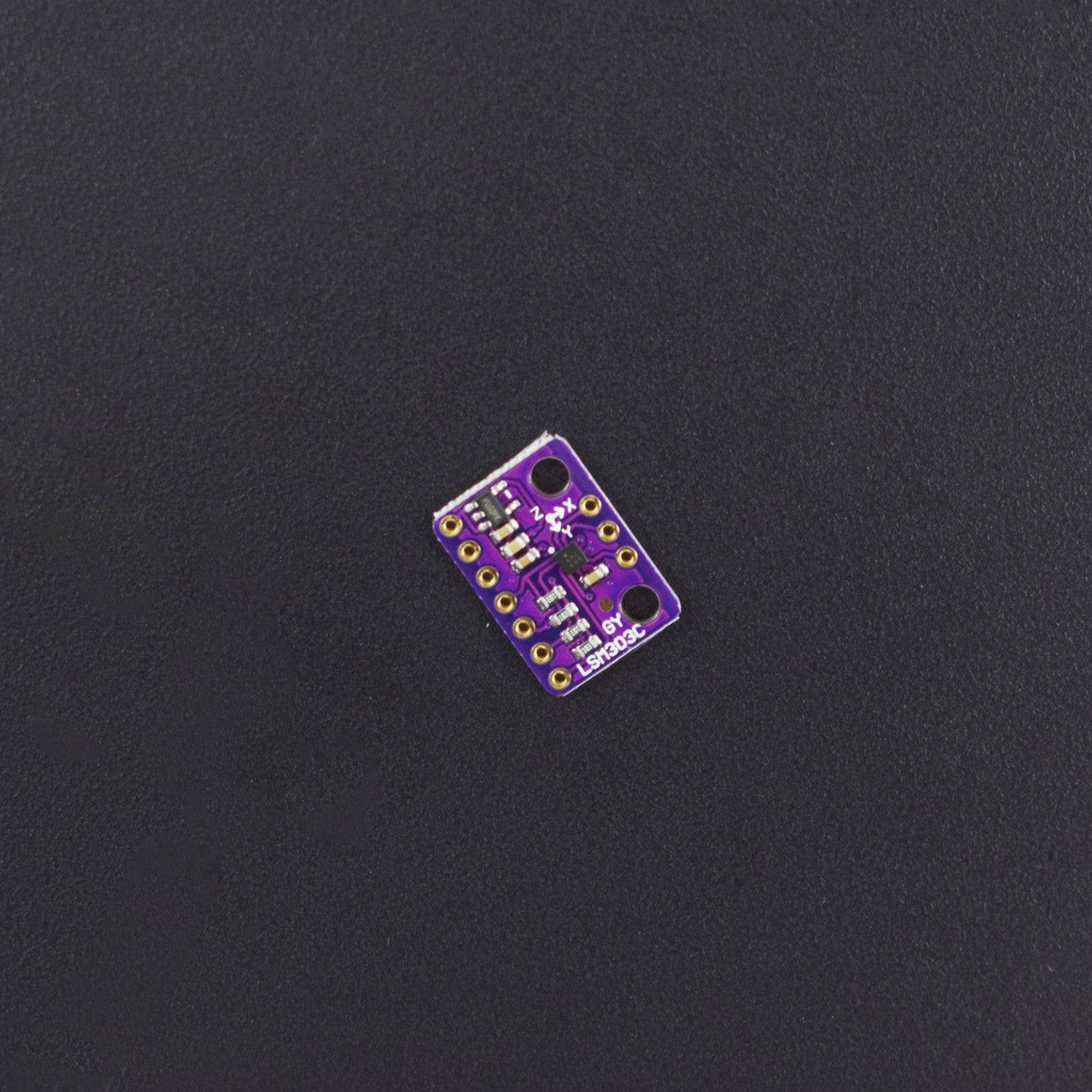

LSM303C Three-Axis Magnetic Field Acceleration Sensor Module LIS3MDL Magnetometer-RS1047

LSM303C Three-Axis Magnetic Field Acceleration Sensor Module LIS3MDL Magnetometer-RS1047

SKU:RS1047

In stock

Regular price Rs. 299.00
Regular price Sale price Rs. 299.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • 3 magnetic field channels and 3 acceleration channels
  • ±16 gauss magnetic full scale
  • ±2/±4/±8 g selectable acceleration full scale
  • 16-bit data output
  • SPI / I2C serial interfaces
  • Analog supply voltage 1.9 V to 3.6 V
  • Power-down mode / low-power mode
  • Programmable interrupt generators for free-fall, motion detection and magnetic field detection
  • Embedded temperature sensor
  • Embedded FIFO

Description :

  • The LSM303C is a system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.
  • The LSM303C has linear acceleration full scales of ±2 g / ±4 g / ±8 g and a magnetic field full scale of ±16 gauss.
  • The LSM303C includes an I2C serial bus interface that supports standard and fast mode (100 kHz and 400 kHz) and an SPI serial standard interface.
  • The system can be configured to generate an interrupt signal for free-fall, motion detection and magnetic field detection.
  • The magnetic and accelerometer blocks can be enabled or put into power-down mode separately.
  • The LSM303C is available in a plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

Features :

  • 3 magnetic field channels and 3 acceleration channels
  • ±16 gauss magnetic full scale
  • ±2/±4/±8 g selectable acceleration full scale
  • 16-bit data output
  • SPI / I2C serial interfaces
  • Analog supply voltage 1.9 V to 3.6 V
  • Power-down mode / low-power mode
  • Programmable interrupt generators for free-fall, motion detection and magnetic field detection
  • Embedded temperature sensor
  • Embedded FIFO

Schematic Diagram :

SAMPLE CODE AND LIBRARIES :

https://drive.google.com/open?id=1vbbIHEFS4eI4b3AtUVxpcoKPtLJJhrOV

Data Sheet :

Package Included :

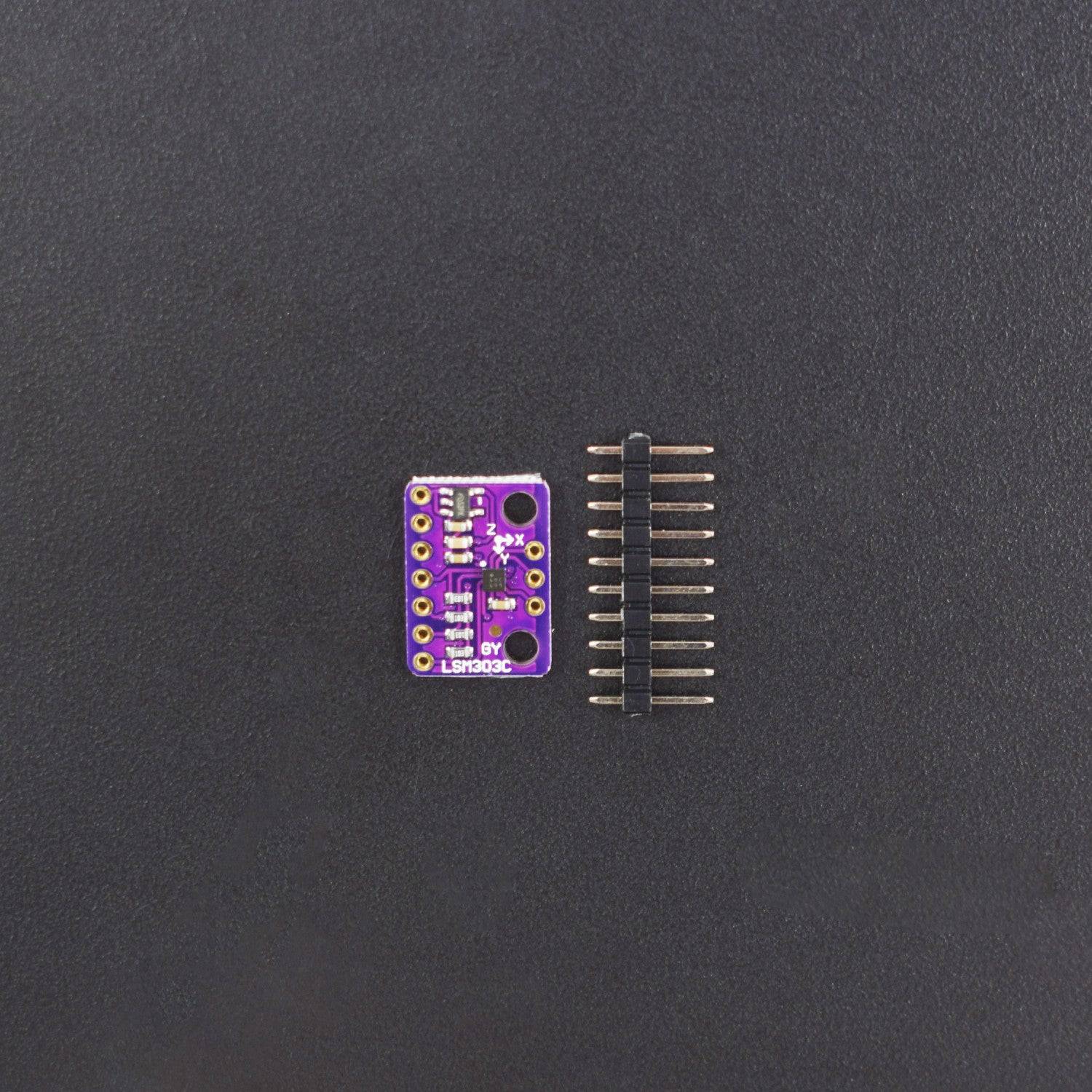

1 x LSM303C Three-Axis Magnetic Field Acceleration Sensor Module
