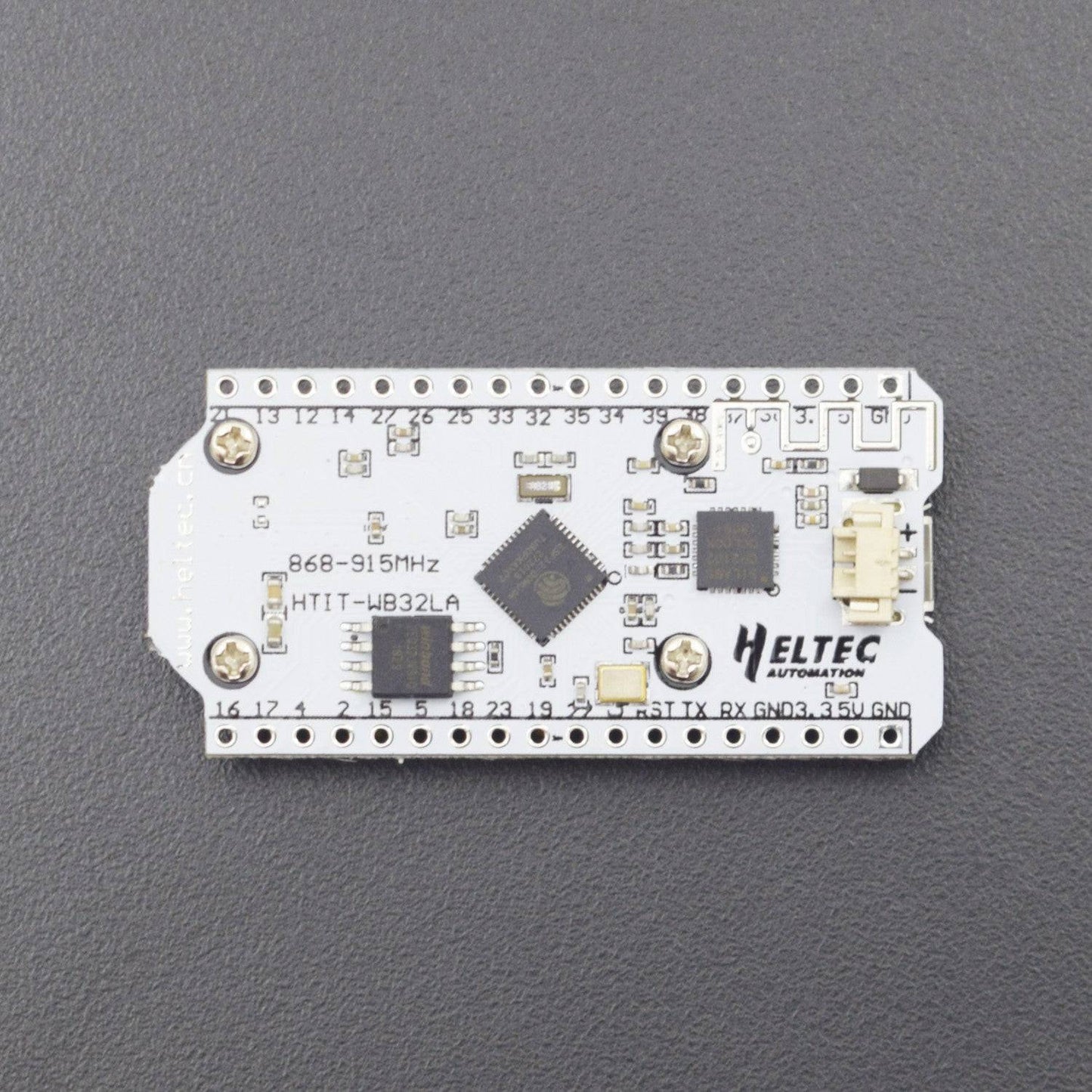

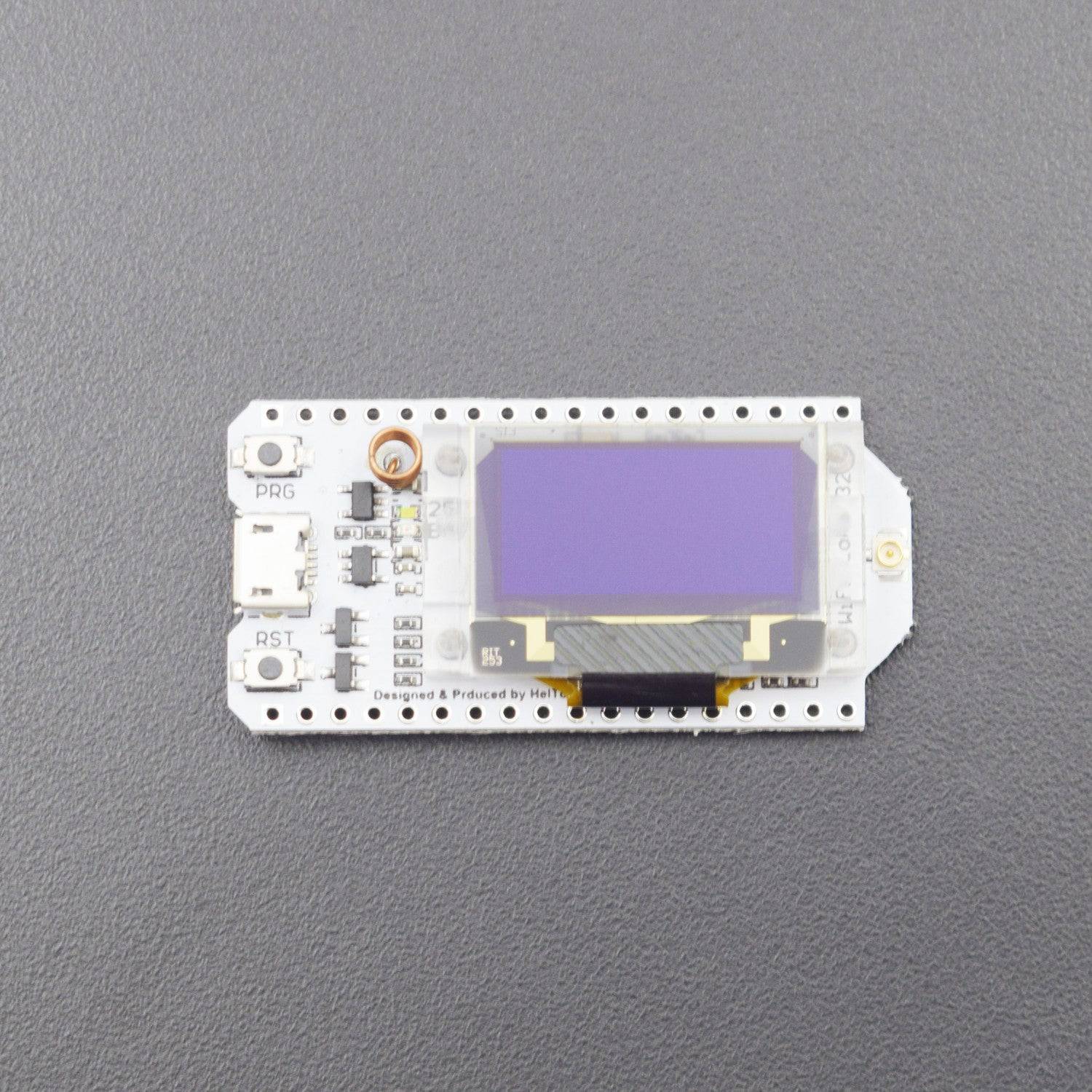

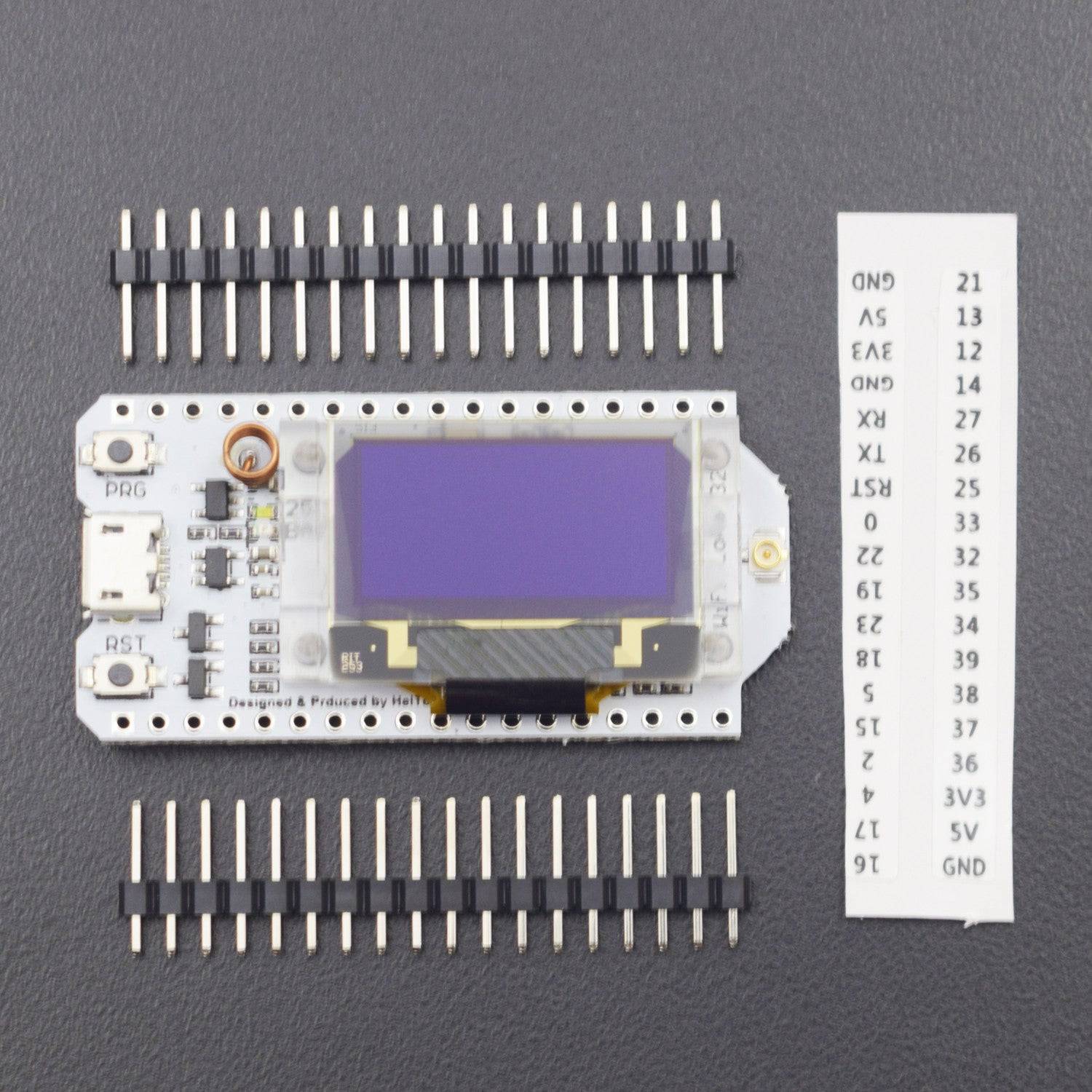

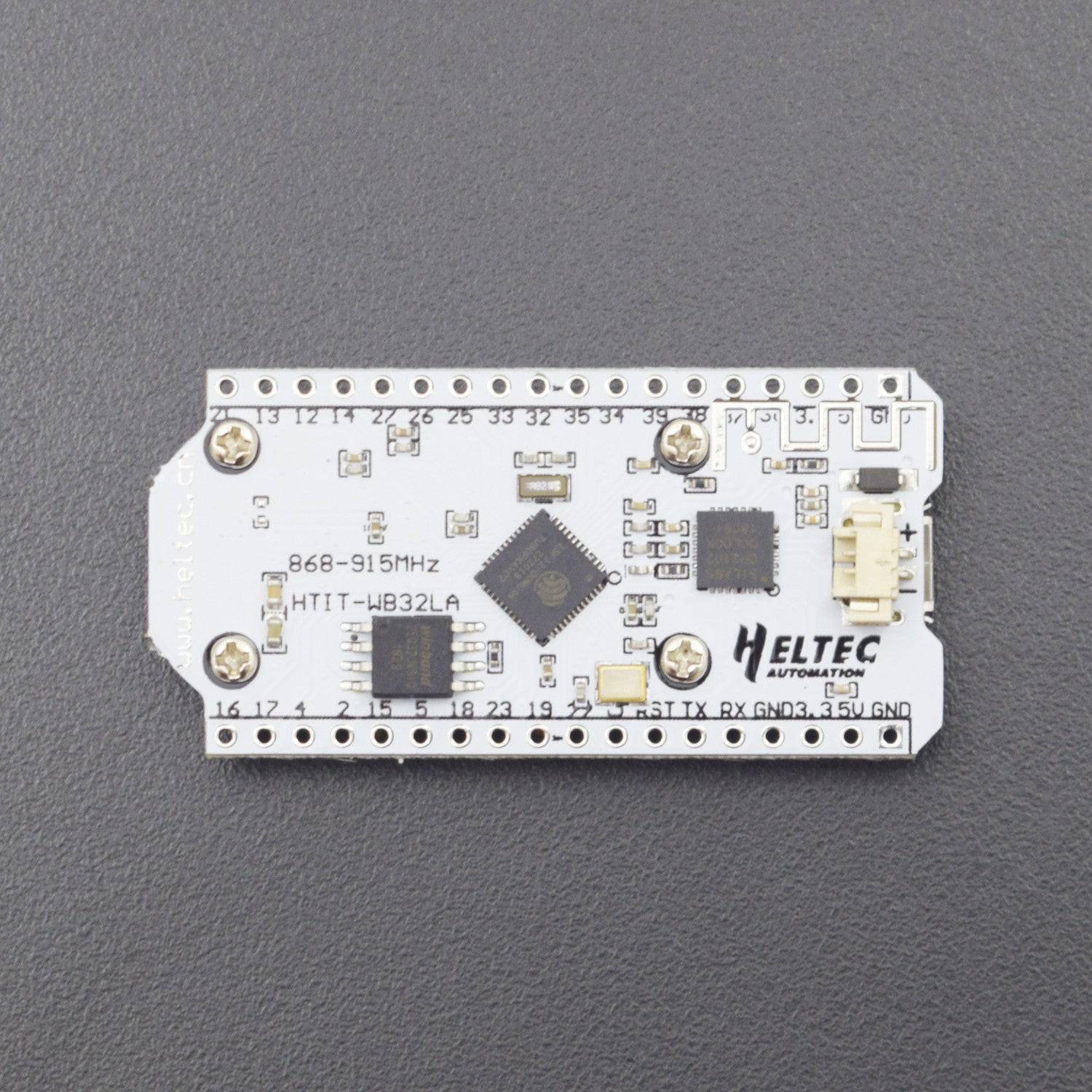

Lora Module 868MHz-915MHz 0.96 OLED Display ESP32 ESP-32S WiFi Bluetooth Development Board(Without antenna ) - RS1844

Lora Module 868MHz-915MHz 0.96 OLED Display ESP32 ESP-32S WiFi Bluetooth Development Board(Without antenna ) - RS1844

SKU:RS1844

In stock

Regular price Rs. 2,200.00
Regular price Sale price Rs. 2,200.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development.

Specification:

  • Main chip: espressif esp32 and SX1276
  • Operating voltage: 3.3V to 7V
  • Flash:32M-Bits
  • Main Frequency:240MHZ
  • Support frequency:868-915MHZ
  • Lora chip:SX1276
  • Distance: about 2.8KM in open place
  • Computing power: 600DMIPS
  • Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
  • Development environment: support arduino
  • USB adapter chip: cp2102
  • Operating temperature range: -40 ° C to + 90 ° C
  • Support modes: Sniffer, Station, softAP and Wi-Fi Direct
  • Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
  • Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
  • Receiver sensitivity up to - 98 dBm
  • UDP continues to throughput by 135 Mbps
