Description:

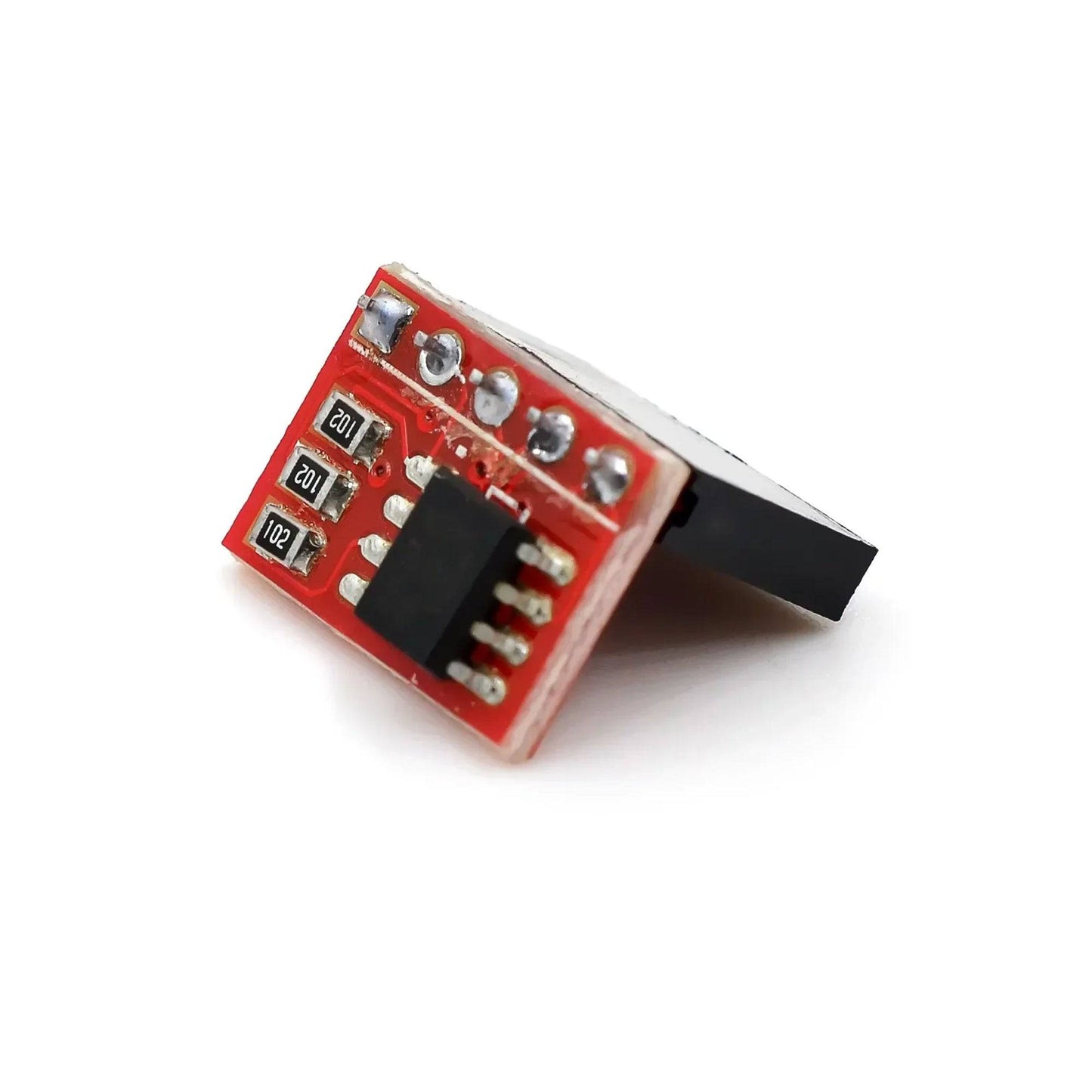

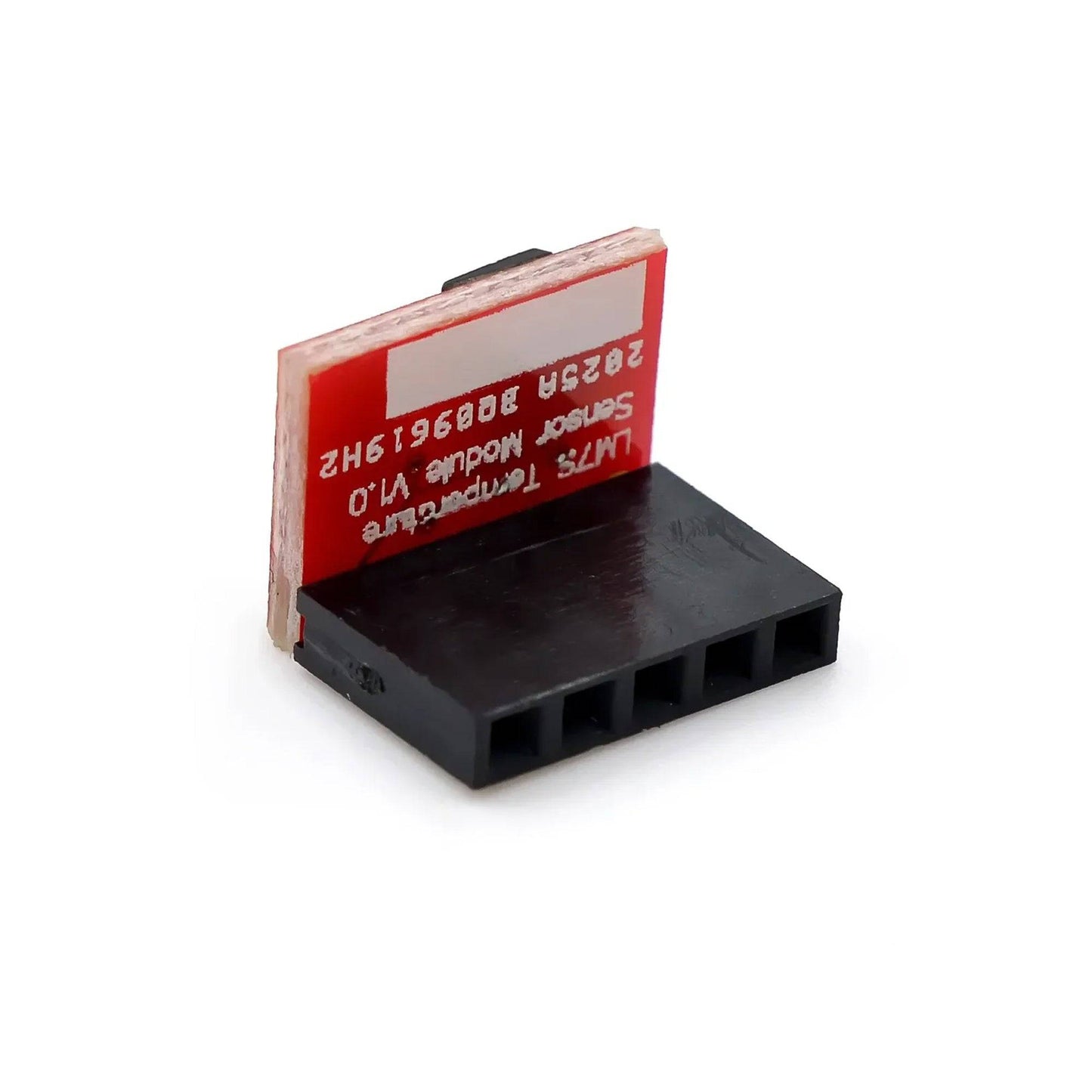

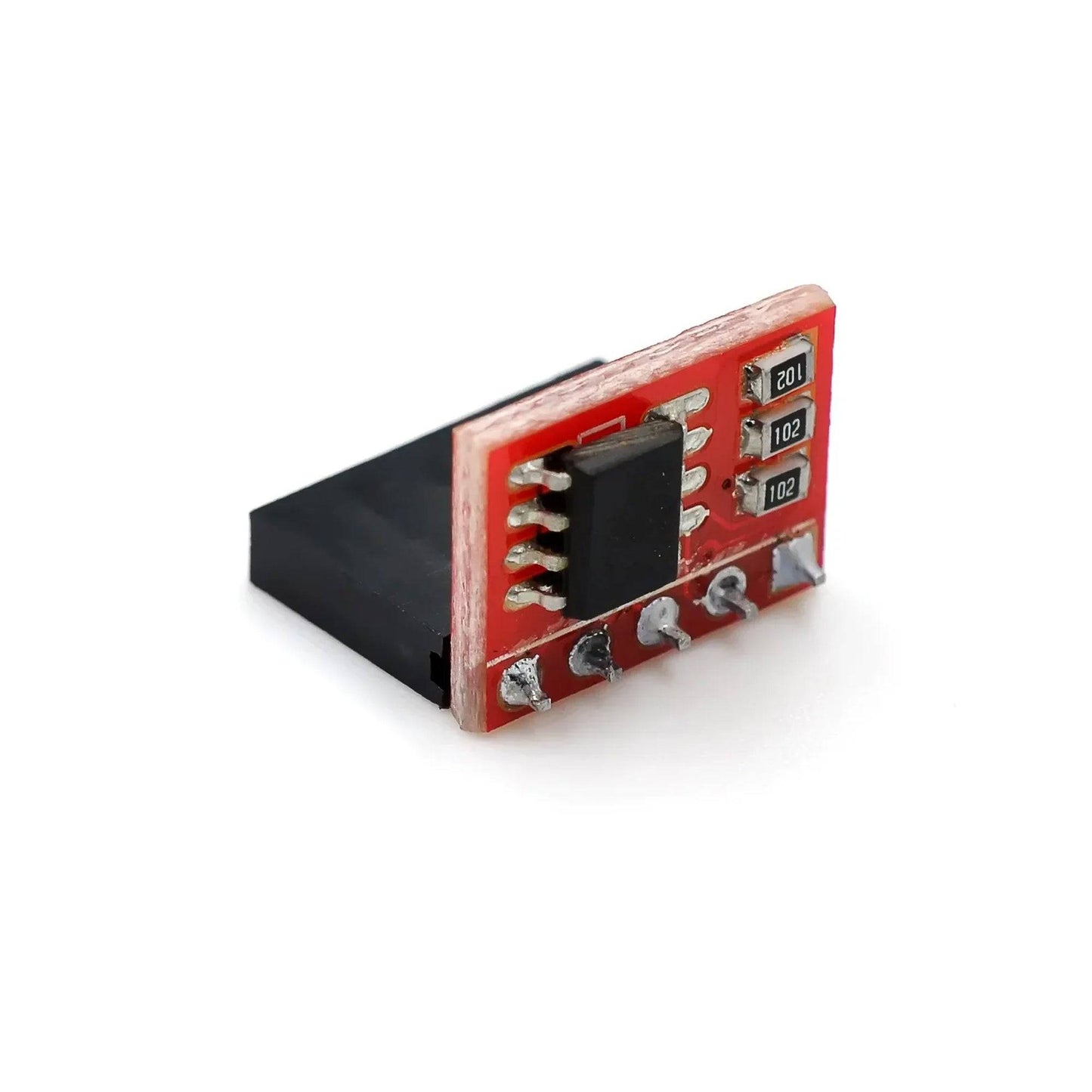

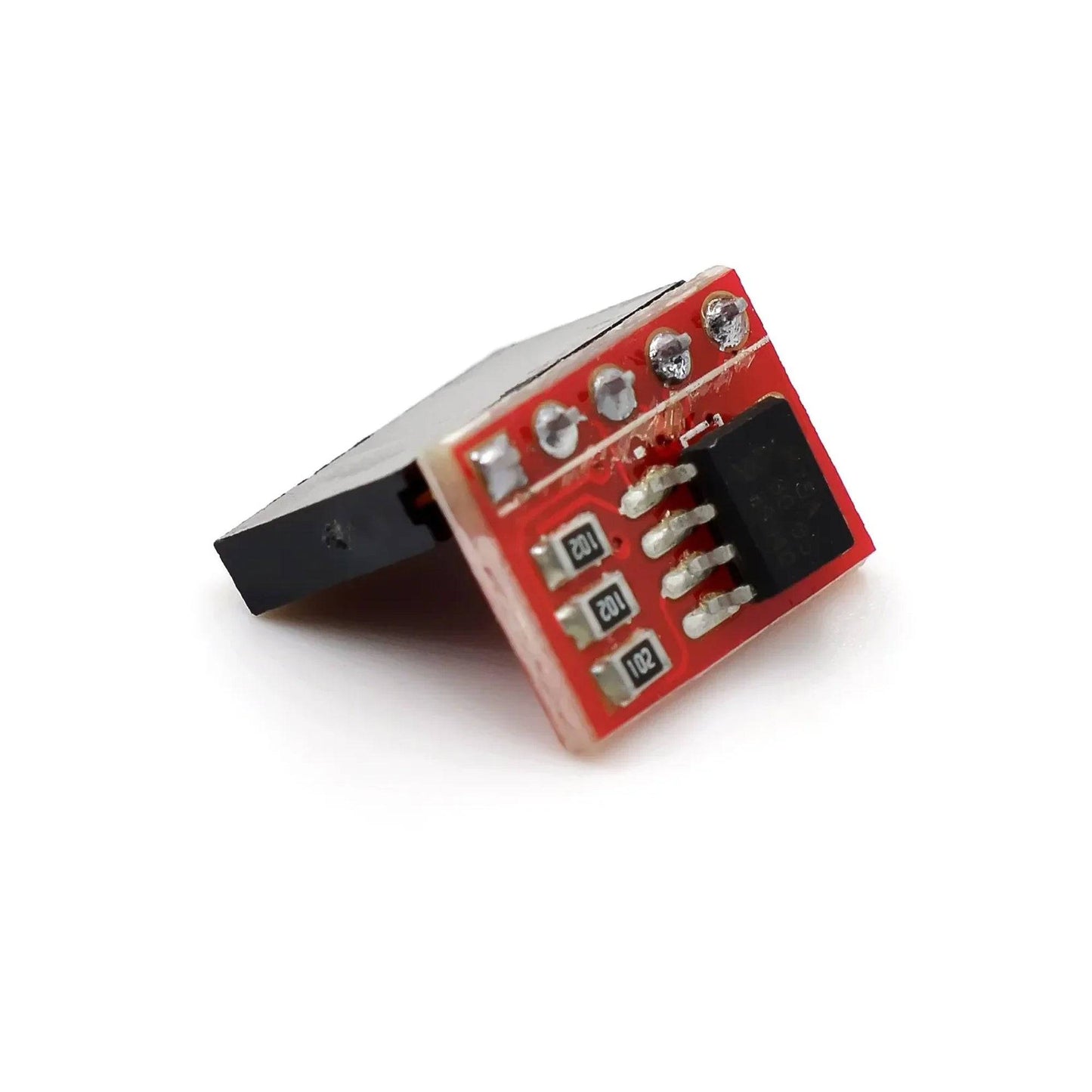

LM75 Temperature Sensor Module High Speed I2C Interface, high-precision temperature sensor development board module Temperature alarm indicator module LM75 is a temperature sensor with a high-speed I2C interface, which can Directly convert the temperature into a digital signal in the temperature range of -55℃~+125℃, and can achieve an accuracy of 0.125℃. The MCU can directly read the data in its internal registers through the I2C bus and can operate 4 data registers through I2C to configure different working modes. The LM75 Temperature Sensor Module High Speed I2C Interface has 3 selectable logical address pins, allowing 8 devices to be connected on the same bus at the same time without address conflicts.
Specifications:
- LM75 Power Supply Range: 2.8V ~ 5.5V
- LM75 Temperature Range: -25℃ ~ +100℃
Features:
- I2C bus interface, device address 7-bit slave address 1001xxx, 8 devices can be expanded on the same bus
- Programmable temperature threshold and hysteresis set point;
- The LM75 Temperature Sensor Module High Speed I2C Interface can be used as a stand-alone temperature controller when powered on.
- Small Profile
- LM75 is Compatible with Raspberry Pi A+,B,B+/2
- LM75 supports on Raspberry Pi and Arduino
Package Included:
1 x LM75 Temperature Sensor Module High Speed I2C Interface High Precision Intelligent Development Board Module for Raspberry Pi
