Description:

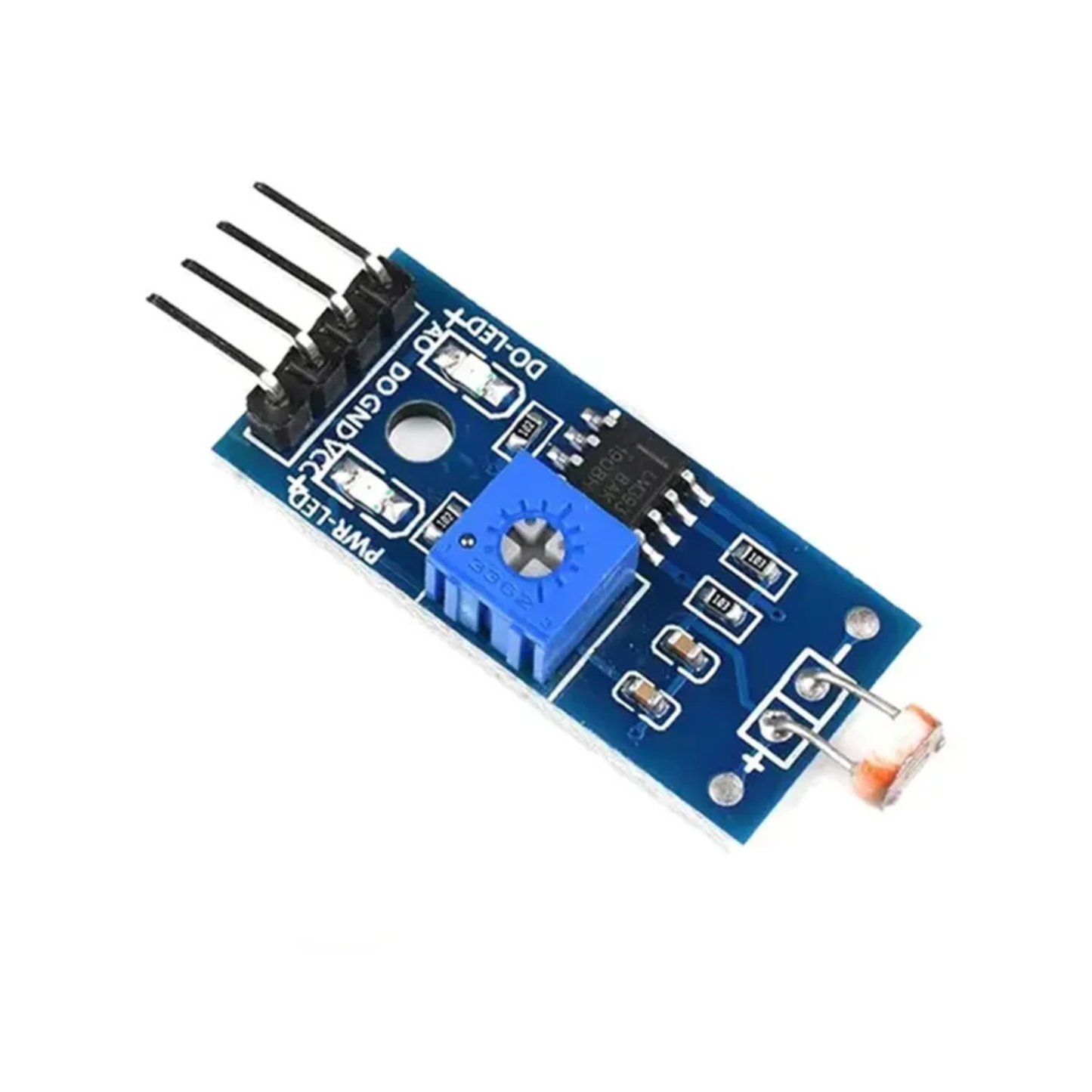

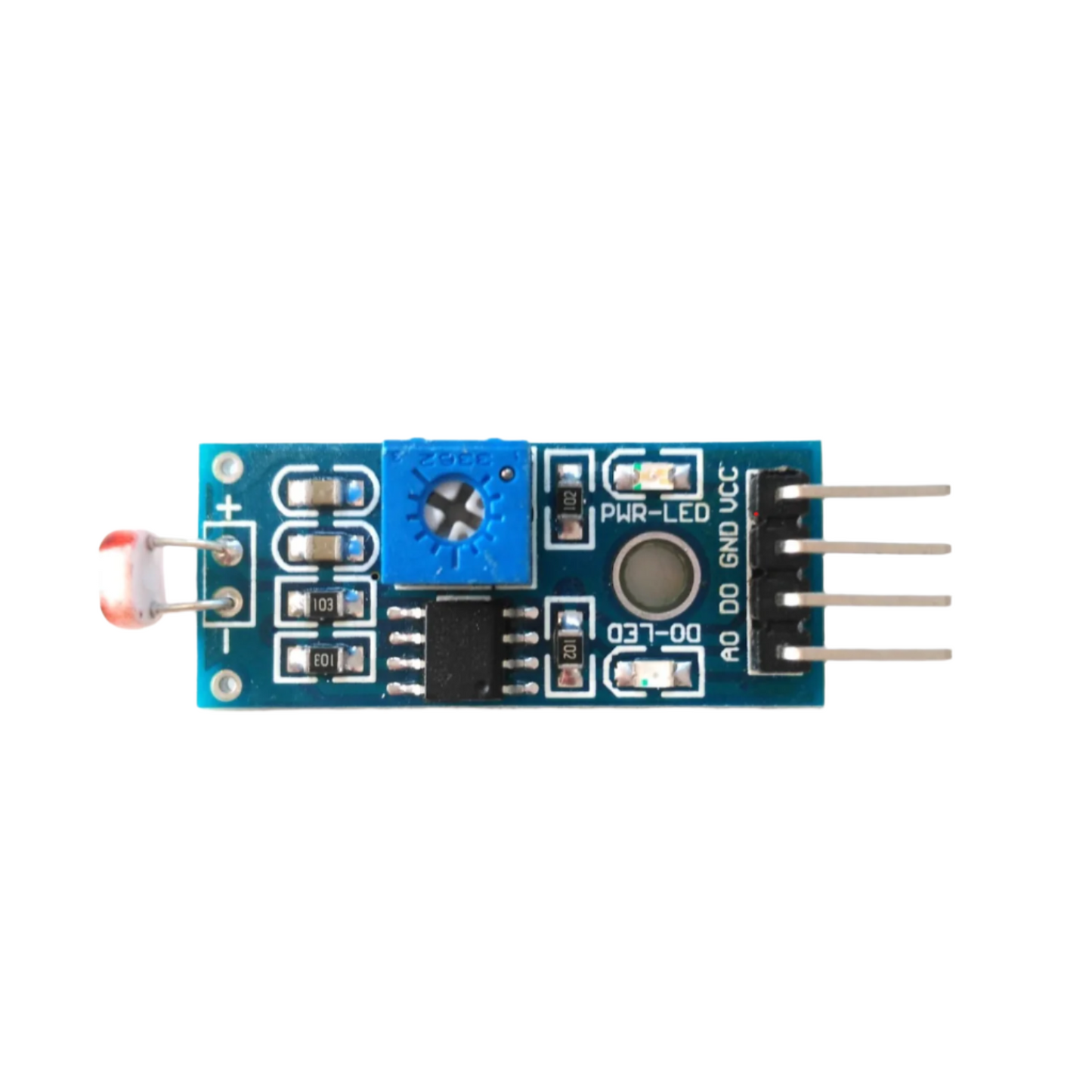

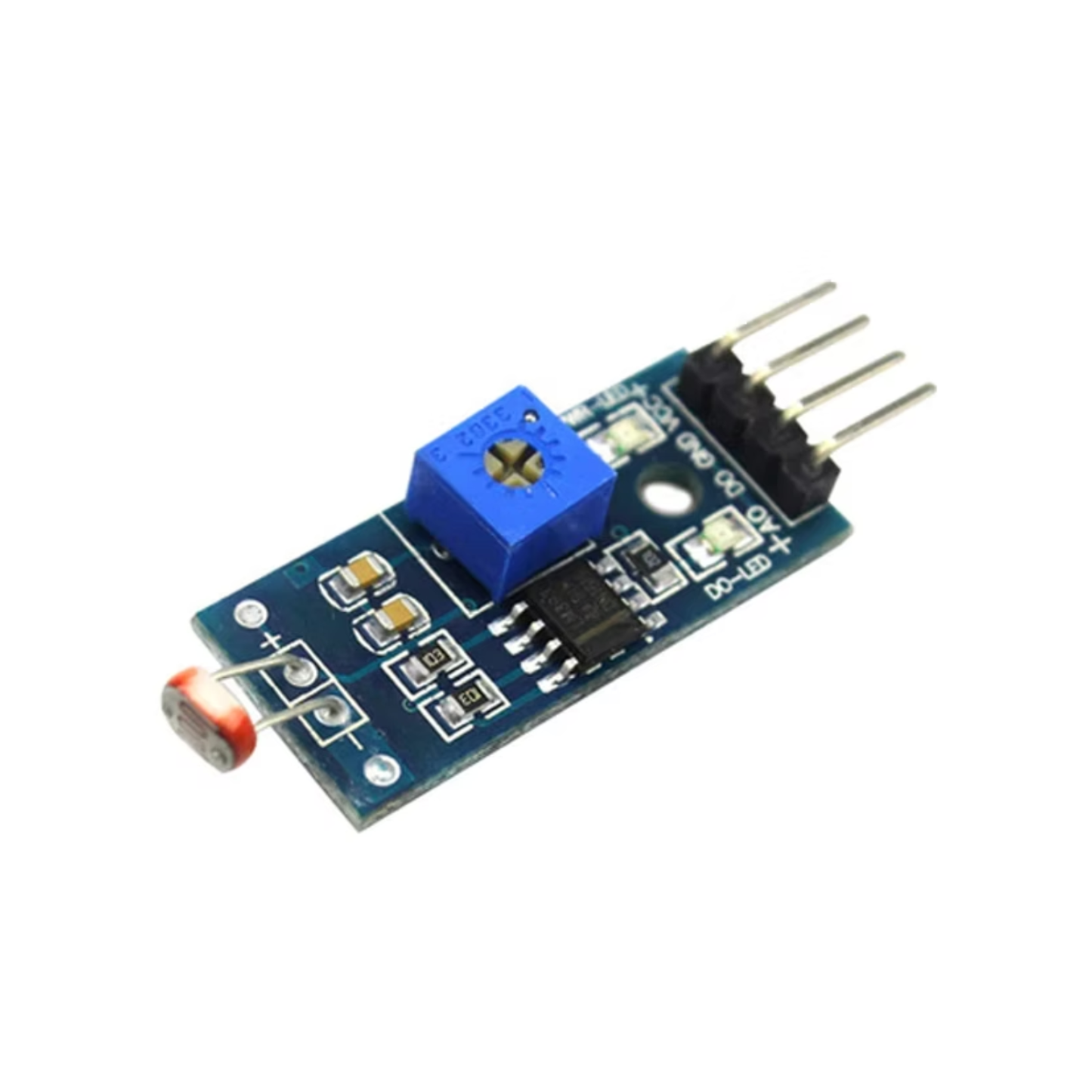

This LM393 LDR Light Sensor Module is a high-performance light detection module designed for precision and ease of use. It features a high-quality LM393 voltage comparator and a sensitive photoresistor to accurately detect ambient light and brightness levels.
Built with an adjustable potentiometer, the module allows you to fine-tune light sensitivity based on your needs. With a digital output (DO) and analog output (AO), it offers versatile connectivity options for a wide range of microcontroller projects, including Arduino, Raspberry Pi, and other development boards.
Specifications:
- Model Type: Light Dependent Resistor Module
- Operating Voltage (V): 3.3 to 5
- IC Chip: LM393
- Length (mm): 33
- Width (mm): 14
- Height (mm): 8

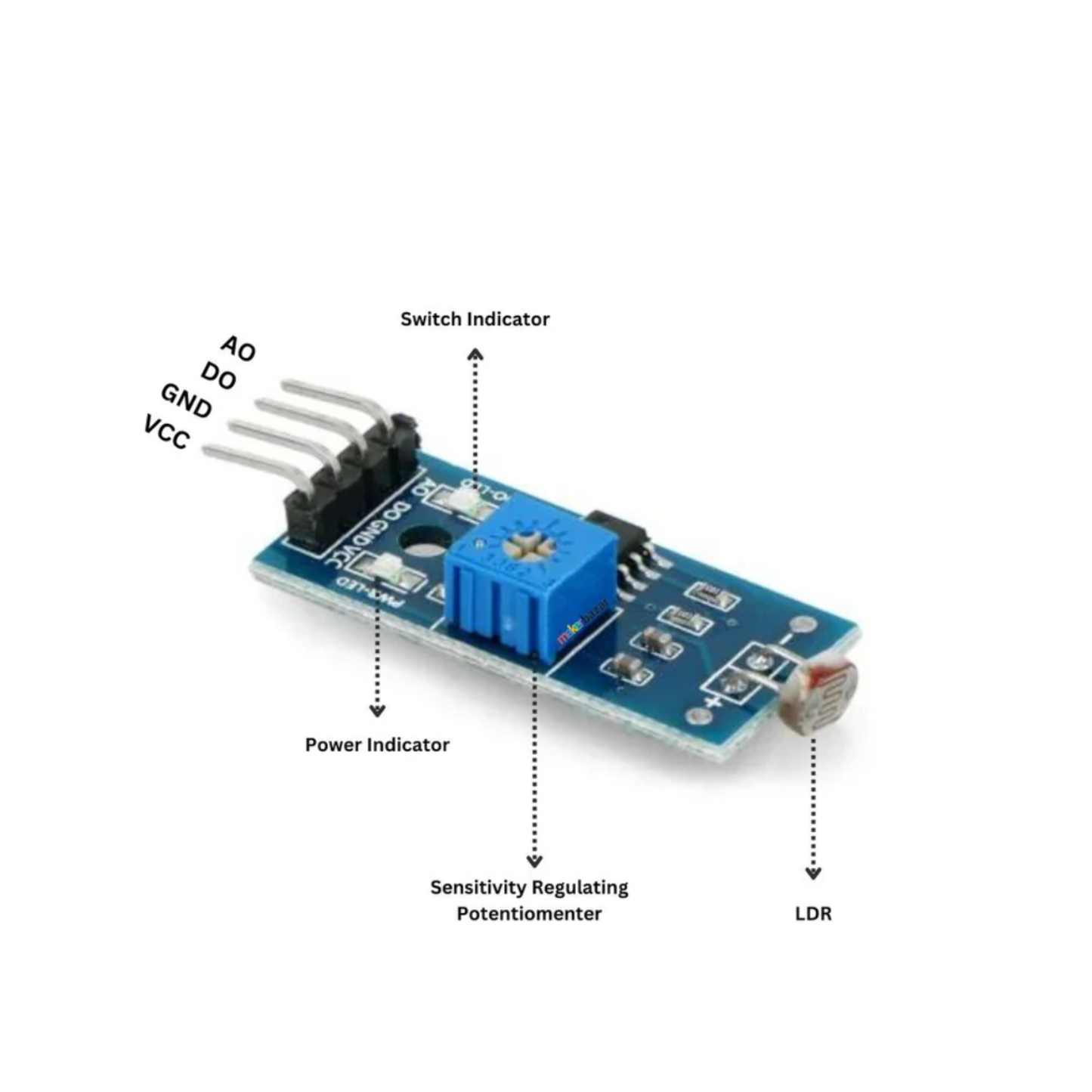

Interface Pin:
- VCC: +ve power supply.
- GND: Ground.
- D0: Digital output signal.
- A0: Analog Output Signal.
Features:
- Comes with a mounting hole screw for quick setup.
- Fine-tune with the onboard blue potentiometer.
- Measures brightness & light intensity.
- Shows output status in real-time.
Package Included:
1 x LM393 Photoresistor LDR Light Sensor Module Light-Dependent Resistor Sensor For Arduino, Raspberry Pi, and Smart Electronics Projects
