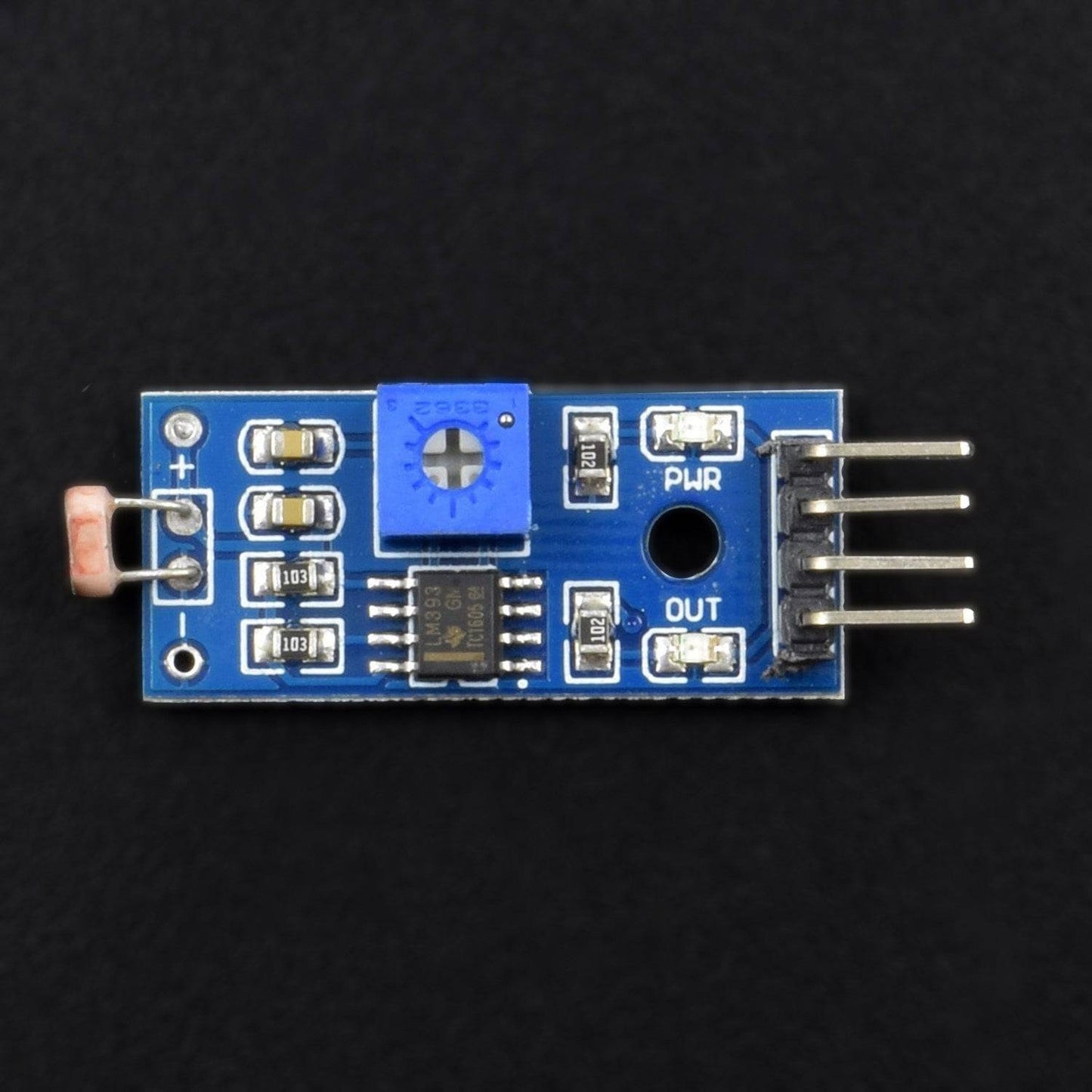

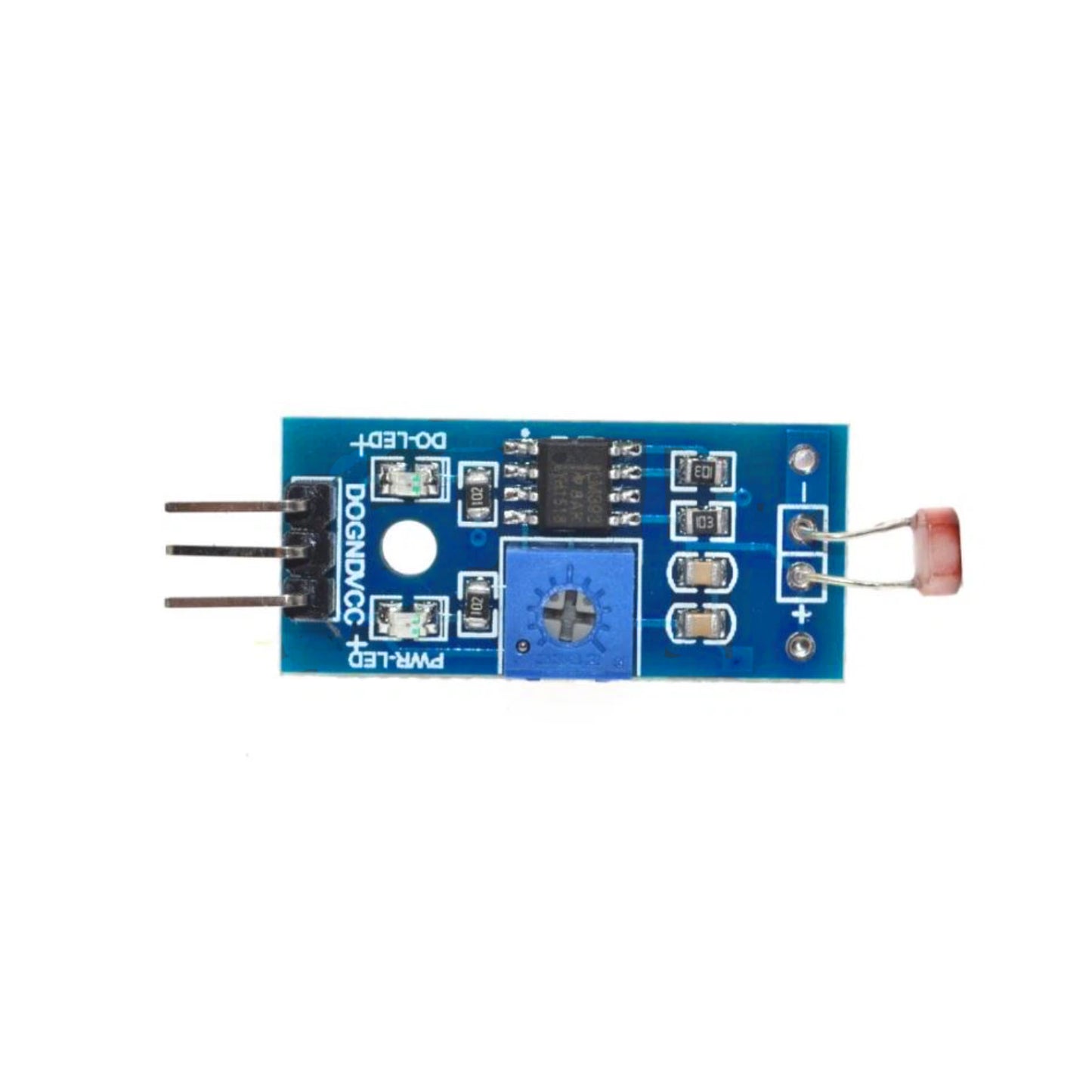

LM393 Optical Photosensitive LDR Light Sensor Module for Arduino Shield DC 3-5V - ML026

LM393 Optical Photosensitive LDR Light Sensor Module for Arduino Shield DC 3-5V - ML026

SKU:ML026

4067 in stock

Regular price Rs. 25.00
Regular price Sale price Rs. 25.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Operating Voltage: 3.3V to 5V DC
  • Operating Current: 15mA
  • Output Digital - 0V to 5V, Adjustable trigger level from preset
  • Output Analog - 0V to 5V based on light falling on the LDR


Description:

Photosensitive resistance module to the ambient light is the most sensitive generally used to detect the surrounding environment of the brightness of the light, trigger SCM or relay module, etc. A module in ambient light brightness cannot reach the set threshold, DO end output high level, when an external environment light brightness than setting a threshold value, DO end output low level.DO output port can be directly connected with the single-chip microcomputer, through the single-chip microcomputer to detect high and low levels, thus to the testing environment, light intensity change DO output end can directly drive the relay module, which can form a light-operated switch.

Specification:

  • Operating Voltage: 3.3V to 5V DC
  • Operating Current: 15mA

Features:

  • Output Digital - 0V to 5V, Adjustable trigger level from preset
  • Output Analog - 0V to 5V based on light falling on the LDR
  • LM393 based design.
  • It can detect ambient brightness and light intensity.
  • Adjustable sensitivity (via blue digital potentiometer adjustment).
  • LEDs indicating output and power.

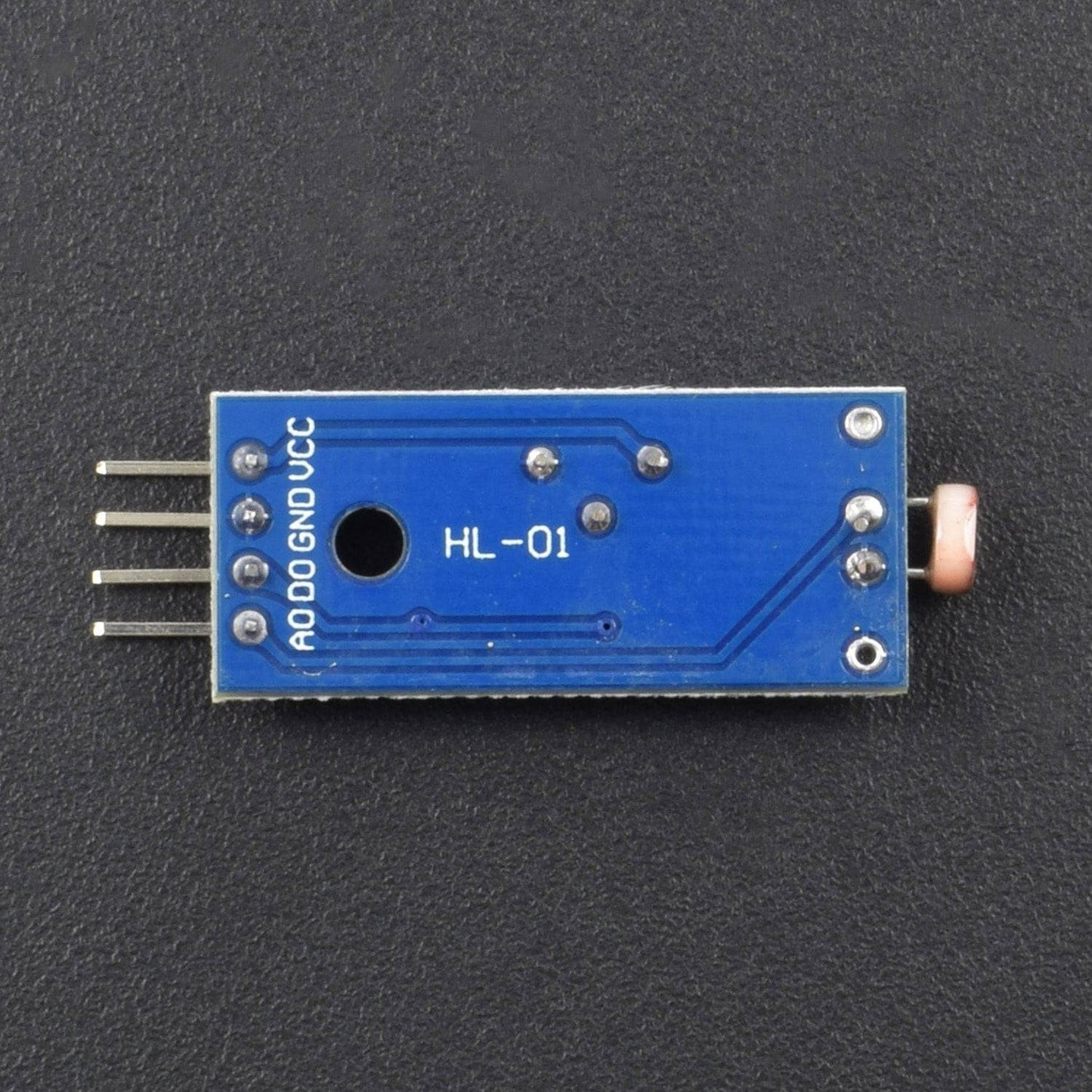

Pin Description:

  • VCC: 3.3V to 5V DC
  • GND: Ground
  • DO: Digital Output

How To Use:

Control the Bulb using LDR module and Relay Module

Package Included:

1 X LM393 Optical Photosensitive LDR light sensor module
