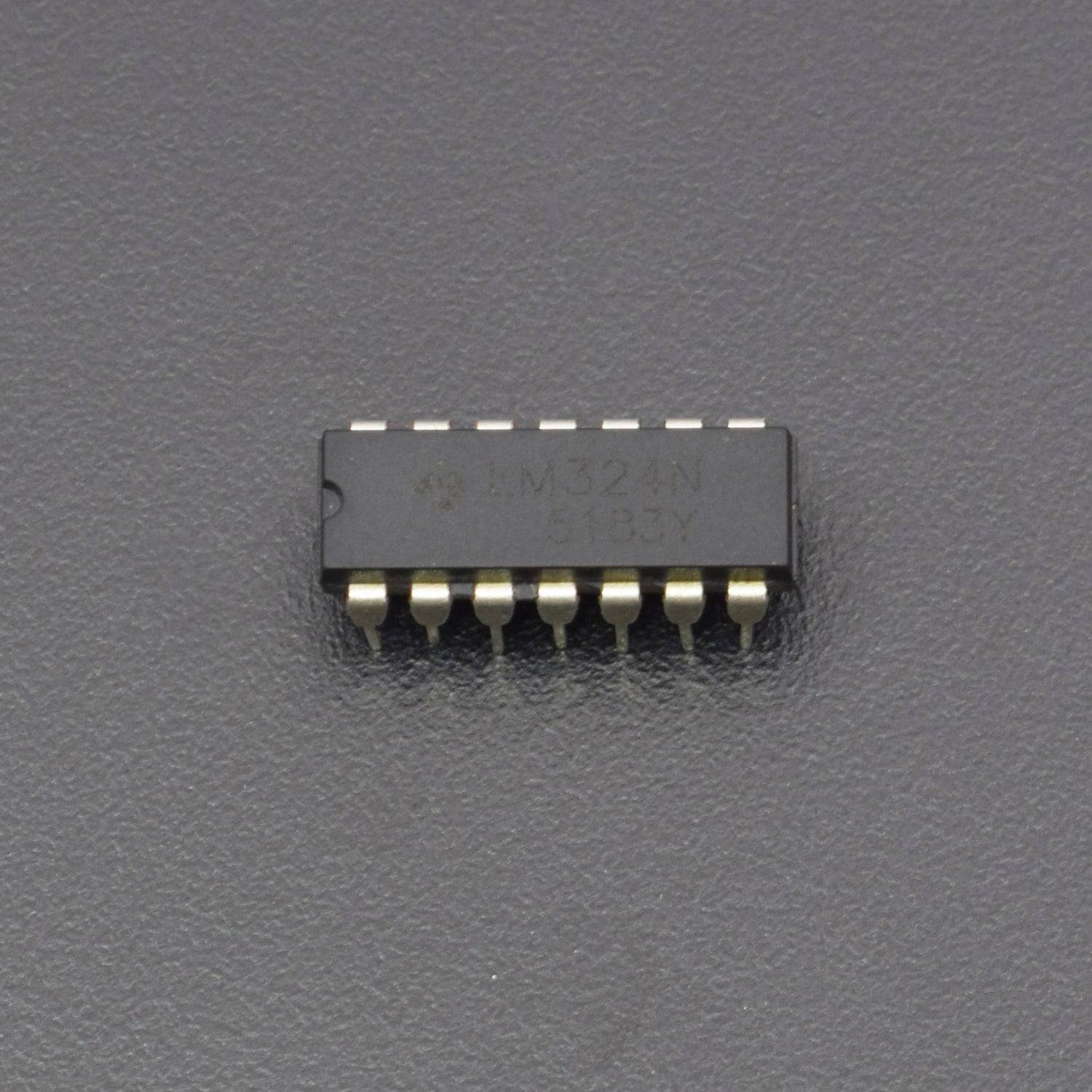

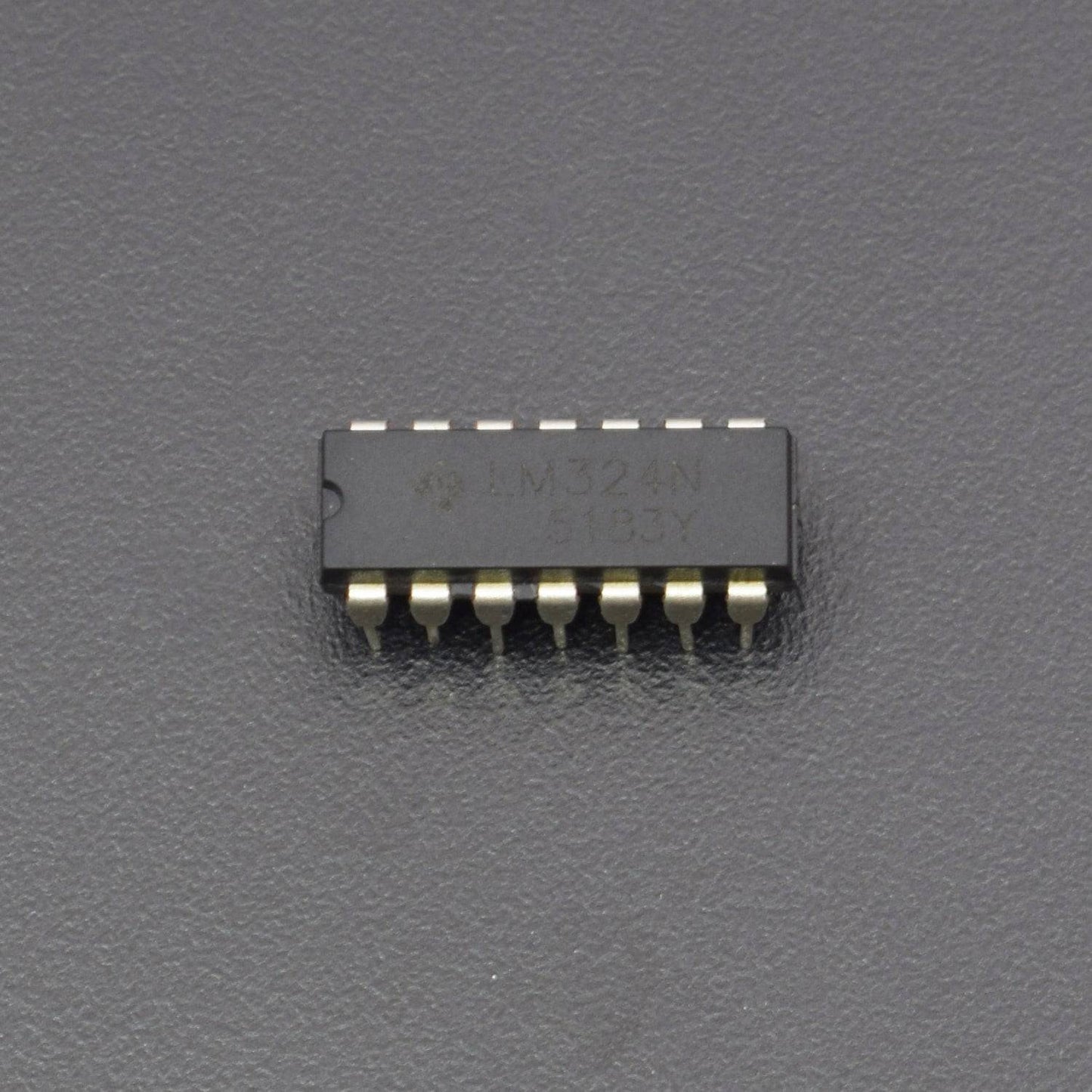

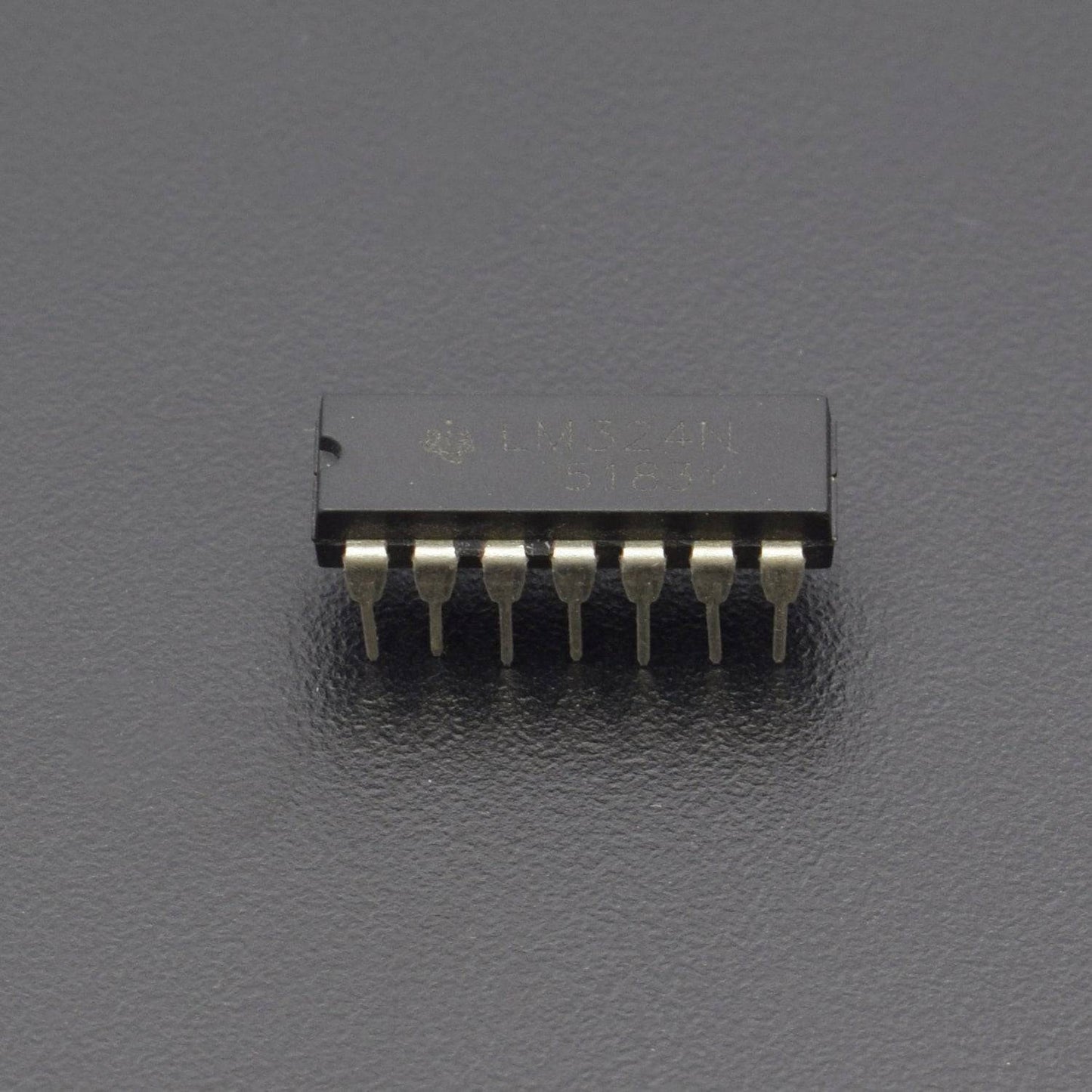

LM324N LM324 DIP14 TI Low Power Quad Op-Amp for Arduino DIY Projects -RS535

LM324N LM324 DIP14 TI Low Power Quad Op-Amp for Arduino DIY Projects -RS535

SKU:RS535

In stock

Regular price Rs. 15.00
Regular price Sale price Rs. 15.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Internally frequency compensated for unity gain
  • Large DC voltage gain: 100dB
  • Wide power supply range:
  • LM324/LM324A: 3V~32V (or ±1.5 ~ 15V)
  • LM2902/LM2902A: 3V~26V (or ±1.5V ~ 13V)
  • Input common-mode voltage range includes ground
  • Large output voltage swing: 0V to VCC-1.5V
  • Power drain suitable for battery operation.

The LM324/LM324A, LM2902/LM2902A consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. Operation from split power supplies is also possible so long as the difference between the two supplies is 3 volts to 32 volts. Application areas include transducer amplifier, DC gain blocks and all the conventional OP amp circuits which now can be easily implemented in single power supply systems.

DATA SHEET OF LM124 LM224 - LM324

DOWNLOAD
