LM2596HV DC-DC4.5-60V to 3-35V 3A Buck Converter Stepdown Module - RS473

LM2596HV DC-DC4.5-60V to 3-35V 3A Buck Converter Stepdown Module - RS473

RS473

In stock

Rs. 100.00
Rs. 100.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Switch frequncy: 150KHz
  • Input voltage: 4.5-60V
  • Output voltage: 3-35V
  • Output current: Max. 3A
  • Operating temperature: Industrial (-40-85'C)

Description:

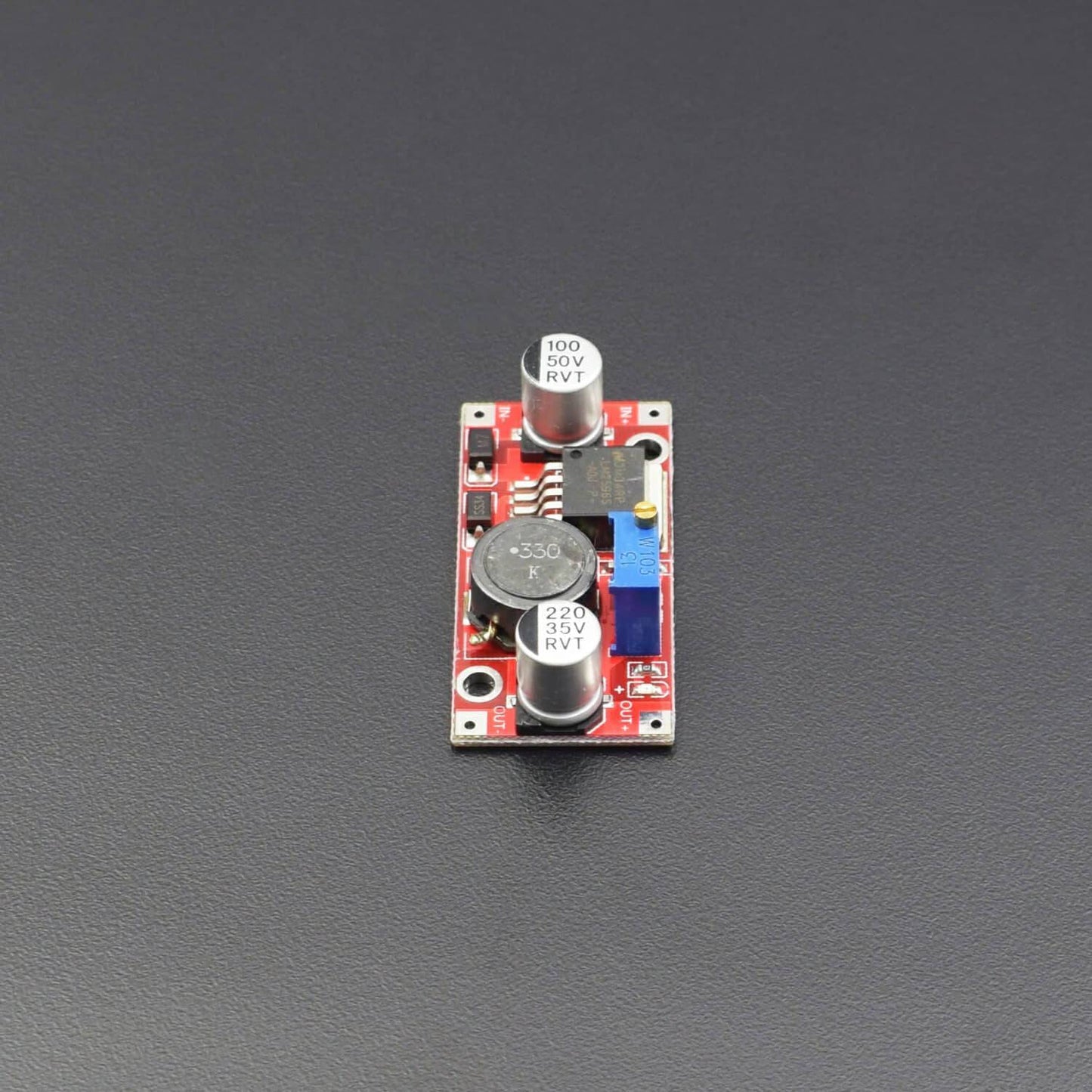

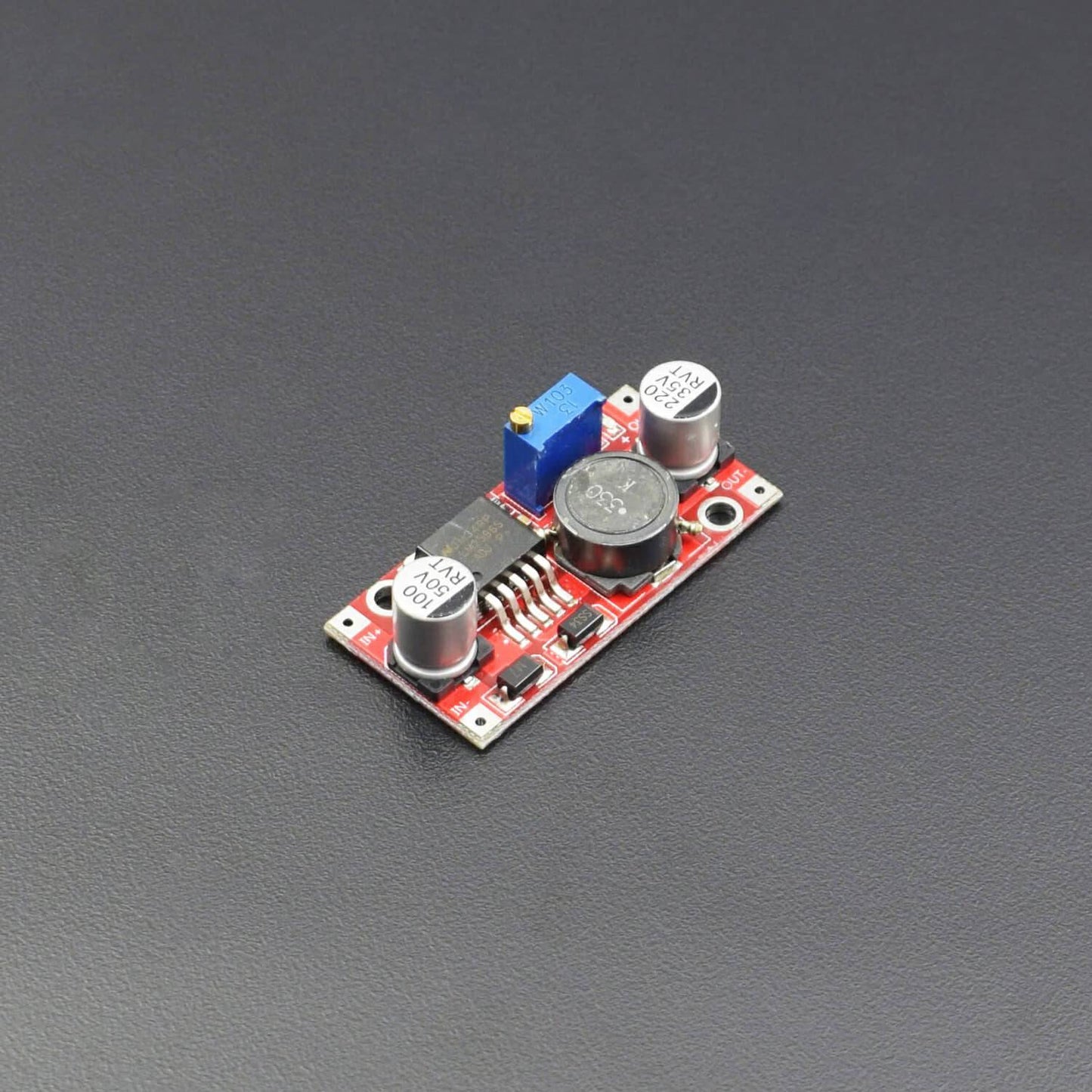

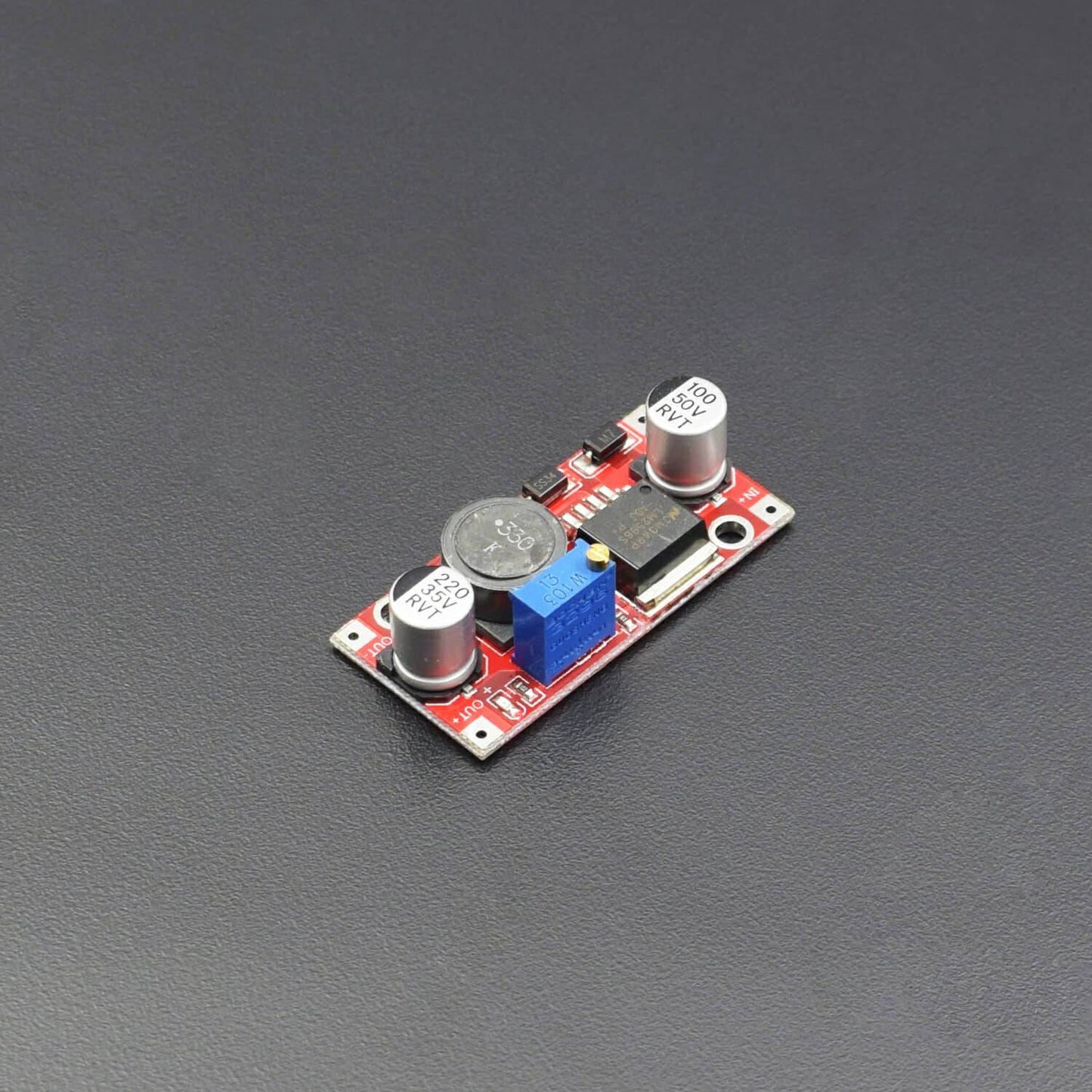

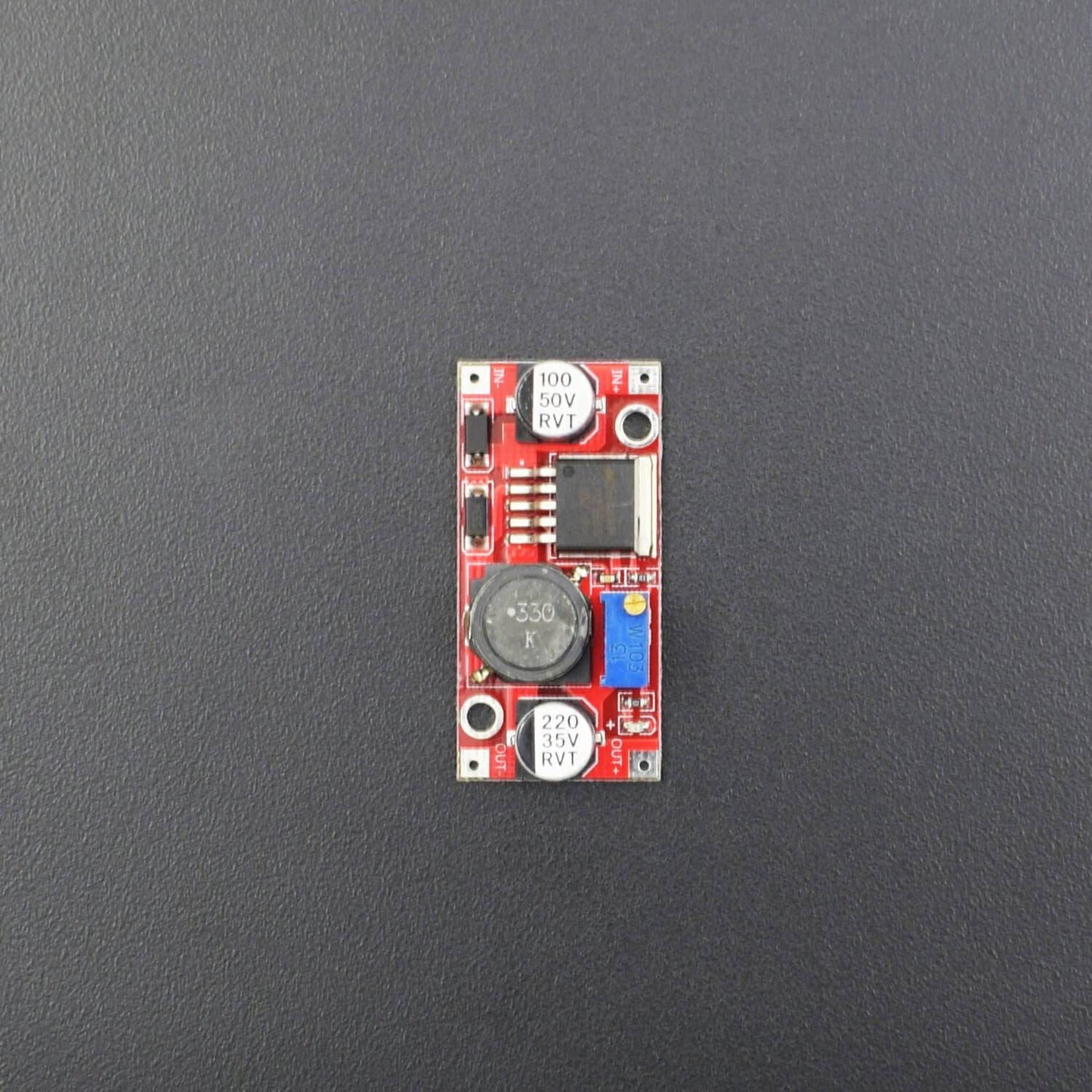

This is an LM2596HV DC-DC4.5-60V to 3-35V 3A Buck Converter Stepdown Module. It's conversion efficiency Up to 92% (output voltage higher, the higher the efficiency). This is non-synchronous rectification and non-isolated step-down module (buck). It has short circuit protection.

Specification:

  • Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
  • Full load temperature rise: 40
  • Load regulation: ± 0.5%
  • Voltage regulation: ± 2.5%
  • Dynamic response speed: 5% 200uS.

Features:

  • Input voltage:4.5-40V
  • Output voltage:1.5-35V(Adjustable)
  • Output current: Rated current is 2A,maximum 3A (Additional heatsink is required)

Package Included:

1 x LM2596HV DC-DC4.5-60V to 3-35V 3A Buck Converter Stepdown Module
