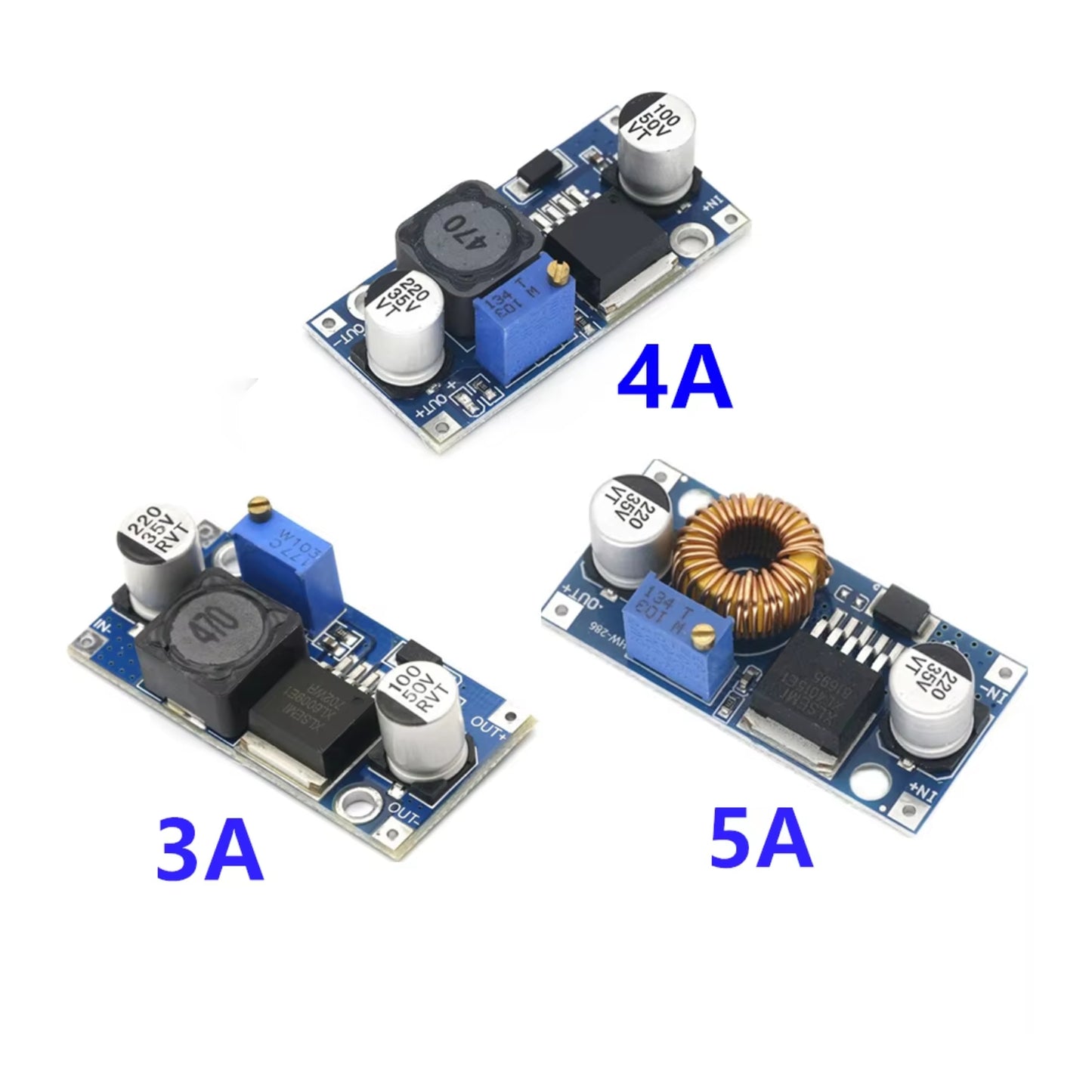

Descriptions:
3A:
This high-performance LM2596 DC-DC Buck module is ideal for powering low-voltage devices. With an input voltage range from 4V to 35V and adjustable output voltage from 1.23V to 30V, it offers versatility in various applications. The module delivers up to 3A of current with a maximum efficiency of 92%, ensuring stable and efficient power conversion.
It also features a low output ripple of <30mV, making it suitable for sensitive electronics. With a switching frequency of 150KHz and a wide operating temperature range of -45°C to +85°C, this module is reliable and durable for a variety of uses.
4A:
The XL6009 Boost Module is a non-isolated boost converter designed for high-efficiency voltage conversion. With an input voltage range from 3V to 32V and an adjustable output range from 5V to 35V, this compact module can efficiently step up low voltages to higher levels.
It supports a maximum input current of 4A and offers conversion efficiency of up to 94% (though efficiency decreases with higher output voltages). Operating at a switching frequency of 400KHz, it provides stable voltage regulation with a ripple of 50mV and load regulation of +/-0.5%. Ideal for a wide range of applications, this module operates within a temperature range of -40°C to +85°C.
5A:
The LM2596 Buck-Boost Power Supply Regulator Module offers efficient voltage conversion with an adjustable output range of 1.25V to 36V. With an input voltage range of 4V to 38V, this non-isolated buck module can deliver up to 5A of output current, making it suitable for a wide range of power supply applications.
Featuring a conversion efficiency of up to 96%, the module ensures minimal energy loss, with a low load and voltage adjustment rate of ≤0.8%. For applications over 50W, the addition of a heat sink is recommended for optimal performance. With built-in short circuit and temperature protection, this module ensures reliability even in demanding conditions, operating within a temperature range of -40°C to +85°C.
Specifications:

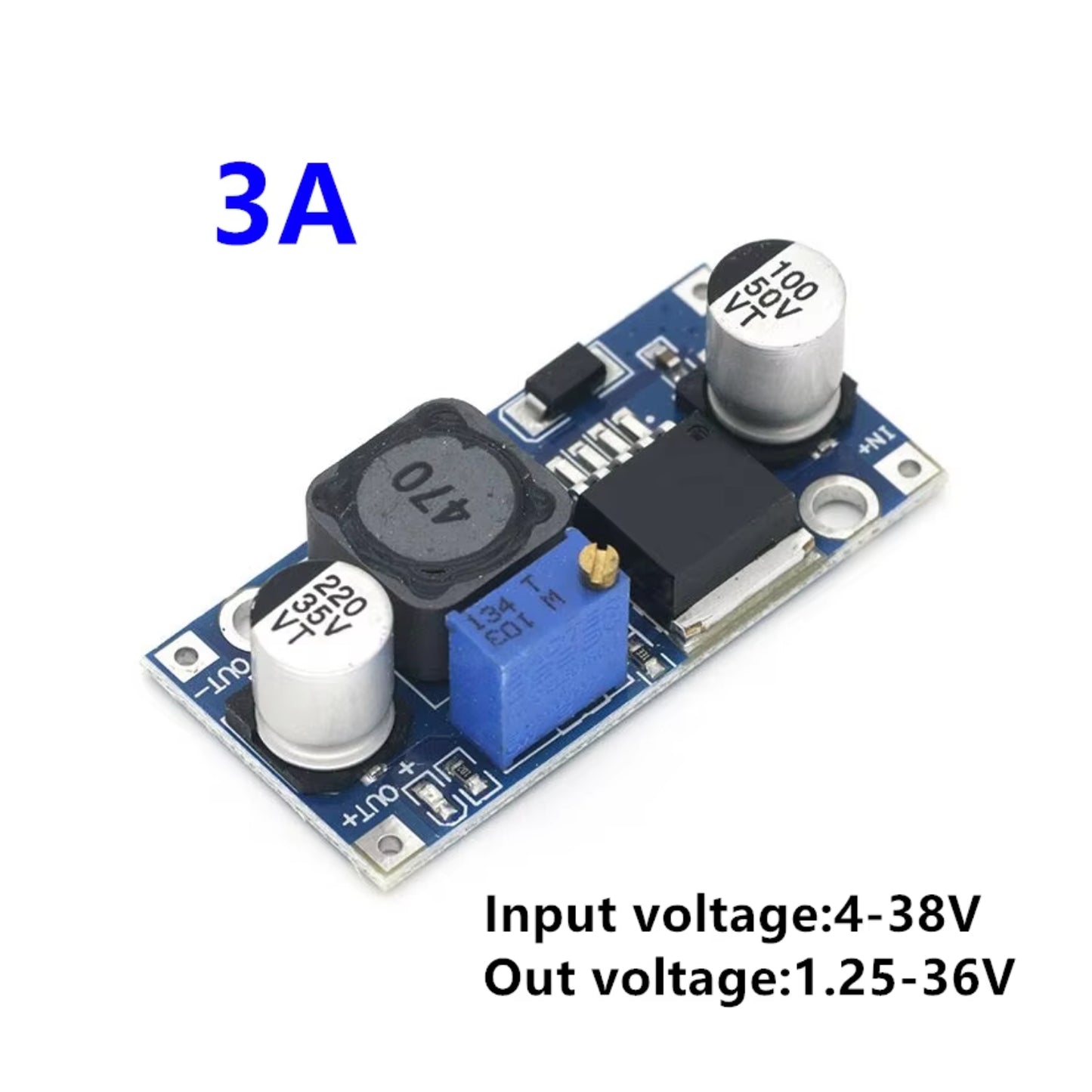

3A:
- Name : LM2596 DC-DC Buck module
- Input Voltage :4V ~ 35V
- Output Voltage : 1.23V ~ 30V
- Output Current :3A( Max)
- Conversion Efficiency:92%( MAX )
- Output Ripple: <30mV
- Switching Frequency: 150KHz
- Working Temperature: -forty Five~ +85
- Size :43mm * 21mm * 14mm(Long*Width*Hight)

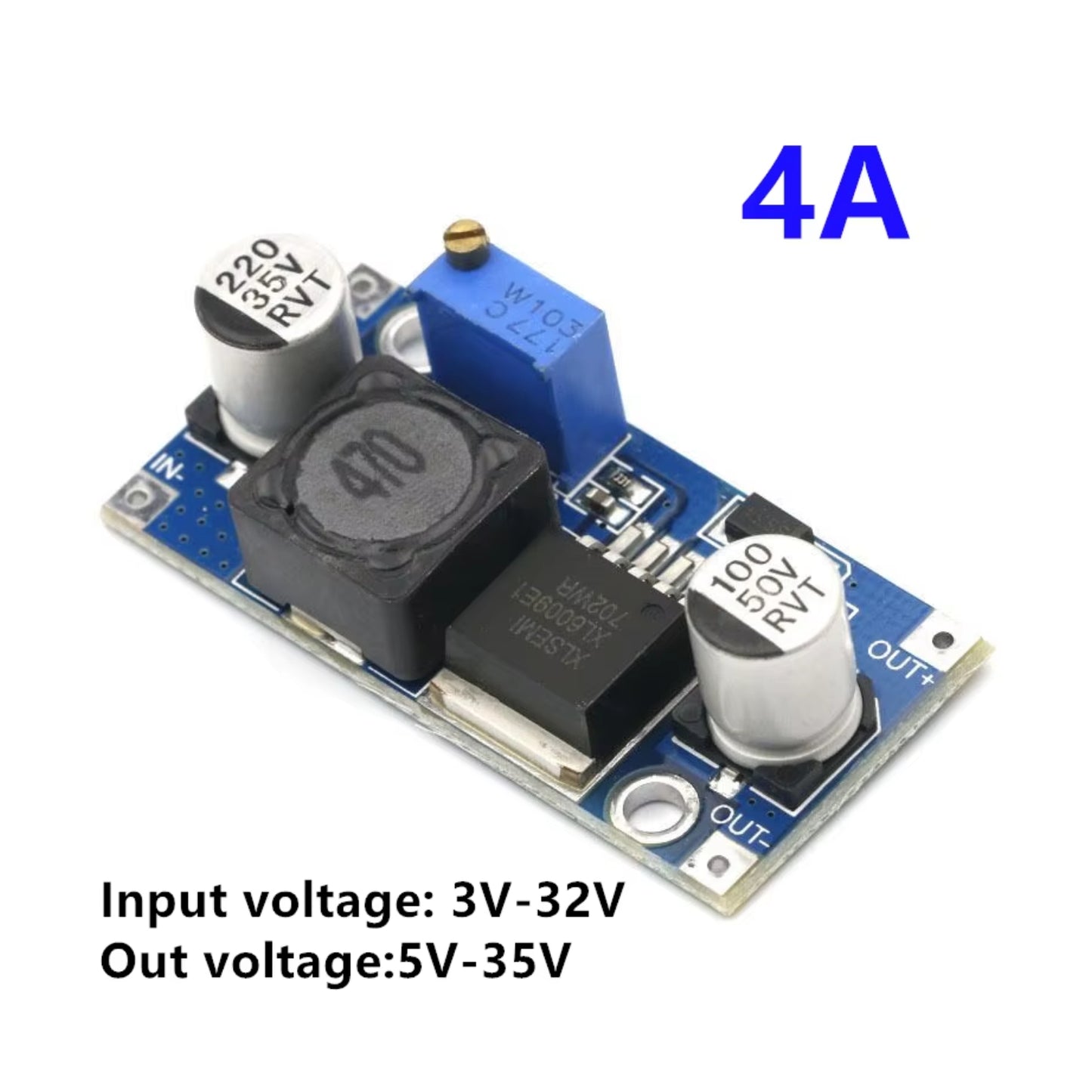

4A:
- Model: XL6009 Boost Module
- Module Properties: Non-isolated boost (BOOST)
- Rectification: Non-Synchronous Rectification
- Input Range: 3V ~ 32V
- Output Range: 5V ~ 35V
- Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
- Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
- Switching Frequency: 400KHz
- Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
- Load Regulation: +/-0.5%
- Voltage Regulation: +/-0.5%
- Operating Temperature: -40 degree to +85 degree
- Body Size: 43 x 20 x 12mm/1.7" x 0.8" x 0.47"(L*W*T)
- Input way: IN+, IN-;
- Output way: OUT+, OUT-

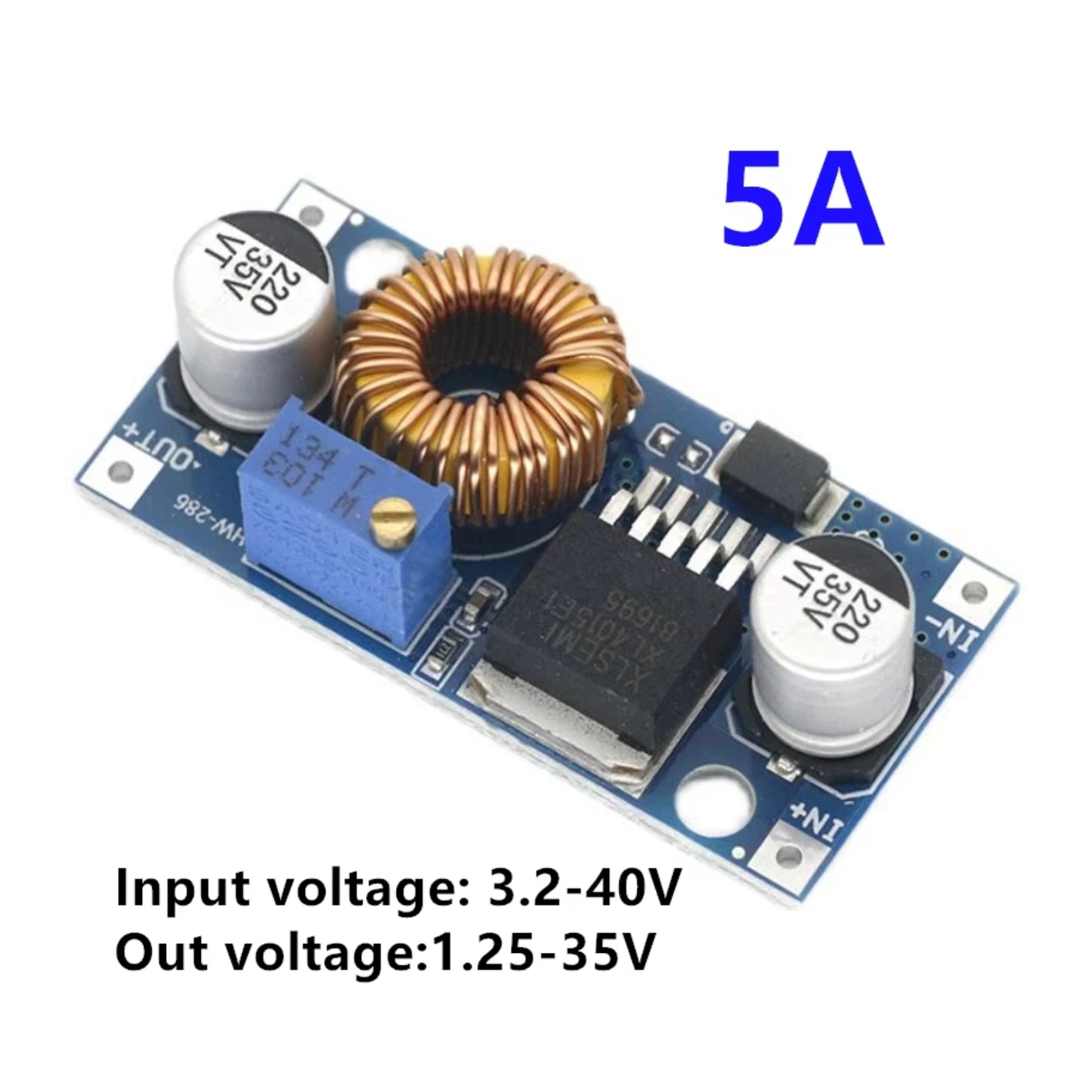

5A:
- Module Nature: Non-isolated Buck Module (BUCK)
- Input Voltage: 4-38V (Please try not to exceed 38V as input)
- Output Voltage: 1.25-36V continuously adjustable
- Output Current: 0-5A, recommended for use within 4.5A.
- Output Power: It is recommended to use within 75W. If more than 50W, please add heat sink.
- Working Temperature: -40~+85 degrees
- Working Frequency: 180KHz SUNLEPHANT
- Conversion Efficiency: up to 96% (efficiency related to input, output voltage, current, voltage difference)
- Load Adjustment rate: S(I) ≤ 0.8%
- Voltage Adjustment rate: S(u) ≤ 0.8%
Power indicator: Yes - Short Circuit Protection: Yes (Limited Current 8A)
- Temperature Protection: Yes (Automatically turn off the output after over temperature)
- Input Reverse Connection Protection: None, (If necessary, please input a large current diode in the input string)
- Installation Method: 2 3mm Silk
- Wiring Method: Welding, V-IN is input, V-OUT is output
Features:
- Supports buck (step-down) and boost (step-up) modes for flexible voltage conversion.
- Wide input and output voltage ranges for compatibility with various power sources and loads.
- Space-saving design suitable for a wide range of applications and projects.
- Reduces heat generation and improves overall system efficiency.
- Simple to integrate into various electronic circuits and projects.
Package Included:
1 x LM2596 XL4015 Buck Boost Converter Module
