LM2596 Buck Converter LM2596 DC-DC Buck Converter Adjustable Step Down Power Supply Module - MD0102

LM2596 Buck Converter LM2596 DC-DC Buck Converter Adjustable Step Down Power Supply Module - MD0102

SKU:MD0102

1063 in stock

Regular price Rs. 60.00
Regular price Sale price Rs. 60.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

LM2596 Buck Converter is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, and 12 V, and an adjustable output version. The LM2596 Buck Converter operates at a switching frequency of 150kHz, thus allowing smaller-sized filter components than what would be required with lower frequency switching regulators.

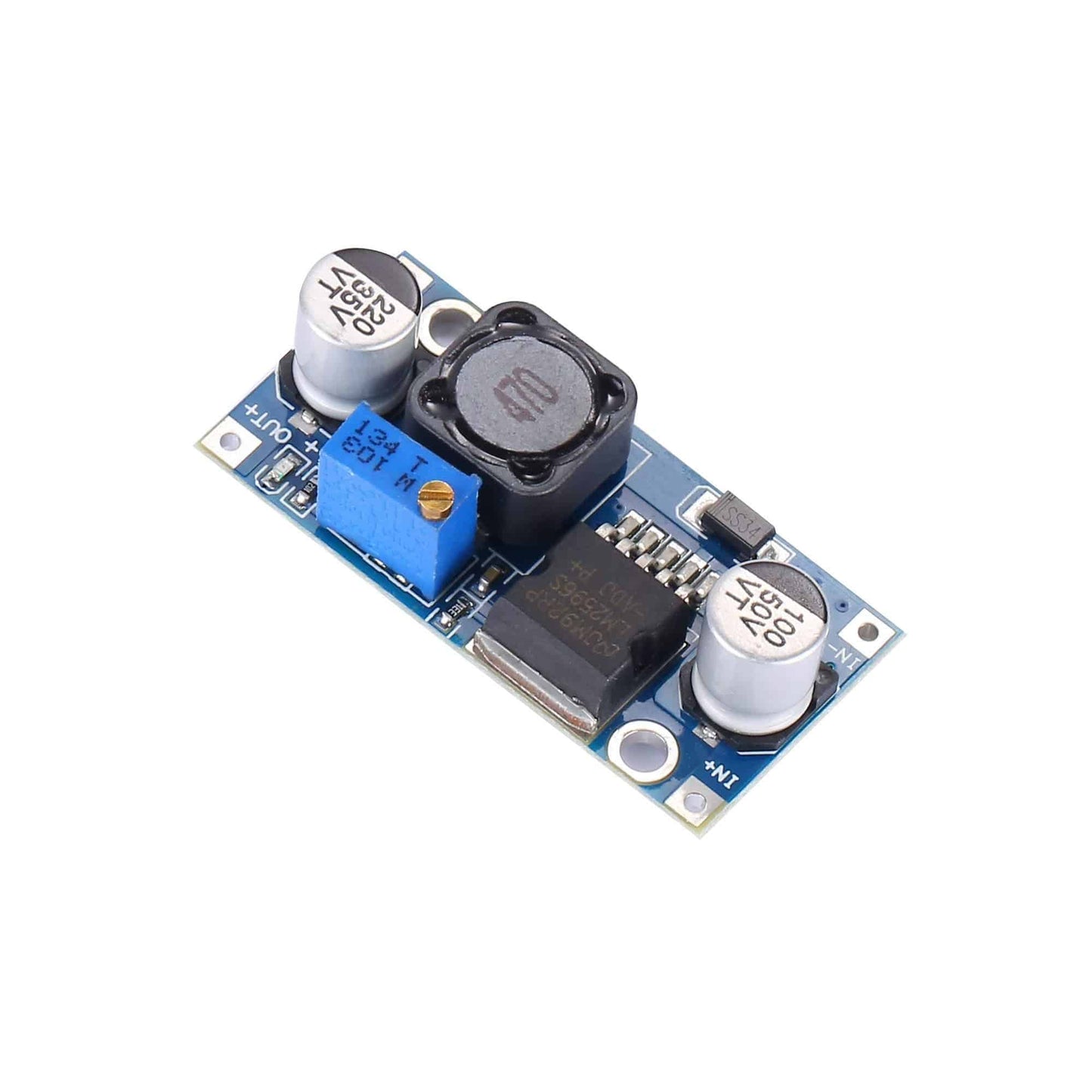

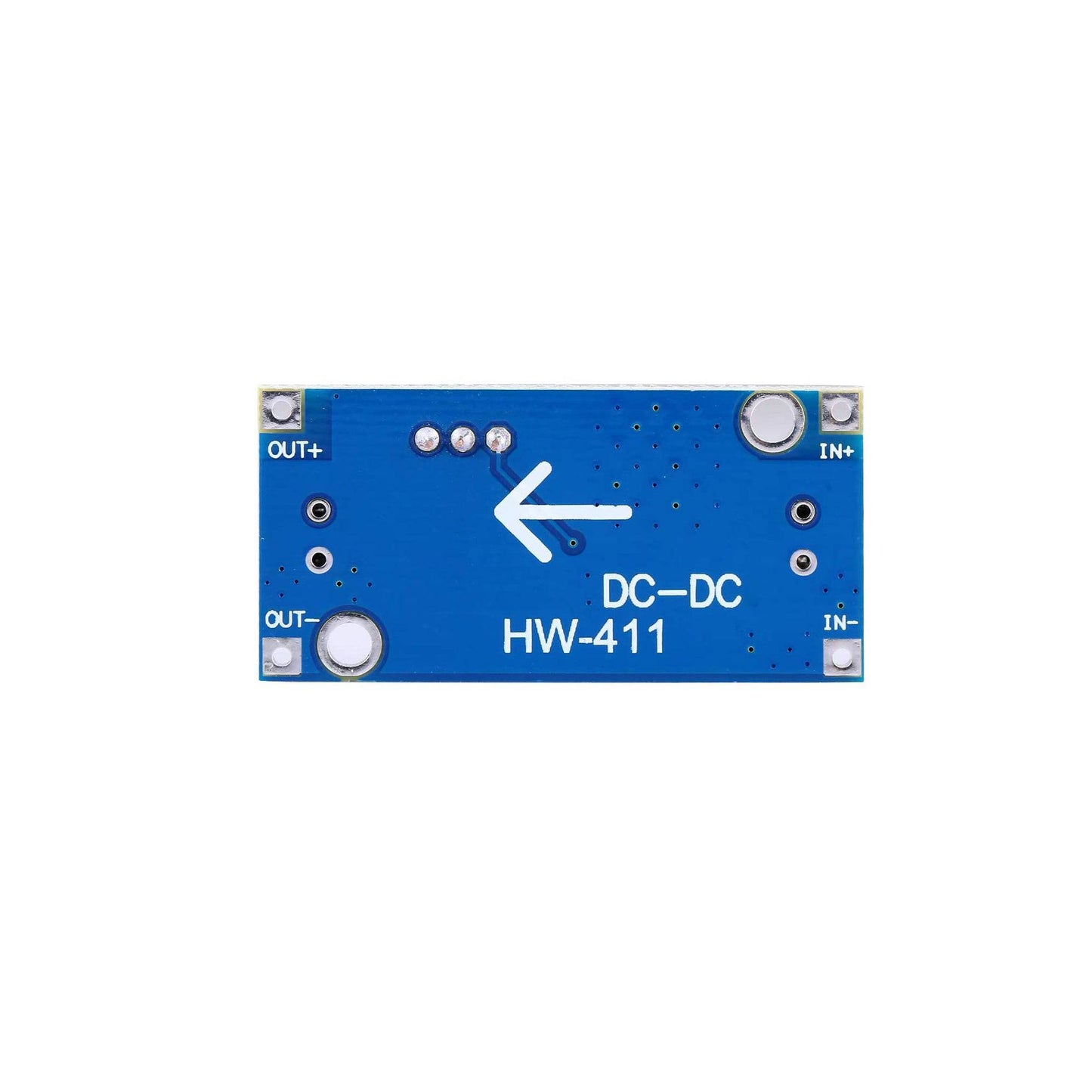

This is an LM2596 Buck Converter step-down power module with a high-precision potentiometer, capable of driving a load up to 3A with high efficiency, which can work with Freeduino UNO, other mainboards, and basic modules. When the output current keeps greater than 2.5A (or output power greater than 10W), please add a heat sink to it. This LM2596 Buck Converter is internally compensated to minimize the number of external components to simplify the power supply design.

Since the LM2596 Buck Converter is a switch-mode power supply, its efficiency is significantly higher in comparison with popular three-terminal linear regulators, especially with higher input voltages. The LM2596 operates at a switching frequency of 150 kHz thus allowing smaller-sized filter components than what would be needed with lower frequency switching regulators.

Specifications:

Input Voltage

4 to 35V

Output Voltage

1.25 to 30V

Output Current

3A (Max)

Conversion Efficiency

92%(highest)

Switching Frequency

150KHz

Output Ripple

30mA (maximum)

Load Regulation

± 0.5%

Voltage Regulation

± 0.5%

Dynamic Response speed

5% 200uS

Operating Temperature

-40 to +90°C

Features:

  • Non-isolated step-down (BUCK) switching regulator
  • Short circuit protection: Current limiting, self-recovery

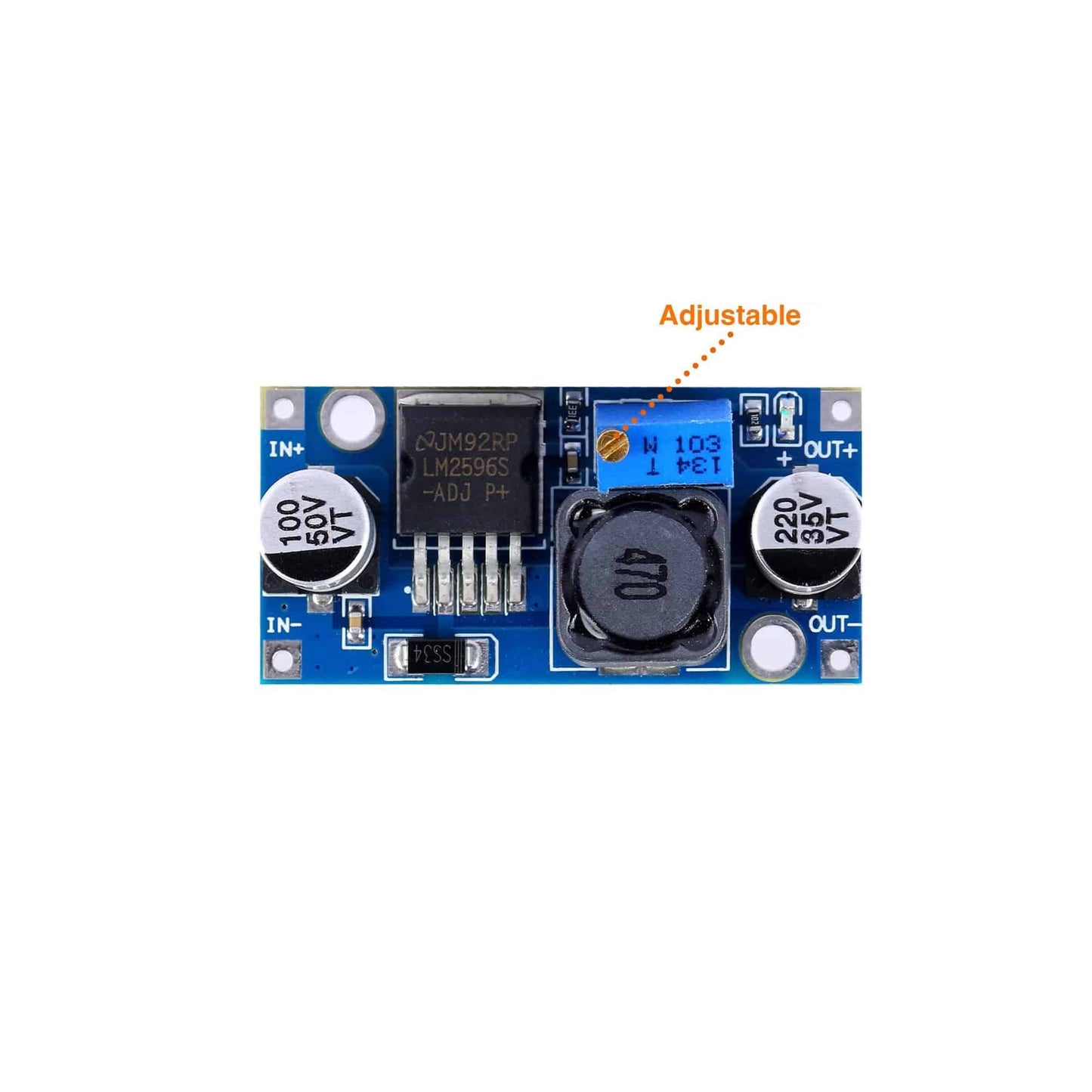

  • The potentiometer adjustment direction is Clockwise (increase) and Anti-clockwise (decrease)
  • Non-synchronous rectification

Package Included:

1 x LM2596 Buck Converter LM2596 DC-DC Buck Converter Adjustable Step Down Power Supply Module
