Description:
When a current flows through a conductor placed within a magnetic field, the moving charges (electrons or holes) are deflected by the magnetic force. This deflection results in an accumulation of charge carriers on one side of the conductor, creating an electrical potential difference, known as the Hall voltage.
Hall Effect sensors are electronic devices that leverage this principle to detect and measure magnetic fields. These sensors typically consist of a thin film of semiconductor material, such as silicon or gallium arsenide, through which a current flows. When a magnetic field is applied, the Hall voltage generated across the film is measured and converted into an electronic signal.
Specifications:
- Model Type: Hall Effect Sensor
- Sensing Range Max: 12.5mm
- Supply Voltage DC Min: 3.8V
- Supply Voltage DC Max: 24V
- Sensor Terminals: Wire Leads
- Output Configuration: Sink
Features:
- Simple to operate.
- Reliable performance.
- Optimal length and connector.
Package Included:

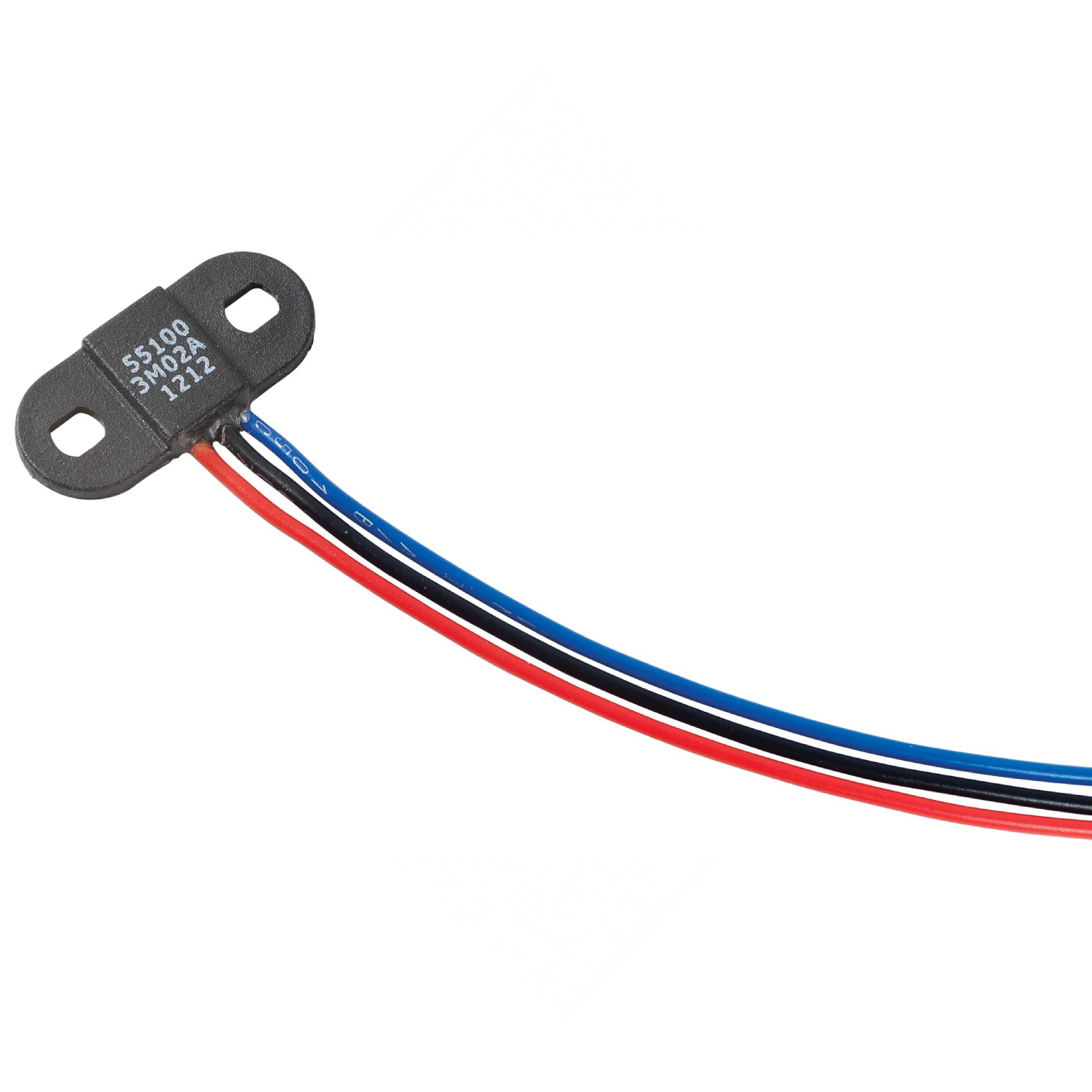

1 x LITTELFUSE HALL EFFECT SENSOR, 12.5MM, 24VDC
