Description:

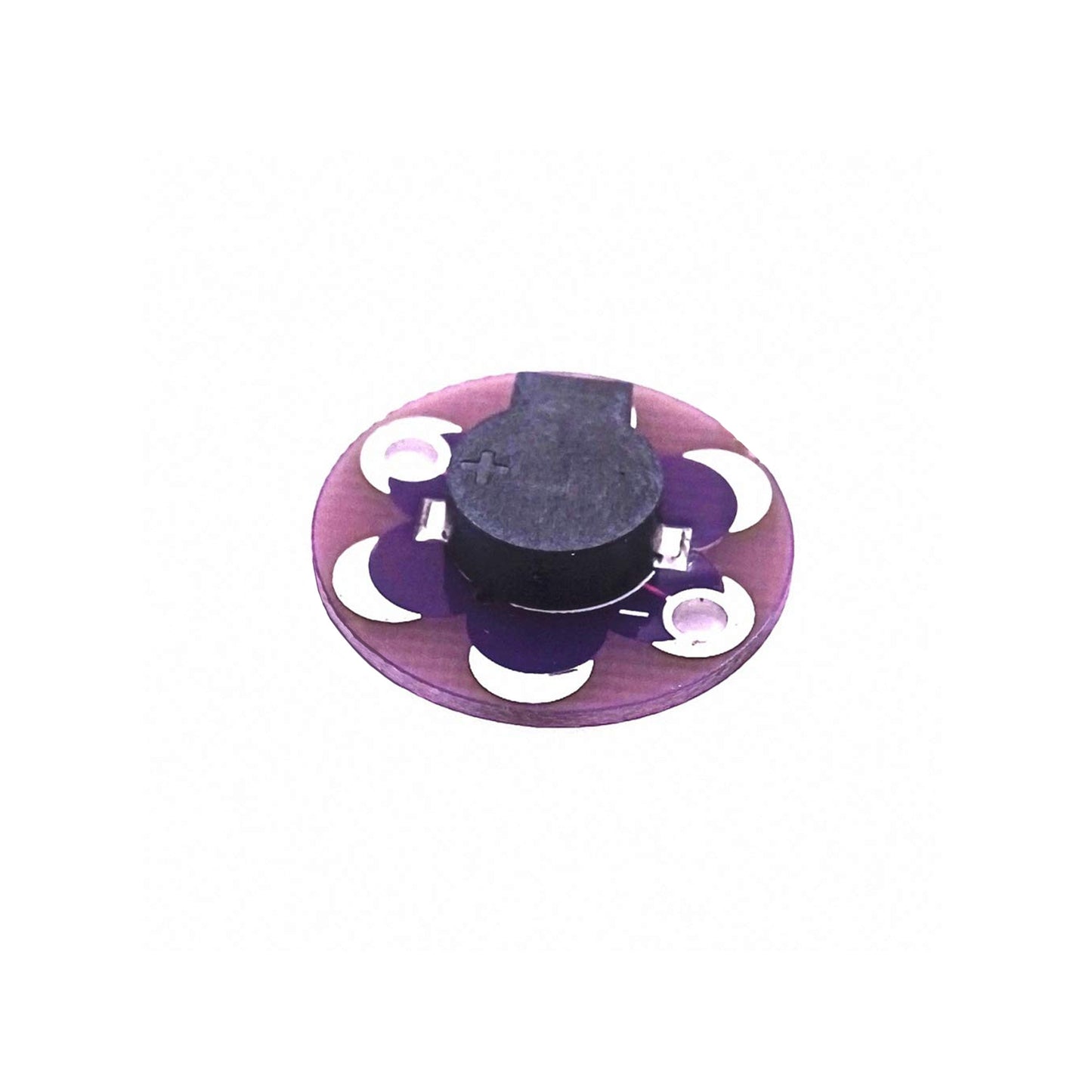

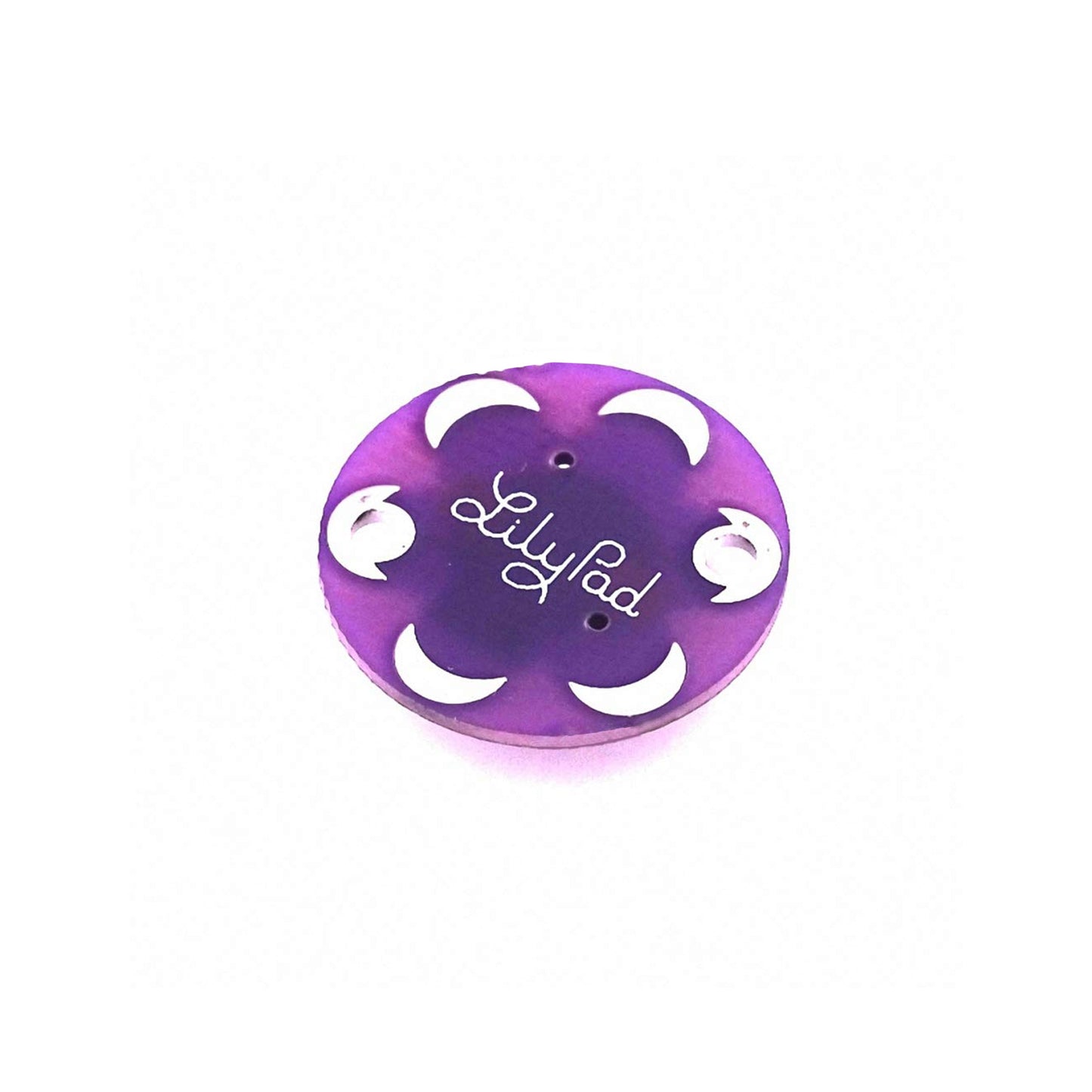

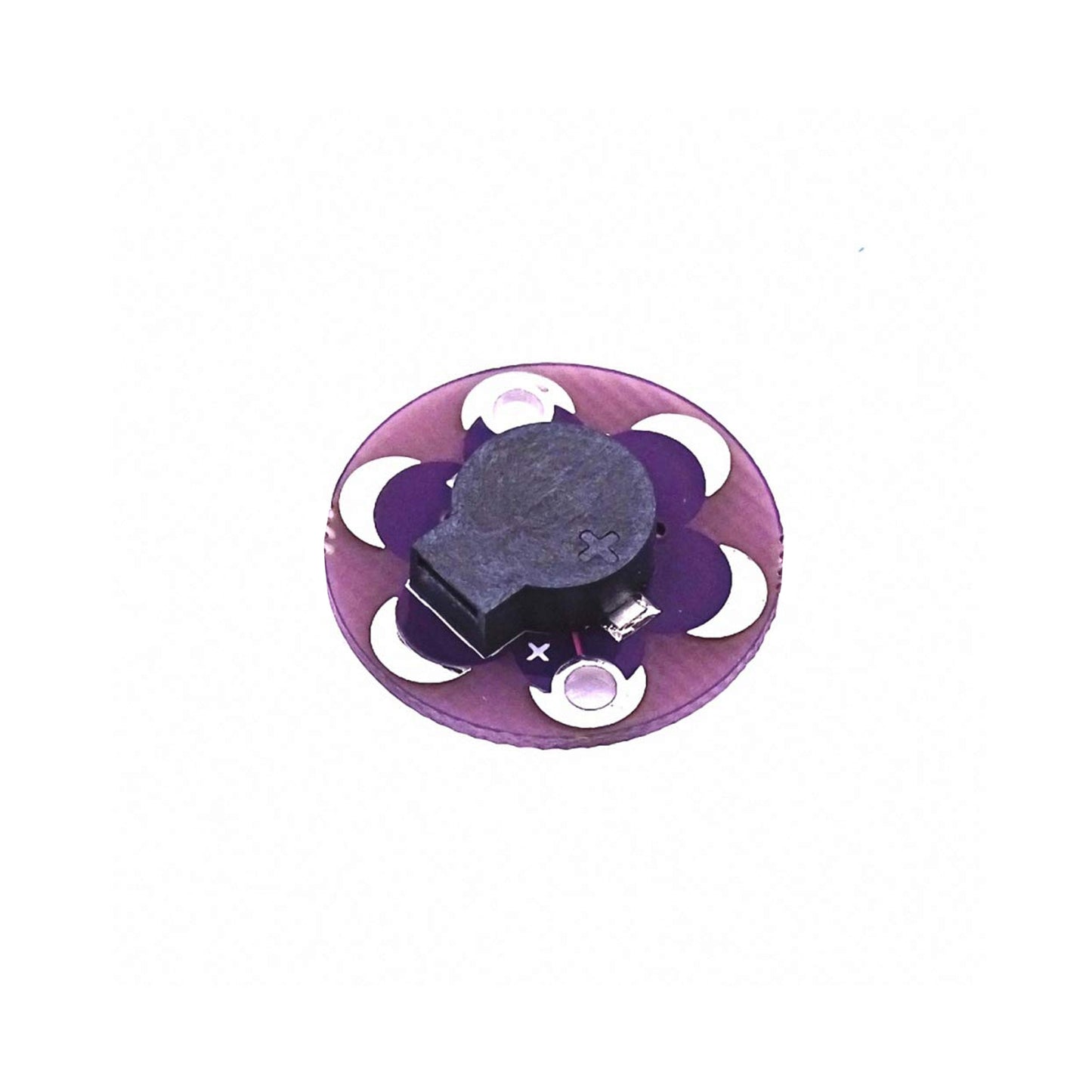

This LilyPad Buzzer is a small buzzer for the LilyPad system. Use 2 I/O pins on the LilyPad main board and create different noises based on the different frequencies of I/O toggling. Loud enough to hear inside a pocket but not obtrusively loud. LilyPad is a wearable e-textile technology. Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available.
Specifications:
- Rated Voltage: 3.6V
- Operating Voltage: 2.5 ~ 4.5V
- Coil Resistance: 16.0±2.4 Ohm
- Coil Impedance: 31.0 Ohm
- Rated Frequency: 2730 MHz
- Operating Temperature: -30 ~ 70°C
- Storage Temperature: -40 ~ 85°C
Caution:
- This is an inductive buzzer meaning that it will act as a short to ground if you are not actively driving it.
- We recommend you put both I/O pins to low (0V) when the buzzer is not used.
- Also, it’s come to our attention that washing these buzzers will damage them.
- Until we’ve figured out a solution to this, avoid washing any portion of your project that contains one of these buzzers.
- They’re even washable!
Package Included:
1 x LilyPad Buzzer Small Speakers Module Compatible with Arduino
