- This is LilyPad Arduino - the main board consisting of an ATmega328 with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible.
- Board will run from 2V to 5V.
- The latest version of the LilyPad supports automatic reset for even easier programming.
- The back side of the LilyPad is now completely flat!
- We now use a surface mount programming connector to keep the header from poking through.
- This version of the LilyPad now uses the new ATmega328 at 8MHz.
- Arduino 0016 supports the Arduino Pro Mini 328/8MHz/16MHZ.
Description:

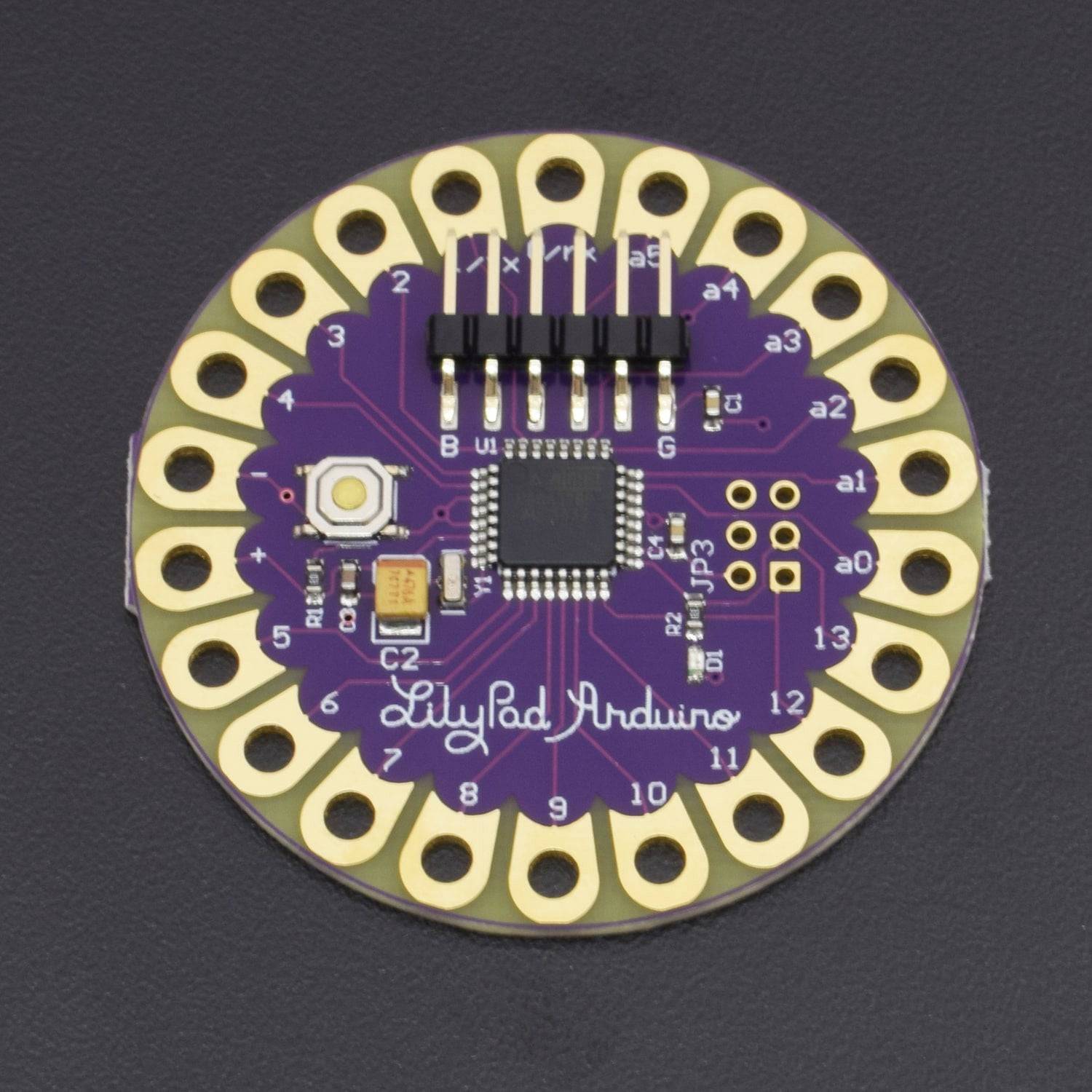

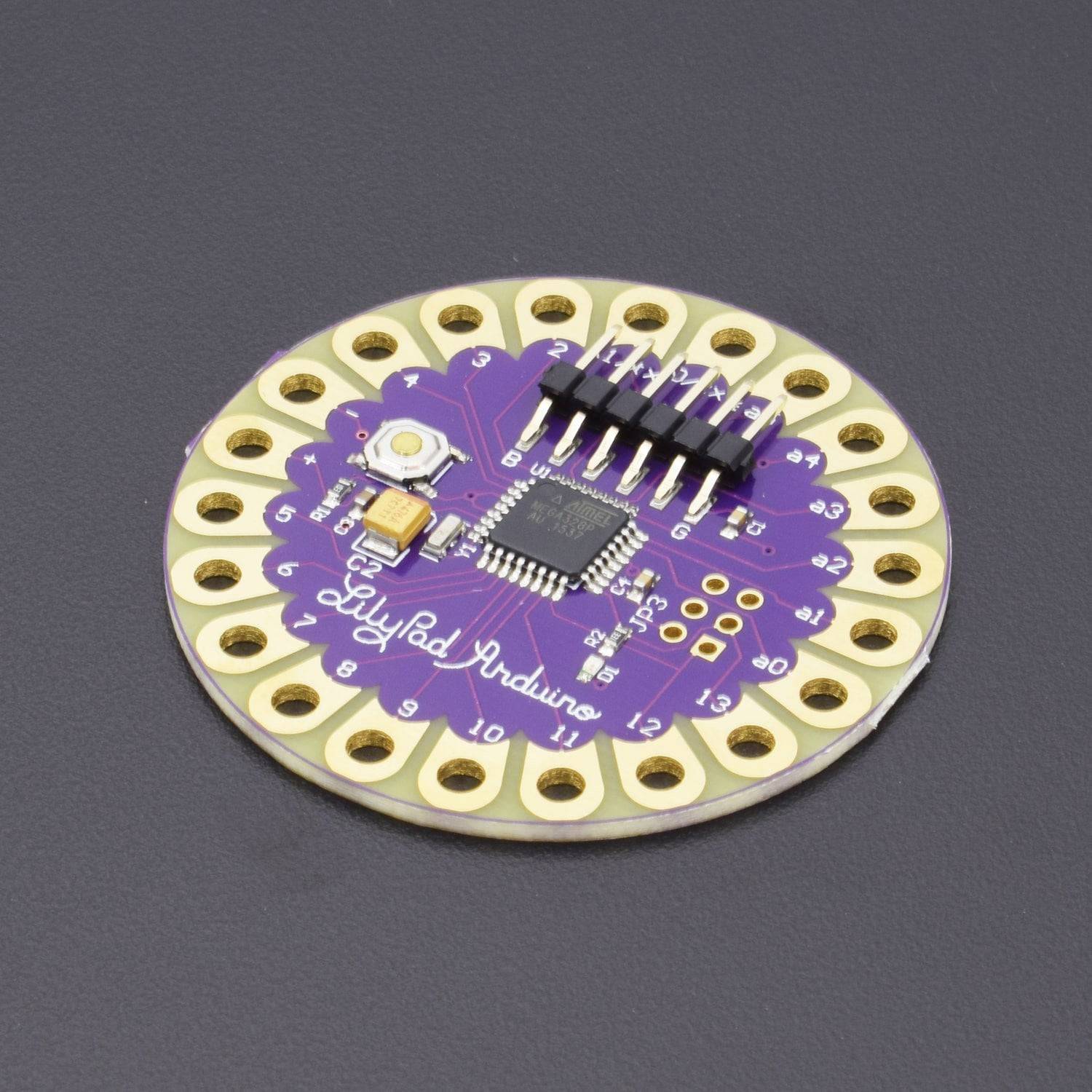

The LilyPad Arduino 328 Main Board is an Arduino-programmed microcontroller designed to be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package designed to minimize snagging and profile, with wide tabs that can be sewn down and connected with conductive thread.
The LilyPad Arduino consists of an ATmega328 with the Arduino boot loader and a minimum number of external components to keep it as small (and as simple) as possible. This board will run from 2 V to 5 V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch).
Specifications:
| Microcontroller Chip | ATmega168 or ATmega328V |
| Operating Voltage | 2.7 ~ 5.5 V DC |
| Input Voltage | 2.7V-5.5 V (Recommended) |
| Analog I/O Pins | 6 |
| Digital I/O Pins | 14 |
| PWM Digital I/O Pins | 6 |
| Flash Memory | 16 KB |
| SRAM | 1 |
| EEPROM | 512 bytes |
| DC Current per I/O Pin | 40mA |
| Diameter | 50mm |
Features:
- This is LilyPad Arduino - the main board consisting of an ATmega328 with the Arduino boot loader and a minimum number of external components to keep it as small (and as simple) as possible.
- The board will run from 2 V to 5 V.
- The latest version of the LilyPad supports automatic reset for even easier programming.
- The back side of the LilyPad is now completely flat!
- We now use a surface mount programming connector to keep the header from poking through.
- This version of the LilyPad now uses the new ATmega328 at 8MHz.
- Arduino 0016 supports the Arduino Pro Mini 328/8MHz/16MHZ.
- Use this setting when using this new LilyPad 328.
Package Included:
1 x LilyPad 328 Arduino 328 Main Board ATmega328P 16M
