LILYGO TTGO T-Display-S3 ESP32-S3 Board 1.9" LCD & ESP32-S3 TTGO T-Display 1.9inch LCD Display Development Board For Data Logging and Display - RS6986

LILYGO TTGO T-Display-S3 ESP32-S3 Board 1.9" LCD & ESP32-S3 TTGO T-Display 1.9inch LCD Display Development Board For Data Logging and Display - RS6986

RS6986

In stock

Rs. 4,299.00
Rs. 4,299.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

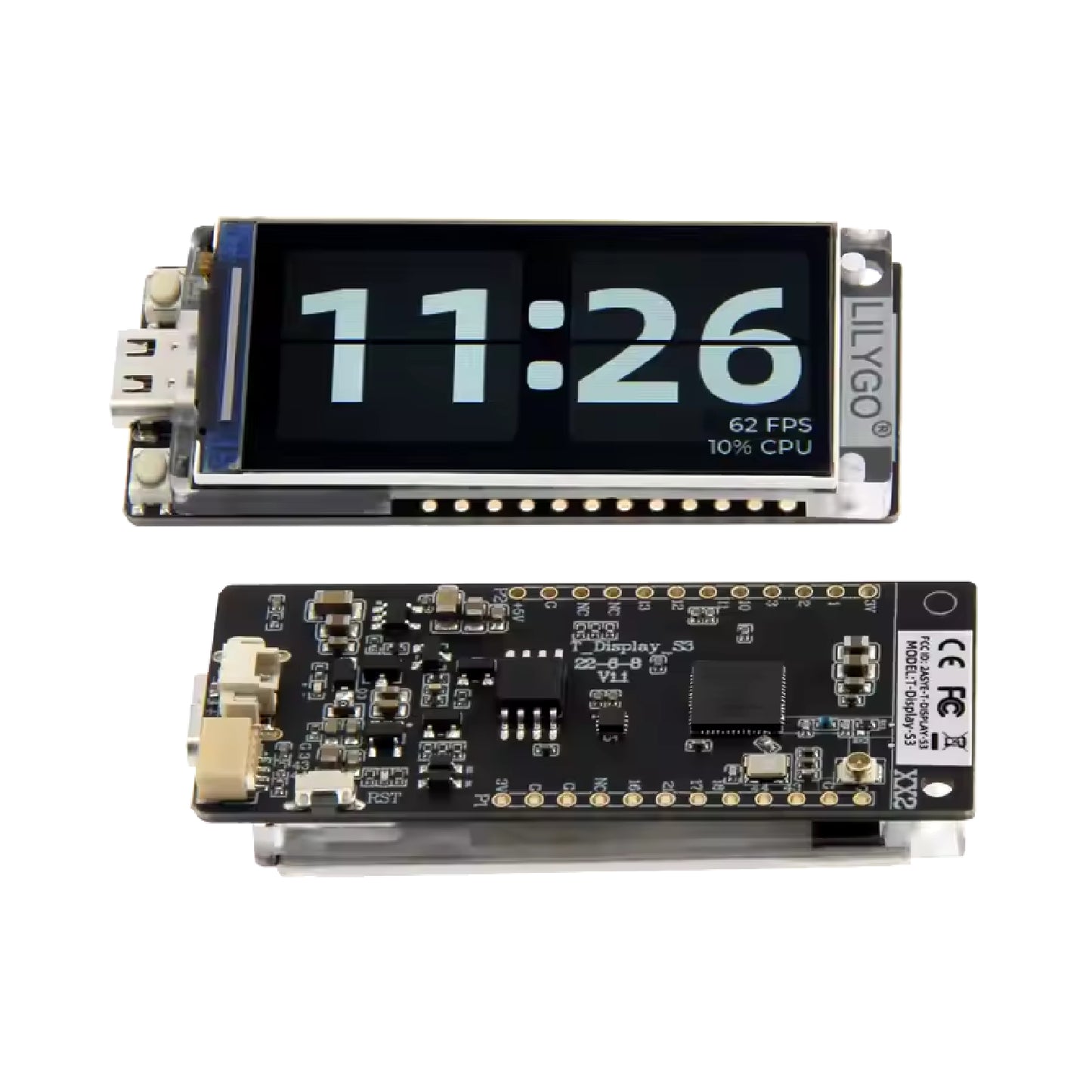

T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD colour screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.

Specifications:

  • Flash:16MB PSRAM:8MB

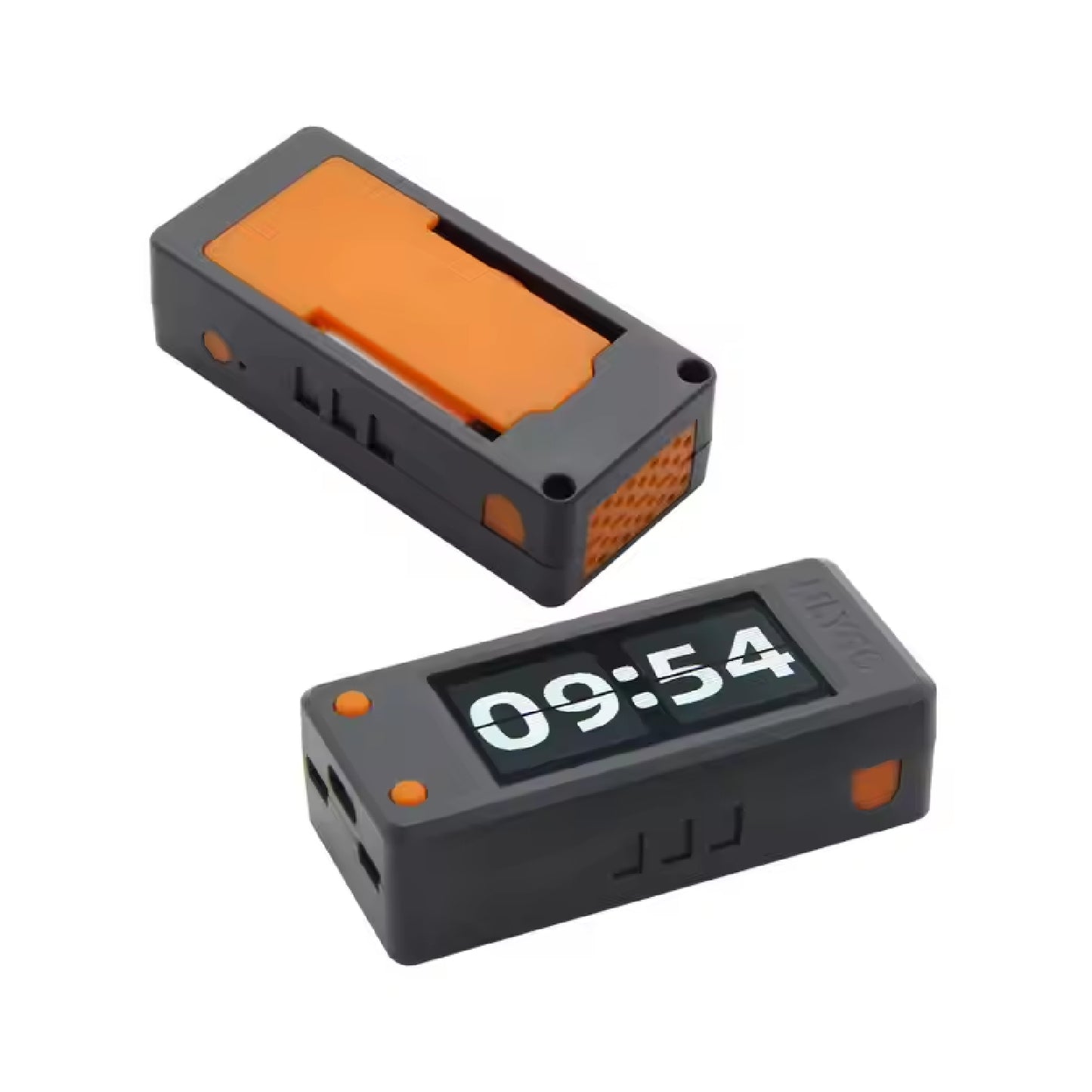

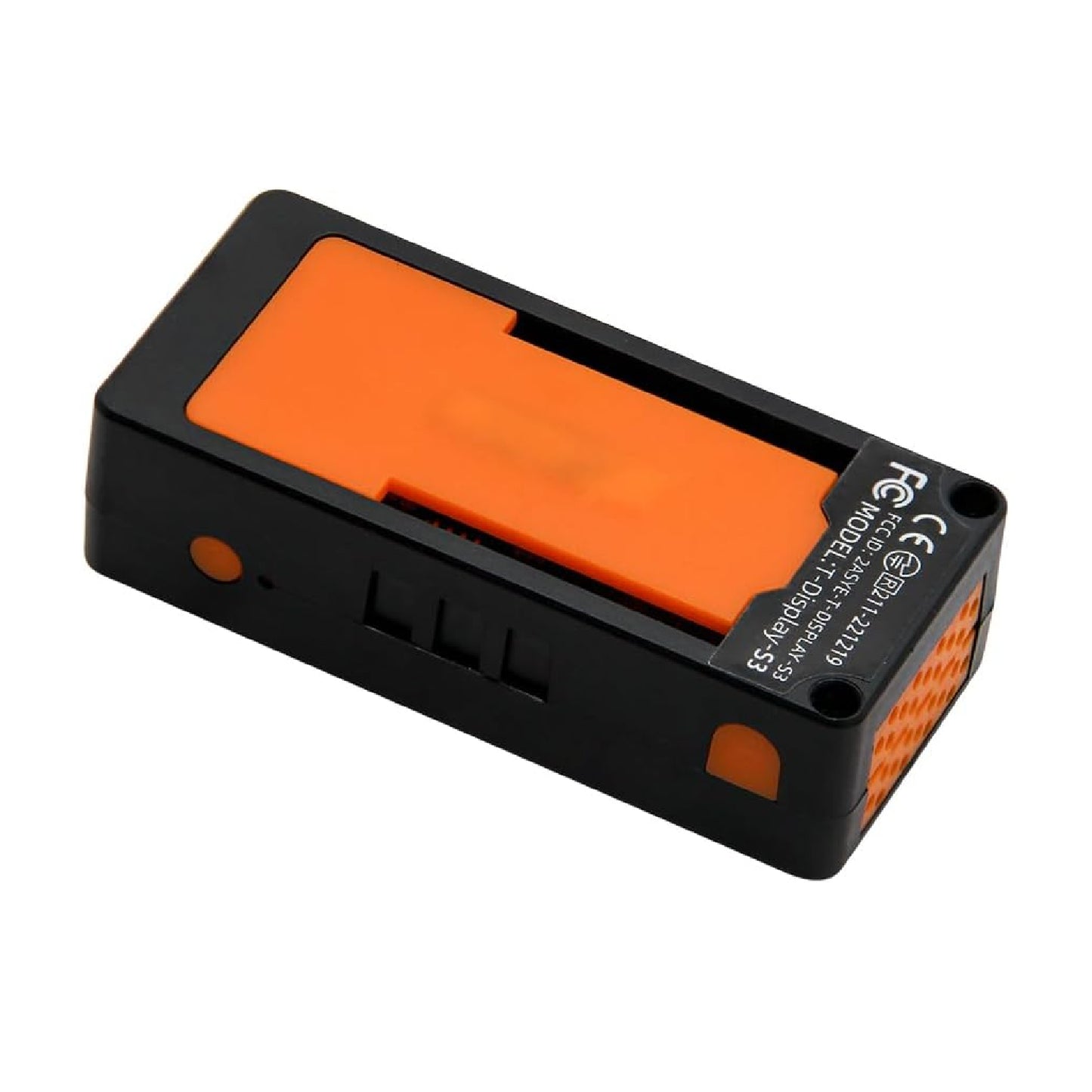

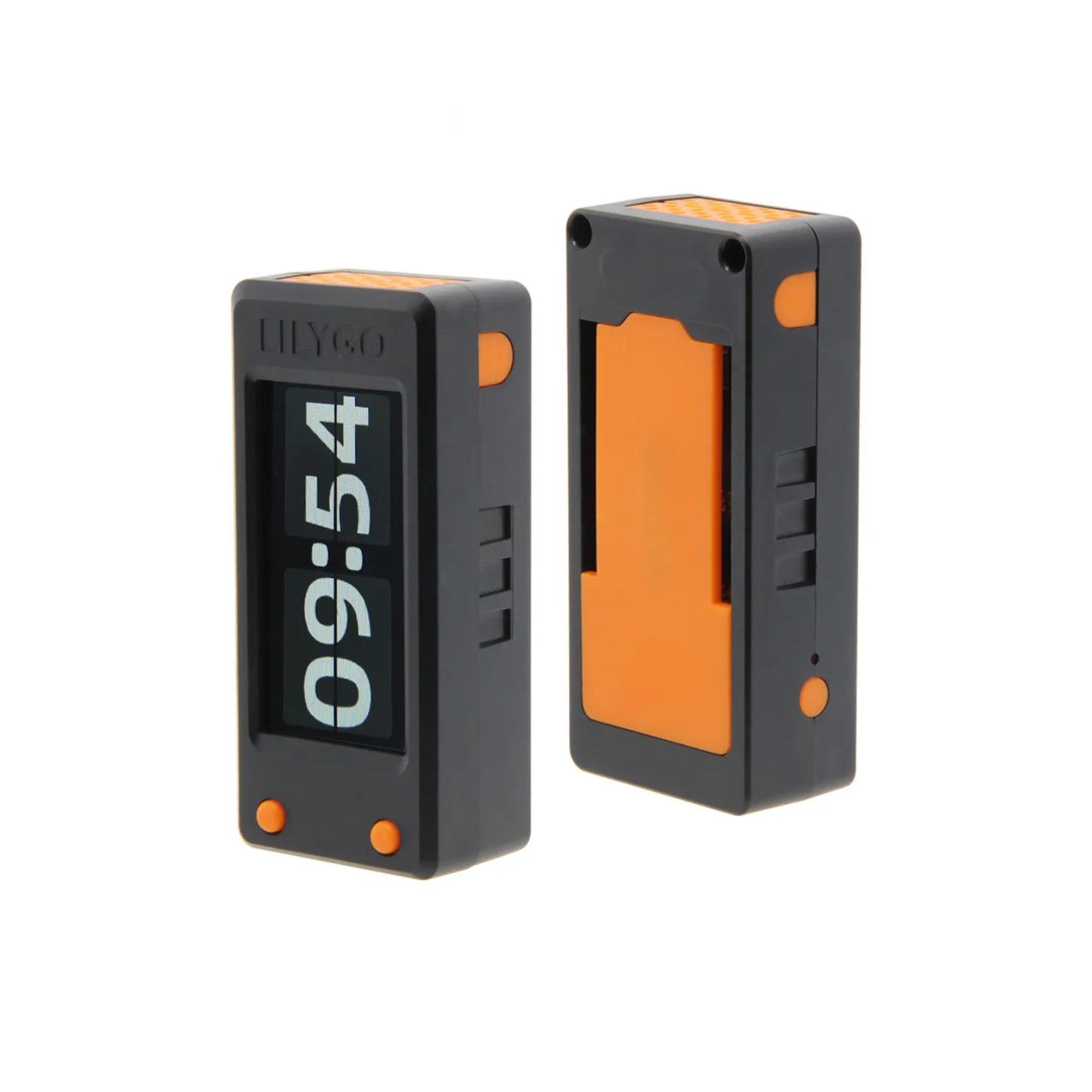

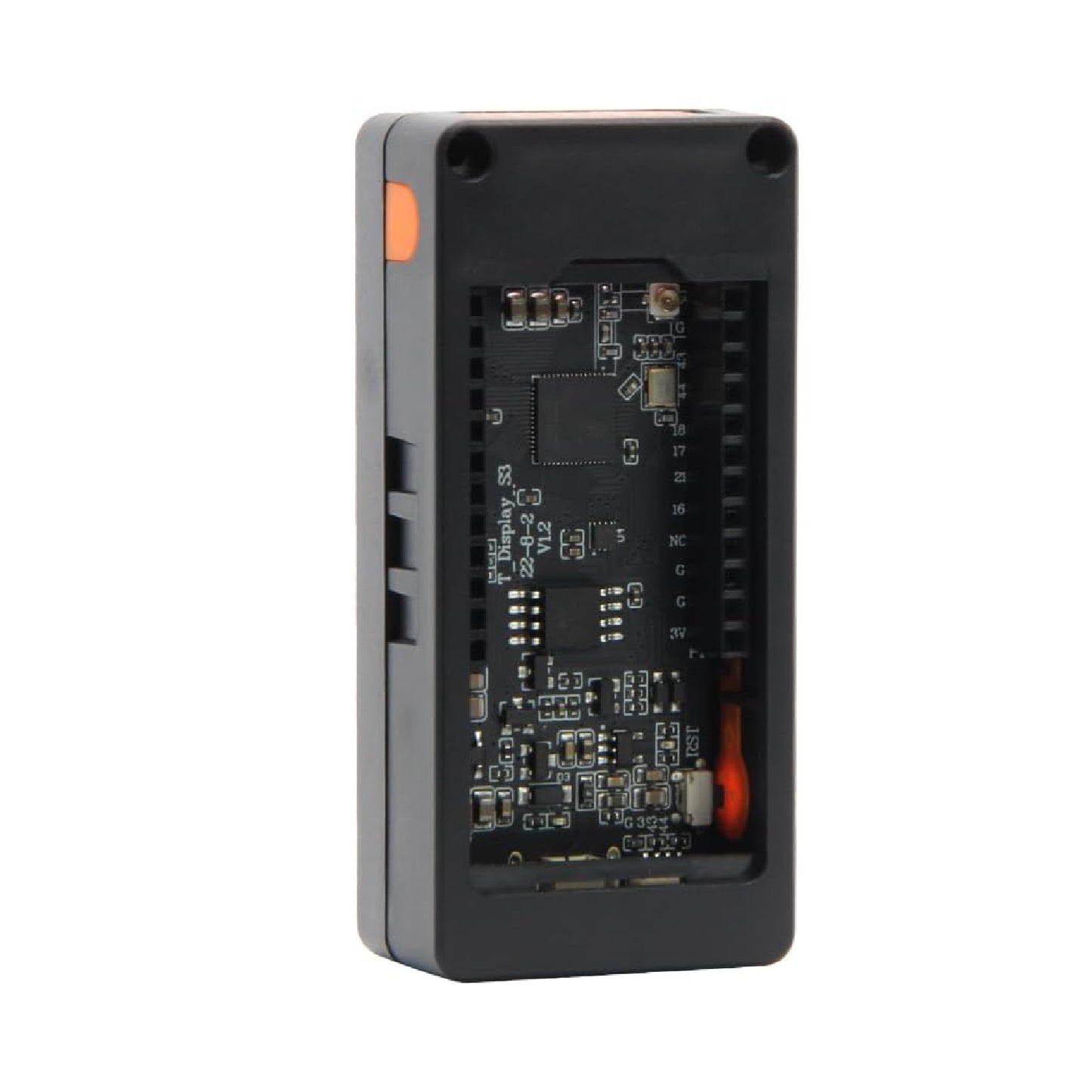

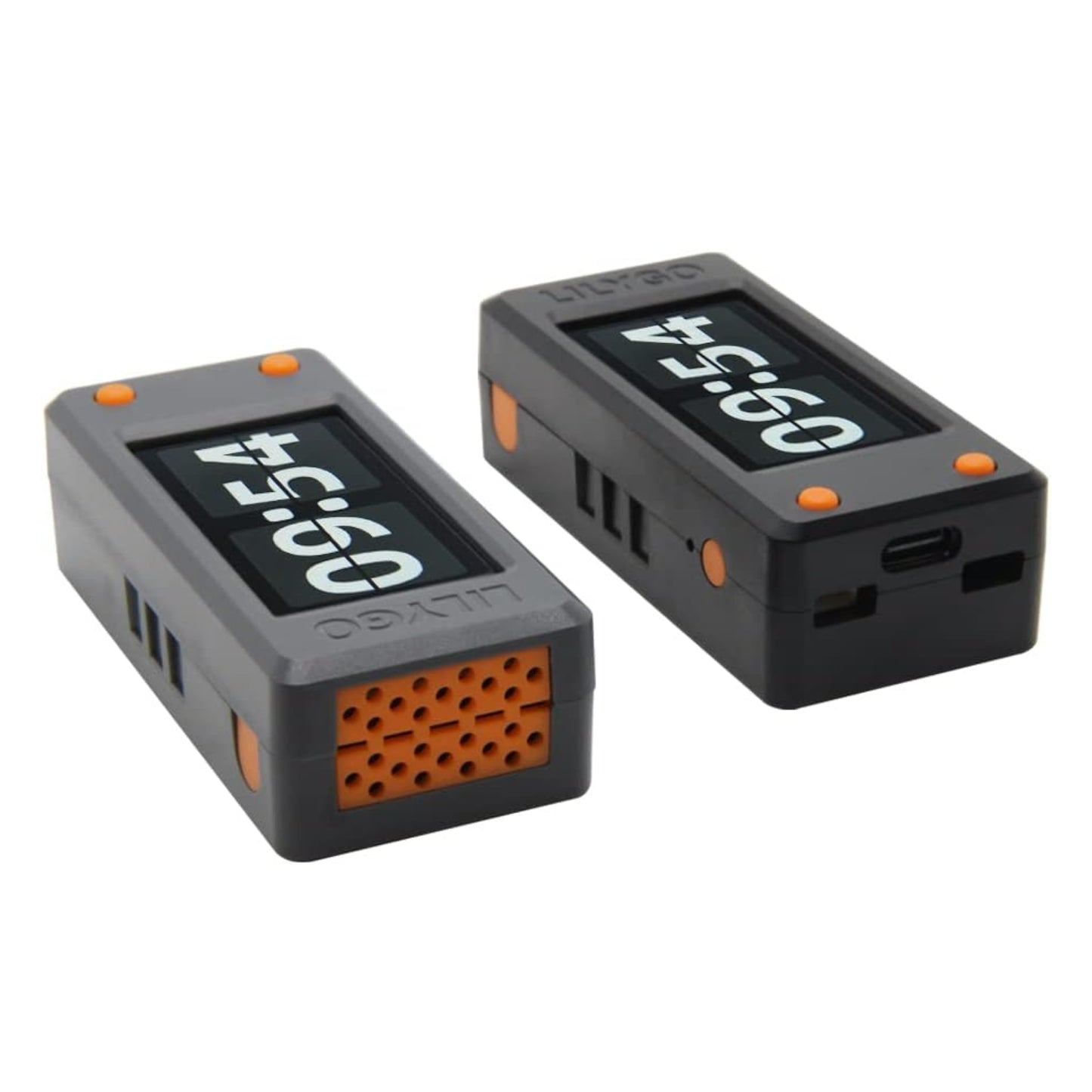

  • Features: assembled with black shell
  • MCU: ESP32-S3R8 Dual-core LX7 microprocessor
  • Display: 170*320 Resolution 1.9 inch ST7789 LCD Display, and an acrylic plate has been added to fix it.
  • Series: T-Display-S3
  • Wireless Connectivity: Wi-Fi 802.11/Bluetooth 5.0 + BT mesh
  • Working Power Supply: 3.3v

Features:

  • It comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].
  • The screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
  • This will be the second LILYGO model Display with an acrylic plate fixed.
  • The overall design continues the design of the T-Display series.

Package Included:

1 x LILYGO TTGO T-Display-S3 ESP32-S3 Board 1.9" LCD & ESP32-S3 TTGO T-Display 1.9inch LCD Display Development Board For Data Logging and Display
