Description:

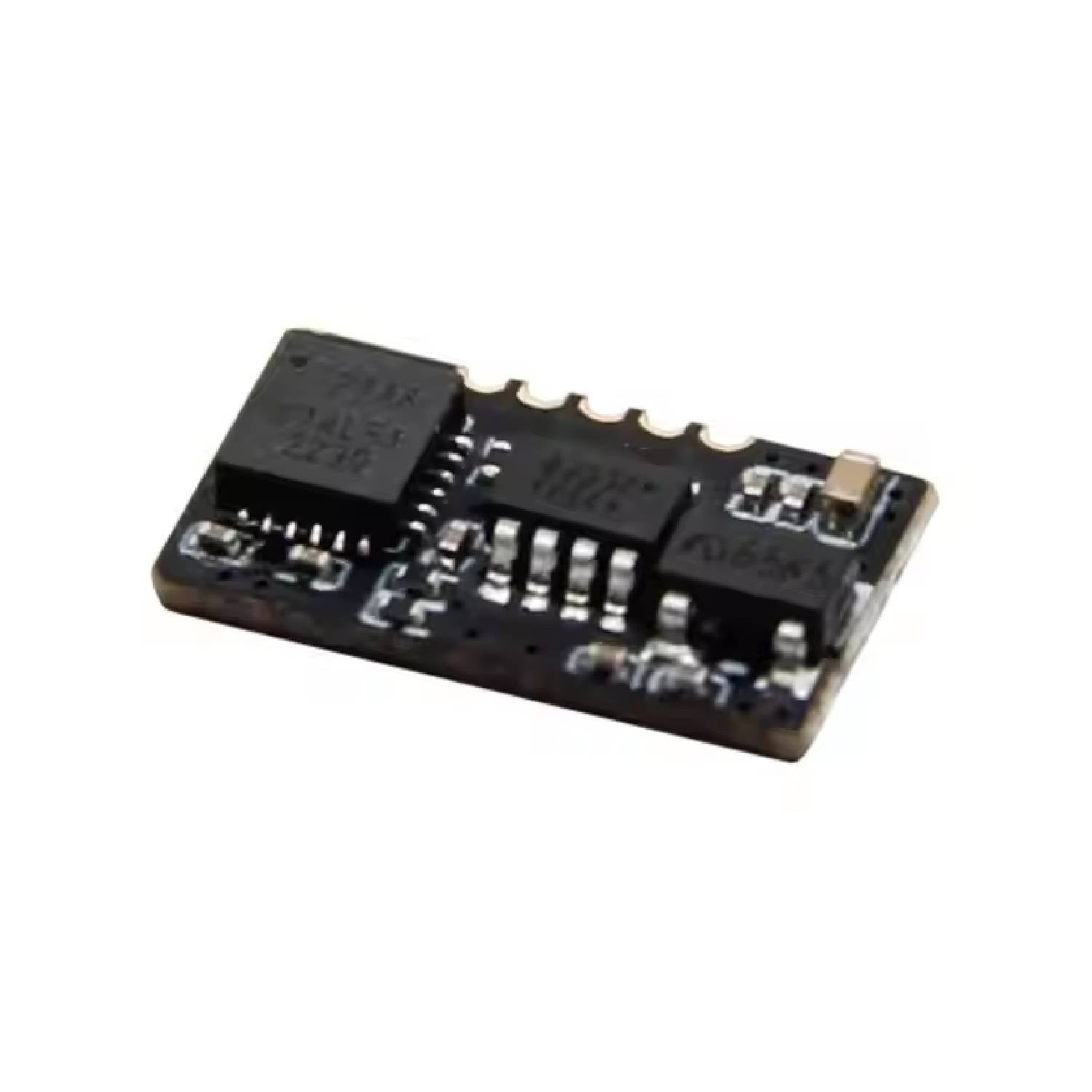

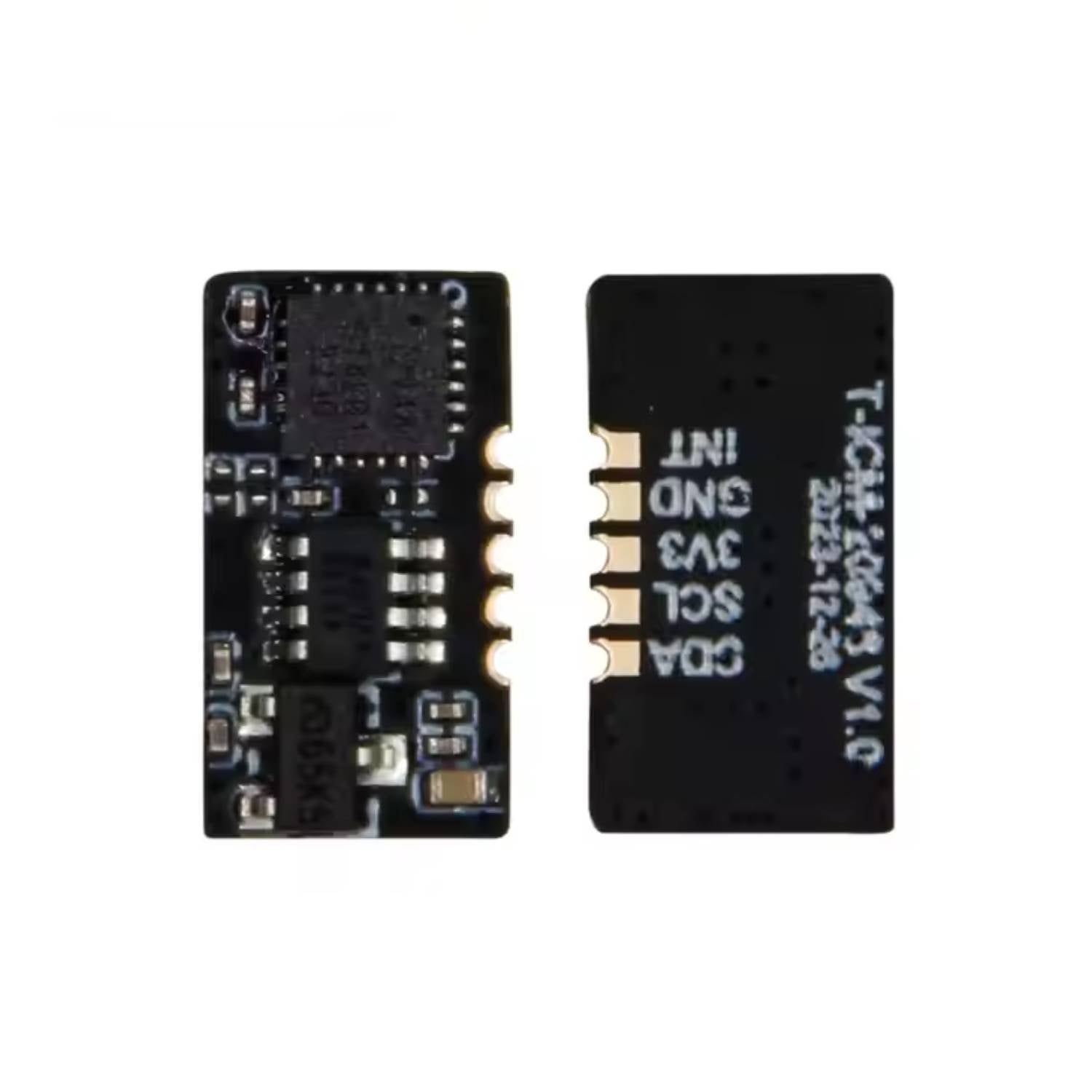

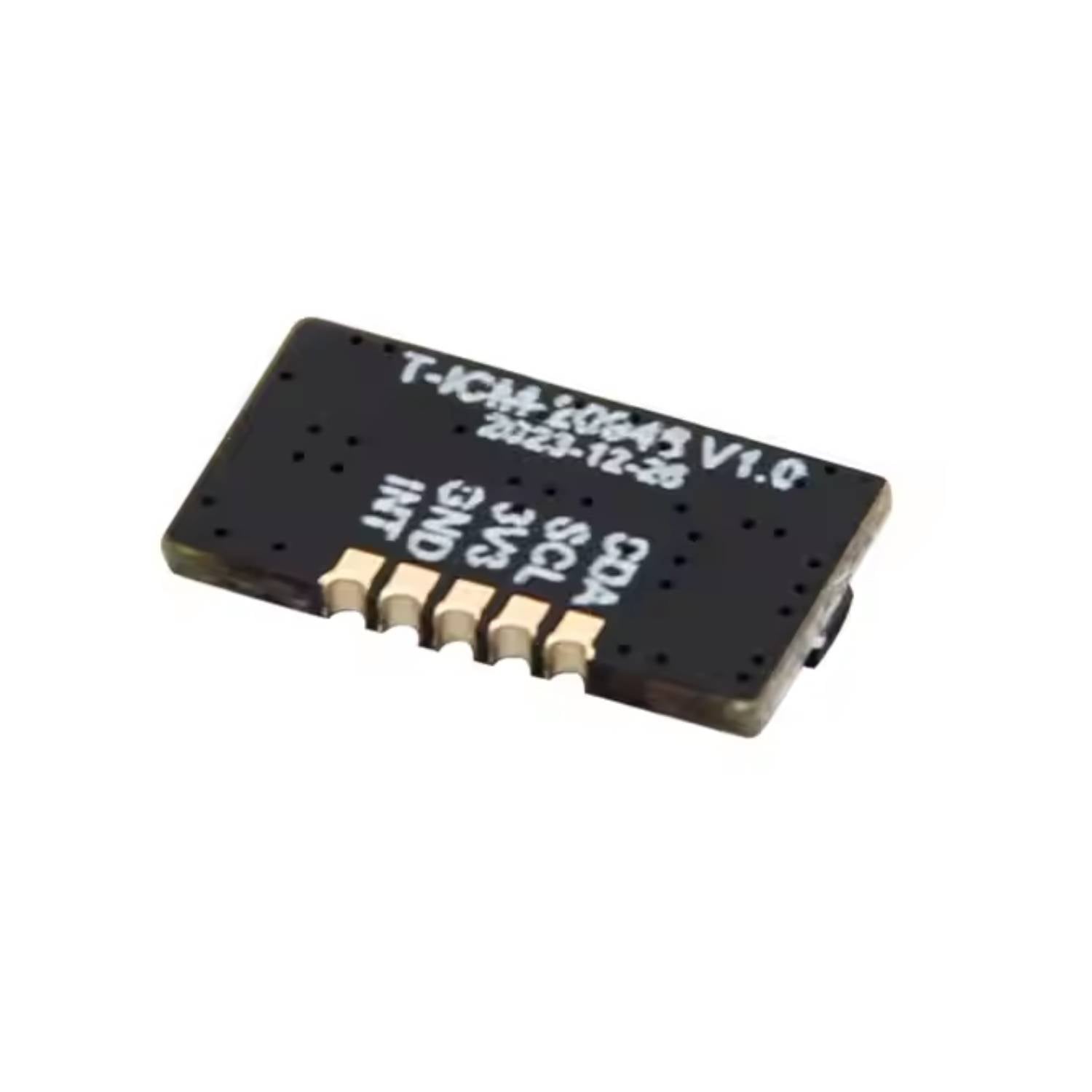

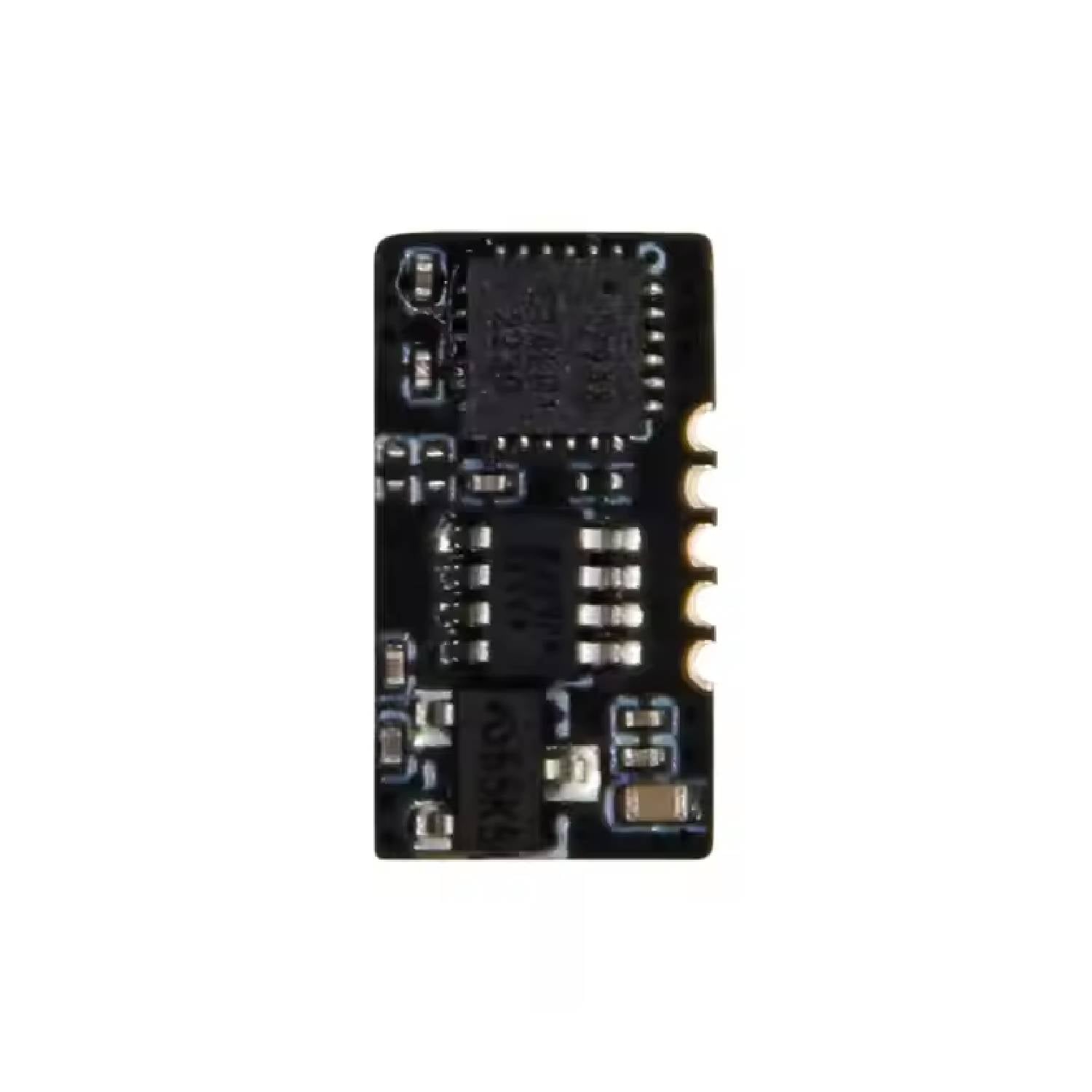

The LilyGO T-ICM Sensor Board is a compact and versatile sensor board featuring the industry-leading T-ICM20608 Inertial Measurement Unit (IMU). This powerful module integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer, providing precise and real-time motion data for a wide range of applications.
Specifications:
- Magnetometer: 3-Axis, measurement range ±4900 μT.
- Digital Motion Processor (DMP): Onboard processing for motion data and sensor fusion.
- Communication Interfaces: 7 MHz SPI or 400 kHz Fast Mode I²C.
- Auxiliary Interface: I²C for external sensor connectivity.
- Temperature Sensor: Digital-output.
- Power Supply: [Specify voltage range].
- Gyroscope: 3-Axis, FSR ±250, ±500, ±1000, ±2000 dps.
- Accelerometer: 3-Axis, FSR ±2g, ±4g, ±8g, ±16g.
- Current Consumption: [Specify current consumption].
- Operating Temperature Range: [Specify range, e.g., -40°C to +85°C].
Features:
- Auxiliary I²C Interface: Connect additional external sensors for expanded functionality.
- Digital-output Temperature Sensor: Provides temperature data for compensation in motion sensing.
- Low Power Consumption: Designed for energy-efficient applications.
- Onboard Digital Motion Processor (DMP): Efficiently processes motion data for enhanced accuracy.
- Flexible Communication Interfaces: Supports 7MHz SPI or 400kHz Fast Mode I²C.
Package Included:
1 x LilyGO T-ICM Sensor Board
