- Type : Sensor
- Use For : Universal For Arduino
- Development Board Type : For Arduino
Description:
This sensor is widely used in motor speed detection, pulse count, the position limit, etc. The DO output interface can be directly connected to a micro-controller IO port, if there is a block detection sensor, such as the speed of the motor encoder can detect. DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.
Specification:
- Using imported groove optical coupling sensor, width 5mm.
- It have the output state light, if output high level, the lights are off. If output low level, it stays on.
- If it covered, it will output high level; otherwise low level.
- Good signal & waveform, with strong driving ability for more than 15mA.
- The working voltage of 3.3V to 5V
- Output: digital switch output (0 and 1)
- Equipped with a fixed bolt hole, easily install.
- Use the LM393 wide voltage comparer
How To Use:
Turn LED On/Off Using Light Blocking Sensor
Package Included:

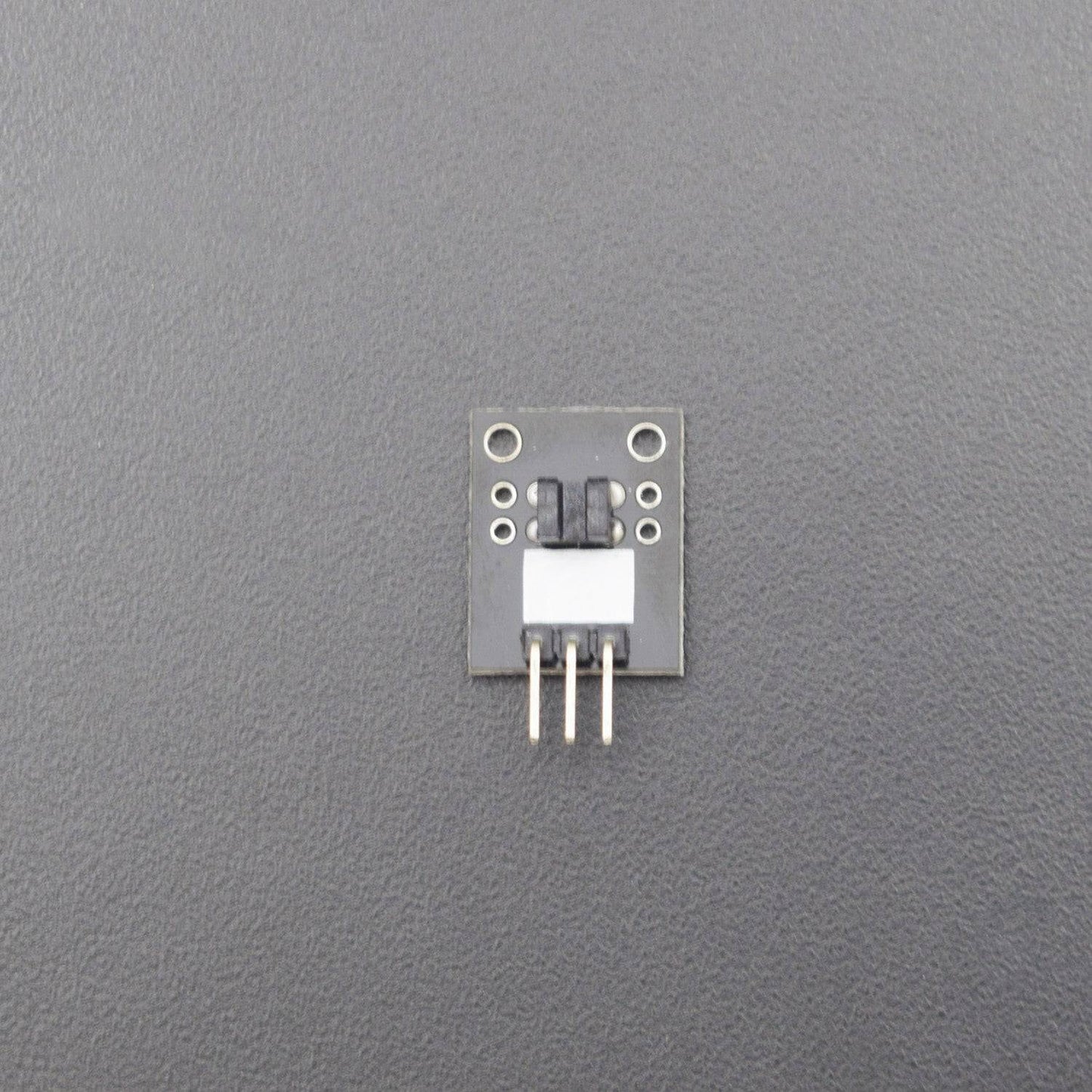

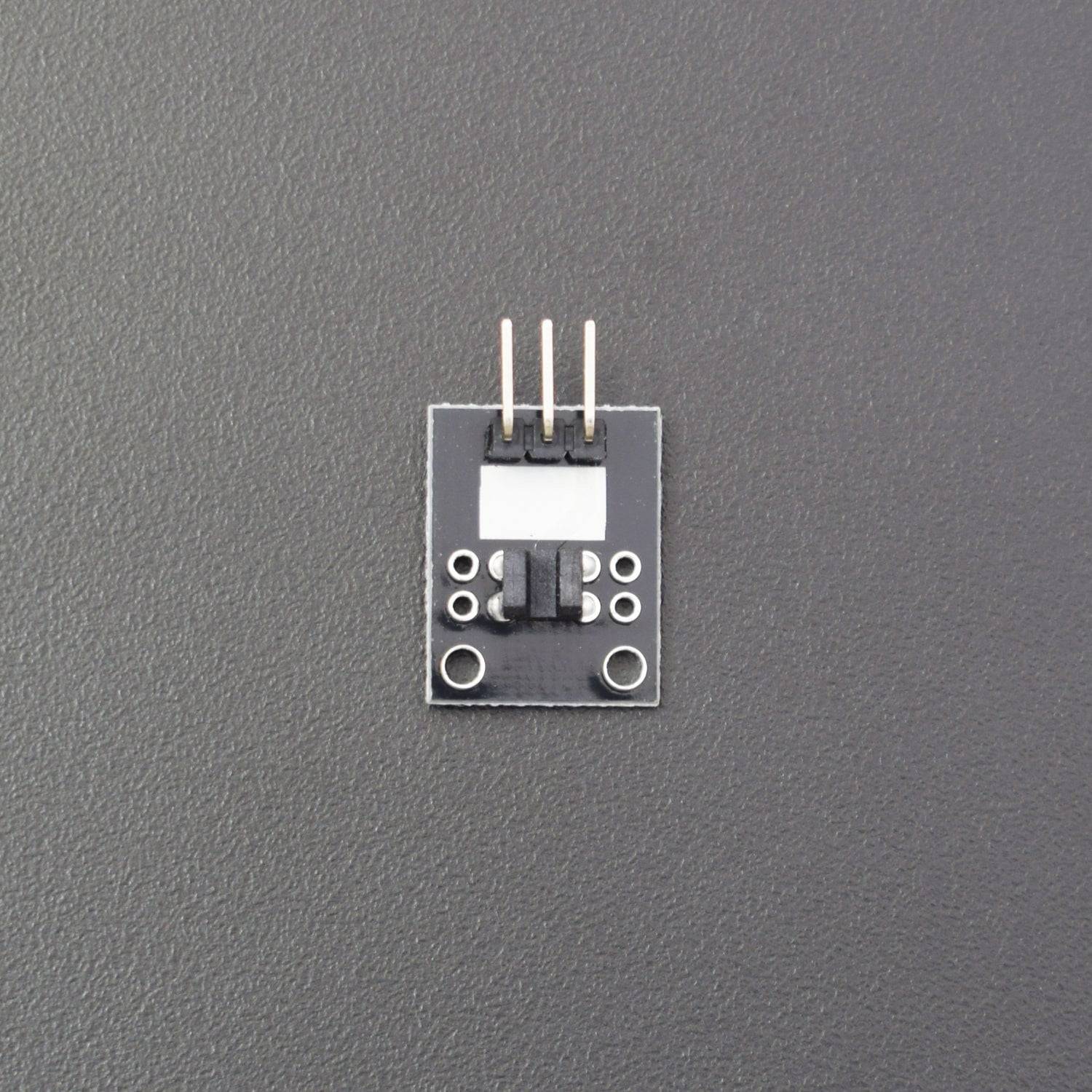

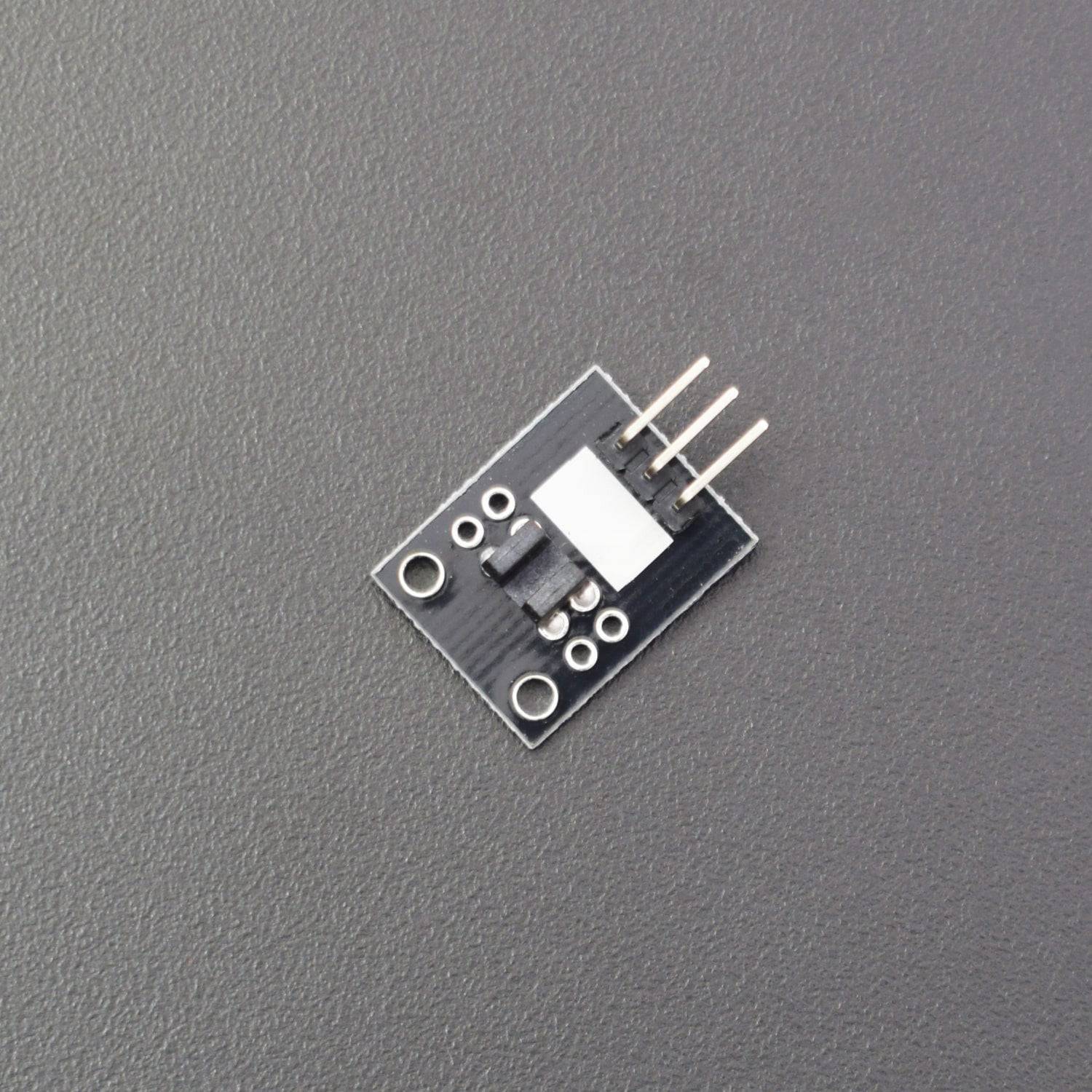

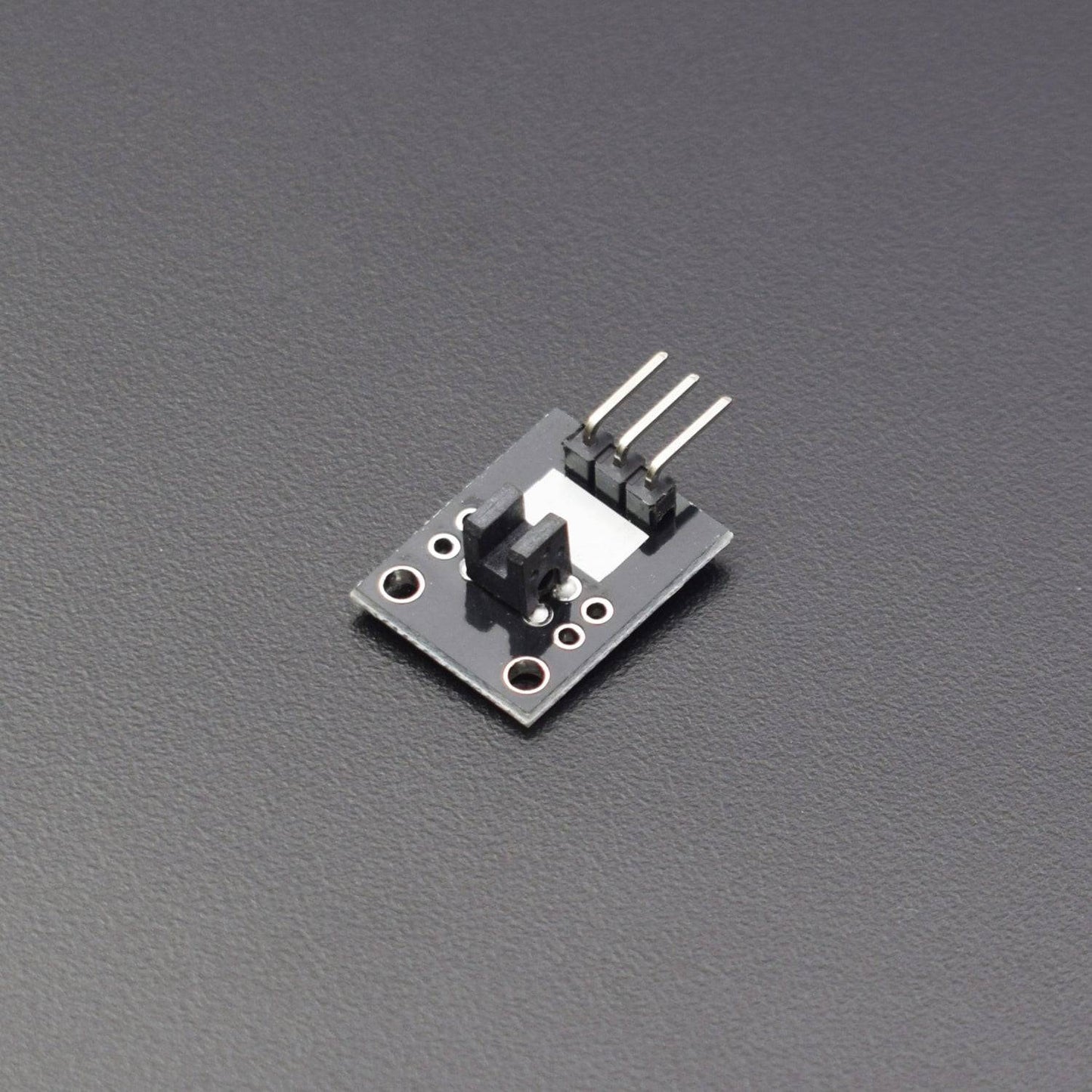

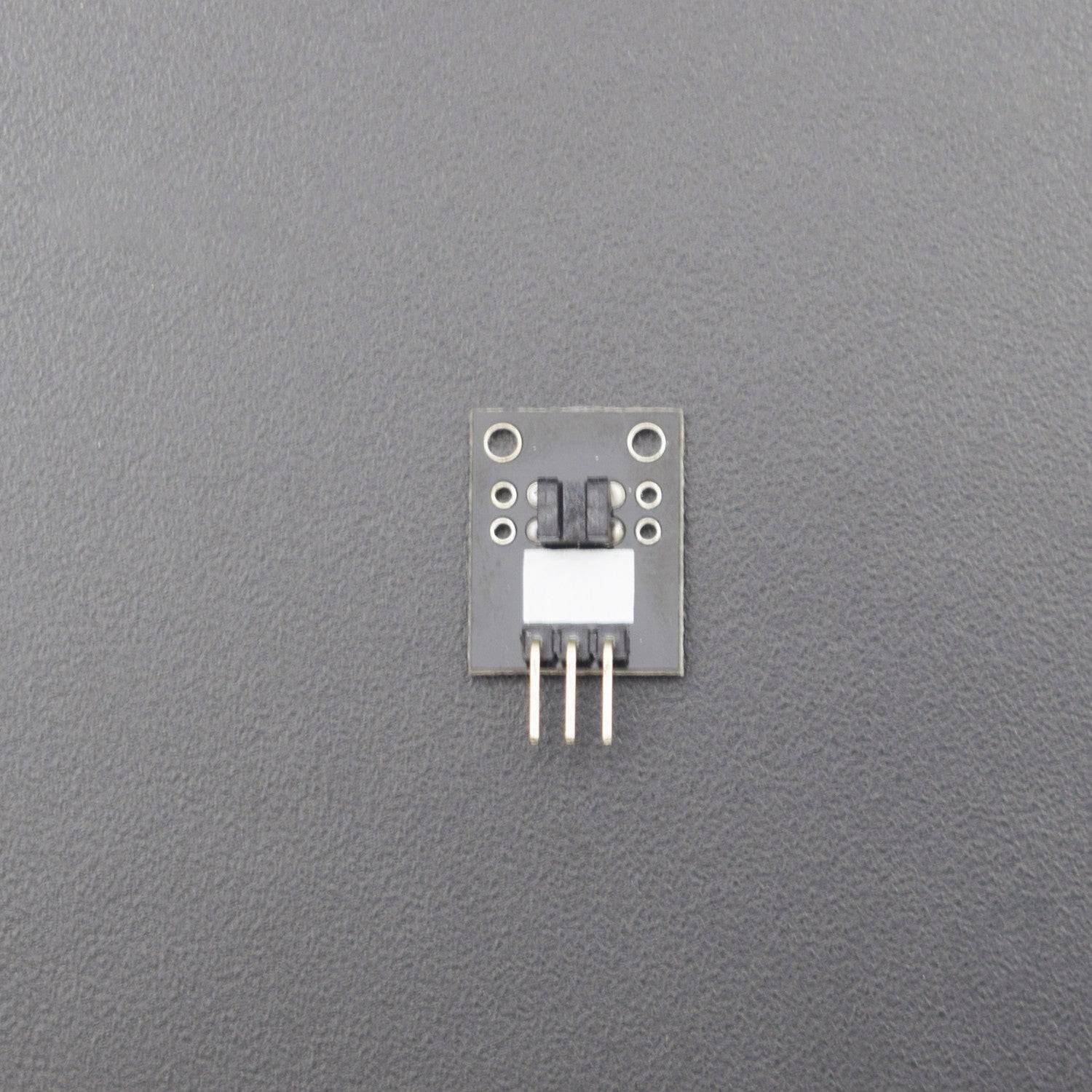

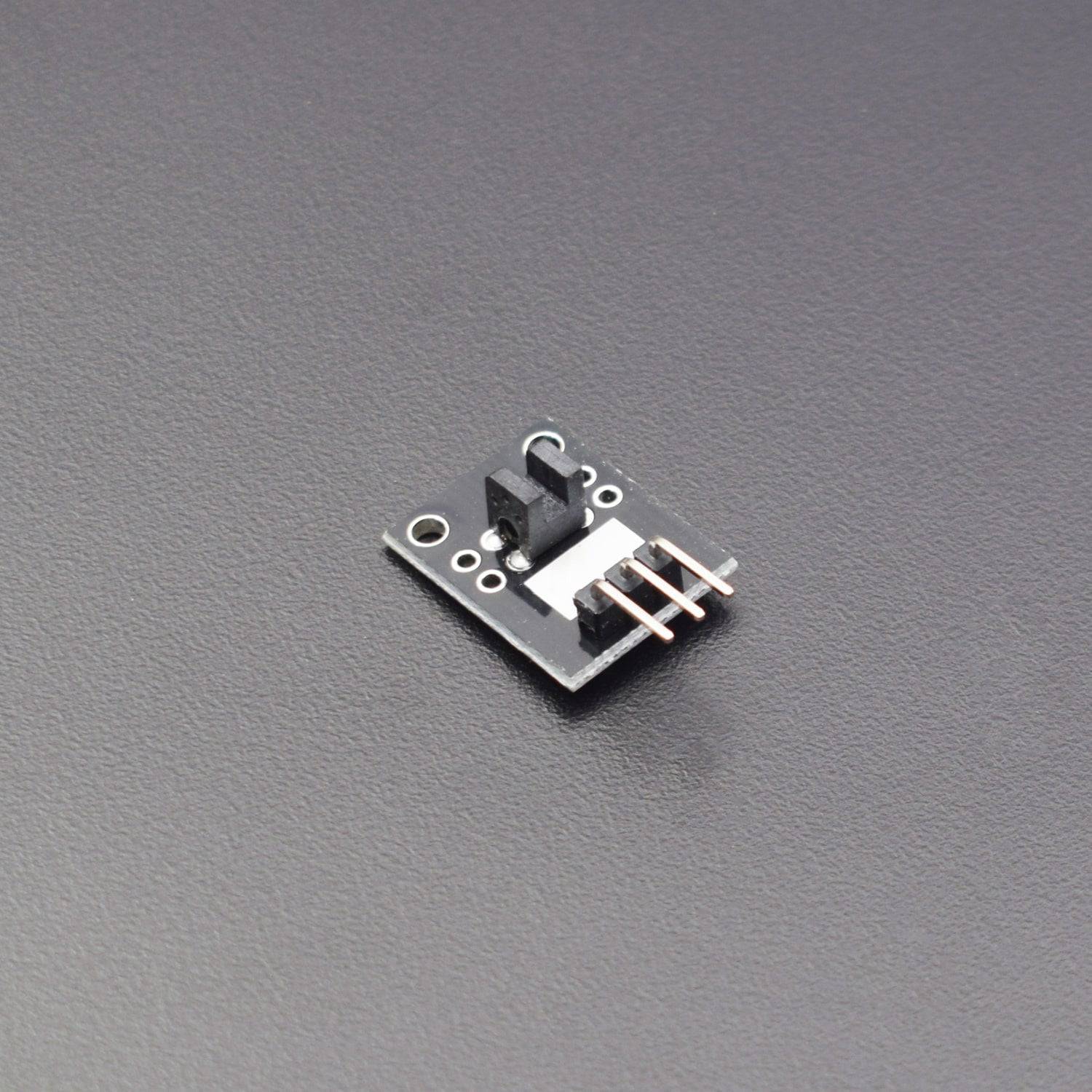

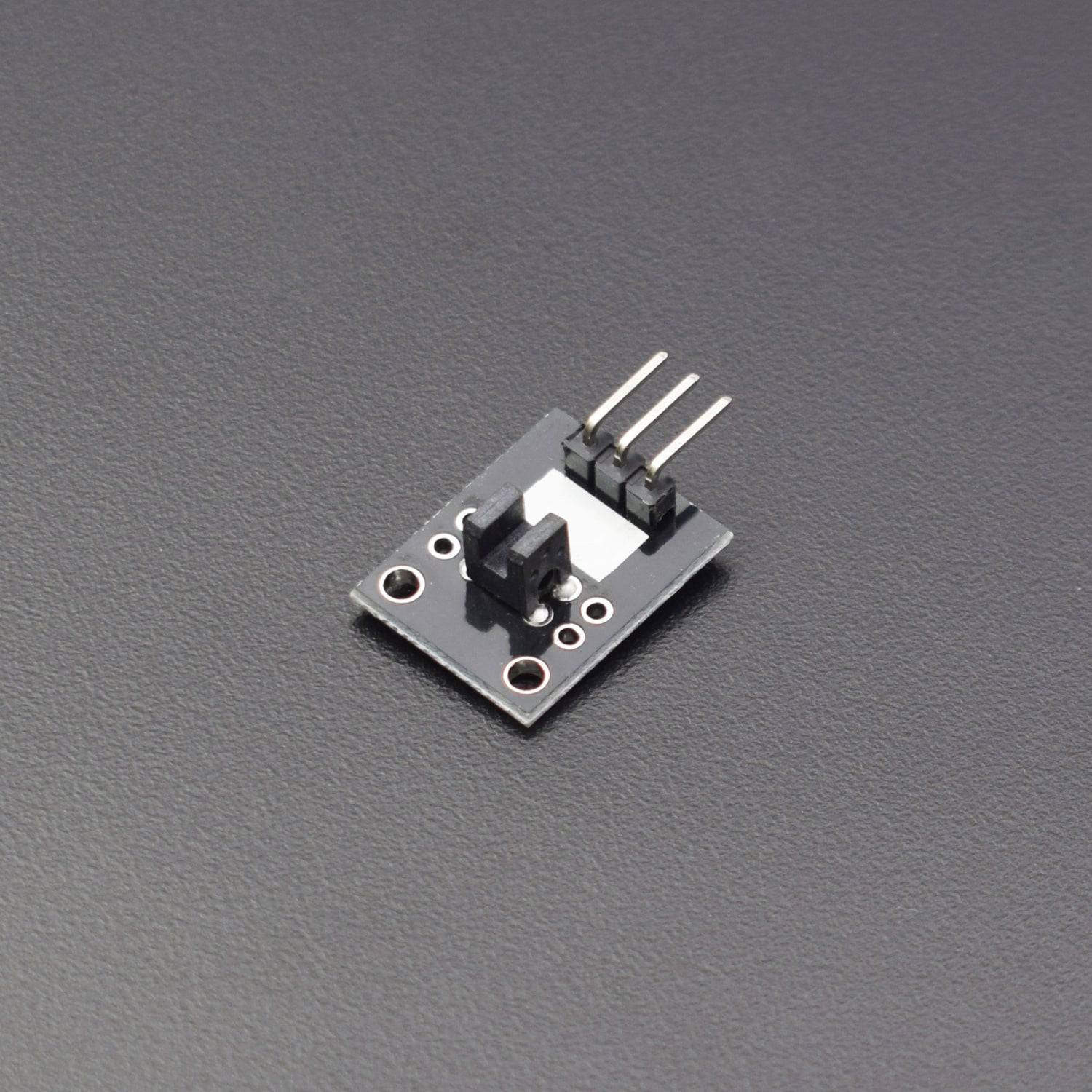

1 x Light Blocking Sensor Module For Arduino DIY Kits
