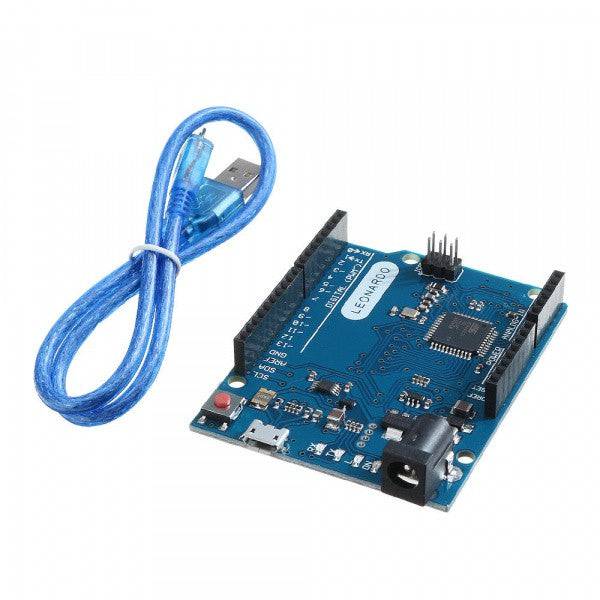

Leonardo R3 Development Board compatible with Arduino With USB Cable - AA151-AR040
Leonardo R3 Development Board compatible with Arduino With USB Cable - AA151-AR040
SKU:AA151-AR040
Low stock: 9 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
This is a combo of Arduino Leonardo R3 Development Board With USB Cable. The Leonardo is a microcontroller board based on the ATmega32u4 (datasheet). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.
Specification:
- Chip: ATmega32u4
- Board Mode: LEONARDO R3
- Operating frequency: 16MHz
- Working voltage: 5V
- Input voltage: 7-12V
- Digital IO port: 20
- PWM channel: 7
- Analog input: 12
- Maximum current of 5V digital/analog port: 40mA
- Maximum current of 3.3 V digital/analog port: 50 mA
- Flash Memory:32 KB (ATmega32u4) of which 4 KB used by bootloader
- SRAM: 2.5 KB (ATmega32u4)
- EEPROM: 1 KB (ATmega32u4)
- Clock speed: 16MHz
Package Included:
- 1 x Leonardo R3 Development Board
- 1 x USB cable
