Description:

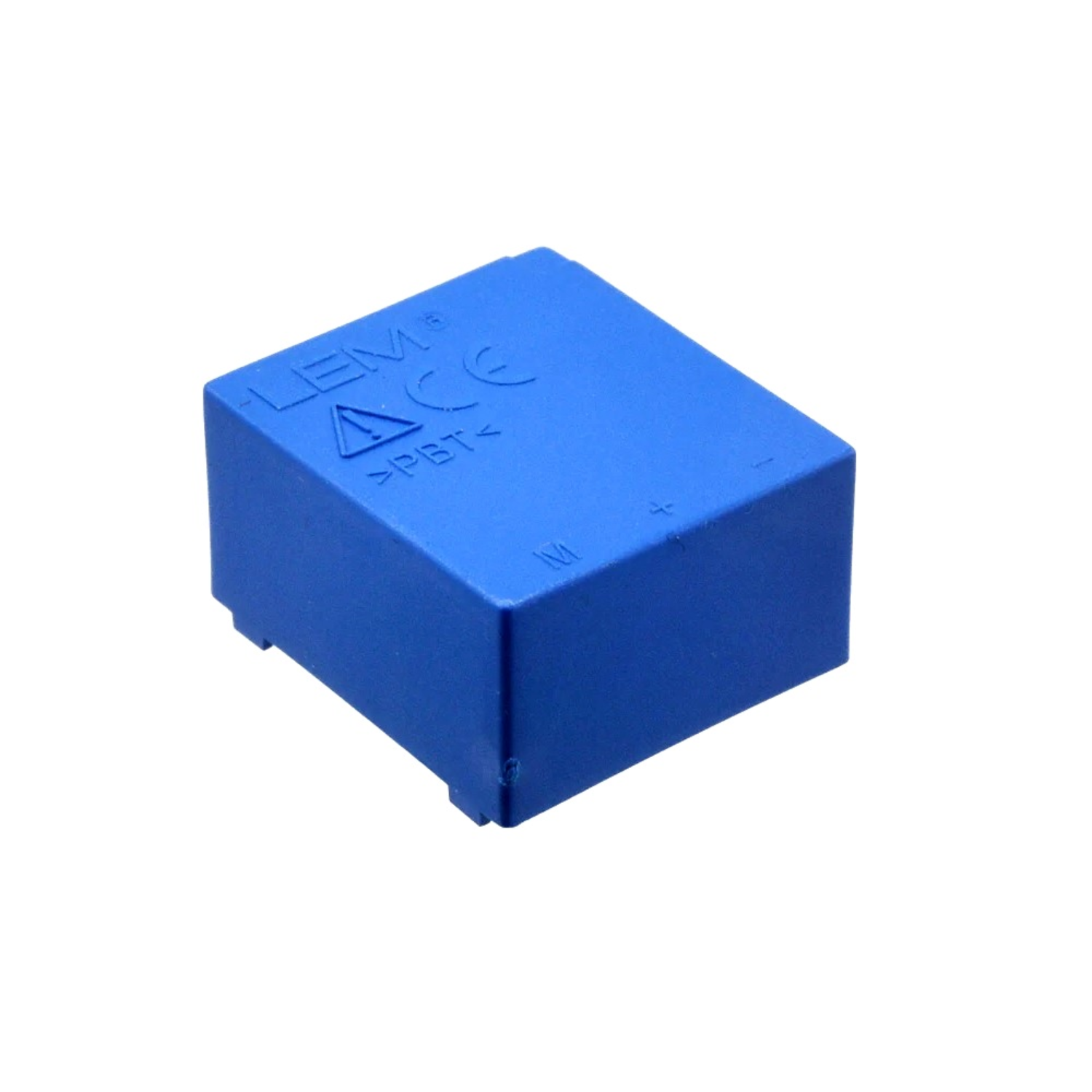

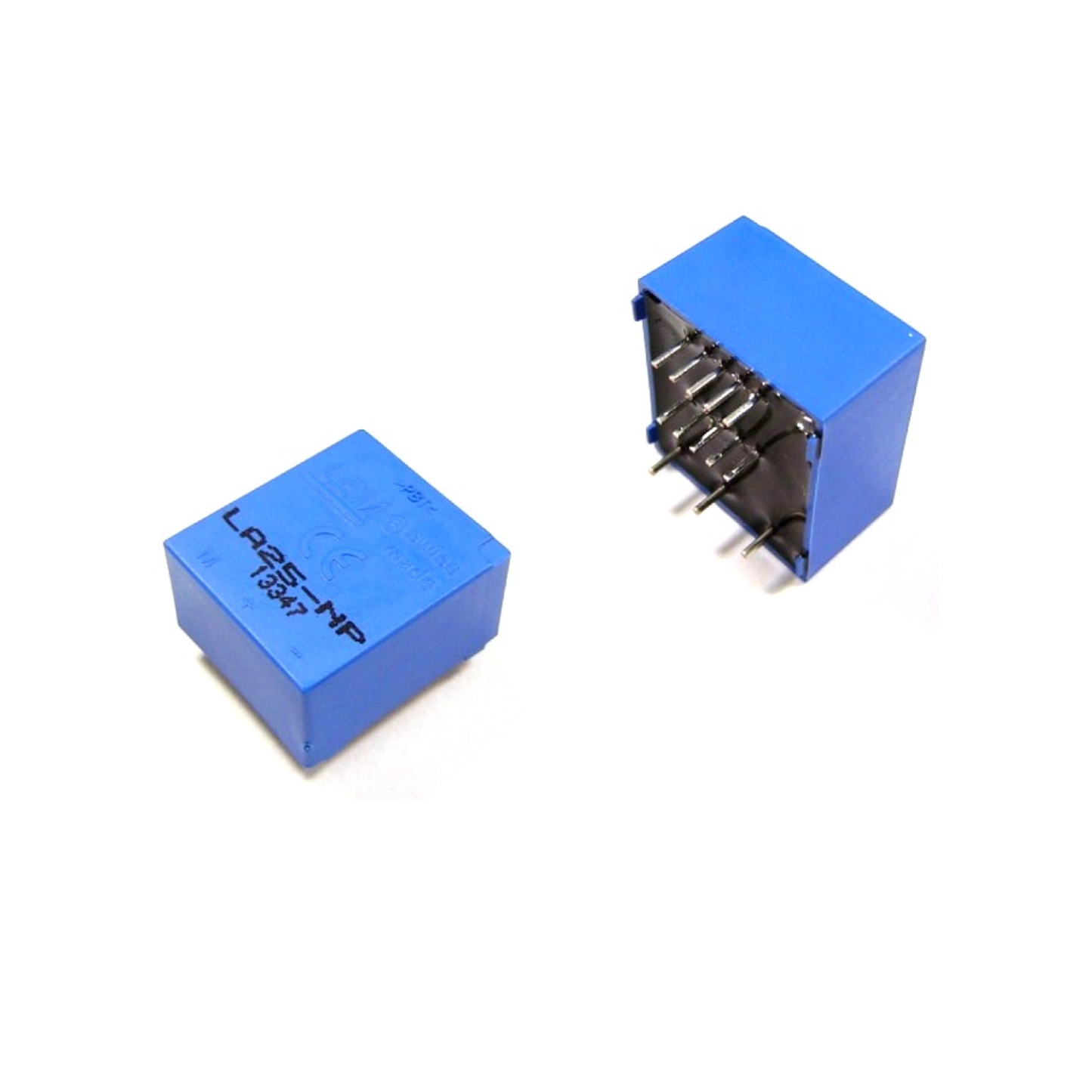

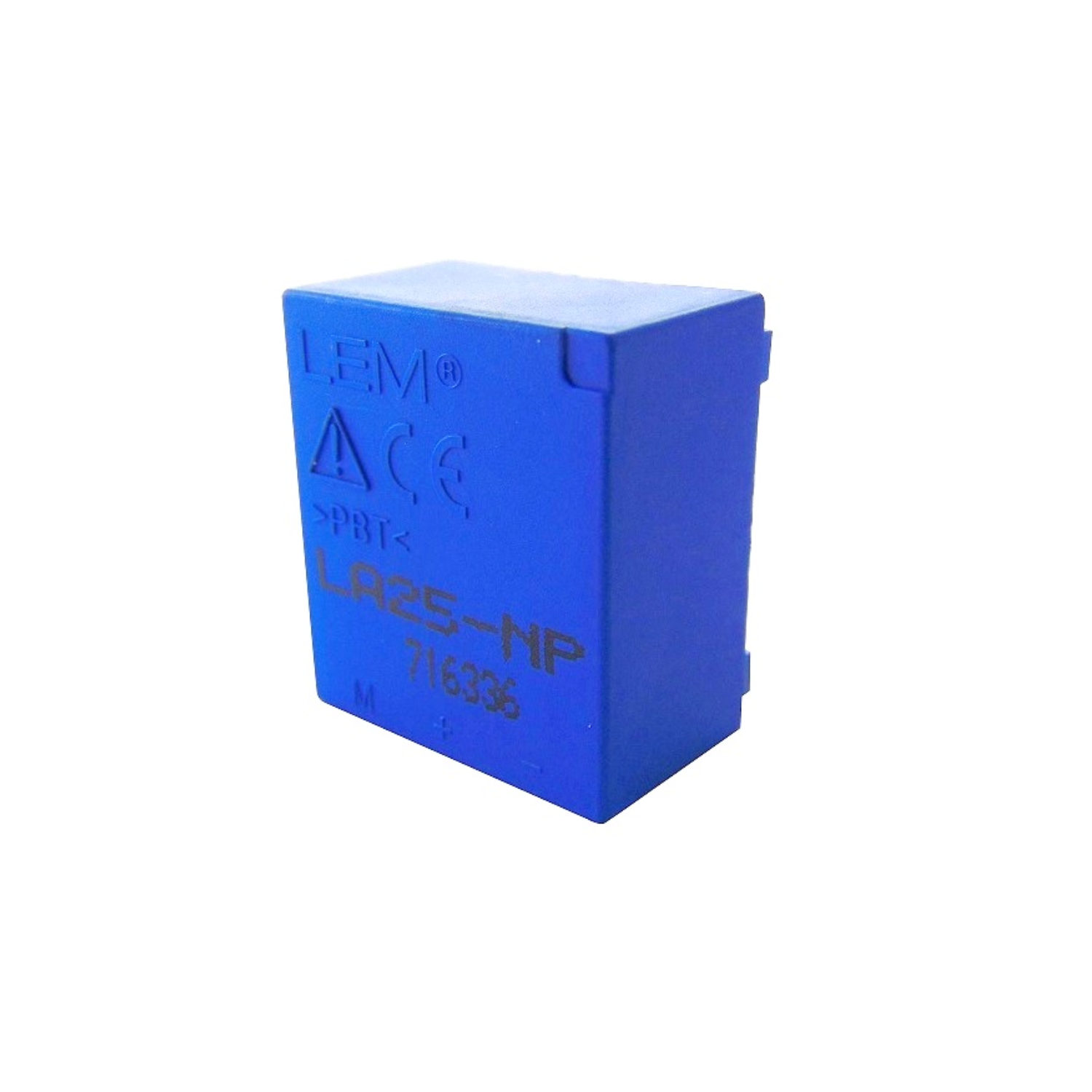

LEM LA 25-NP is a highly accurate and versatile current transducer designed for precise electronic measurement of currents, including DC, AC, pulsed, and mixed currents. This transducer utilizes a sophisticated design to provide galvanic isolation between the primary circuit (where the current is being measured) and the secondary circuit (where the output signal is generated). This isolation is crucial for protecting sensitive measurement circuitry and personnel from high voltages and potential hazards.
Specifications:
- Item Type: Current Sensor
- Model Type: Current Transducer
- Operating Voltage: 15V
- Sensor outputs: Current
- Response Time: 1μS
- Accuracy: 0.005
- Operating Temperature: -40 to 85°C
- Current Measuring Range DC: -36 to 36
- Max Supply Voltage: 15.75VDC
- Min Supply Voltage: 14.25
Features:
- Closed-loop current transducer using the Hall effect technology
- Primary nominal current of 25A
- The primary current measuring range is ±36A
- The conversion ratio is 1-2-3-4-5: 1000
- The secondary nominal RMS current is 25mA
- The insulated plastic case is recognized according to UL 94-V0
- PCB mounting
Application:
Industrial, Consumer Electronics, Portable Devices, Motor Drive & Control, Power Management
Warnings:
Market demand for this product has caused an extension in lead times. Delivery dates may fluctuate. The Product is exempt from discounts.
Package Included:
1 x LEM Current Transducer LA Series 25A 0.5 % Closed Loop Output
