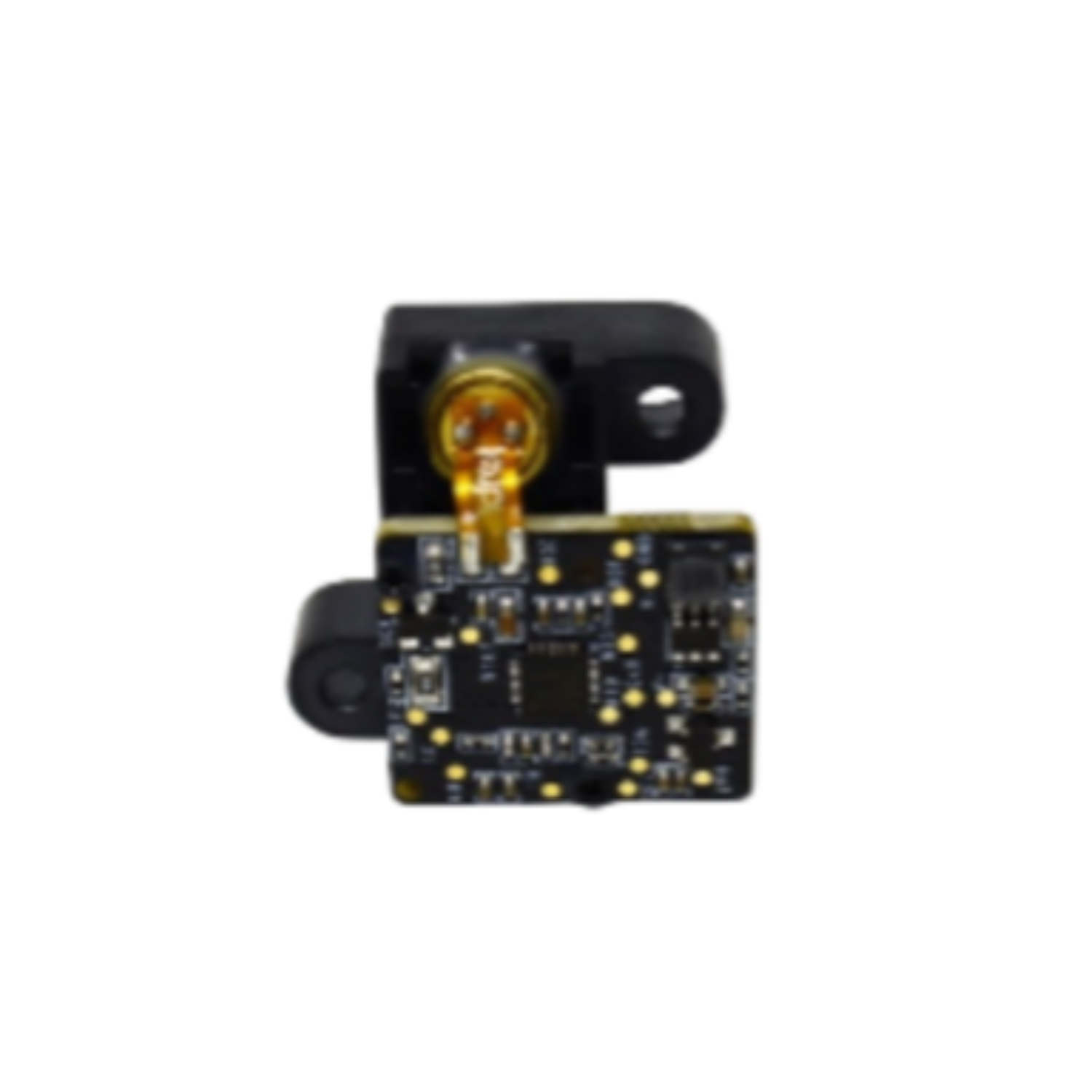

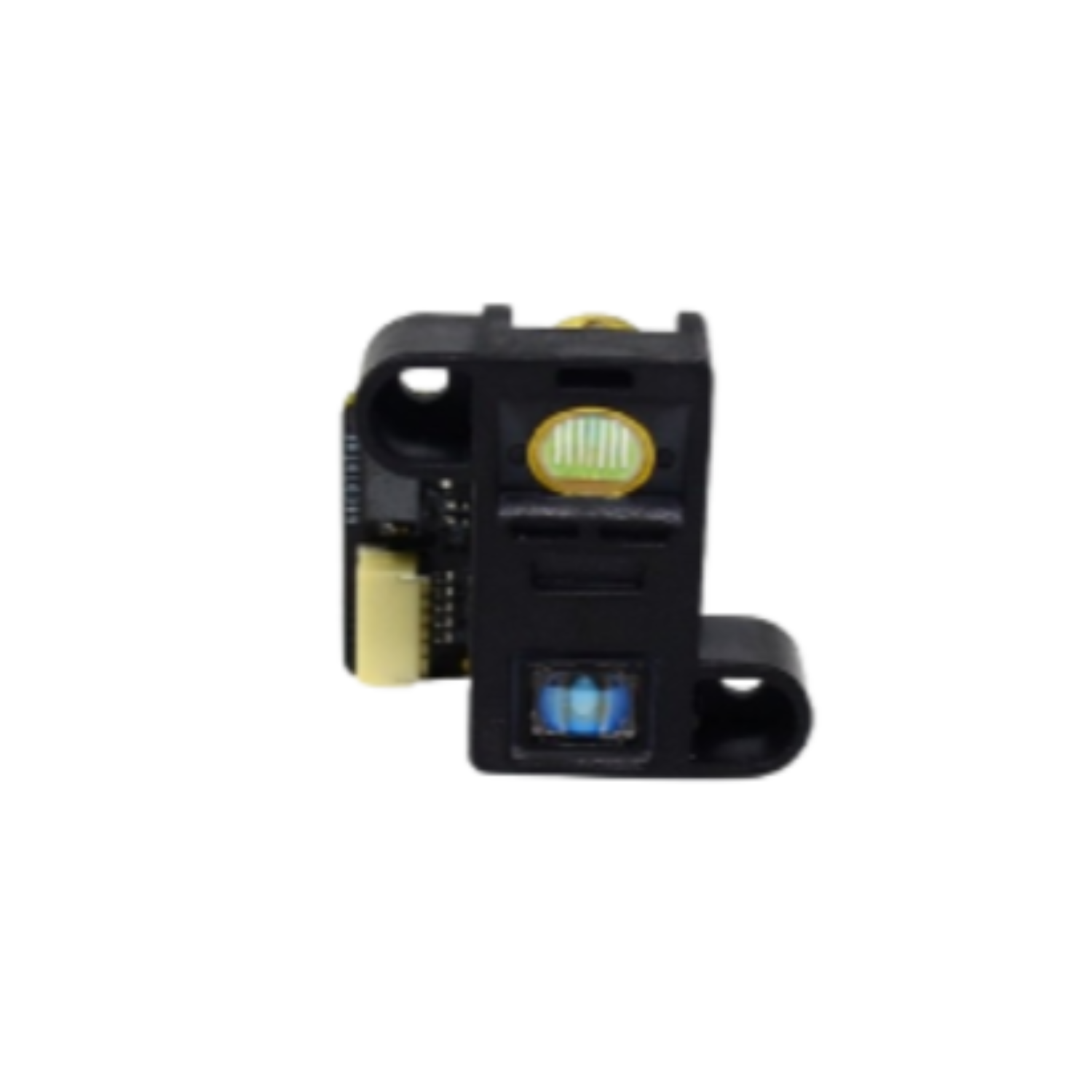

LDROBOT SSL-20N Lidar Sensor High-Precision 360° Solid State Lidar Sensor For Mapping and Navigation

LDROBOT SSL-20N Lidar Sensor High-Precision 360° Solid State Lidar Sensor For Mapping and Navigation

In stock

Rs. 1,561.00
Rs. 1,561.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The SSL-20N is a compact, low-cost, one-dimensional solid-state LiDAR designed for close-range applications. With a detection range of 30-400mm, it is ideal for use in robotics, particularly for guiding precise movement. The device features a linear laser and integrated cameras.

 The laser emits a linear beam at a fixed angle, which is reflected off the target and captured by the receiving lens. Using triangulation, the SSL-20N calculates the distance to the target based on the laser's fixed structure. When installed on a sweeper, the laser line is directed towards the ground at a specific angle, enabling the detection of obstacles' distance and angle for efficient navigation.

Specifications:

  • Model: LDROBOT Solid State Lidar SSL-20N
  • Input Voltage (V): 5.5
  • Working Current (mA): 100
  • Interface: UART @ 921600
  • Storage Temperature (°C): -30 to 70
  • Operating Temperature (°C): -10 to 50
  • Operating Humidity: 0.95
  • Laser Power: 10mW

Features:

  • 110° FOV.
  • 10000h service life.
  • Ultra-thin appearance.
  • Laser Safety FDA Class I
  • 400mm measuring range.
  • 3 mm obstacles accurate recognition.
  • 30HZ measurement frequency.

Applications:

  • Education.
  • Algorithm.
  • Scientific research.
  • Robot obstacle avoidance.
  • Autonomous navigation.
  • Navigation and positioning.

Package Included:

1 x LDROBOT SSL-20N Lidar Sensor High-Precision 360° Solid State Lidar Sensor For Mapping and Navigation
