Description:

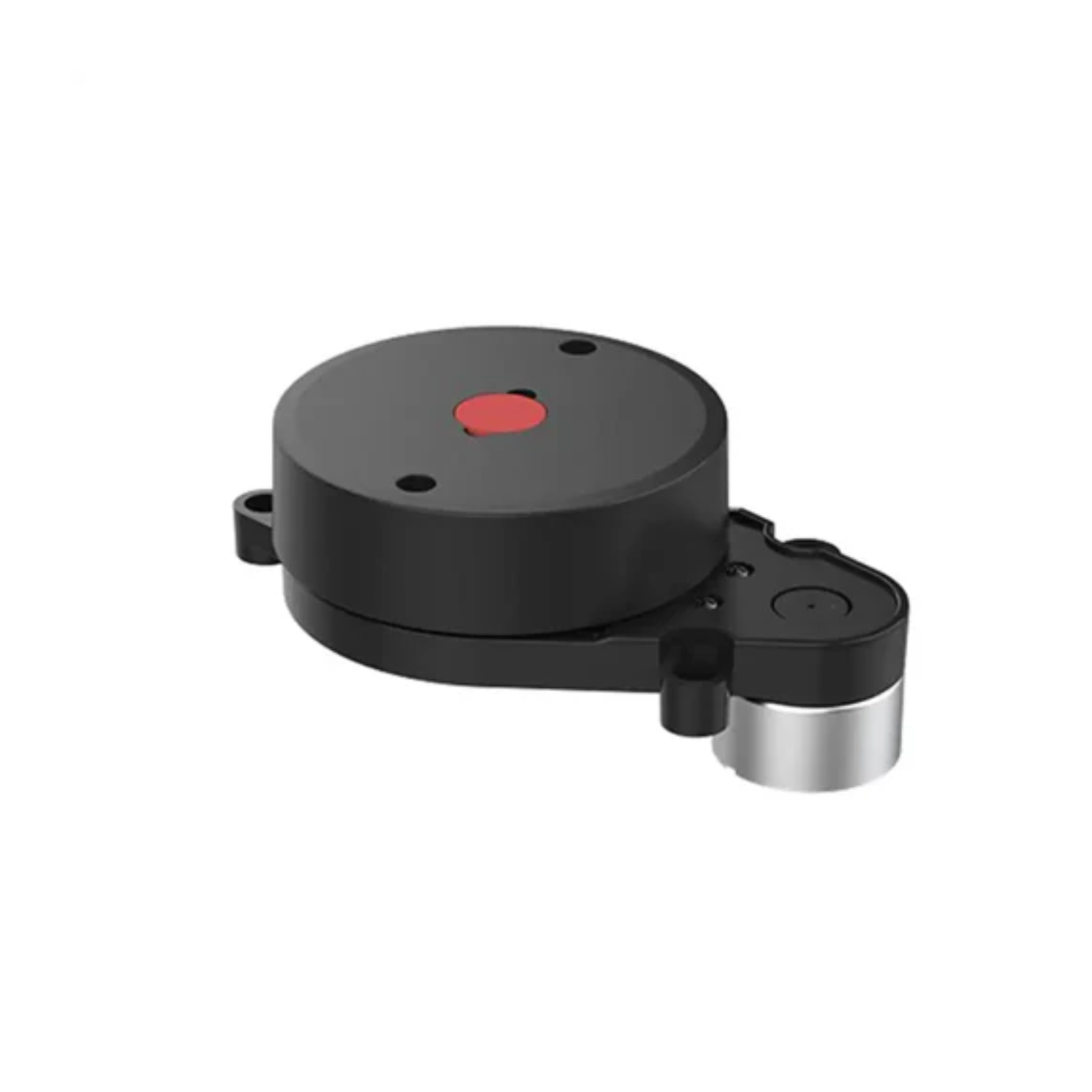

The LD Robot D100 Triangulation Lidar Sensor features a high-performance light-sensitive CCD, providing 360-degree laser scanning with a range of 0.15 to 8 meters. Its compact, stylish design ensures easy integration into robots.
With an optimized algorithm, it offers extended range for large-area navigation and detailed environmental mapping. The LD014 rotates for full 360-degree scanning, achieving fast, accurate map-building with a sampling frequency of 2300 times per second.
Using advanced triangulation radar, it ensures precise obstacle detection and high-accuracy mapping. Its slim 37mm height reduces power consumption and simplifies installation, fitting various robot types.
The low-power infrared laser meets FDA Class I safety standards for human and pet eye protection. The LD14’s efficient CCD technology ensures stable performance and precise data collection for advanced robotic applications.
Specifications:
- Model: D100
- Model Type: Triangulation LiDAR Sensor
- Distance Measuring Range(M): 0.15 to 8
- Scanning Frequency(Hz): 6 Hz
- Ranging Frequency: 2300 Hz
- Scan Angle: 360°
Features:
- Provides 360-degree laser scanning.
- Thin, compact, and stylish appearance.
- Offers high-performance light-sensitive CCD.
- With the optimized algorithm, the longer-range can sense the environmental information in a longer range.
Pin Configuration:
- Red wire – 5V
- Yellow wire – Ground
- Black wire – Rx
- Green wire – Tx
Package Included:
1 x LD Robot D100 Triangulation Lidar Sensor High-Precision Triangulation Lidar With 360° Lidar Scanning For Robotics Applications
