- Power Mode: Rechargeable Li-Po(Built-in)
- Display: 3 x 2.3cm LCD Screen
- Diode Range: < 4.5V
- Transistor Detect Area: 0.01-4.5V
Description:

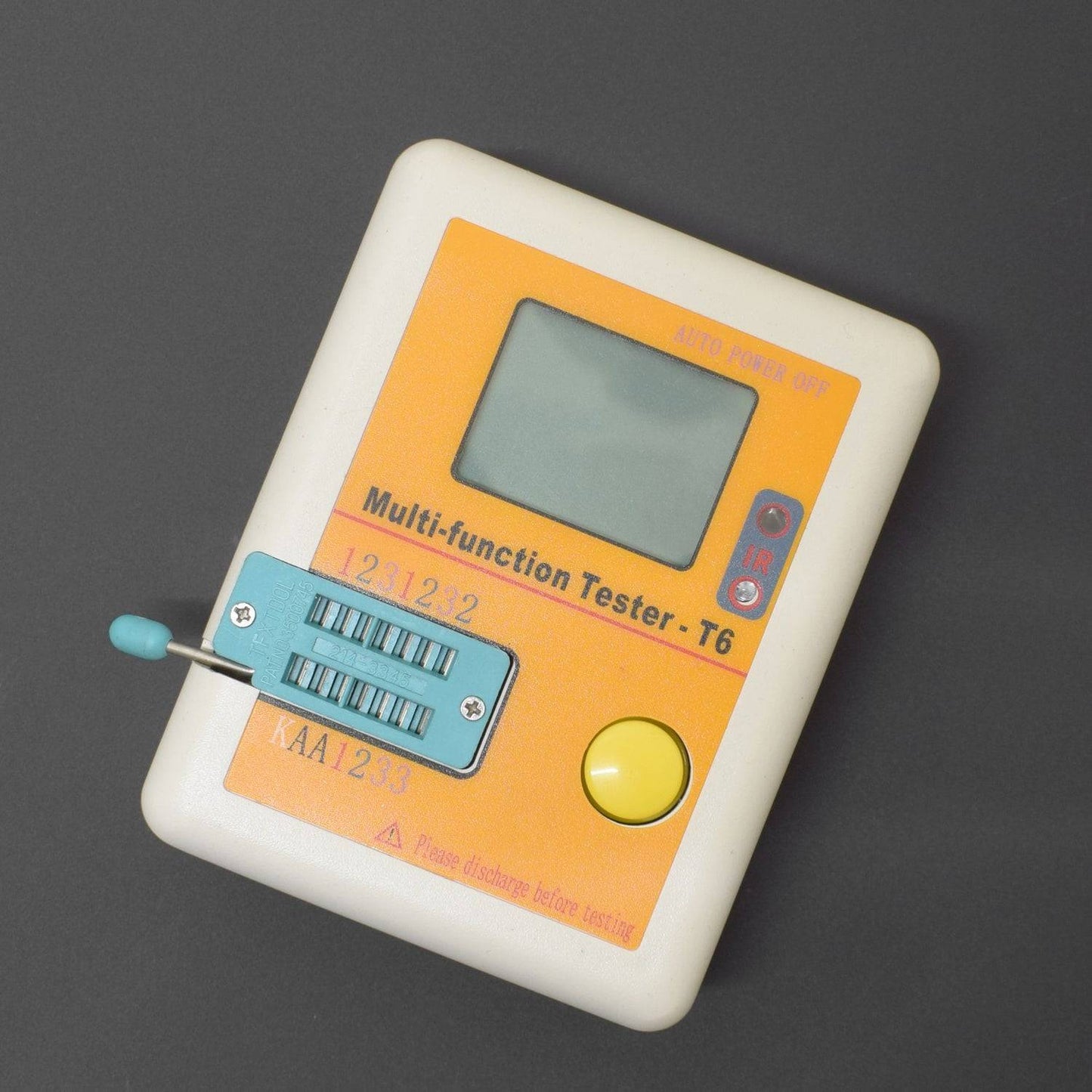

This is an LCR-T6 multi-functional tester T6 transistor tester LCD diode triode MOSFET NPN PNP triac MOS detector. This transistor detector can test NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, triac. It can also be used with an infrared decoder to test infrared waveforms etc.
Specification:
- Power Mode: Rechargeable Li-Po(Built-in)
- Display: 3 x 2.3cm LCD Screen
- Diode Range: < 4.5V
- Transistor Detect Area: 0.01-4.5V
- Zener Diode Detect Area: 0.01-30V
- Triac Range: IGT < 6mA
- Capacitance: 25pF-100mF
- Resistor: 0.01-50MΩ
- Inductance: 0.01mH-20H
Features:
- It can detect NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, triac etc.
- It also can detect Zener diode and has the function of self-calibration.
- It can be used with an infrared decoder to test infrared waveforms.
- One button operation automatically detects and shutdown, and you can press the multi-functional button to close the detector.
- Automatically test the pin of a component, and display it on the backlight LCD screen.
Package Included:

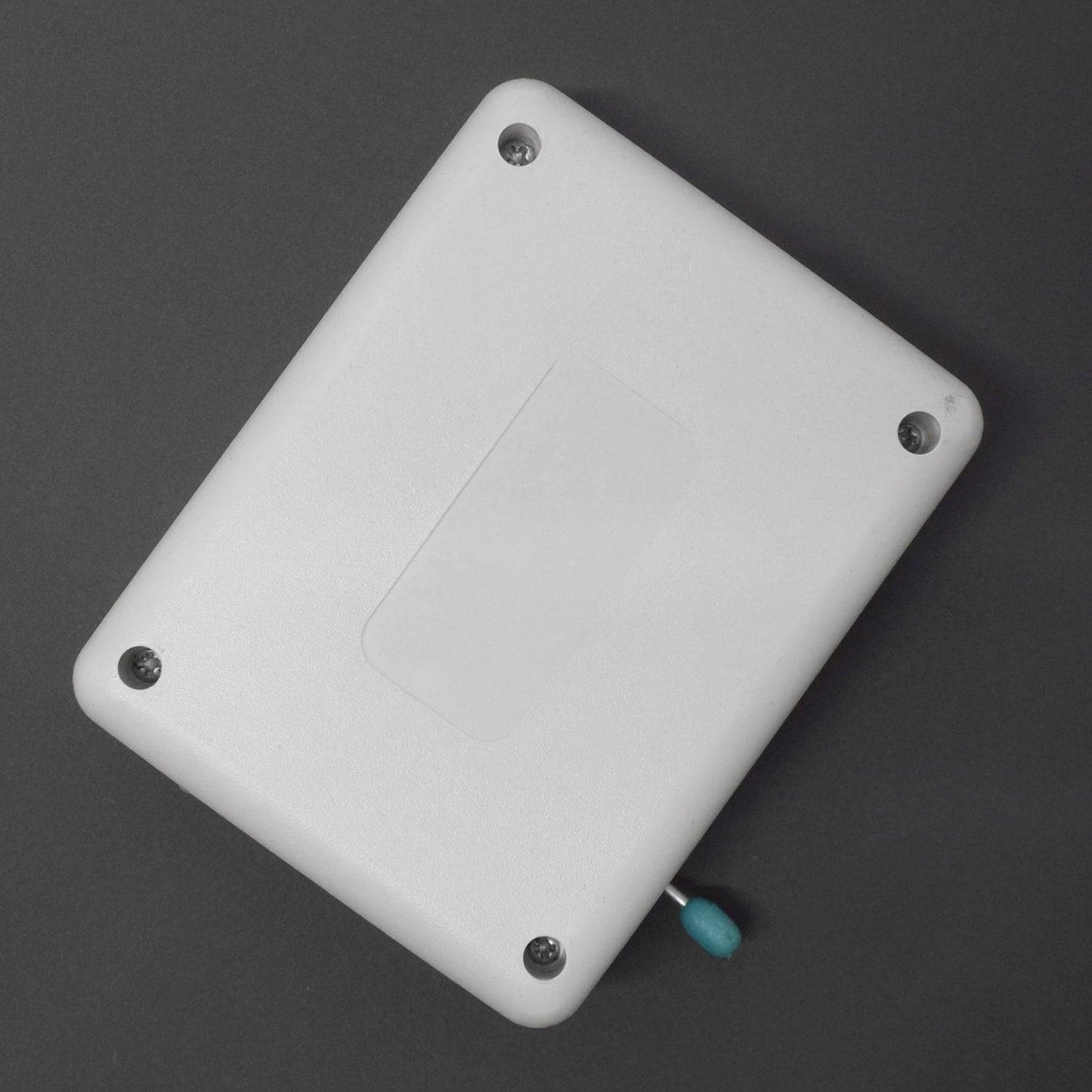

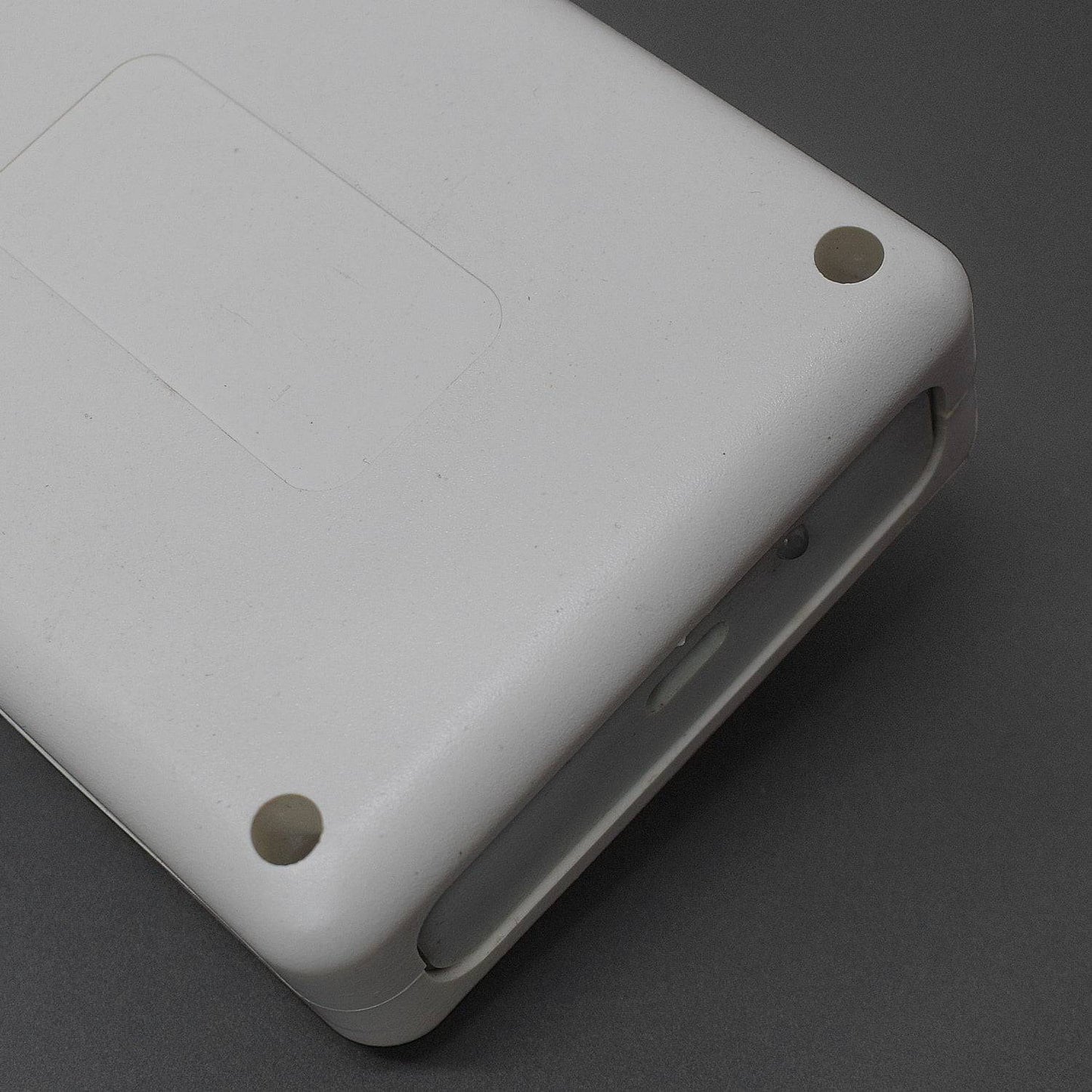

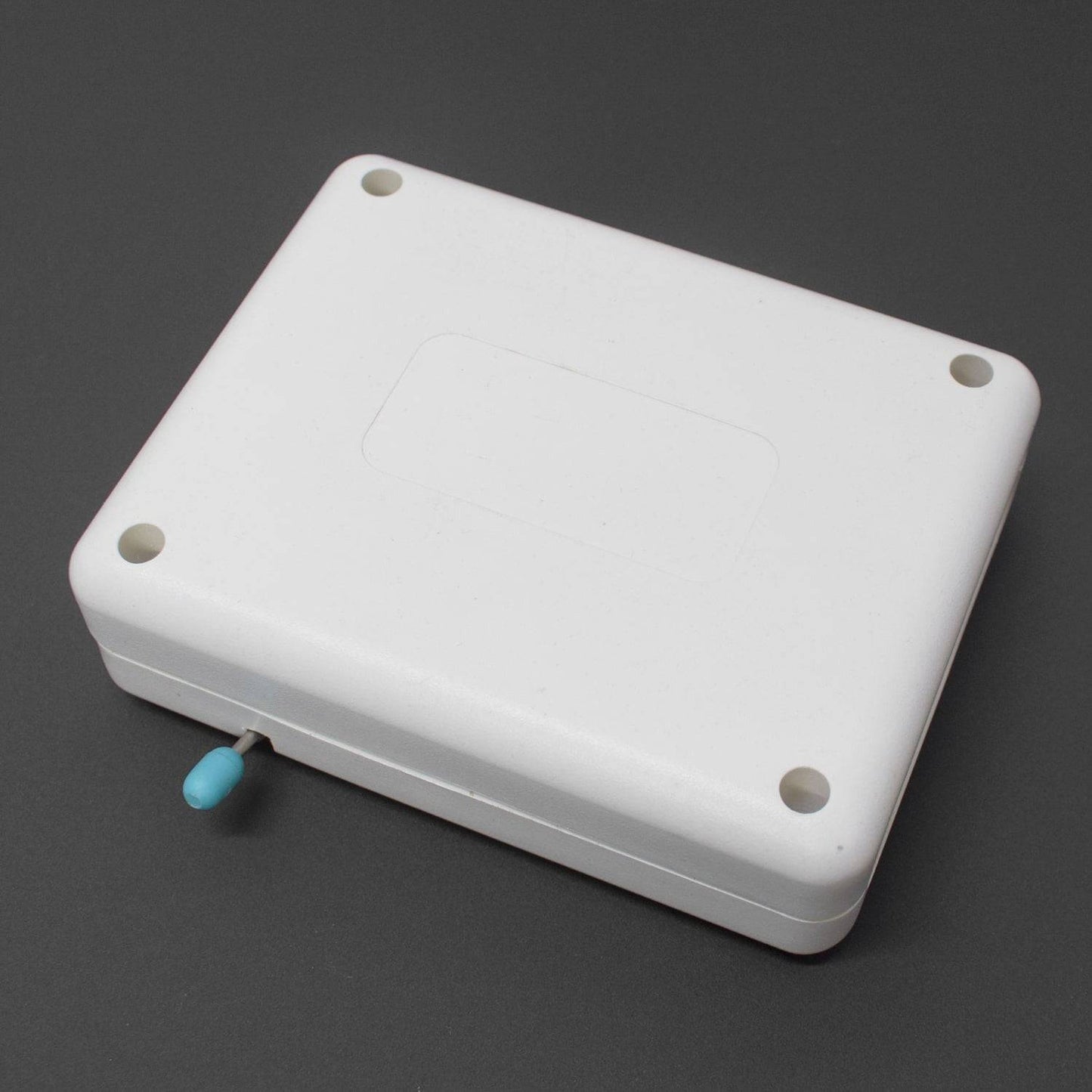

- 1 x Tester

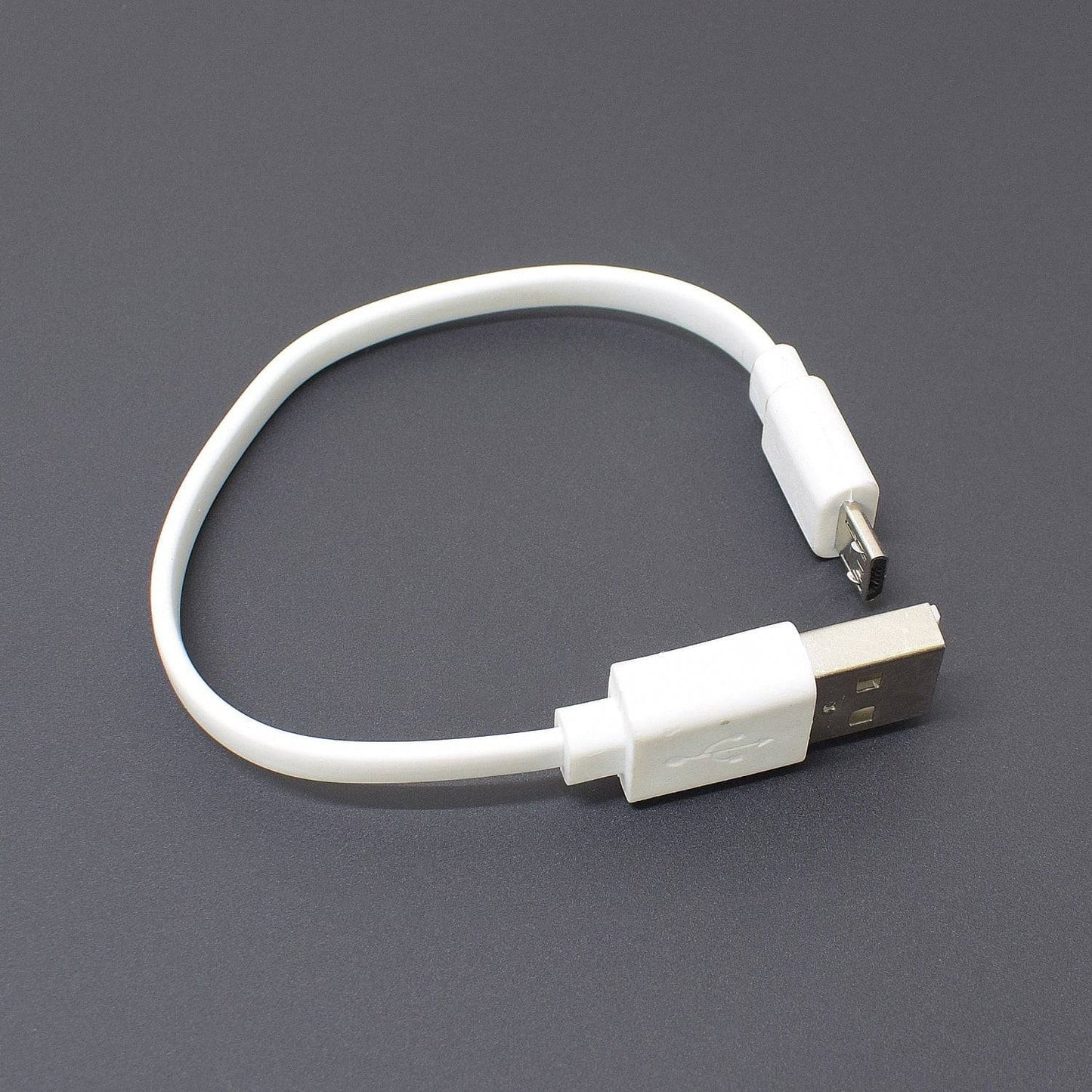

- 1 x USB Cable

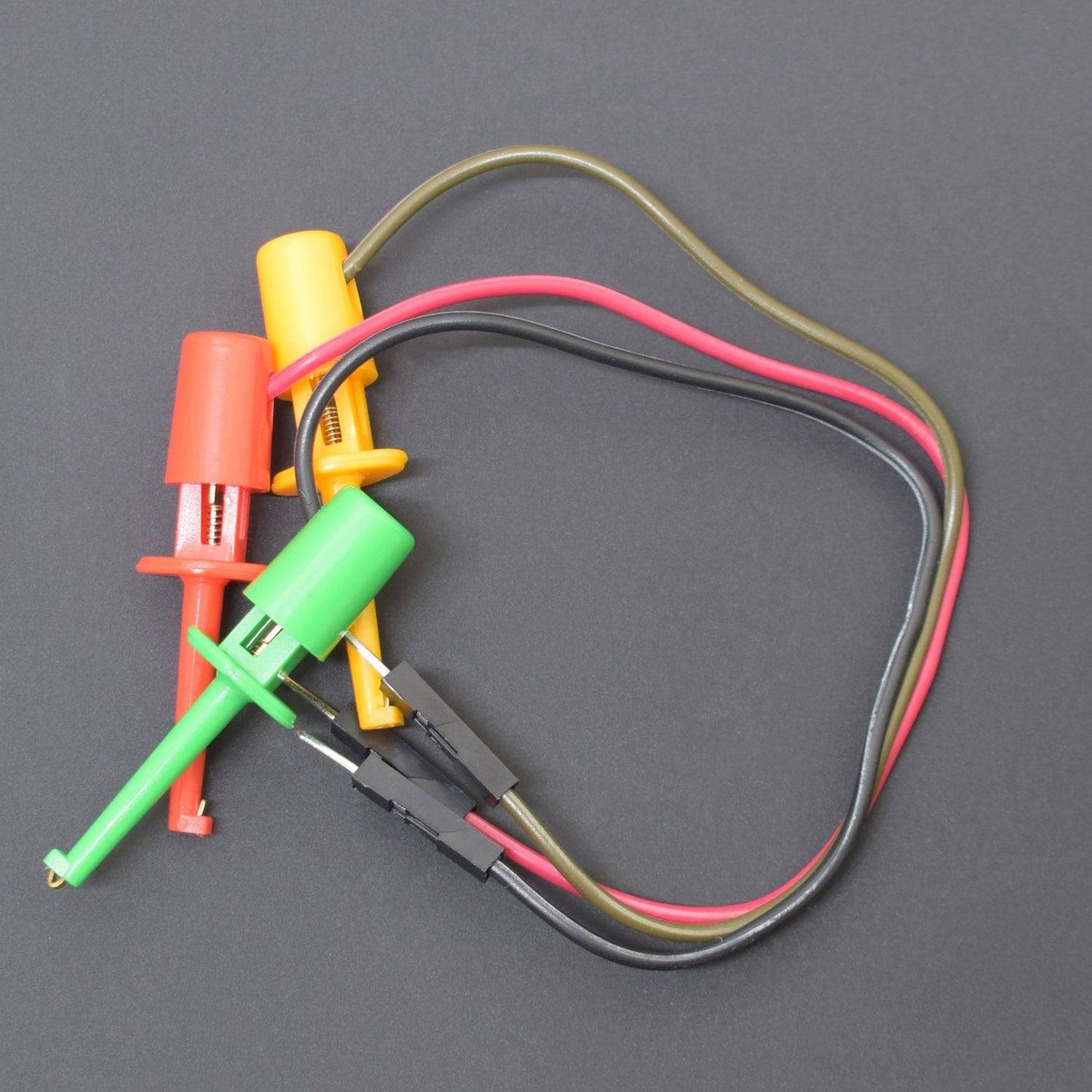

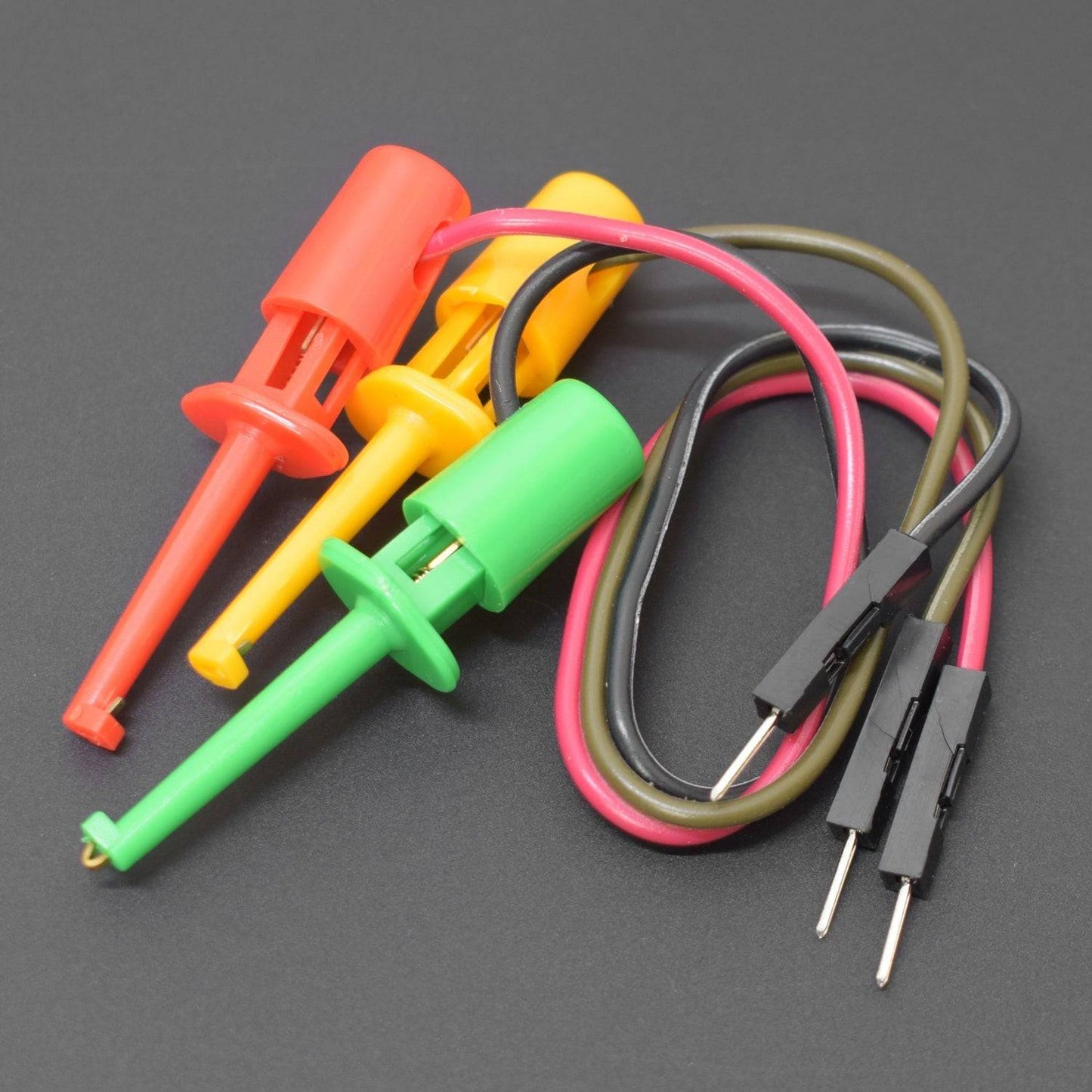

- 1 x Test Clip

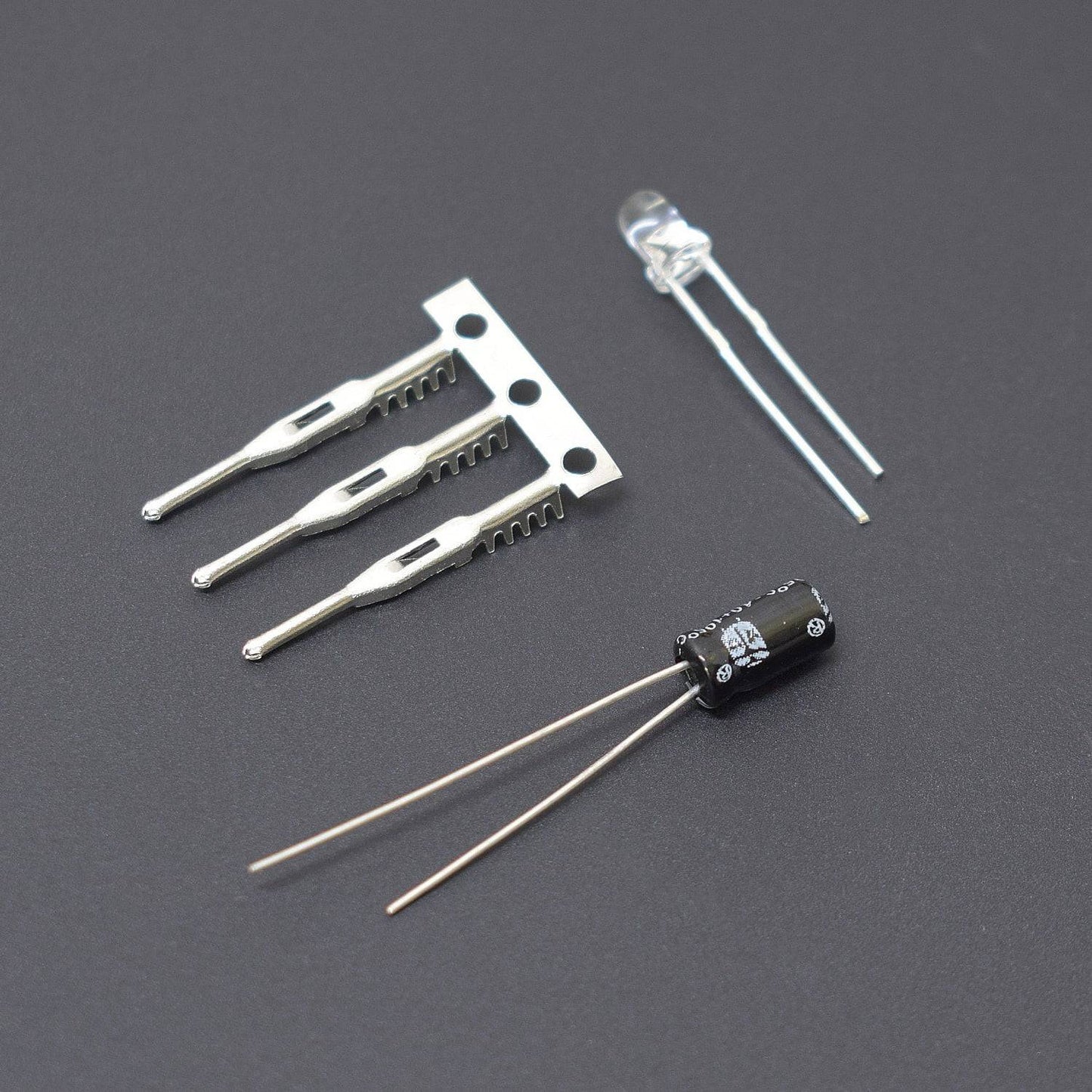

- 1 x LED
- 1 x Capacitance
