Large Piezo Vibration Sensor Industrial Grade Large Piezo Vibration Sensor Large Area Piezoelectric Vibration Sensor High Sensitivity Large Piezo Disc Vibration Sensor For Robust Detection - RS3727

Large Piezo Vibration Sensor Industrial Grade Large Piezo Vibration Sensor Large Area Piezoelectric Vibration Sensor High Sensitivity Large Piezo Disc Vibration Sensor For Robust Detection - RS3727

RS3727

Low stock: 9 left

Rs. 449.00
Rs. 449.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

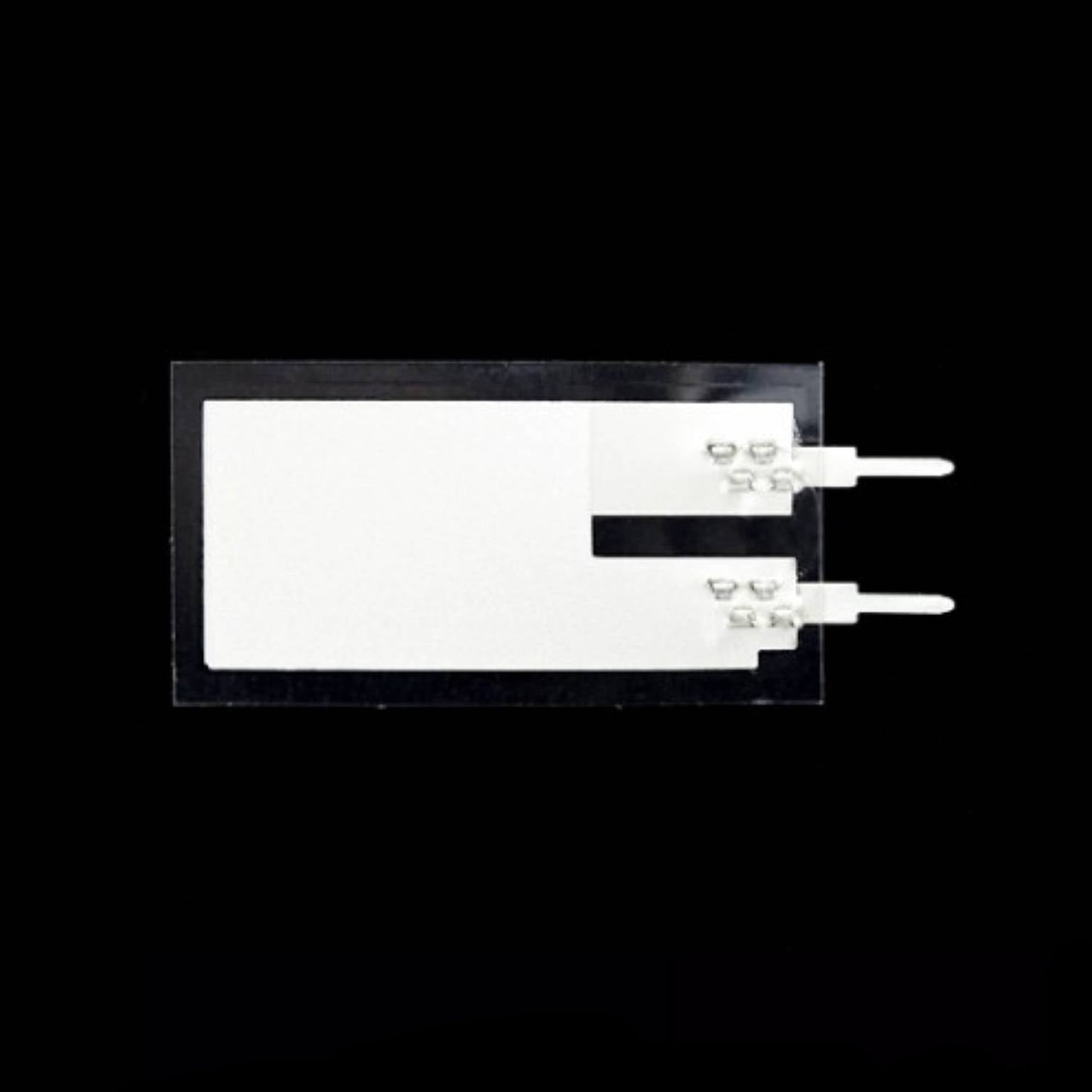

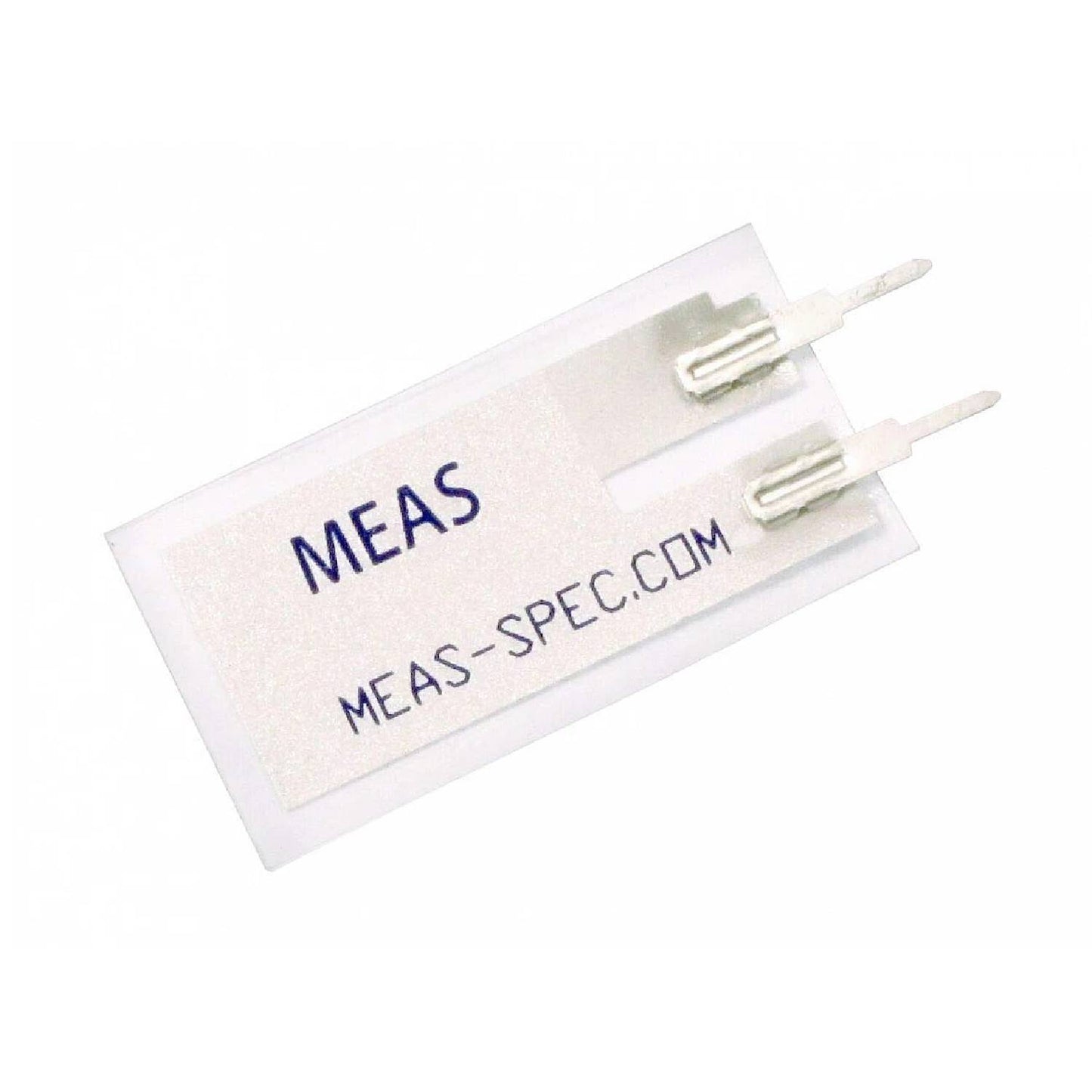

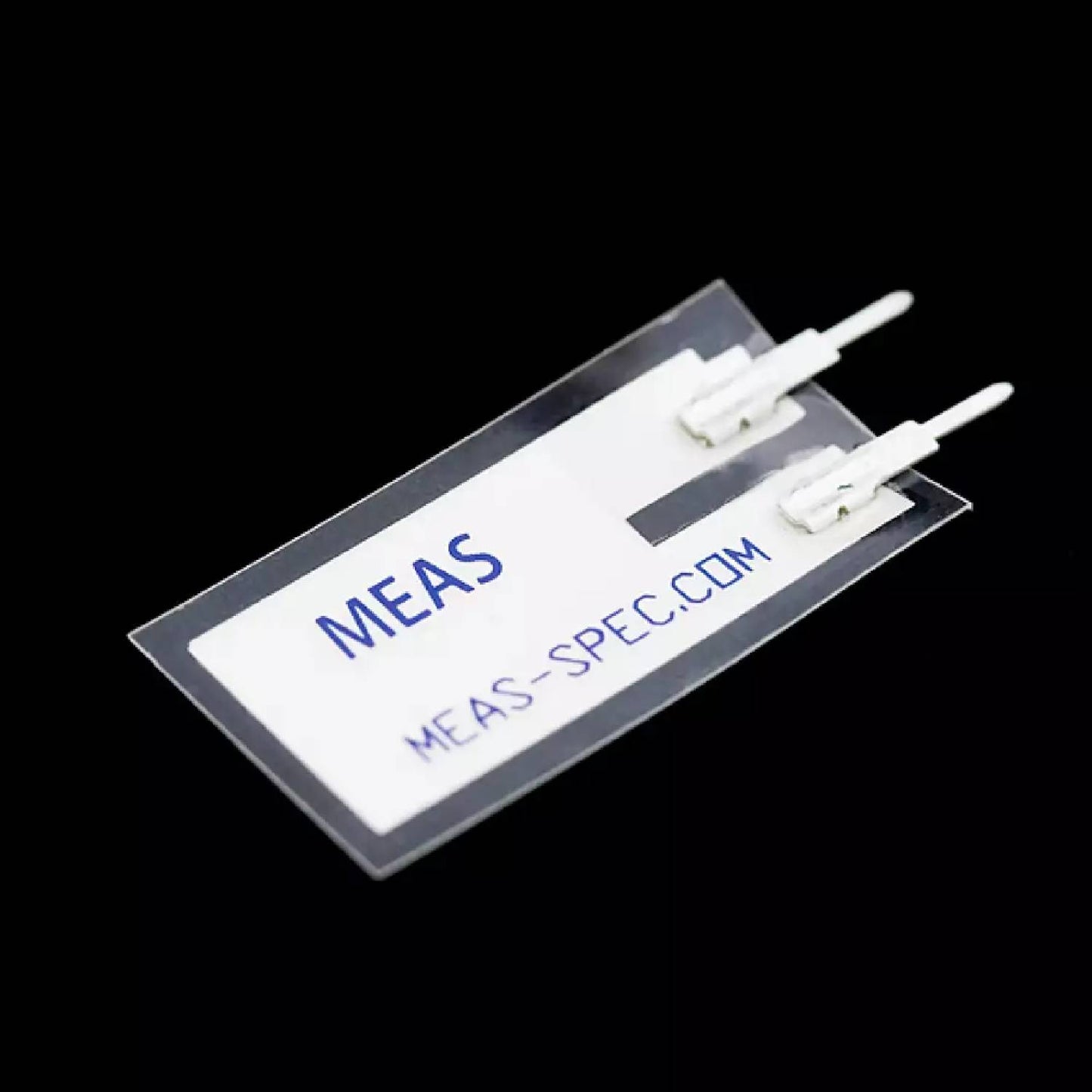

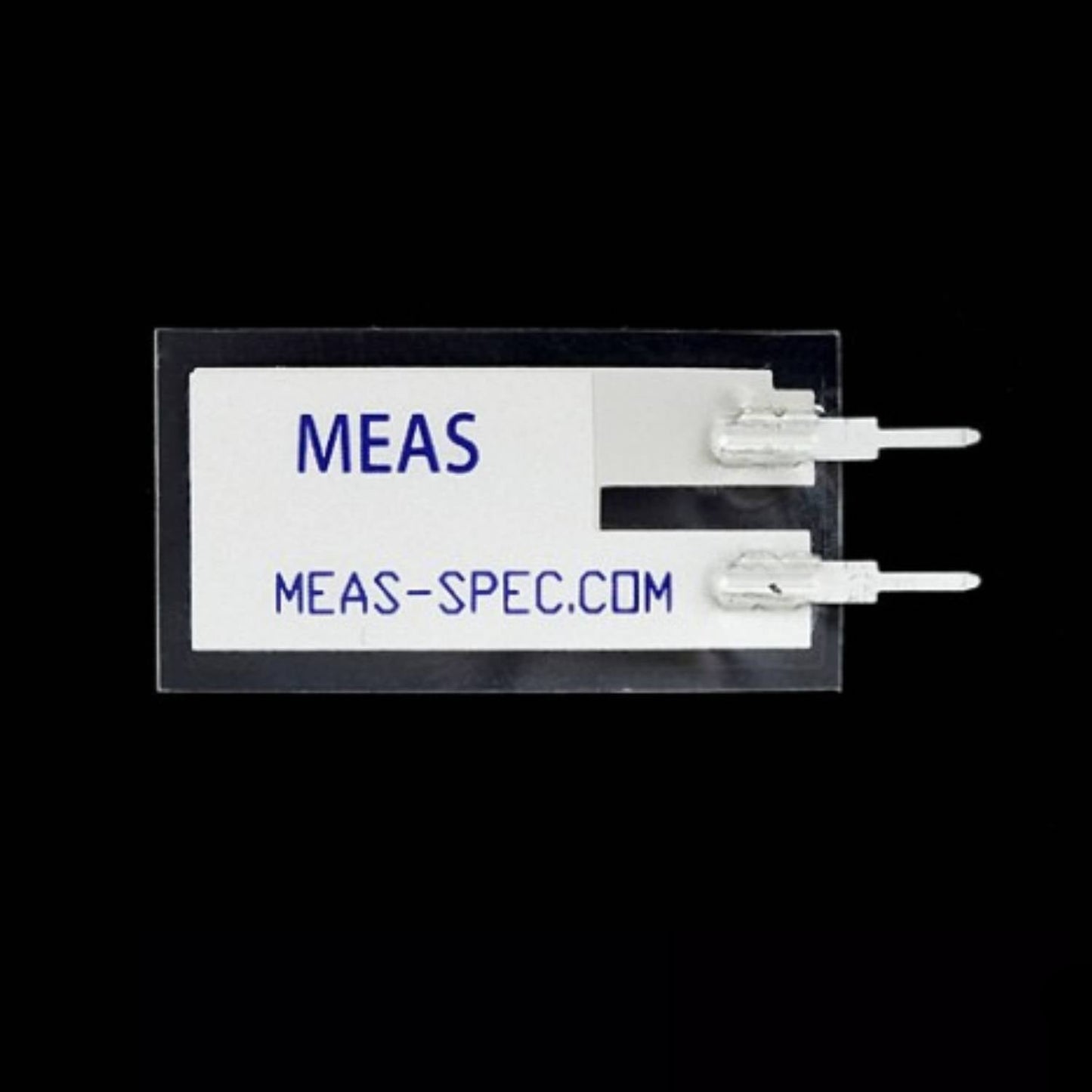

This basic piezo sensor from measurement specialties is often used for flex, touch, vibration and shock measurements. A small ac and large voltage (up to +/-90v) is created when the film moves back and forth. A simple resistor should get the voltage down to adc levels. Can also be used for impact sensing or a flexible switch. Comes with solder able crimp pins and a mass attached to the tip.

This versatile sensor is designed for a wide range of applications, including flex, touch, vibration, and shock detection. Utilizing piezoelectric technology, this sensor generates a small AC voltage (up to +/-90V) when subjected to mechanical stress, such as bending, touching, vibration, or impact.

Specifications:

  • Model Type: Piezo Vibration Sensor
  • Operating Temperature (°C): 0 ~ 85
  • Storage Temperature (°C): -40 ~ 85°C
  • Frequency (Hz): 90 Hz ('+3 Db)

Features:

  • Flexible pvdf piezo polymer film
  • Wide dynamic range
  • Laminated for higher voltage output

Package Included:

1 x Large Piezo Vibration Sensor
