Description:

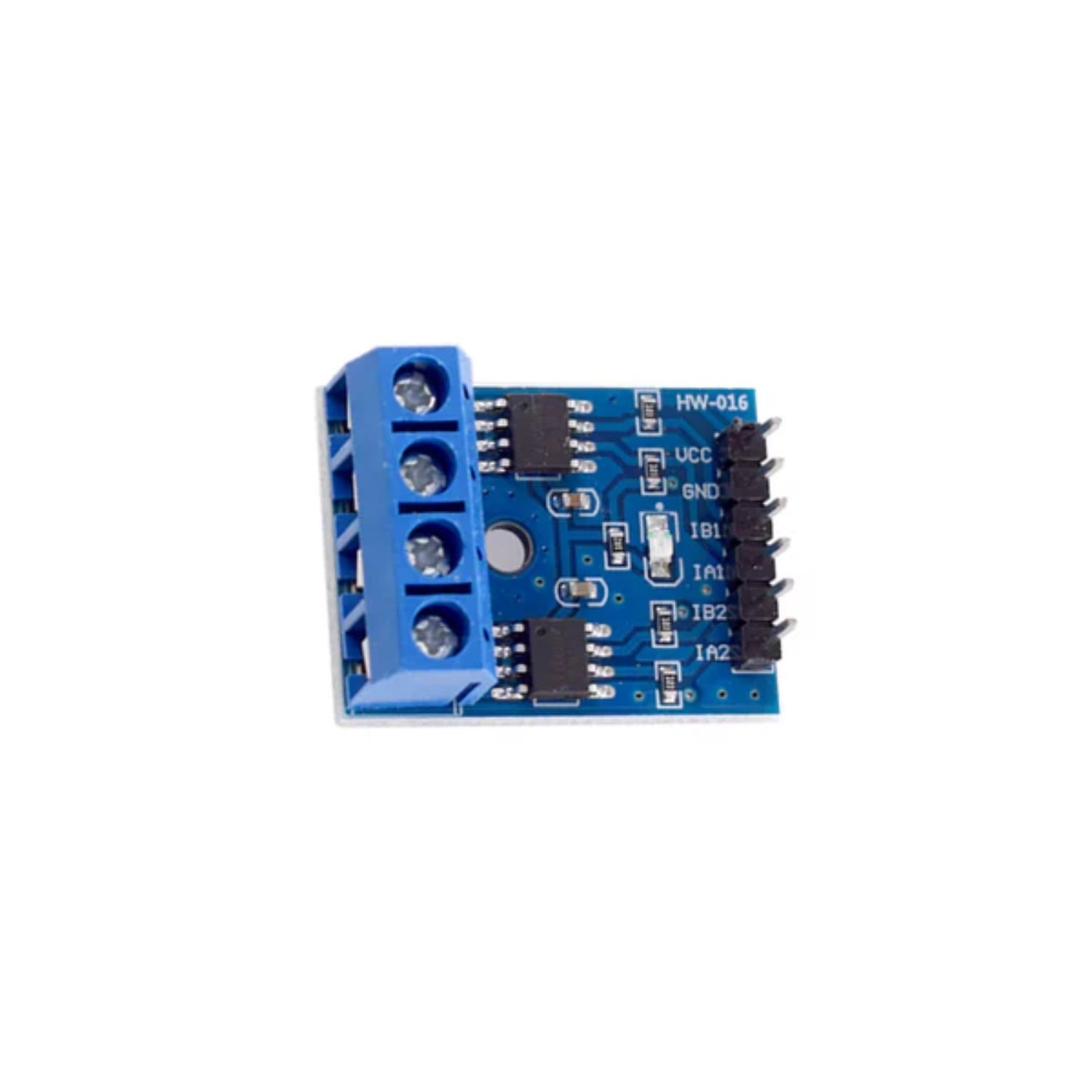

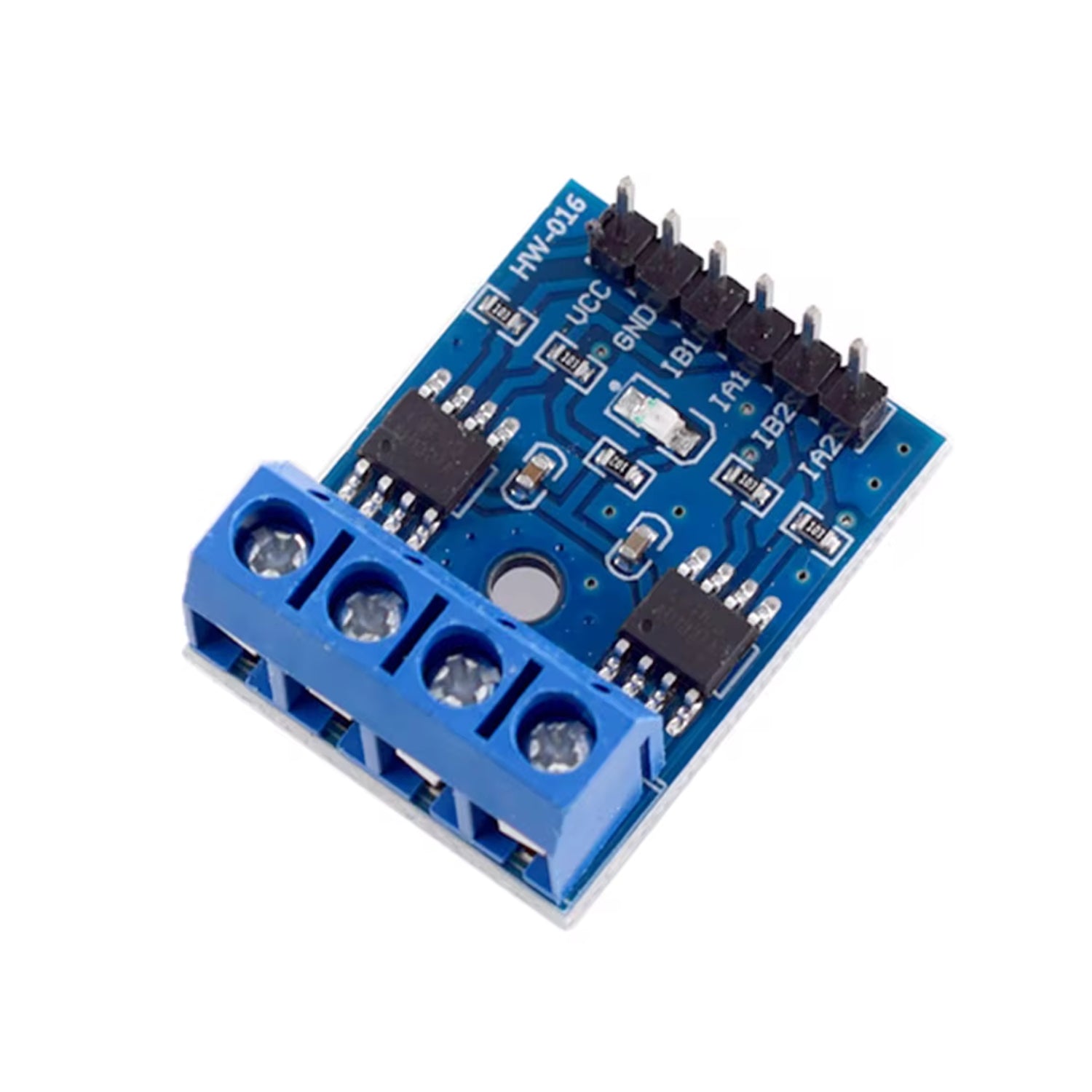

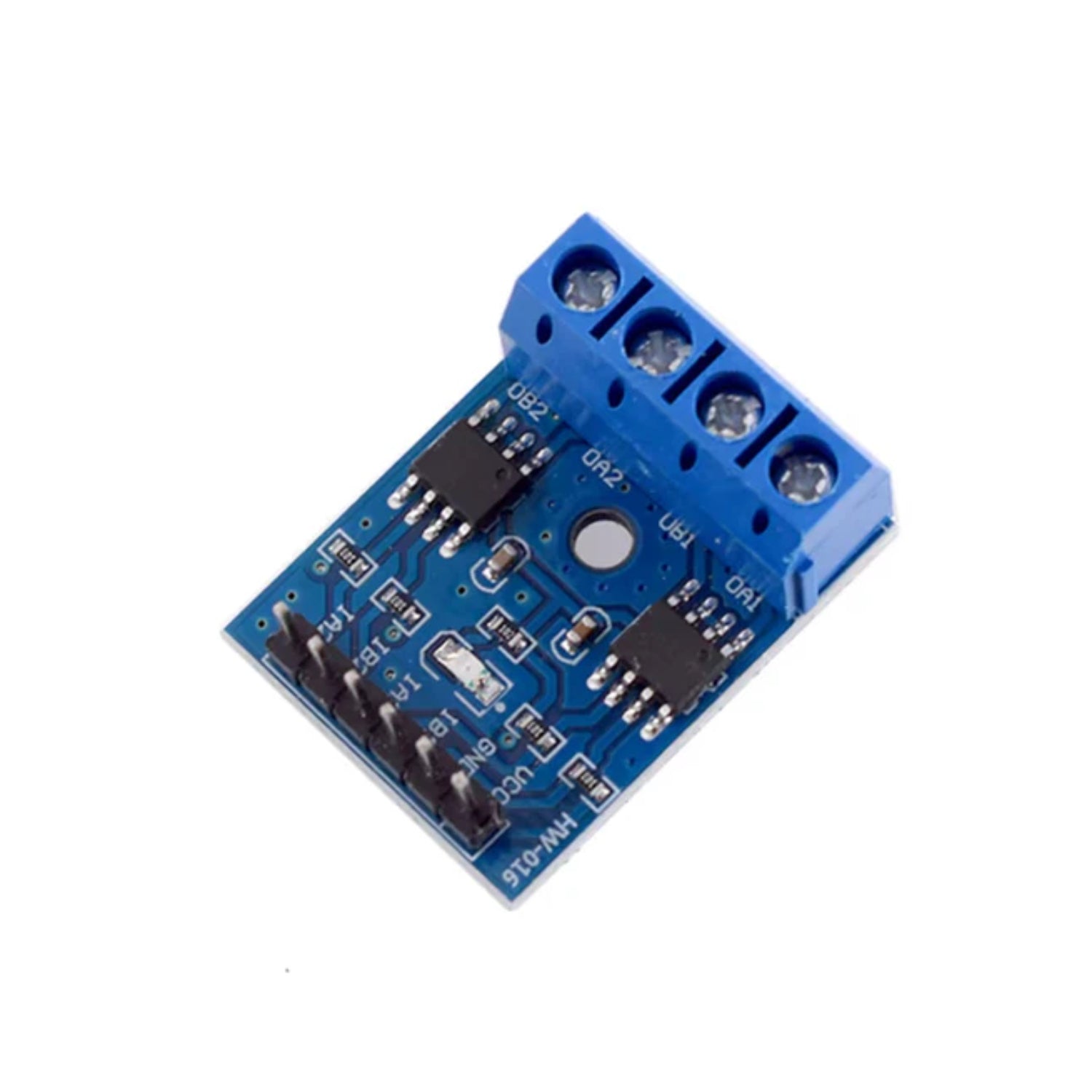

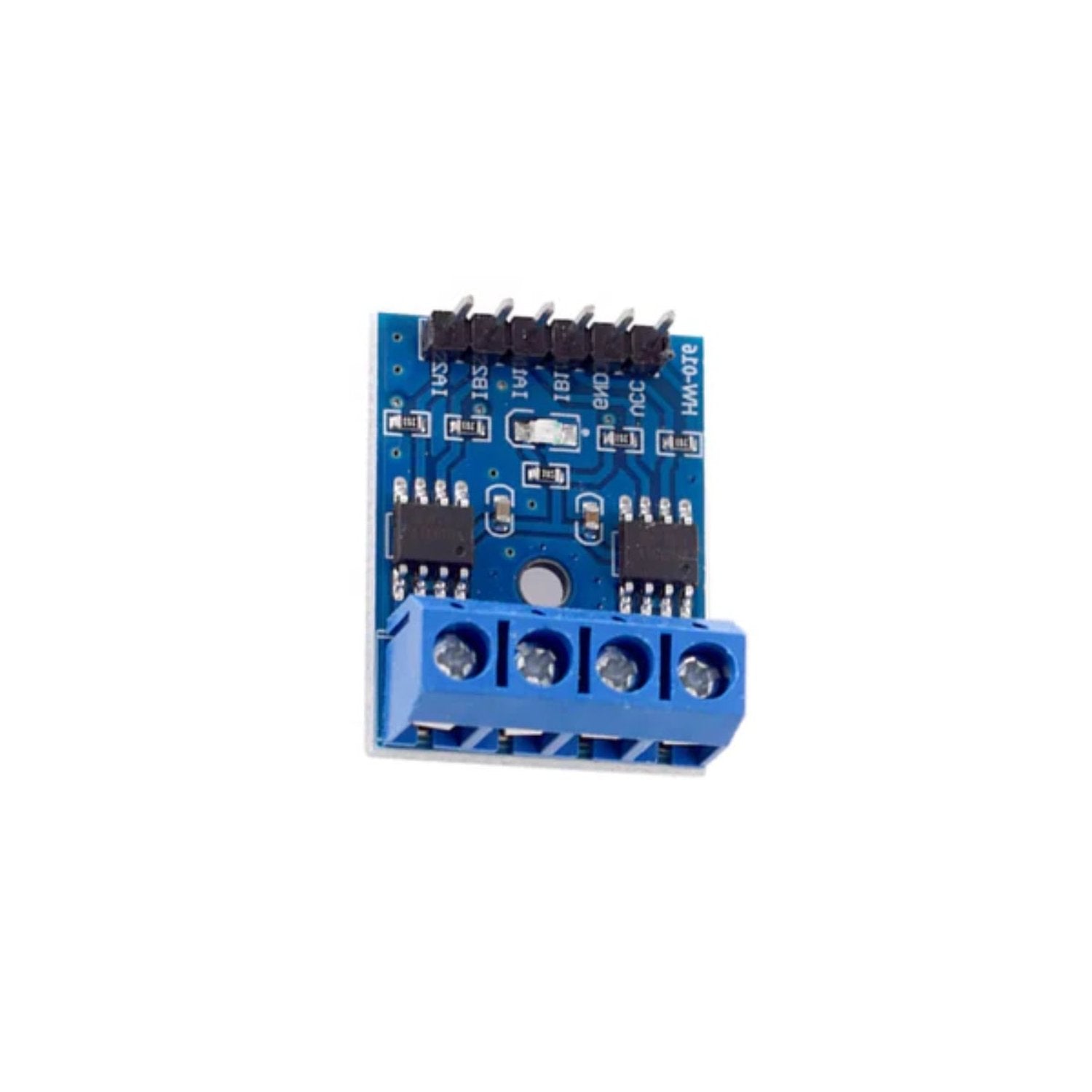

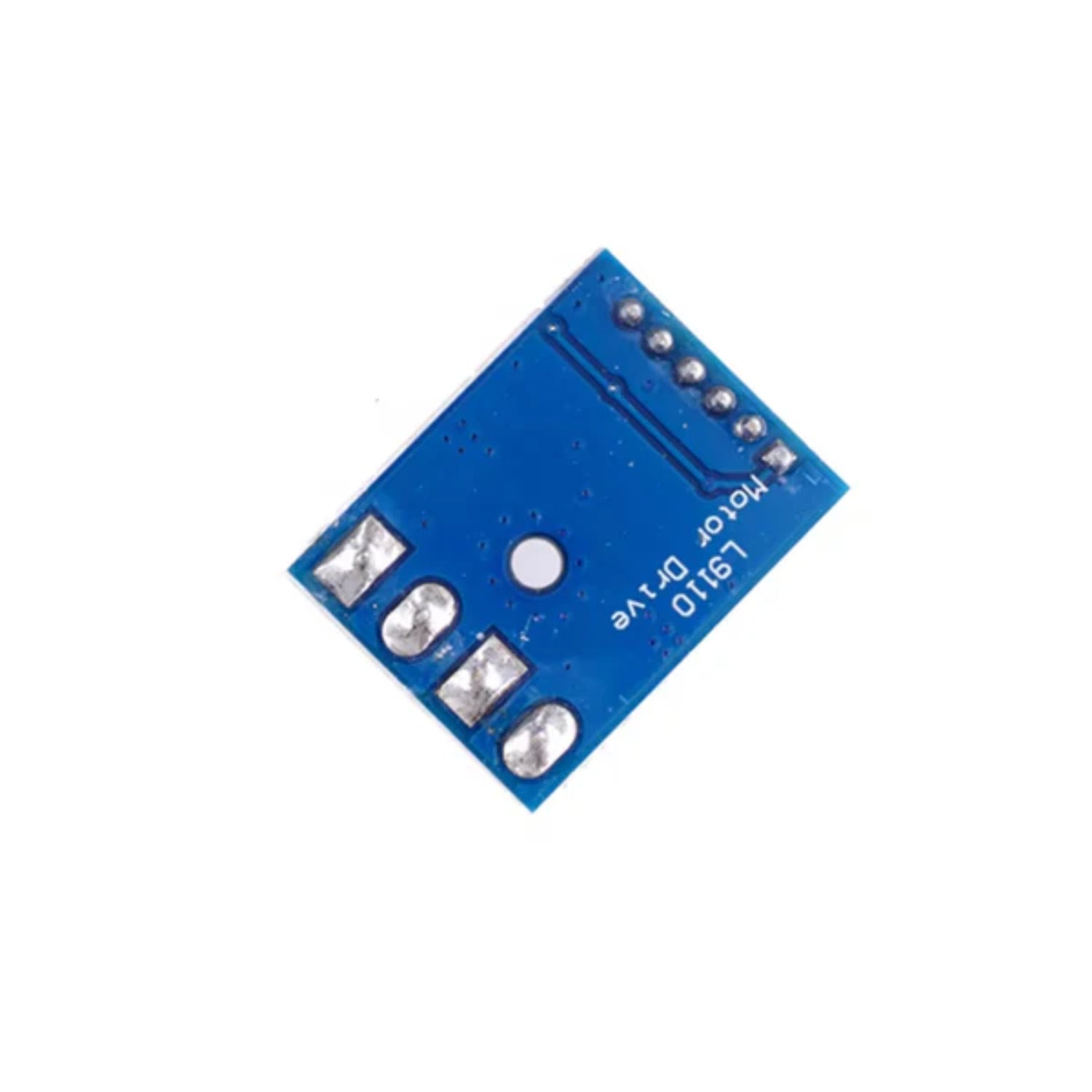

The L9110S DC Stepper Motor Driver Board HBridge is a compact dual-channel H-bridge motor driver module that can be used to drive small robots. It is based on the L9110 Motor Driver IC and can simultaneously drive two DC motors or one 4-wire 2-phase stepper motor.
The module can accept a supply voltage between 2.5V to 12V, allowing for motors within this supply range to be controlled safely from a standard microcontroller. The maximum drive current is 800mA.
The module has 0.1" pitch header pins that allow for direct connection to a microcontroller such as an Arduino, requiring just two digital pins per DC motor for control in both directions. Screw terminal blocks provide convenient connection to the motor.
Specifications:
- Type: Stepper Motor
- Model: L9110S
- Power Supply Voltage: DC 2.5-12V
- Operating Current: 0.8A
- Colour: Blue
![]()
Features:
- TTL/CMOS output level compatible can be connected directly to the CPU.
- Output built-in clamping diode, apply to the perceptual load.
- Each channel has an 800mA continuous current output.
- Have pin high-pressure protection function.
- Control and drive integrated into IC.
- Low saturation pressure drop.
- Low static work current.
- Working temperature: 0-80 °C.
Package Included:
