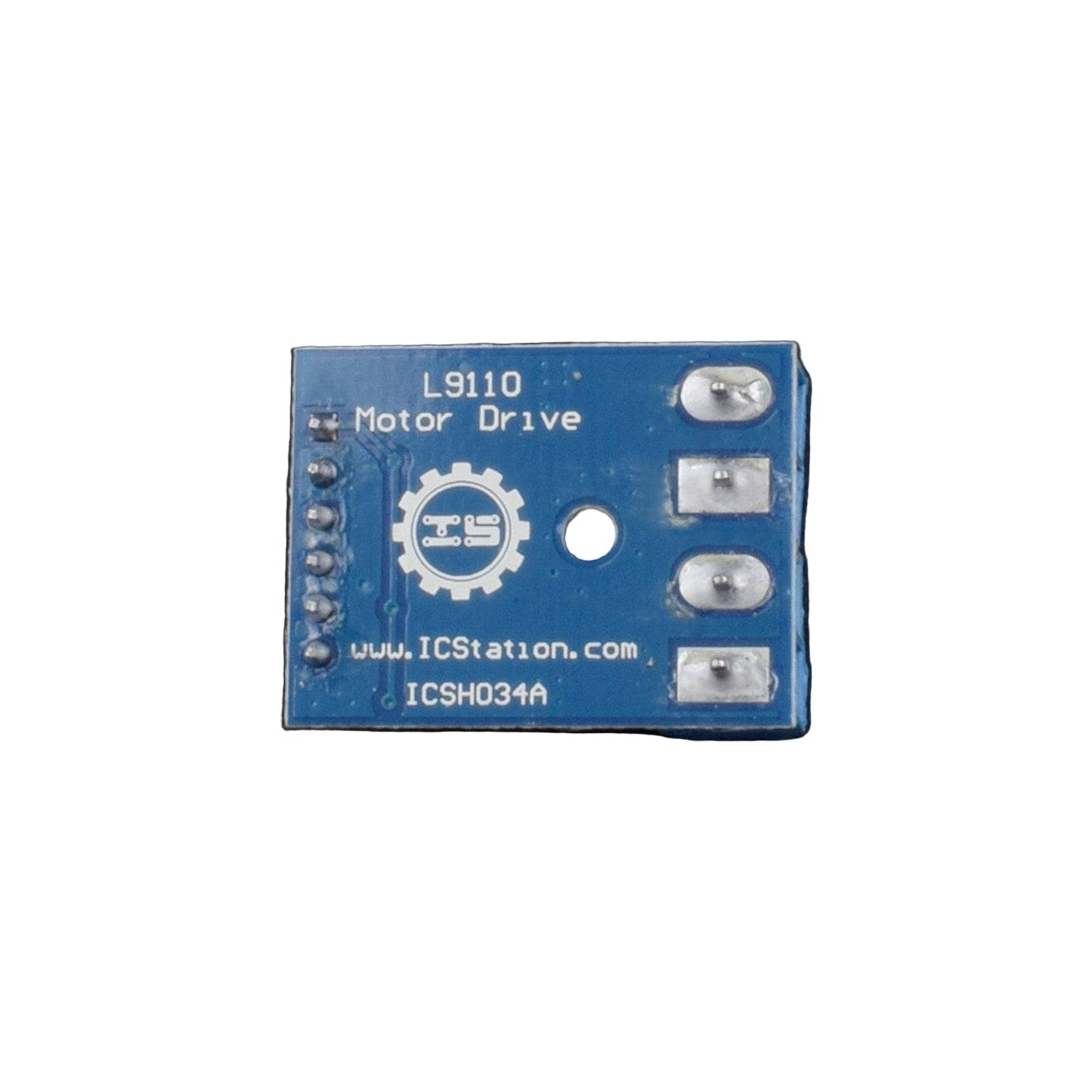

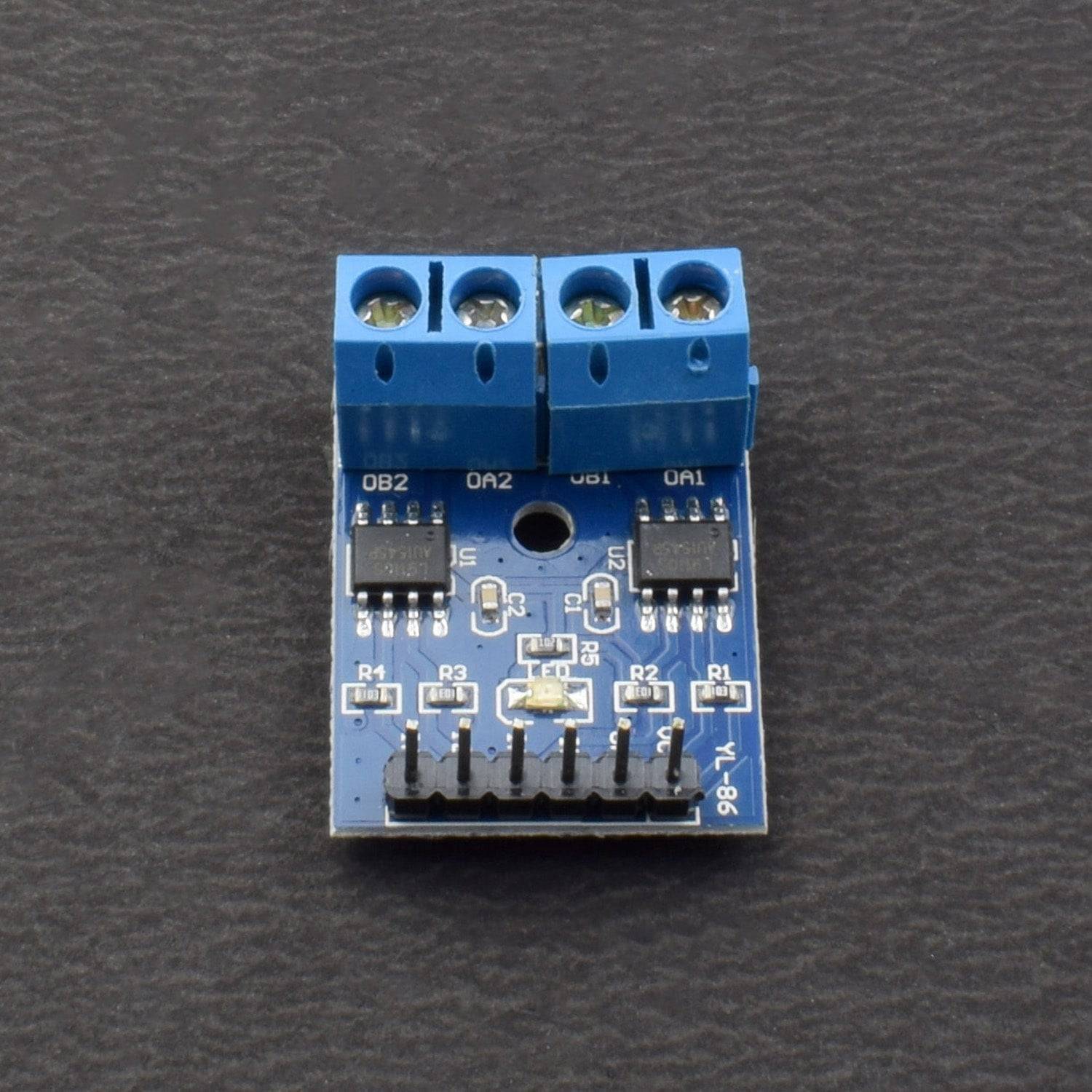

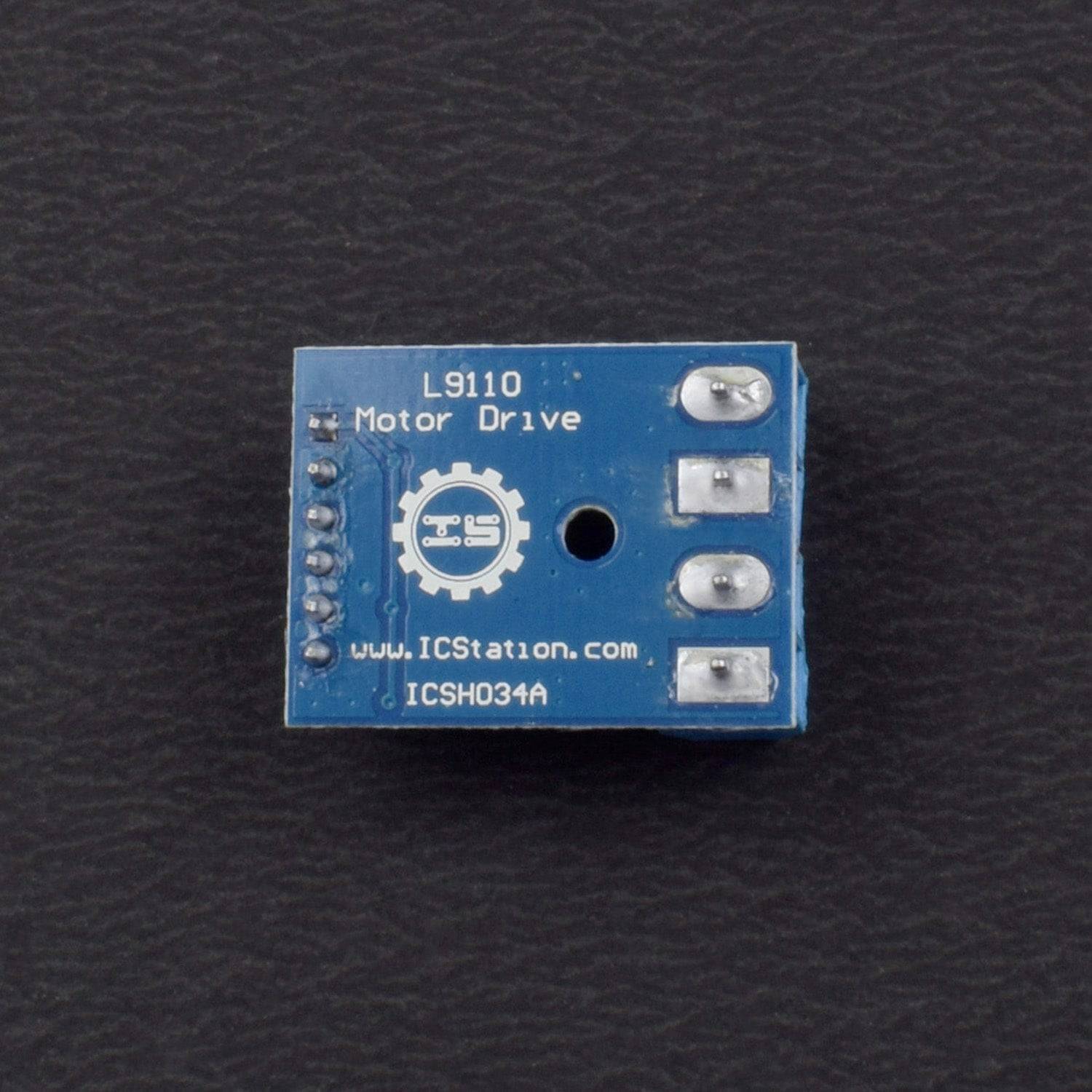

L9110 Motor Driver Module — Compact Dual H-Bridge for DC & 4-Wire Stepper (Up to 800 mA) - AA110

L9110 Motor Driver Module — Compact Dual H-Bridge for DC & 4-Wire Stepper (Up to 800 mA) - AA110

AA110

5086 in stock

Rs. 190.00
Rs. 190.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Compact L9110 dual H-bridge module drives two DC motors or one 4-wire stepper. 2.5–12 V input, up to 800 mA per channel. Ideal for hobby robotics & embedded systems.

The L9110 Motor Driver Module is a compact, efficient dual H-bridge driver designed for small motors and stepper applications. It allows you to drive two DC motors or one 4-wire (2-phase) stepper motor with ease, all at currents up to 800 mA per channel under typical operating conditions.

This module works in a wide voltage range (2.5 V to 12 V), making it well suited to both 3.3 V and 5 V microcontroller systems. With its simple input interface and onboard protection, it’s a popular choice for makers, robotics, IoT devices, and DIY motion control projects.

Specifications:

Driver scheme Dual H-bridge
Supply voltage (Vcc) 2.5 V – 12 V
Continuous current per channel 800 mA
Peak / short current tolerance Higher (transient)
Logic interface TTL / CMOS compatible inputs
Saturation voltage Low (varies by load)
Mounting size / board dimension ~29.2 × 23 mm
Operating temperature Approx. –20 °C to +80 °C
Motor types supported DC motors, 4-wire 2-phase stepper

⚠️ Note: Always check your motor’s stall current and peak current draw; ensure you don’t exceed what the driver can safely handle.

Feature:

  • Dual H-bridge configuration: drive two independent DC motors or one 4-wire stepper motor.
  • Wide operating voltage: 2.5 V to 12 V input supply.
  • 800 mA continuous current per channel (with some margin for short peaks).
  • Low quiescent current and lower saturation voltage, enhancing efficiency.
  • TTL / CMOS compatible logic, ideal for direct connection to microcontrollers.
  • Integrated clamp diodes or protections to manage inductive loads.
  • Compact PCB footprint (≈ 29.2 × 23 mm) with mounting holes.

Package includes:

1 x L9110S H-bridge Stepper Motor Dual DC Motor Driver Controller Board
