- Output current up to 1.5 A
- Output voltages of - 5; - 8; - 12; - 15 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
DESCRIPTION

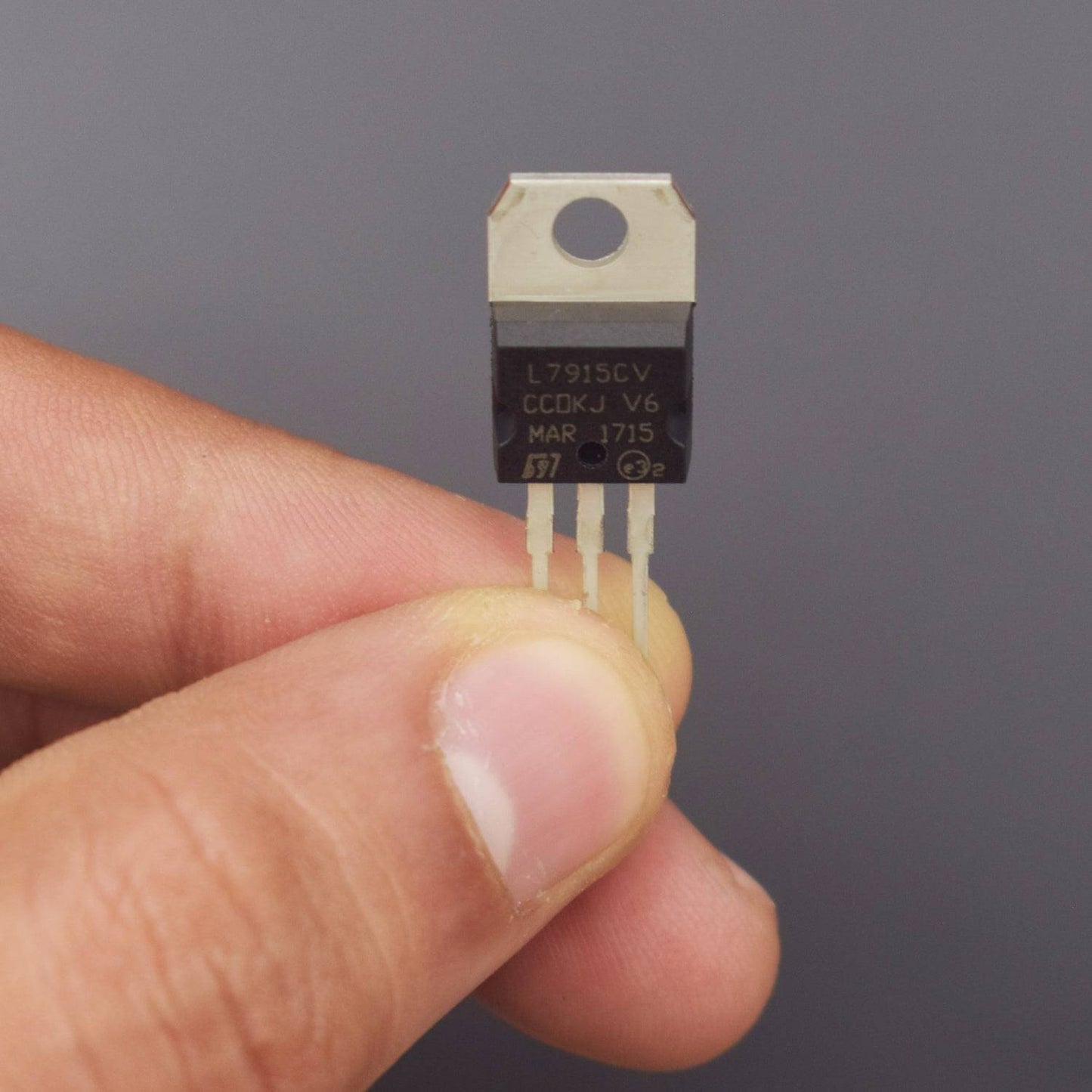

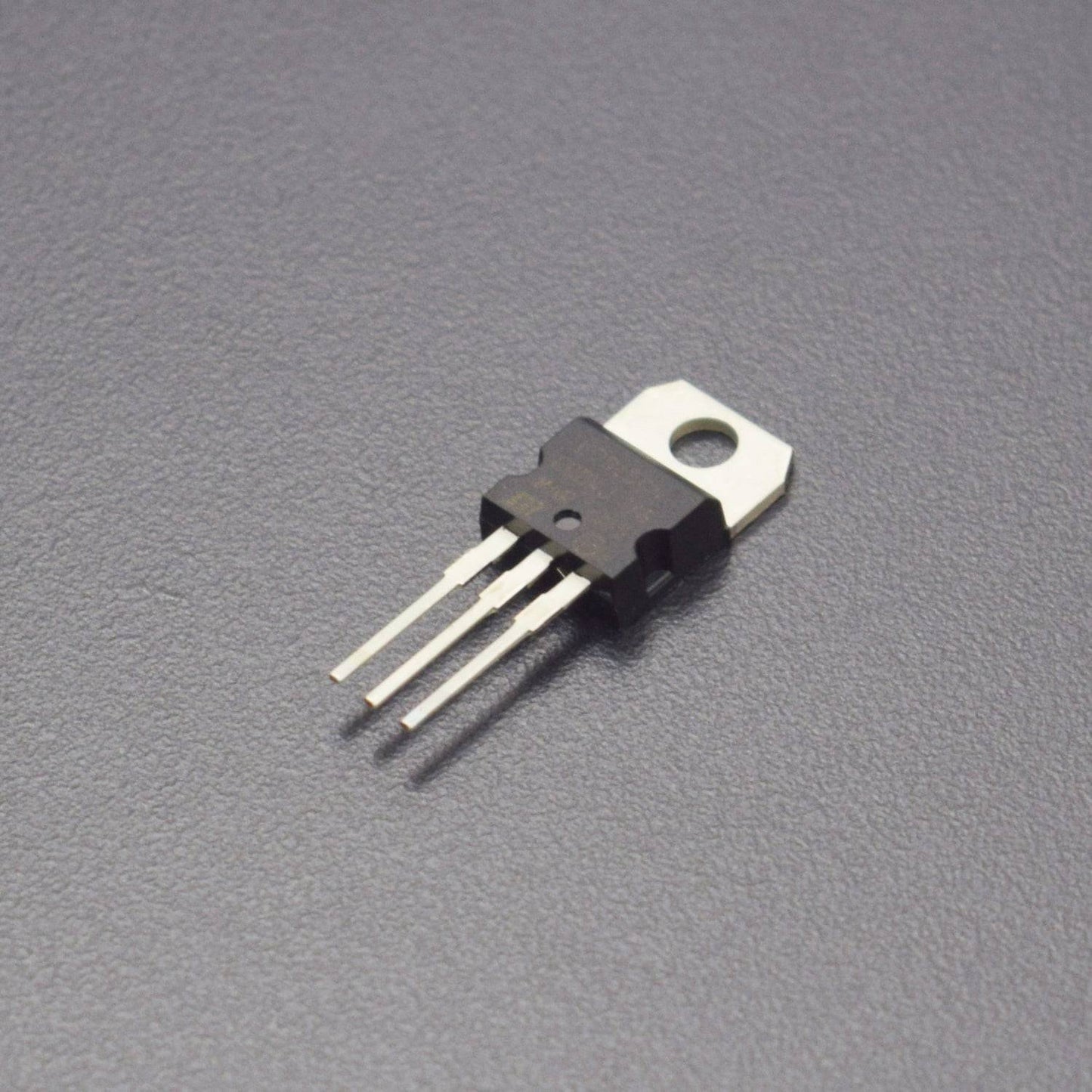

The L7915CV is a three terminal negative voltage regulator with an output voltage of -15 V and an output current up to 1.5 A. It is available in flange mount TO-220-3 package and particularly suited for split power supplies and wide range of applications.
These devices are intended provide local on-card regulation, eliminating the distribution problems associated with single point regulation. When adequate heat sinking is provided these devices can deliver over 1.5 A output current and these devices can be used with external components to obtain adjustable voltage and currents.
SPECIFICATIONS
| Attribute | Value |
|---|---|
| Output Voltage | -15 V |
| Maximum Output Current | 1.5A |
| Package Type | TO-220 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Maximum Input Voltage | -35 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +150 °C |
| Number of Outputs | 1 |
| Polarity | Negative |
| Series | L79xx |
| Height | 9.15mm |
| Width | 4.6mm |
| Line Regulation | 300 mV |
| Quiescent Current | 3mA |
| Length | 10.4mm |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Load Regulation | 300 mV |
| Typical Dropout Voltage @ Current | 1.1 V @ 1 A |
