- Current: 1.5A
- Regulator Topology: Negative Fixed
- Regulator Type: Linear
- Output Voltage: -5V
Description:
The L7900 series of three-terminal negative regulators is available TO-220FP, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation; furthermore, having the same voltage option as the L7800 positive standard series, they are particularly suited for split power supplies. In addition, the -5.2V is also available for ECL system. If adequate heat sinking is provided, they can deliver over 1.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.
Specification:
- Current: 1.5A
- Regulator Topology: Negative Fixed
- Regulator Type: Linear
- Output Voltage: -5V
Package Included:

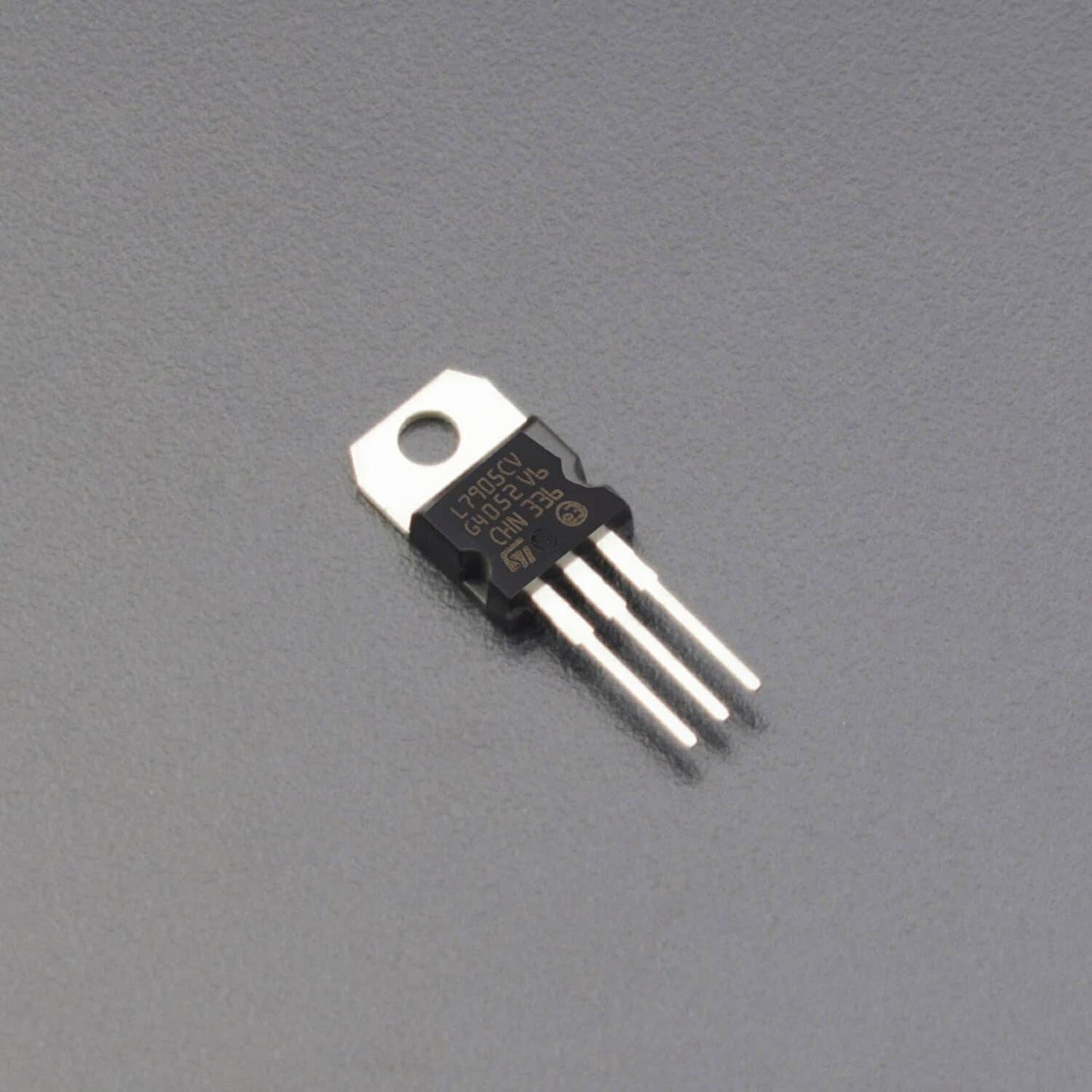

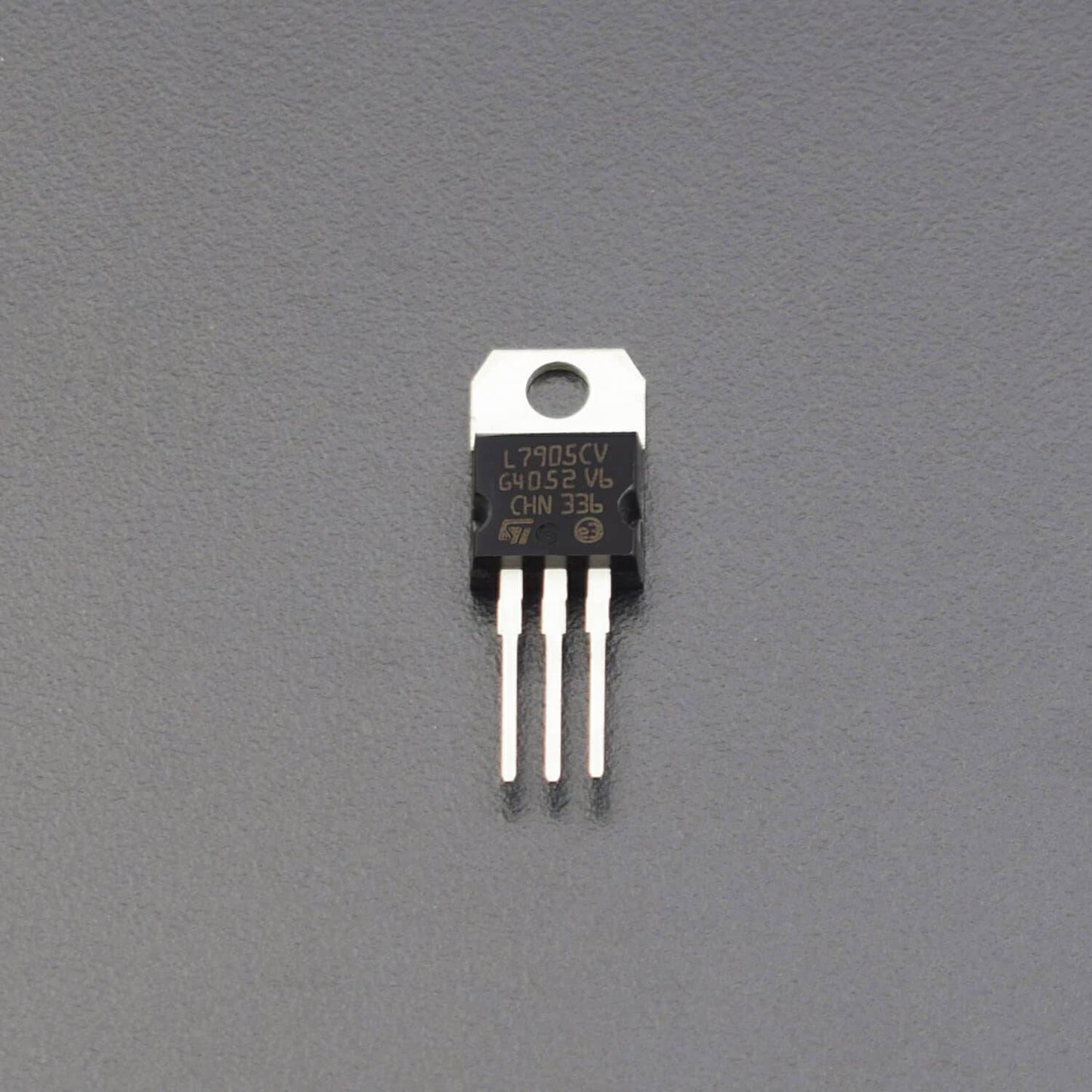

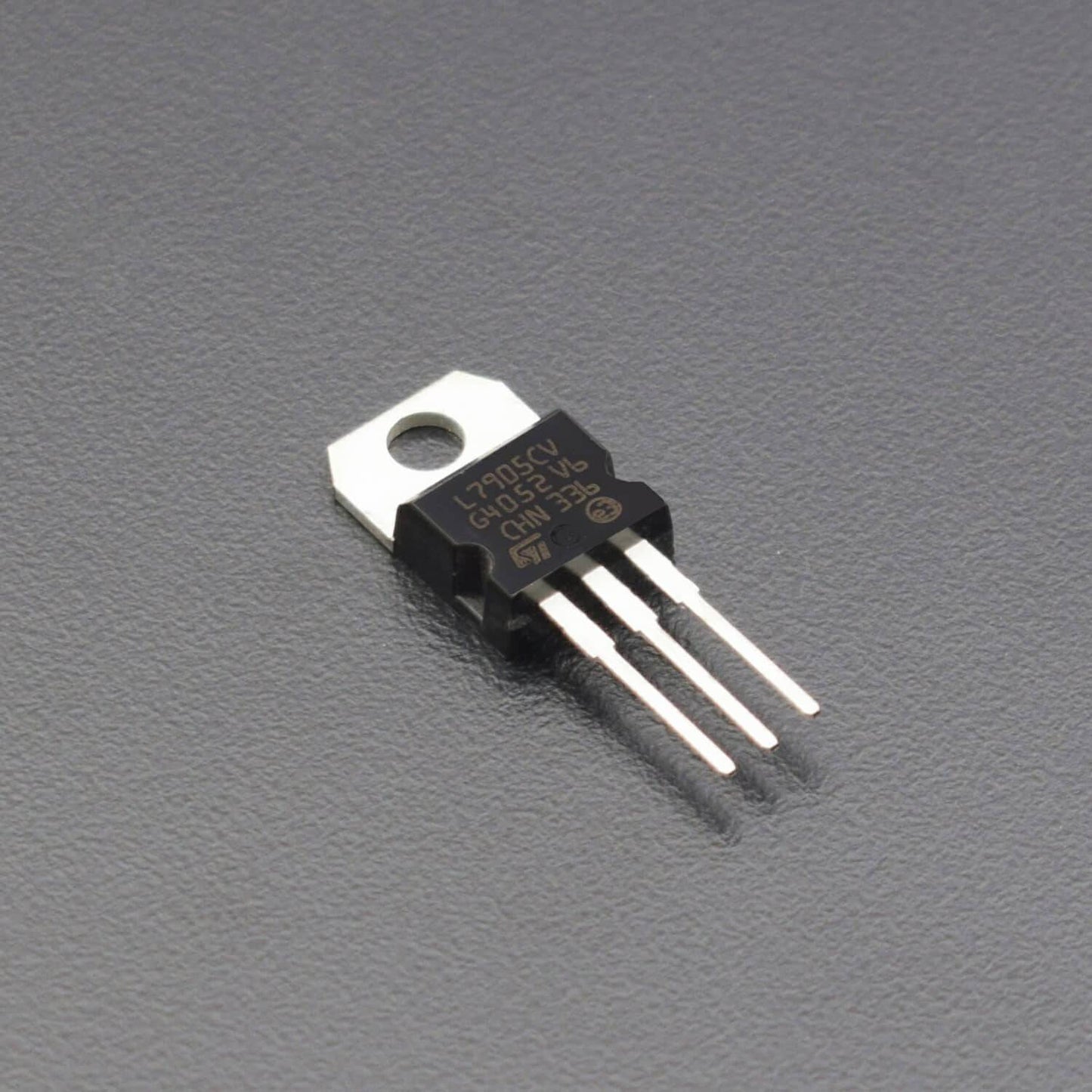

1 x L7905CV VOLTAGE REGULATOR
