- Output voltage: 24V.
- Max input voltage: 35V.
- Max output current: 1.5A.
- Quiescent (standby) current: 5mA.
Description:
L7824 voltage regulator is a 24V voltage regulator that can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Specification:
- Output voltage: 24V.
- Max input voltage: 35V.
- Max output current: 1.5A.
- Quiescent (standby) current: 5mA.
Features:
- Circuits requiring steady 24v supply.
- Protection for devices having specific voltage sensitivity.
- DIY projects requiring specific voltage from an existing higher/ varying voltage supply.
Package Included:

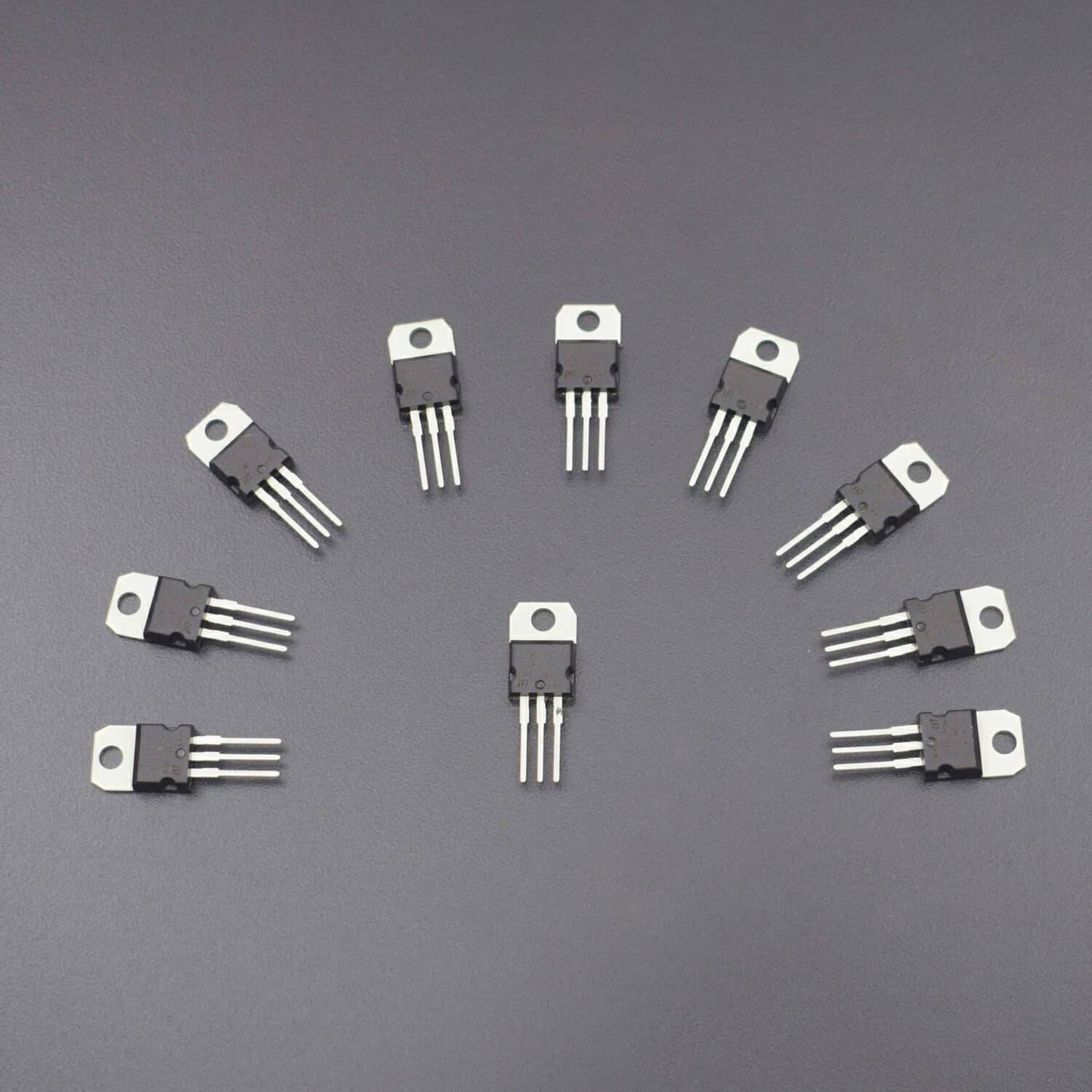

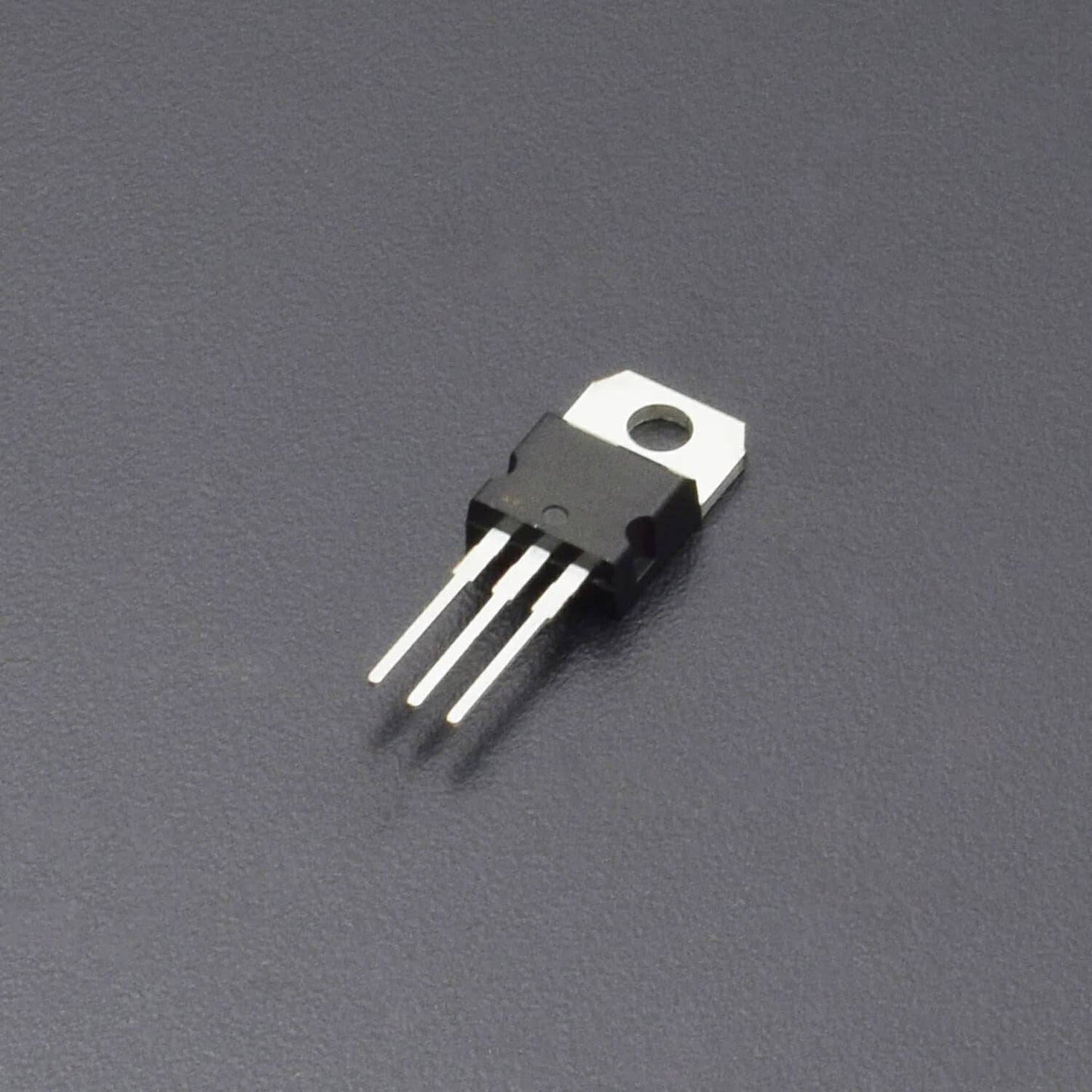

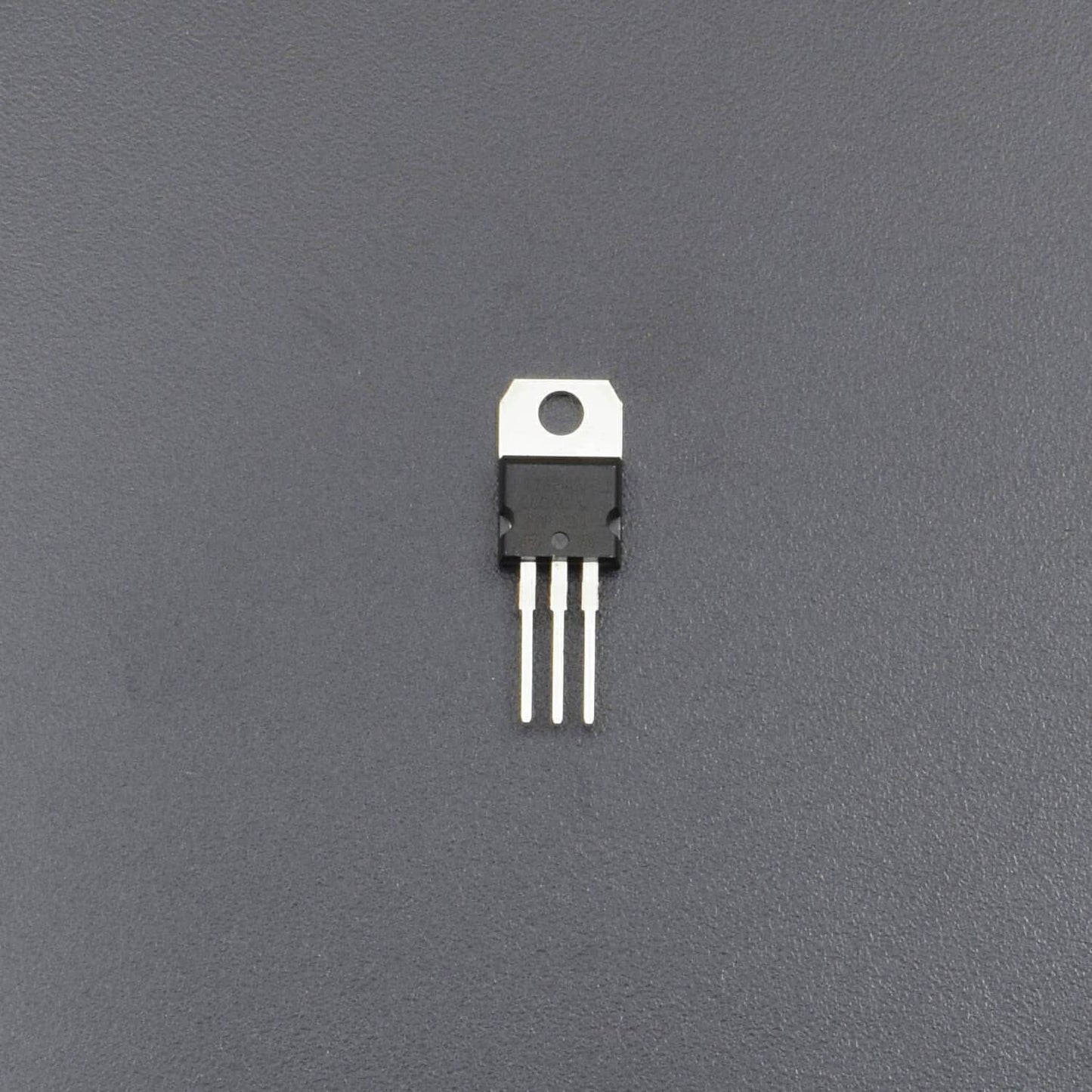

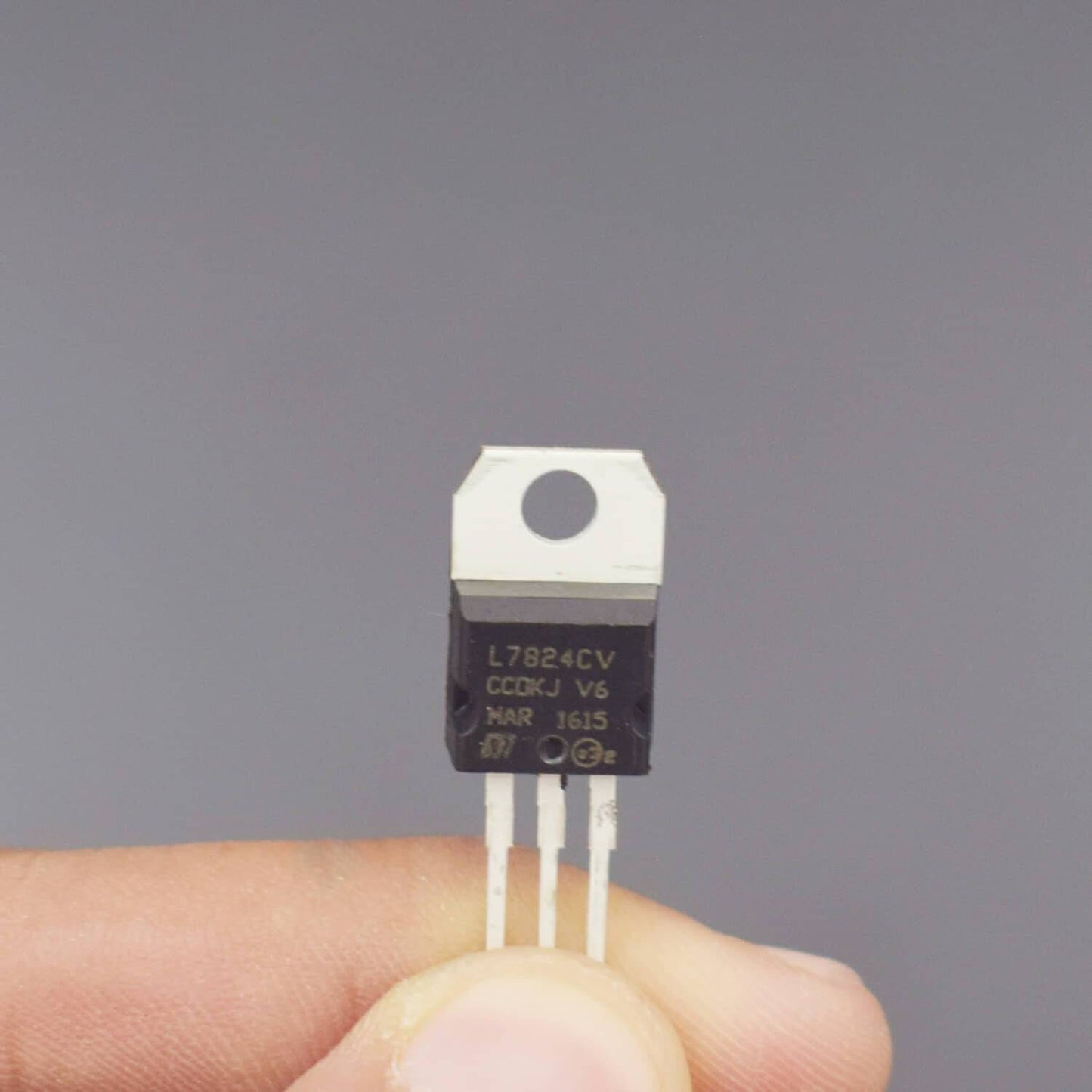

1 x L7824 Voltage Regulator
