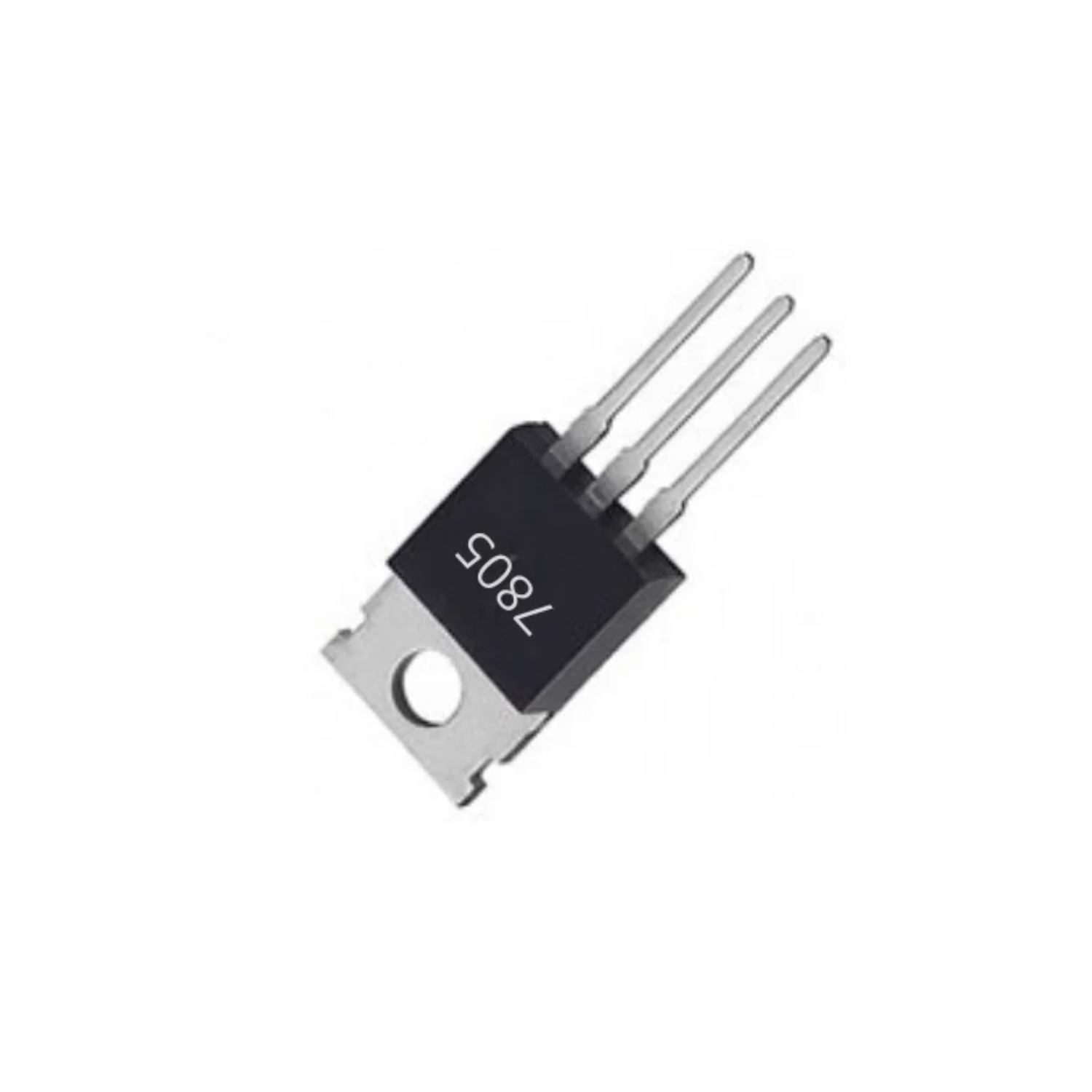

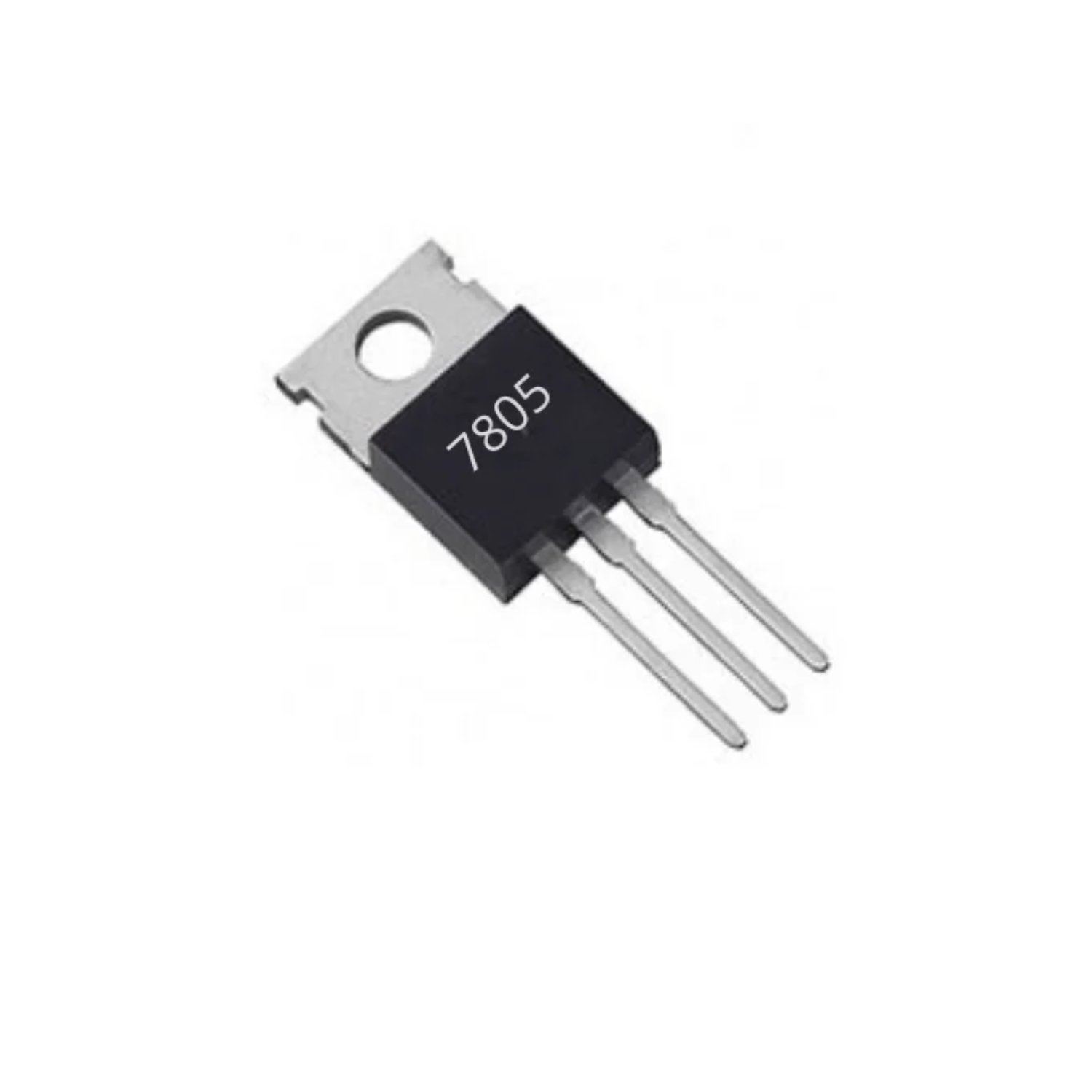

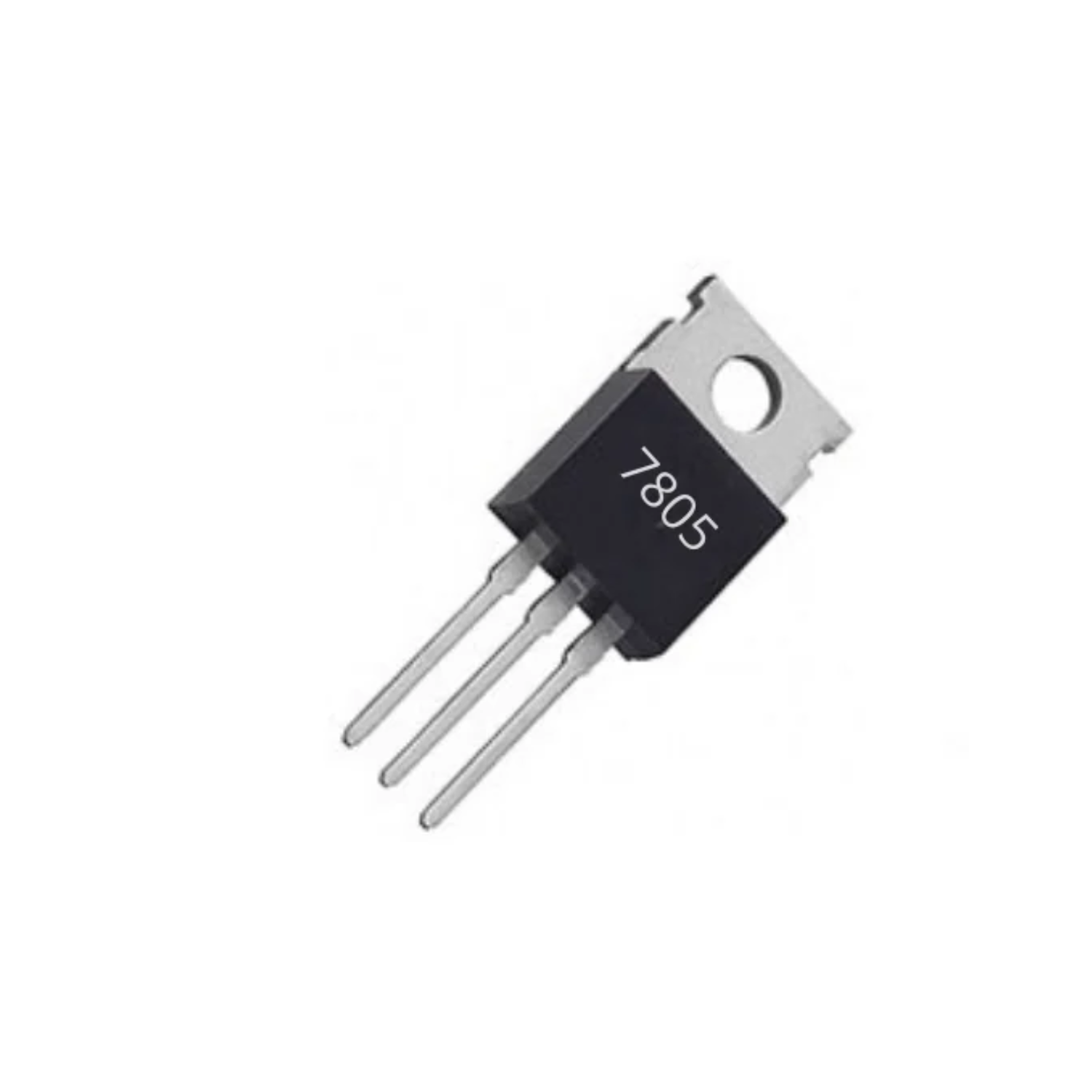

L7805CV Voltage Regulator – 5V 1.5A Fixed Positive Linear Regulator IC with Input/Output Capacitors for Arduino, Power Supply & DIY Electronics Projects
L7805CV Voltage Regulator – 5V 1.5A Fixed Positive Linear Regulator IC with Input/Output Capacitors for Arduino, Power Supply & DIY Electronics Projects
SKU:AC061
952 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Stable 5V Power for Every Project — With L7805CV Precision!
The L7805CV 5V 1.5A Voltage Regulator is a fixed positive linear regulator designed to provide a steady 5V DC output from higher input voltages (7V–35V). It’s one of the most reliable power regulation ICs used in Arduino, Raspberry Pi, robotics, IoT, and embedded circuits.
Equipped with input and output capacitors, this regulator ensures smooth operation, noise-free voltage, and thermal stability, protecting your components from voltage fluctuations or spikes.
Perfect for students, engineers, and hobbyists, the L7805CV delivers professional-grade performance in all low-power electronics projects.
Specifications:
| Model | L7805CV |
| Type | Positive Linear Voltage Regulator |
| Output Voltage | 5V DC (Fixed) |
| Output Current | 1.5A |
| Input Voltage Range | 7V–35V |
| Package | TO-220 |
| Protections | Overload, Thermal, Short-Circuit |
| Capacitors Included | Yes (Input/Output) |
| Mounting | Through-hole PCB Mount |
| Brand | STMicroelectronics / Compatible OEM |
| Weight | ~3g |
Features:
| ⚡ Output Voltage | Fixed 5V DC |
| 🔌 Output Current | Up to 1.5A continuous |
| 🧠 Input Voltage Range | 7V – 35V DC |
| 🔒 Built-in Protection | Thermal shutdown, short-circuit & overload |
| 💡 Efficiency | High stability linear regulation |
| 🧰 Package Type | TO-220 |
| 🪶 Additional Components | Includes input/output capacitors for smoother operation |
| ⚙️ Operating Temperature | 0°C to 125°C |
| 🔧 Mounting Type | Through-hole |
| 🏆 Applications | Arduino, Raspberry Pi, Power Supply, Robotics, IoT devices |
🧩 Compatible Applications:
- ✅ Arduino & Raspberry Pi Projects – Stable 5V source for sensors and microcontrollers
- ✅ Embedded Systems & Robotics – Power small DC motors, servo modules, and control boards
- ✅ Power Supply Circuits – Build your own regulated DC supply
- ✅ DIY Electronics Kits – Ideal for makers, students, and labs
- ✅ Atal Tinkering Labs (ATL) – Reliable voltage regulation for learning and innovation setups
Pinout:
Package Included:
1 x L7805CV Voltage Regulator
⚡ “Protect your projects with stable power — the L7805CV keeps your circuits cool, consistent, and safe!”
