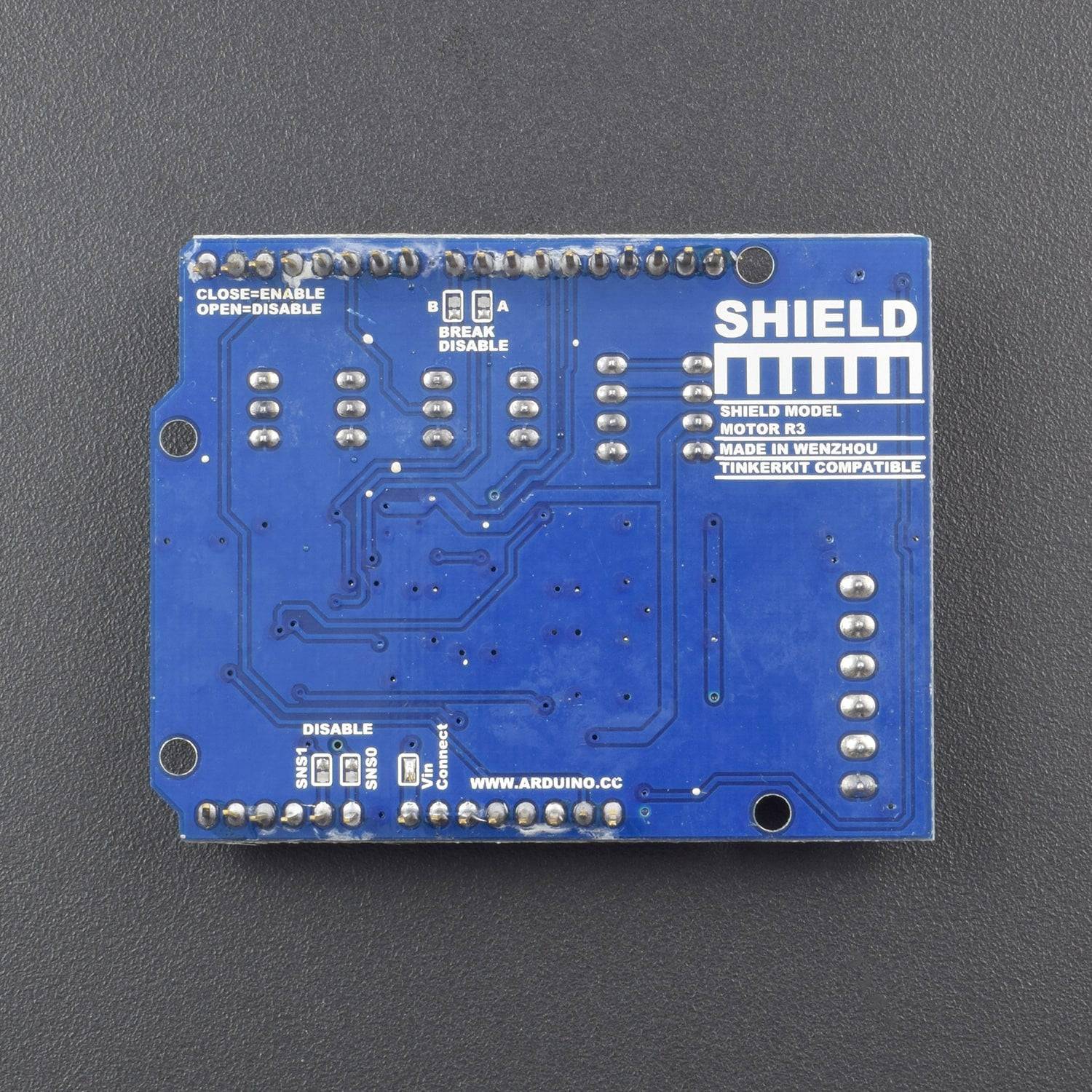

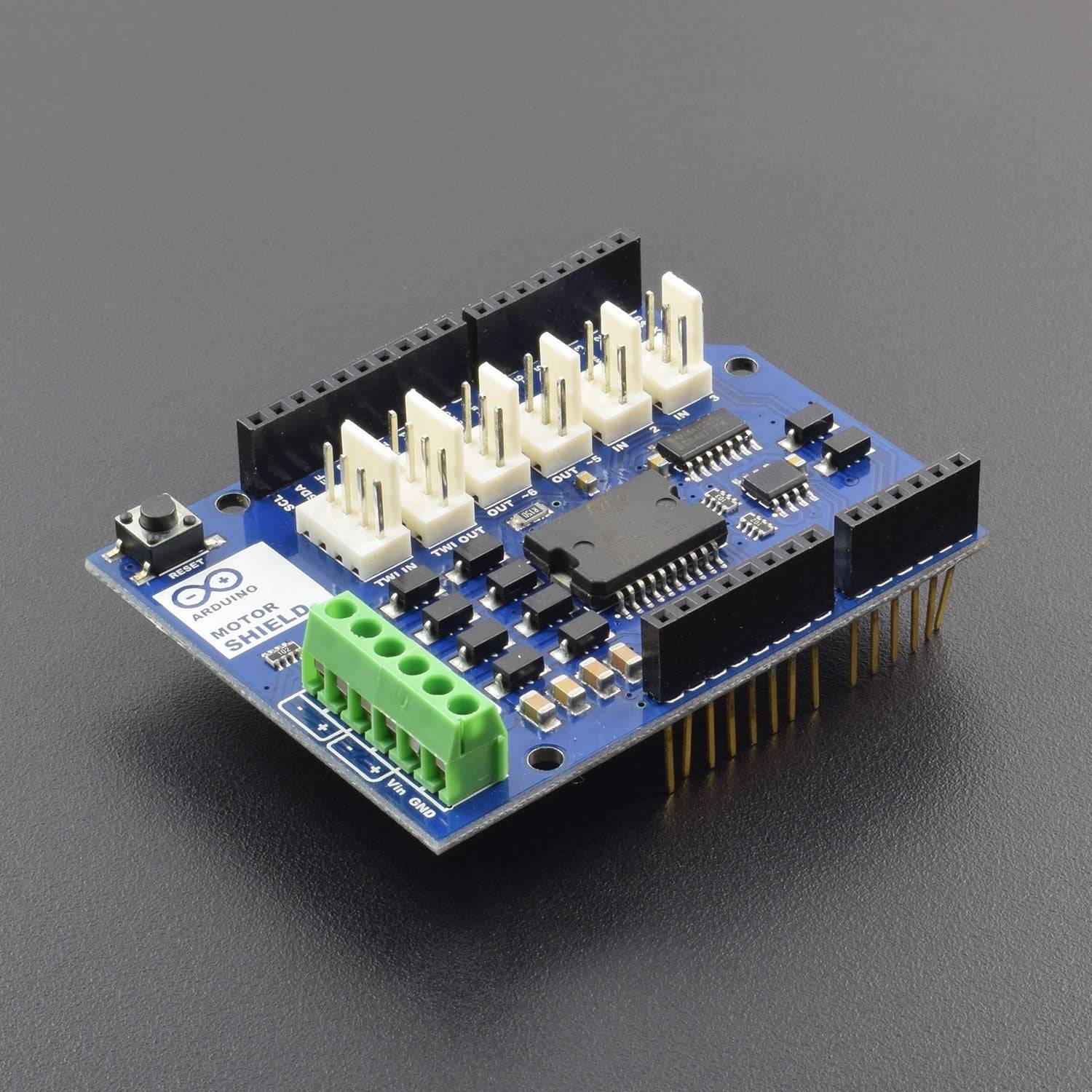

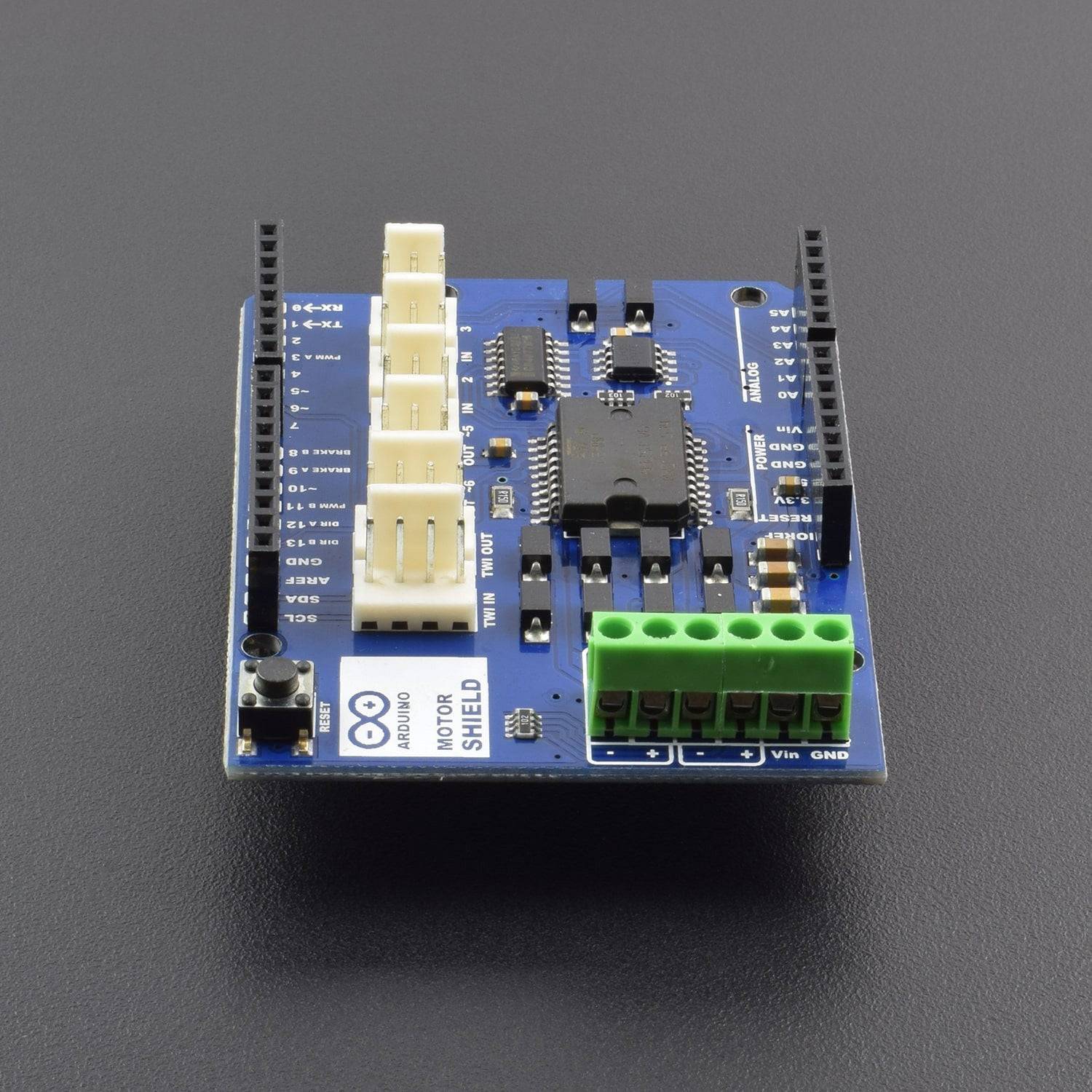

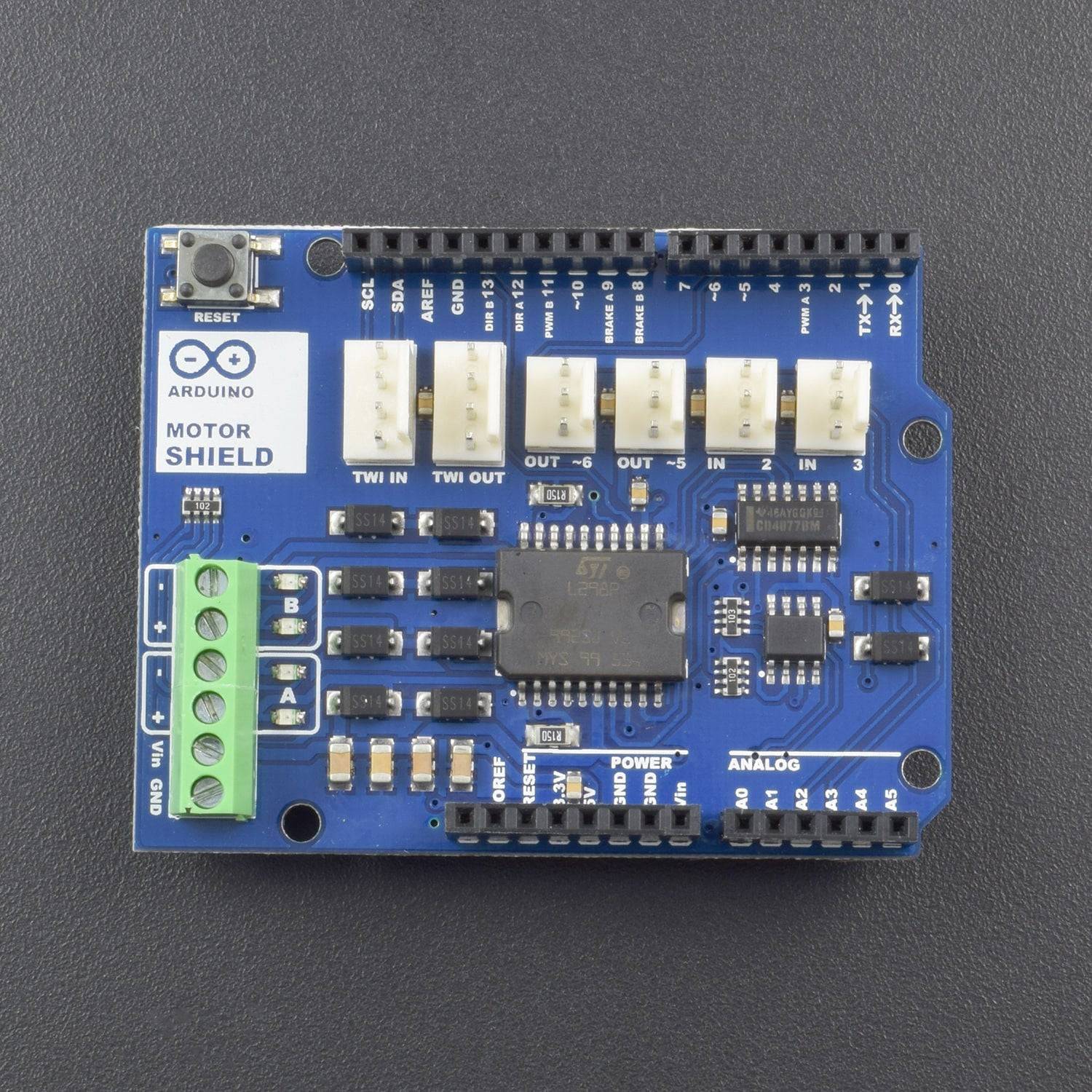

L298P Motor Driver Module H-bridge Drive Shield Expansion Board High-Power DC Stepper Motor Controller For Arduino -RC049

L298P Motor Driver Module H-bridge Drive Shield Expansion Board High-Power DC Stepper Motor Controller For Arduino -RC049

SKU:RC049

Low stock: 1 left

Regular price Rs. 600.00
Regular price Sale price Rs. 600.00
Sale Sold out
Shipping calculated at checkout.

Couldn't load pickup availability

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Arduino Motor Shield is based on the L298, which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors. It lets you drive two DC motors with your Arduino board, controlling the speed and direction of each one independently. You can also measure the current absorption of each motor, among other features. The shield is TinkerKit compatible, which means you can quickly create projects by plugging TinkerKit modules to the board. This shield have two separate channels, called A and B, that each use 4 of the Arduino pins to choose the rotation direction, vary the speed, fast brake or sense the current that is flowing through the motor. In total there are 8 pins in use on this shield. You can use each channel separately to drive two DC motors or combine them to drive one bipolar stepper motor. The shield can supply 2 amperes per channel, for a total of 4 amperes maximum. This shield has the 1.0 standard pinout that consist in 4 additional pins: 2 of them placed near the AREF pin, that are used for TWI communication, and the other 2 are placed near the RESET pin. The IOREF pin is used to adapt the shield to the board on which is mounted. The last one is not connected and is reserved for future uses.

Specification:

  • Working Voltage: 5V ~ 12V
  • Motor controller: L298P, drives 2 DC motors or 1 stepper motor
  • Max current: 2A per channel or 4A max (with external power supply)
  • Current sensing: 1.65V/A

Features:

  • Free running stop and brake function.
  • You can also measure the motor current absorption of each motor.

Pin Description:

Function Pins Per Ch. A Pins Per Ch. B
Direction D12 D13
PWM D3 D11
Brake D9 D8
Current Sensing A0 A1

Packing Included:

1 x L298P Motor Driver Module
