- Chip: L298P dual H-bridge motor driver
- Driven part terminal power supply range Vs: +5~+35 V
- Taken from board power supply range Vs: +7~+35 V
- Driven part peak current Io: 2A
- Logical part of terminal power supply range Vss: +5~+7V
- Logical part working current range: 0~36mA
- Controlled signal input voltage range: Vin=-0.3V~1.5V(Low); Vin=2.3V~Vss (High)
- Storage temperature: -25~+130'C

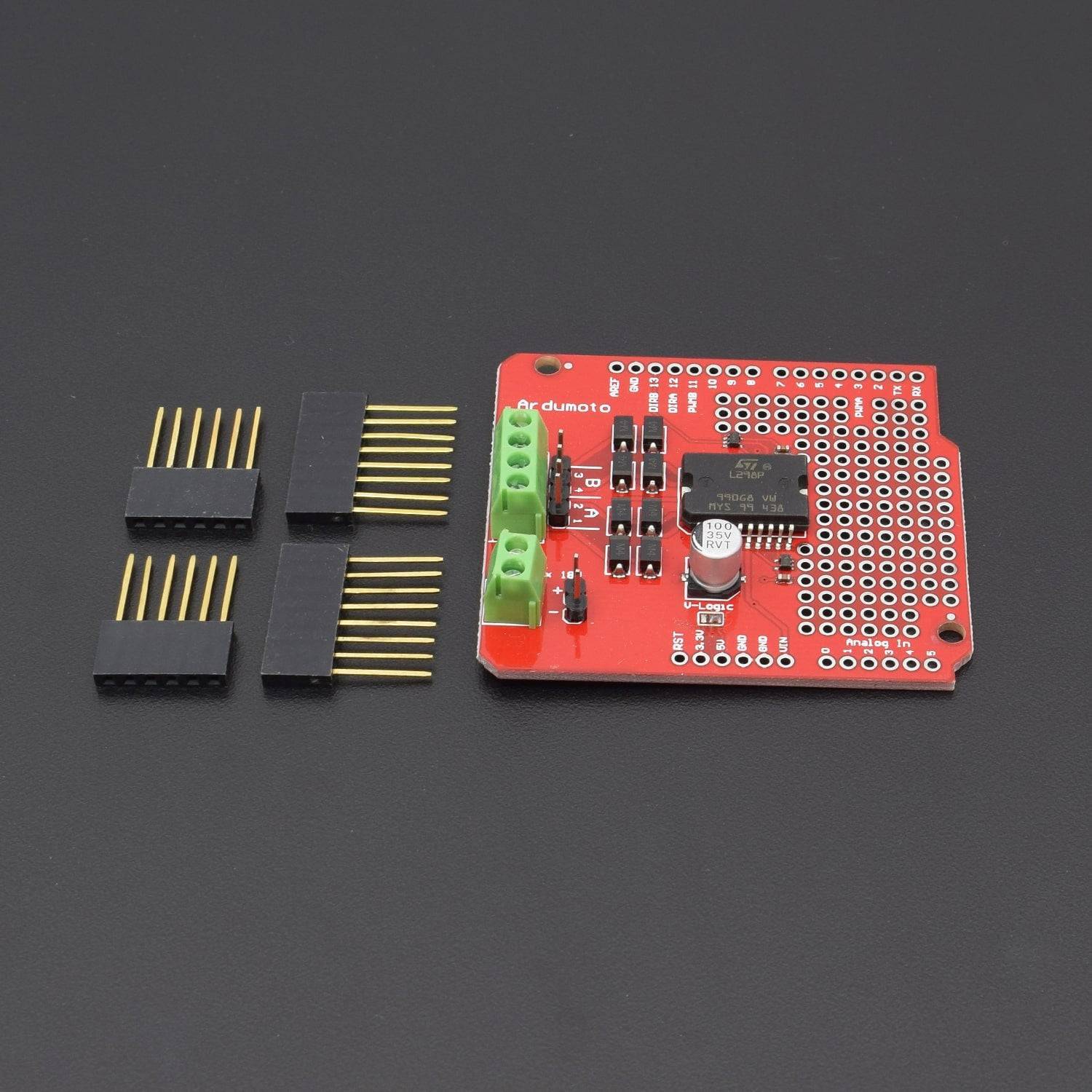

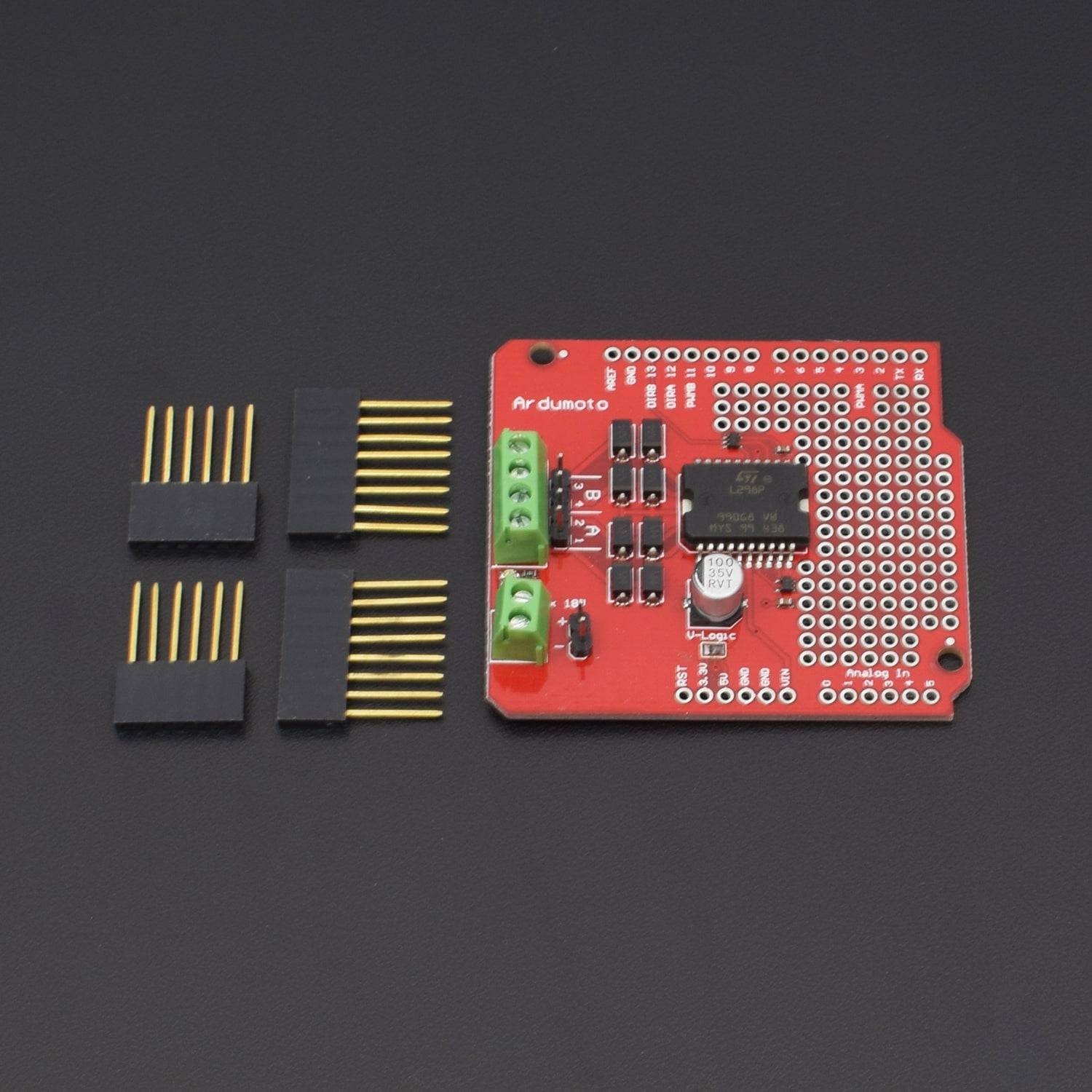

L298P Shield DC motor drives using LGS's outstanding high-power motor driver chip dedicated L298P, can directly drive two DC motors, drive current up to 2A, motor output using eight-speed Schottky diodes as protection. Stack design can be directly plugged into the Arduino, easier to use!
Drive Type: Dual power H-bridge driver
Pin occupancy: D4 ~ D7 direct drive motor
supports PWM / PLL mode motor speed control
