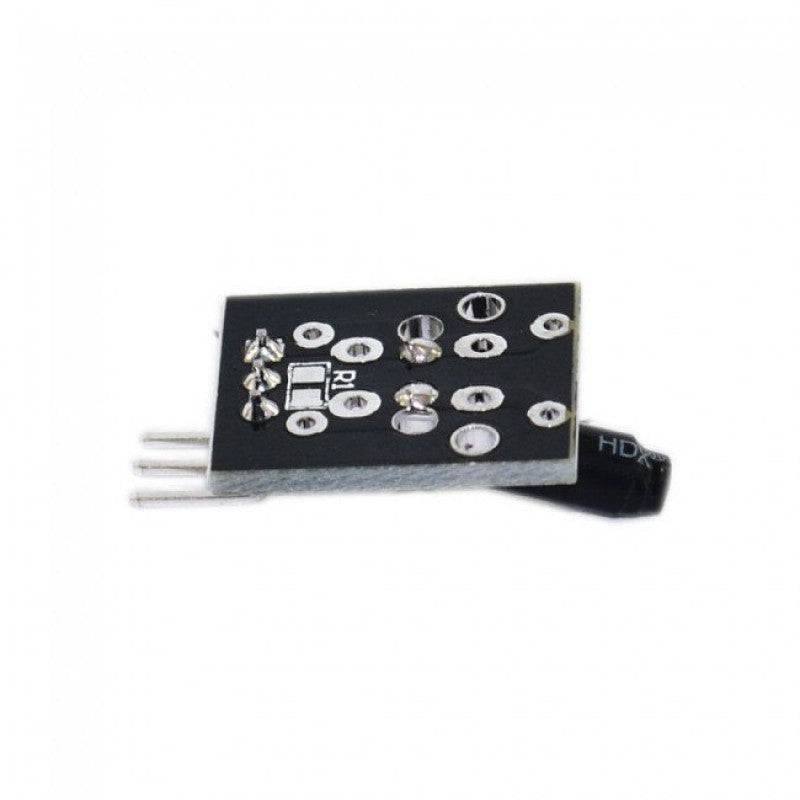

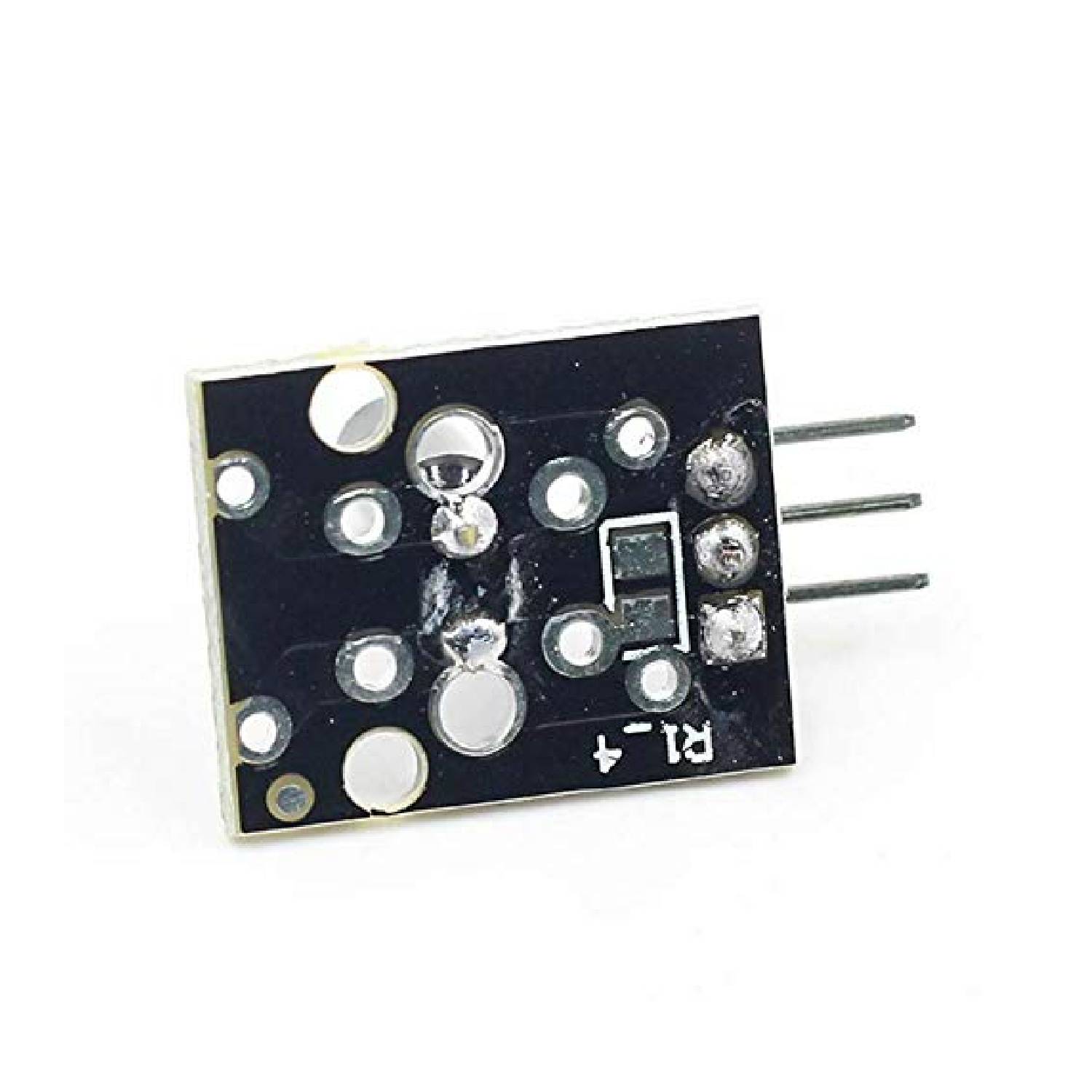

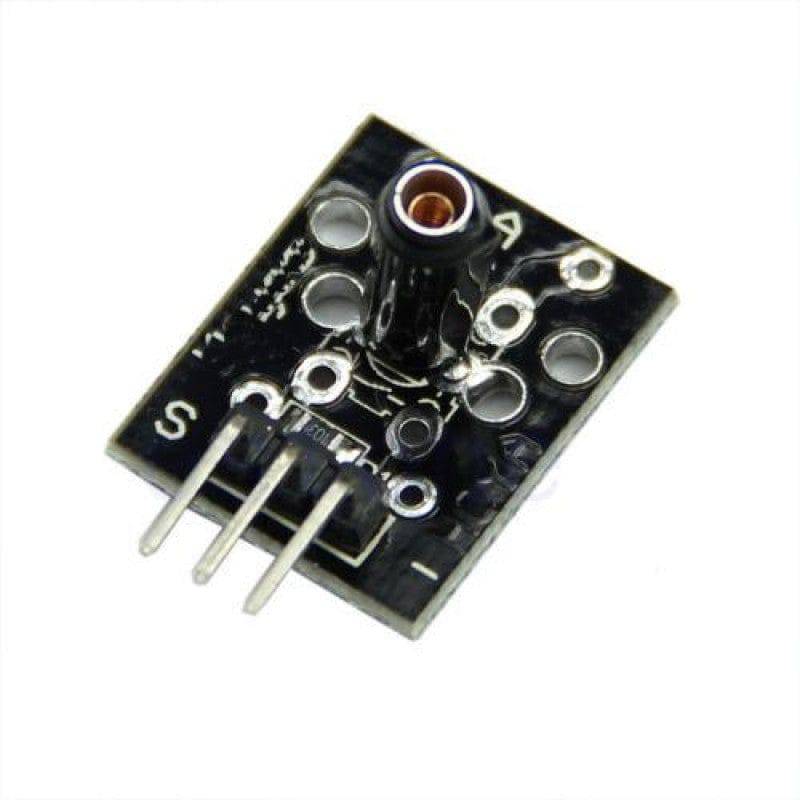

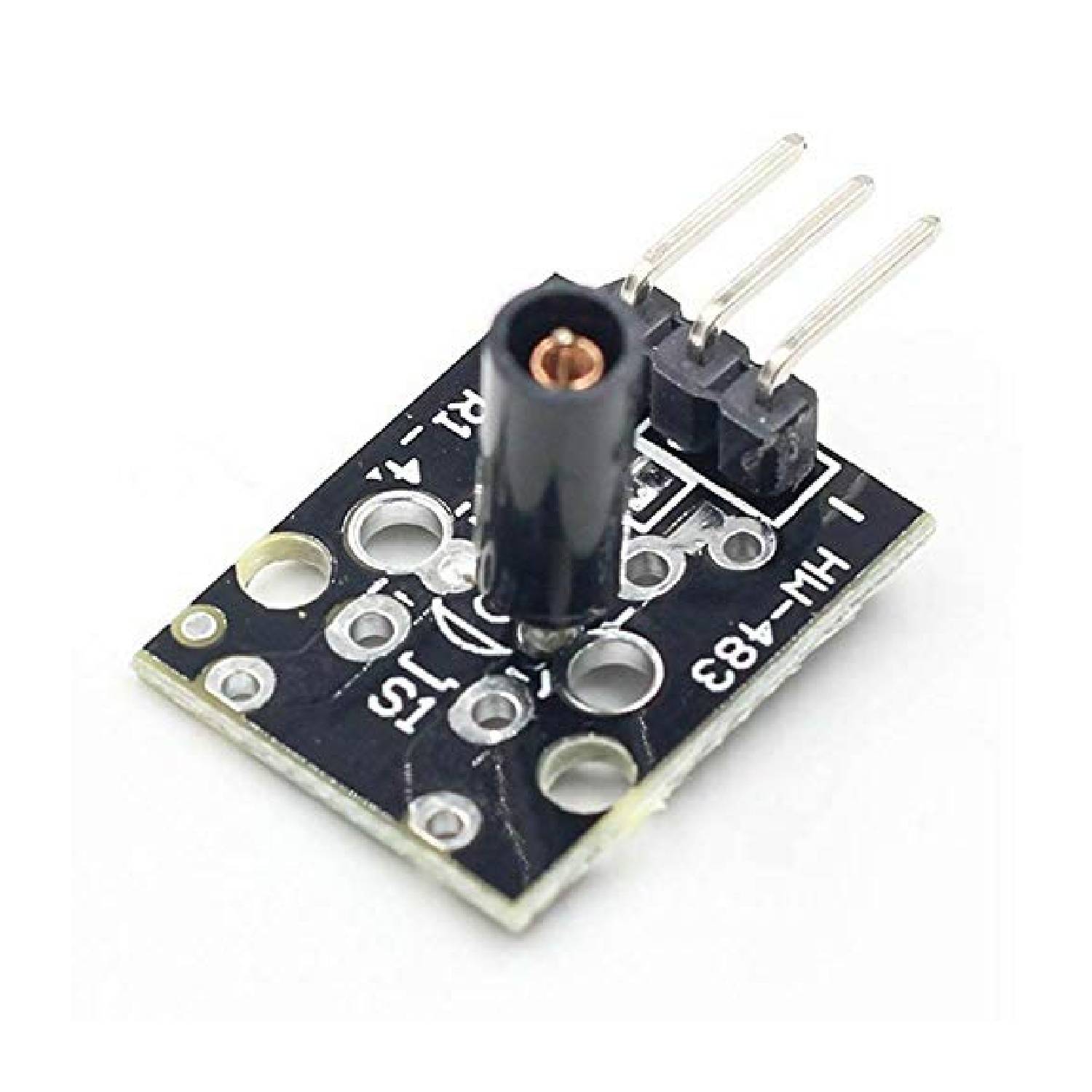

KY-002 Vibration Sensor Switch Module - RS3656

KY-002 Vibration Sensor Switch Module - RS3656

SKU:RS3656

30 in stock

Regular price Rs. 70.00
Regular price Sale price Rs. 70.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Component Type : SW-18015P
  • Maximum Voltage(V) : 12
  • Rated Heating Current(mA) : 20

Description :

This switch at rest is open (off) state when it subjected to an external force touch with an appropriate shaking force, or its movement speed reaches appropriate centrifugal force (eccentric) heart, conductive pins will be in instantaneous conduction state to change the electrical characteristics, and when the external force disappears, electrical characteristics recovery to be open (off) state.

This switch by default is in an OFF resting state. When an external force is applied to achieve a proper vibration, the conductive pin will momentarily conduct and change to ON status, make changes in electric property, and disappear when the external force is withdrawn. Its omnidirectional in nature meaning any angle can trigger the sensor.

Pin Connection :

  • Pin GND, connect to GND of the Arduino
  • Middle Pin +5 v, connect to Arduino +5
  • Pin S signal, connect to Arduino pin 10

Feature :

  • No direction, any angle can trigger the work.
  • Sensitivity switches can be selected for the trigger sensitivity according to circuit requirements.
  • This switch is suitable for the trigger of the small current circuit.

Specification :

  • Component Type : SW-18015P
  • Maximum Voltage(V) : 12
  • Rated Heating Current(mA) : 20

Package Included :

1 x Vibration Switch Module
