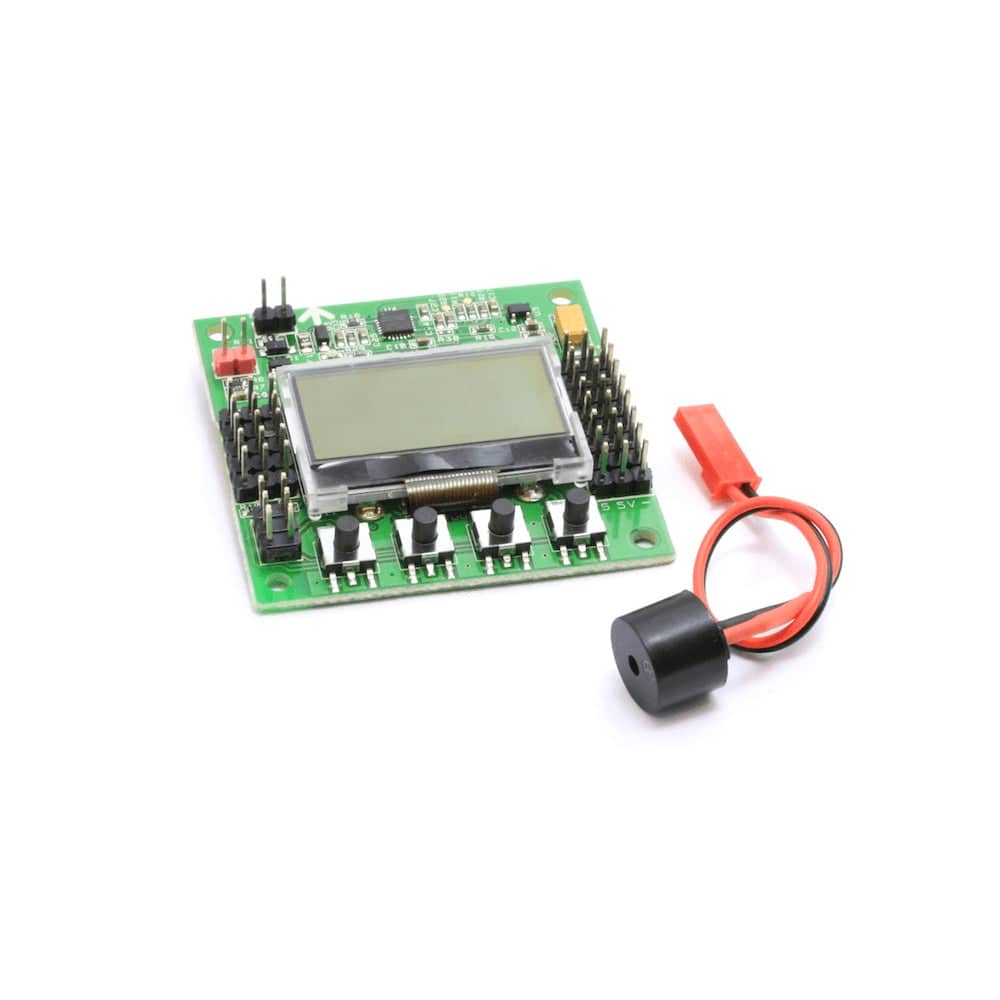

KK2.1 Multi-rotor LCD Flight Control Board With 6050MPU And Atmel 644PA - NB005

• Model: KK2
• Input Voltage: 4.8V-6.0V
• Firmware: Pre-installed firmware
• Sensors: 6050 MCU

Description:

f you are wondering to become an Electronic geek and want to build some Cool Projects Drone Then this module is for you. With this Control board, you can Enhance your Knowledge about Flight controllers as well as the working of the accelerometer and Gyroscope. The KK 2 Flight Controller Board with 6050 MPU Board and Atmel 644PA is the next generation of KK flight control boards. It comes preinstalled with the KK 2 firmware and features advanced processor technology from STMicroelectronics, sensor technology, and InvenSense system delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle. A handy piezo buzzer is also included for audio warning when activating and deactivating the board.

The LCD screen and built-in software make installation and setup easier than ever. The KK gyro system has been updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function. At the heart of the KK 2 is an Atmel Mega644PA 8-bit AVR RISC-based microcontroller with 64k of memory.

Specification:

Features:

• Auto Level
• Standard 6 Pin AVR Interface
• 1520us(5 channels) Signal from the receiver

Package Included:

• 1 x KK2 Multi-rotor LCD Flight Control Board With 6050MPU And Atmel 644PA
• 1 x Piezo buzzer
