Description :

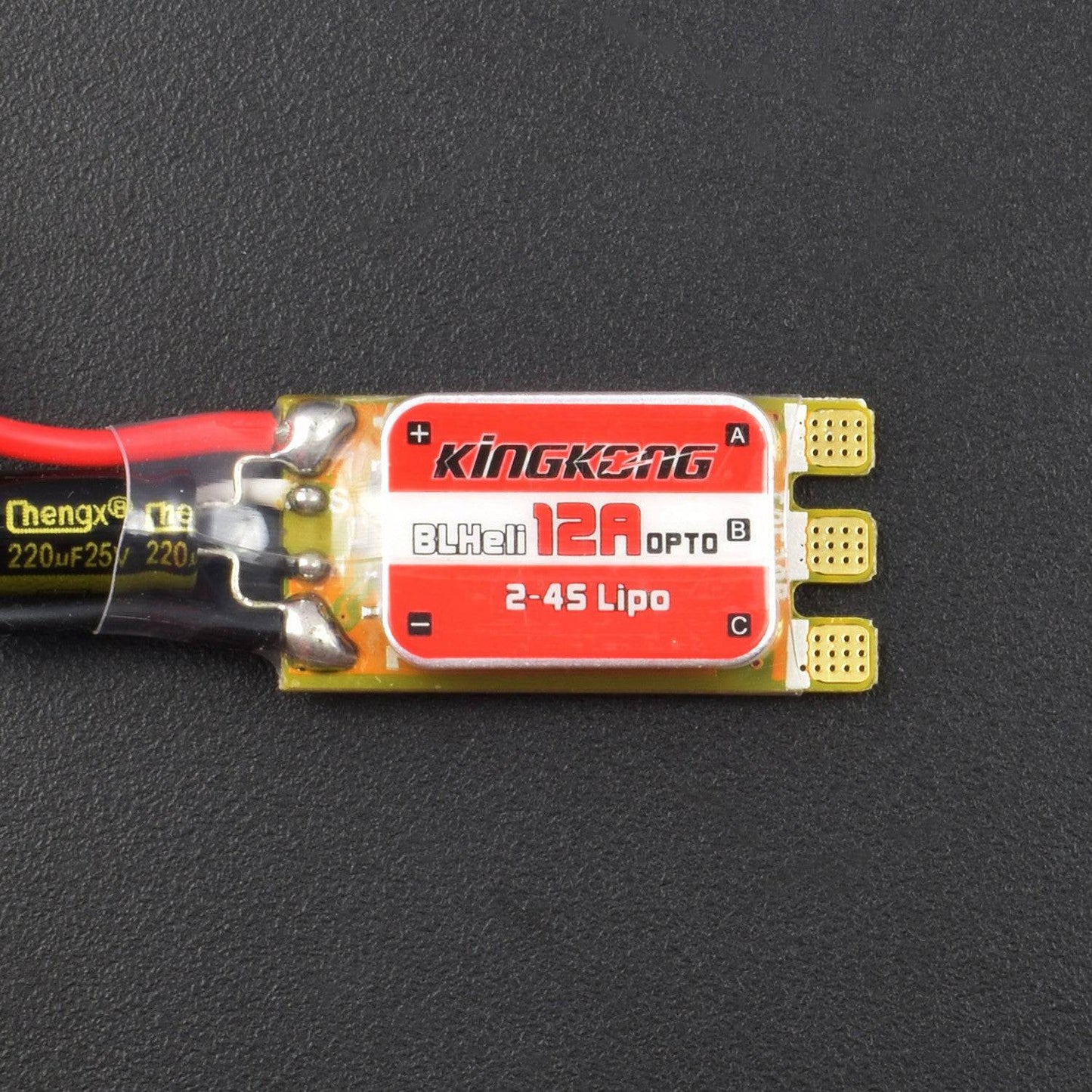

This speed controller (ESC) has been designed for KING KONG range of Multi-rotors but can be used in any multi-rotor. They can be used with 2-4S (7.4-14.8V) LiPoly batteries. The ESC comes with BLHeli firmware.
Features:

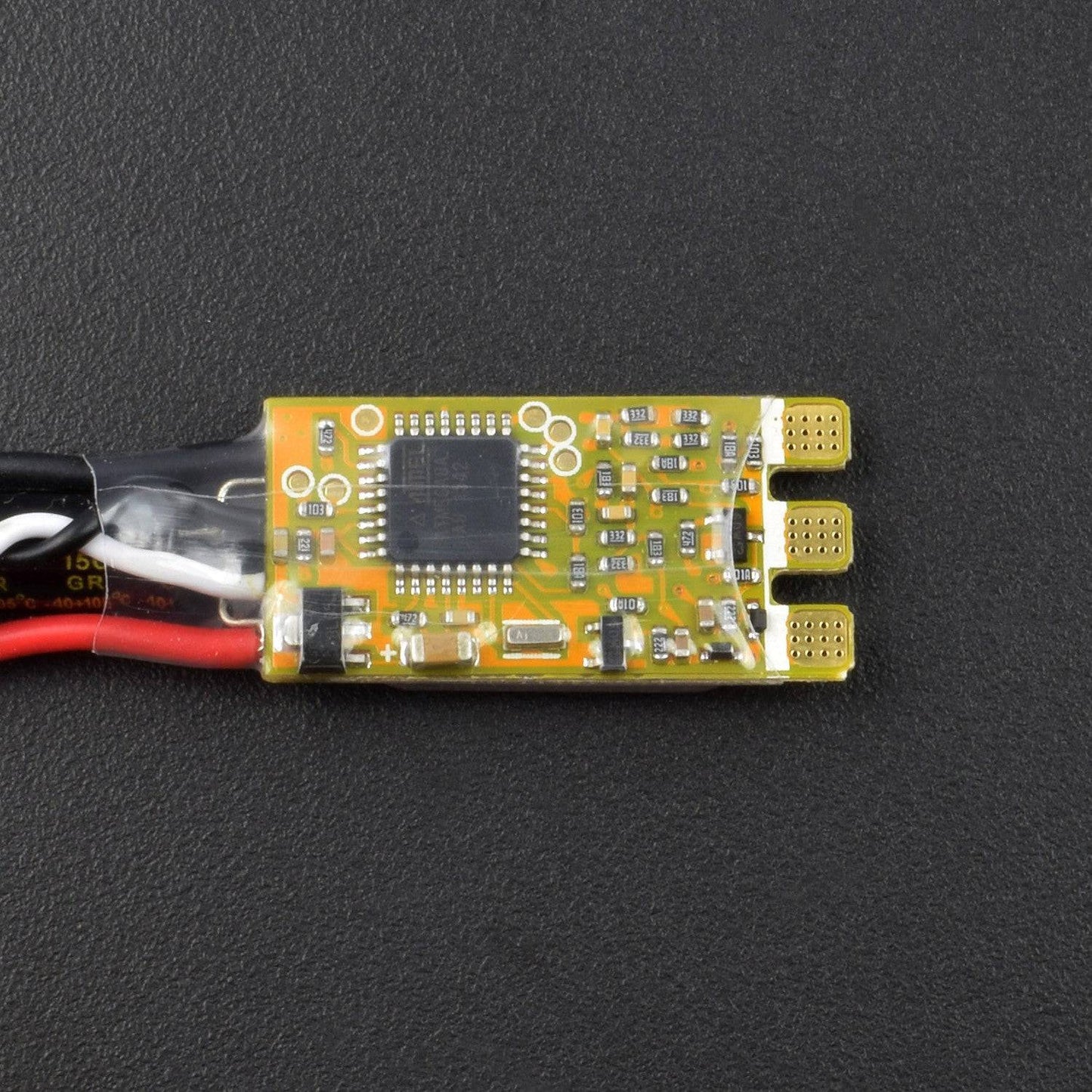

• MEGA88A (16MHz) MCU
• High stability Ceramic Resonator
• Aluminum Radiator Fin
• OneShot125
Specification :
- Input Voltage: 7.4-14.8V (2-4S LiPoly)
- Constant: 12 Amps
- Burst: 20 Amps (5sec max.)
- BEC: No BEC, OPTO only
- Dimensions: 50x16x6mm
Note: This is an OPTO ESC. You will need a 5V BEC to power your flight controller.
Package Included:

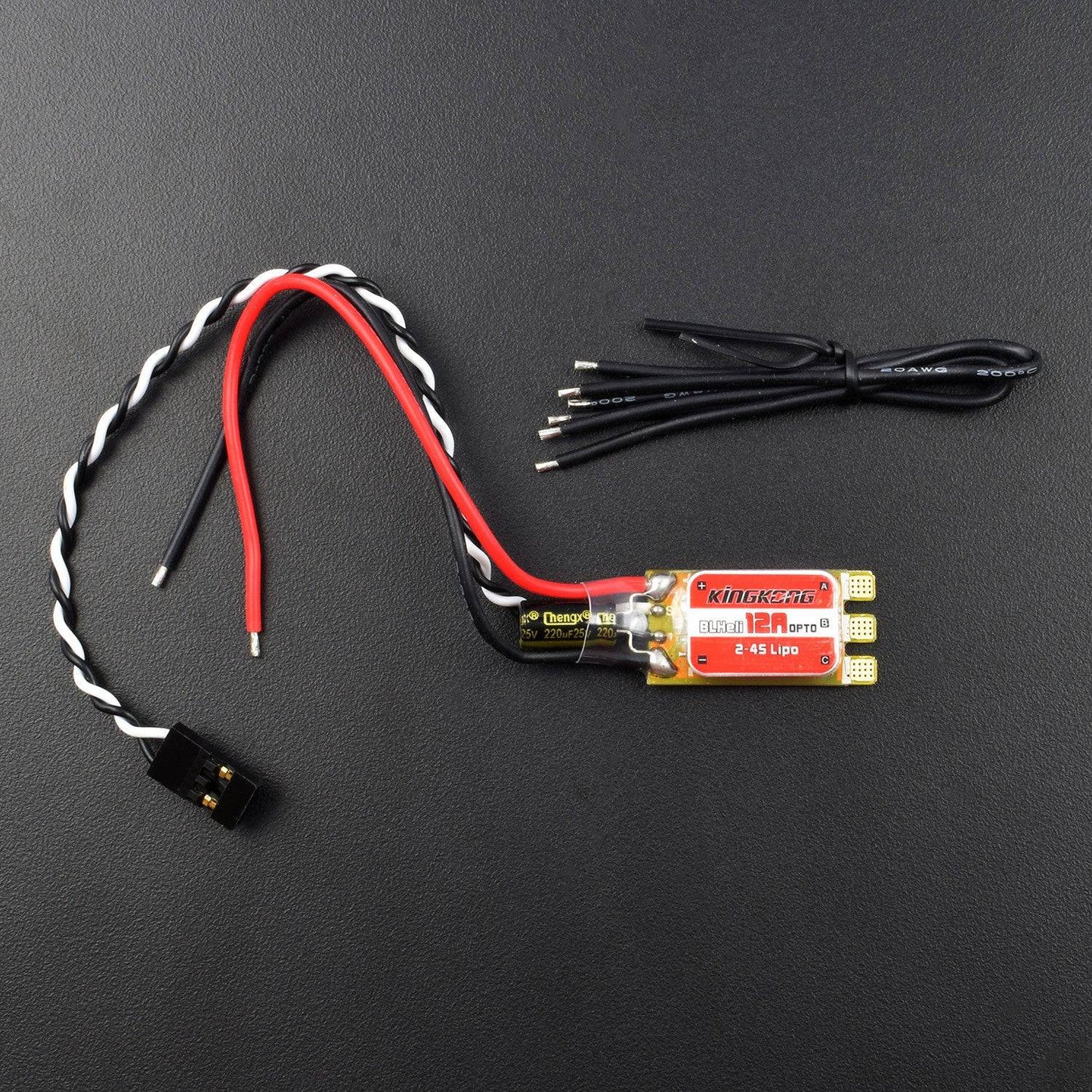

1 x KINGKONG BLHeli 12A Brushless High-Speed ESC
