KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector - RS3592

KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector - RS3592

RS3592

230 in stock

Rs. 20.00
Rs. 20.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Connector : PCB Terminal Block
  • Termination : Screw
  • No. of Contacts : 3
  • Allowed Wire Size (AWG) : 24 ~ 16
  • Voltage(V) : 220V AC
  • Operating Current (A) : 16
  • Mounting Type : Through Hole
  • Pin Spacing (mm) : 5.08
  • Material : Metal and plastic
  • Length (mm) : 15
  • Width (mm) : 7.5
  • Height (mm) : 14
  • Weight (gm) : 5

Description :

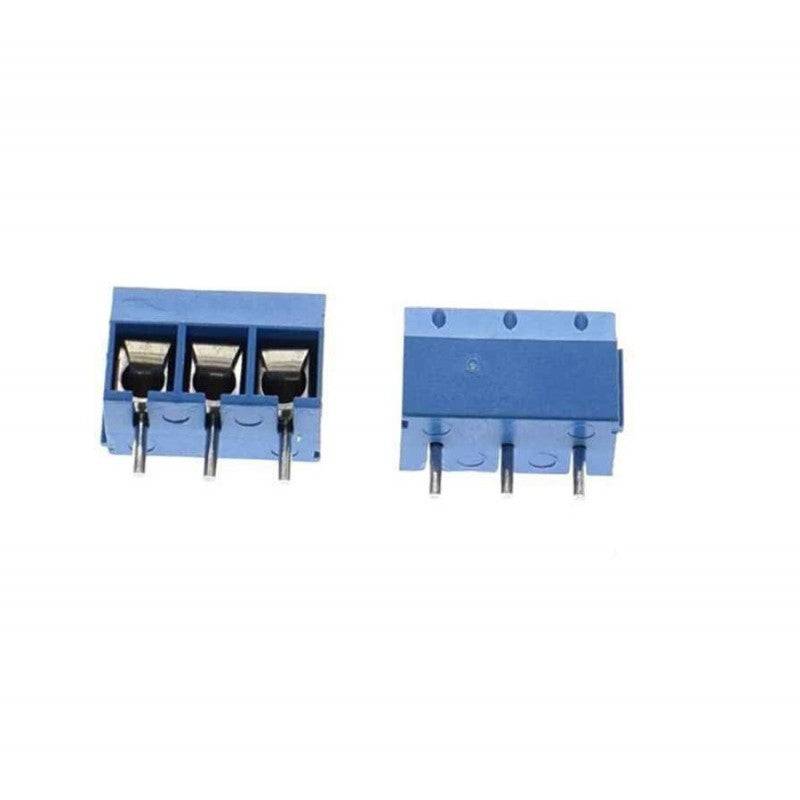

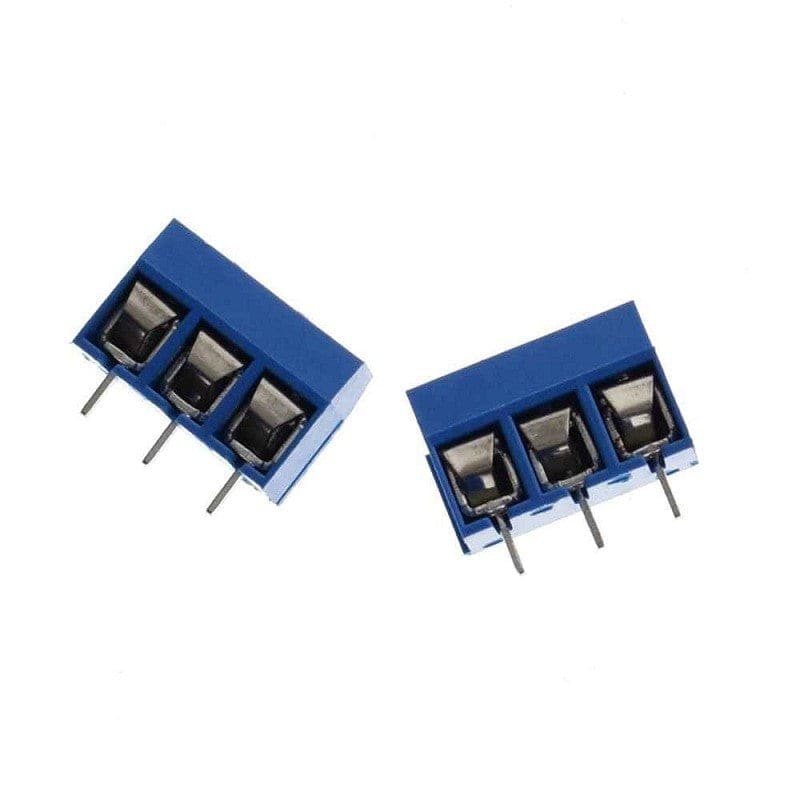

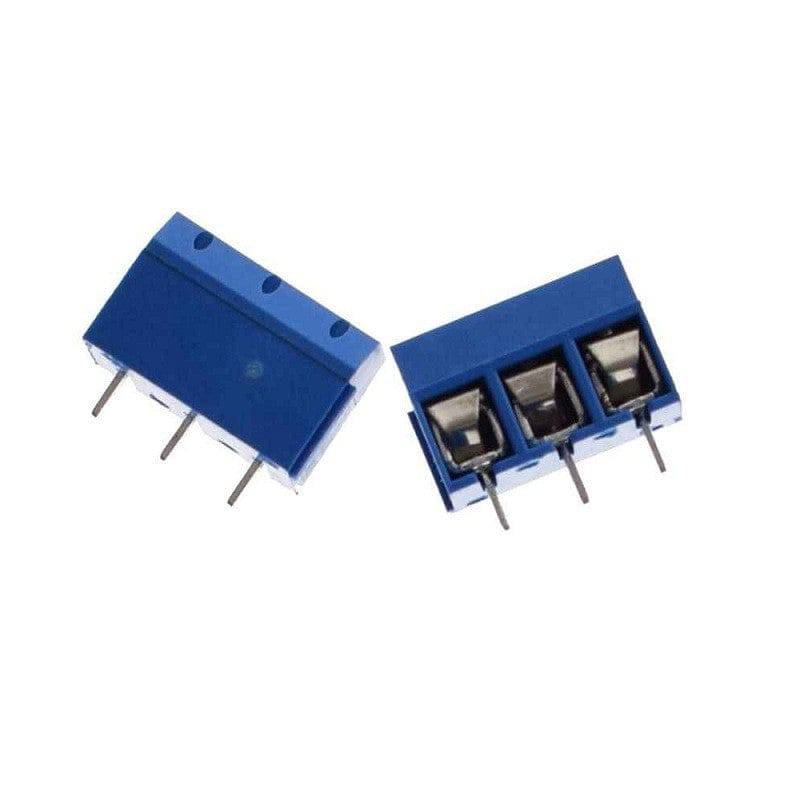

KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector is a type of electrical connector, frequently used to connect wires to the PCB. The connector has a screw in each pin to fasten the wire securely. It has tin-plated brass for pin header and has nickel-plated brass contacts.

The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant(UL94-0) and has good insulation properties.

Features:

  • Pin header: Tin plated brass
  • Contacts: Nickel-plated brass
  • Strong, compact, lightweight
  • Heat resistant

Specification :

  • Connector : PCB Terminal Block
  • Termination : Screw
  • No. of Contacts : 3
  • Allowed Wire Size (AWG) : 24 ~ 16
  • Voltage(V) : 220V AC
  • Operating Current (A) : 16
  • Mounting Type : Through Hole
  • Pin Spacing (mm) : 5.08
  • Material : Metal and plastic
  • Length (mm) : 15
  • Width (mm) : 7.5
  • Height (mm) : 14
  • Weight (gm) : 5

Package Included:

1 x KF301 3 Pin 5.08mm Pitch Plug-in Screw Terminal Block Connector.
