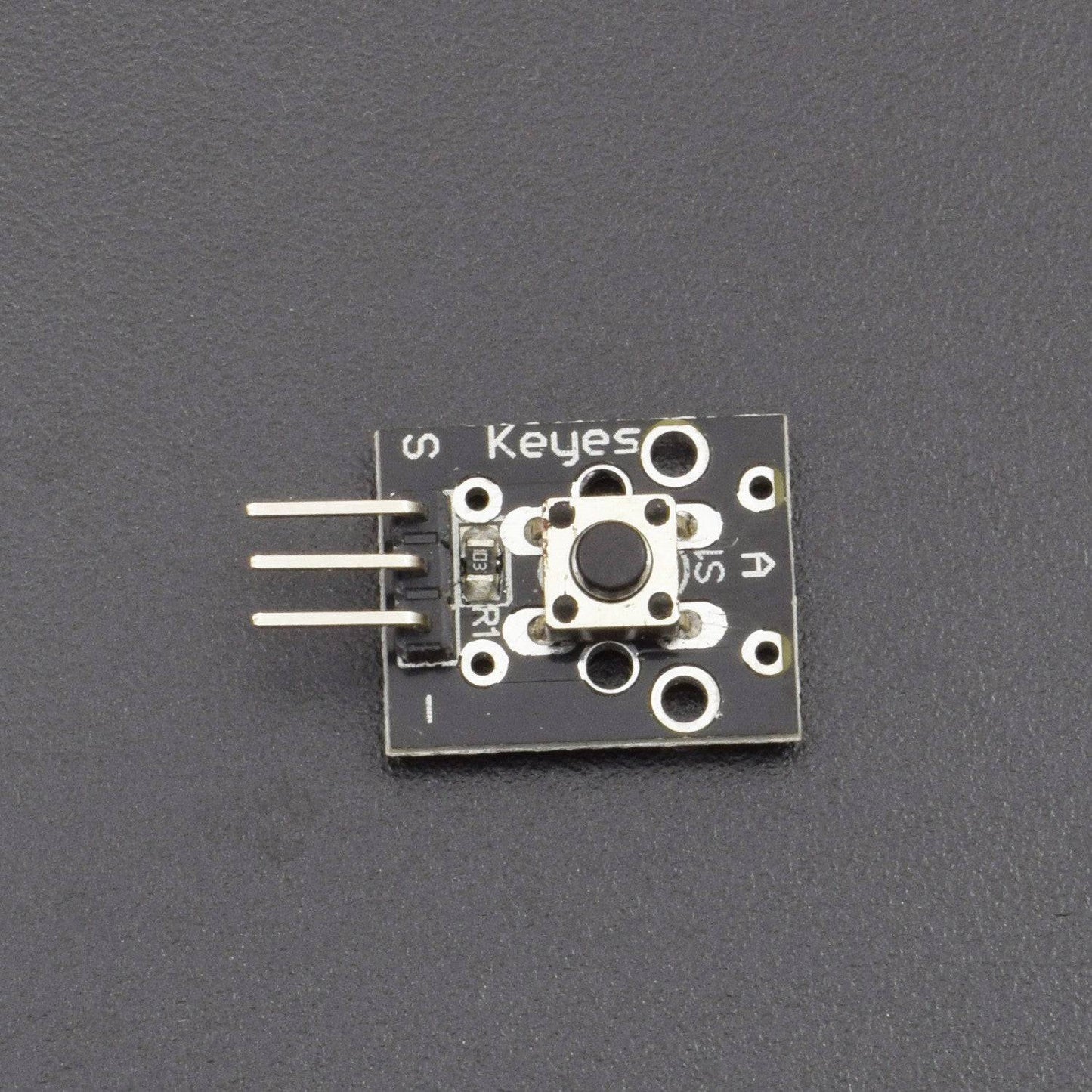

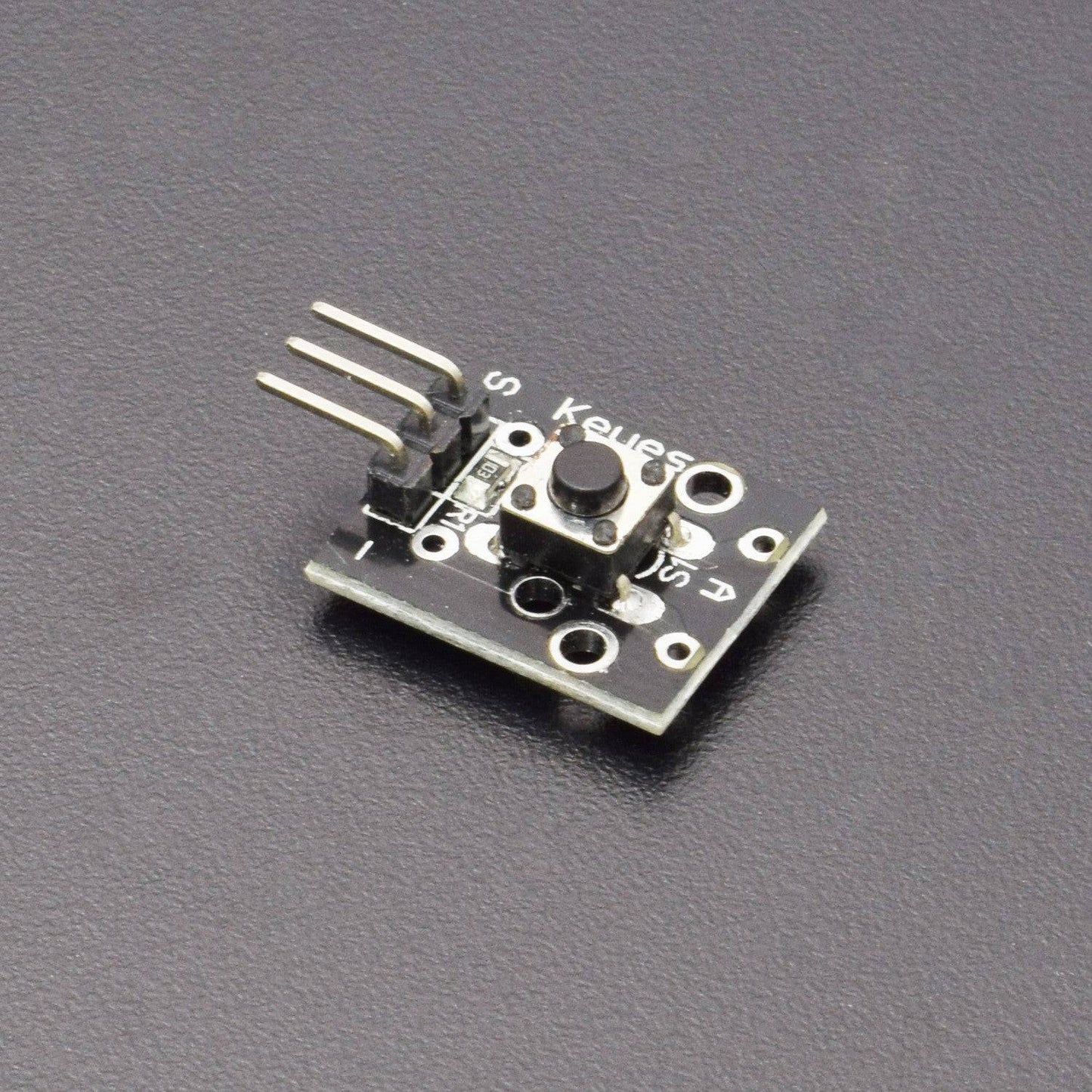

Key Switch Keyboard Button Module Board For Arduino UNO Mega PIC AVR Raspberry pi-RS972

Key Switch Keyboard Button Module Board For Arduino UNO Mega PIC AVR Raspberry pi-RS972


1000 in stock

Regular price Rs. 200.00
Regular price Sale price Rs. 200.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating Voltage: 5V
  • Contact Resistance : 50mΩ max (initial)
  • Electrically Life:100,000 cycles
  • Environment temperature: -25’C+105’C
  • I/O pins: 3 pins


This Momentary Tactile Push Button Module DC 5V 12V Switch is ideally suited to add a button to your projects and gives a high signal when it is pressed.
The module of the push button is a fully-fledged device with which you can install it immediately in the project, without using a pull-up or tightening resistances, because this is already in the circuit. The button together with the resistor is located on the board, where there are holes for installation. The built-in resistor has a rating of 10 kΩ.
The module is designed for two contacts: when pressed, they are closed and open when released. There are also 3 outputs on the board: I, S, + 5V. Contact I is connected to the common wire of the circuit, S is the output of the module and + 5V is connected to the power supply.


  • Rating: 50mA 12VDC.
  • Contact Resistance : 50mΩ max. (initial)
  • Insulation Resistance: 100MΩ.(minDC 250V)
  • Dielectric Strength : AC250V.(50/60Hz for 1minute)
  • Electrically Life: 100,000cycles.
  • Environment Temperature: -25℃~+105℃.
  • Operating Force: 180/230.(±20gf)
  • Seal Temperature: 250℃-280℃.


Key switch module and a digital interface, built-in 13 LED build a simple circuit to produce key warning lamp.13 comes with digital interfaces of the LED,
the access number 3 button switch sensor interfaces, when the key switch sensor senses a key signal, LED lights, otherwise off.

Package Included:

1 x Key Switch Keyboard Button Module Board
