- Electrical properties of the interface: Wide voltage range: the main power supply is + 3 3 V ~ + 5 V
- Operating temperature: - 4 0 ℃ to + 8 5 ℃
- C / A code, 1.023 MHz band receiving stream: L1 [1575.42MHz]
- Receive Channel: 56CH
- Positioning performance
- <2.5m [Autonomous] [50%]
- <2 m [SBAS]
- Rate: <0.1m / s
- Direction: <0.5 Degrees
Description:
- Supported operating systems: Windows 8/7 / Vista / XP / CE
- VK-172 baud rate automatically adapt to any baud data output has supported Google Earth
Technical Specification:
- Electrical properties of the interface: Wide voltage range: the main power supply is + 3 3 V ~ + 5 V
- Operating temperature: - 4 0 ℃ to + 8 5 ℃
- C / A code, 1.023 MHz band receiving stream: L1 [1575.42MHz]
- Receive Channel: 56CH
- Positioning performance
- <2.5m [Autonomous] [50%]
- <2 m [SBAS]
- Rate: <0.1m / s
- Direction: <0.5 Degrees
- Timing accuracy: 30ns
- Reference coordinate system: WGS-84
- The maximum height of altitude: 50,000 m
- Maximum speed: 500 m / s
- Acceleration: <4g
Package included:

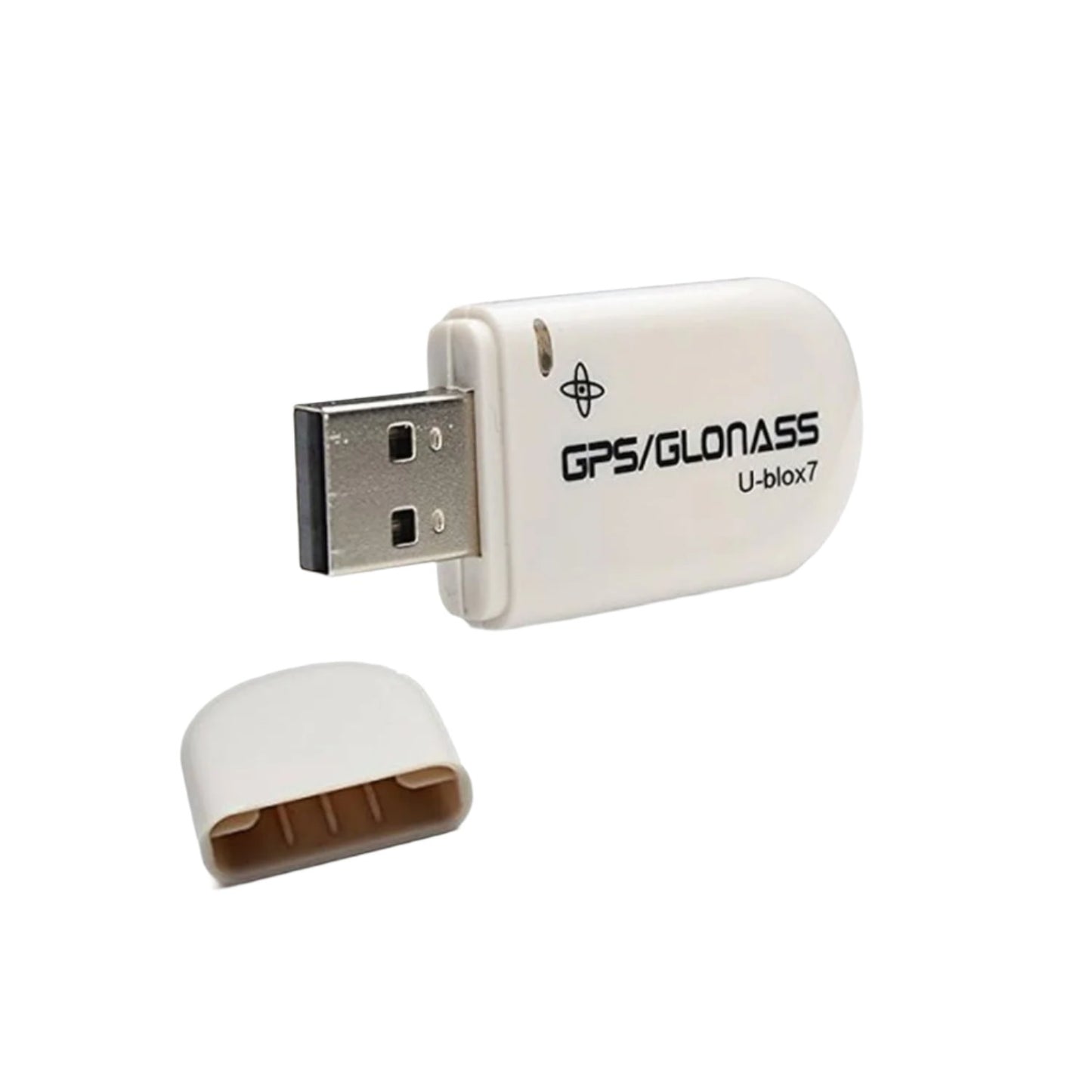

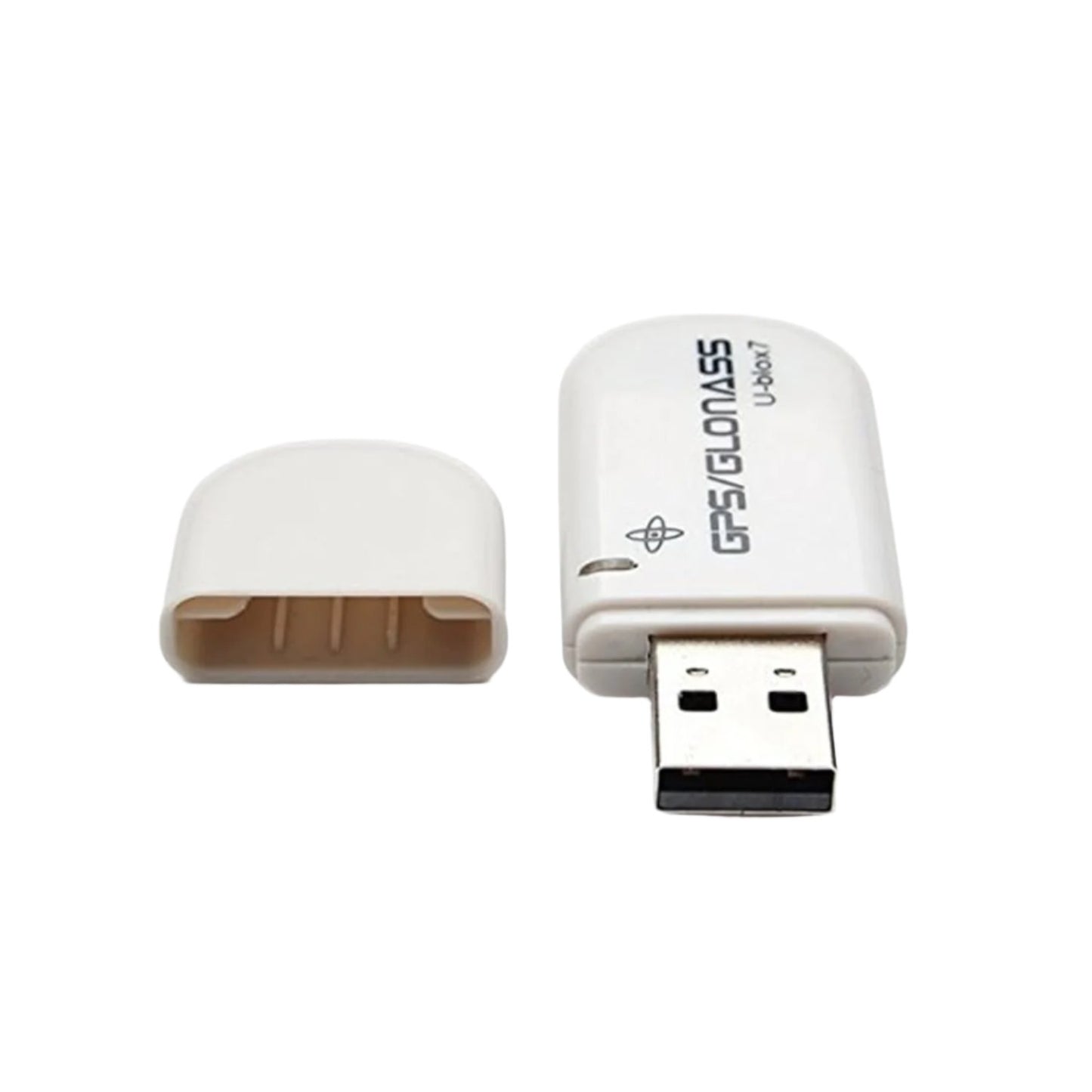

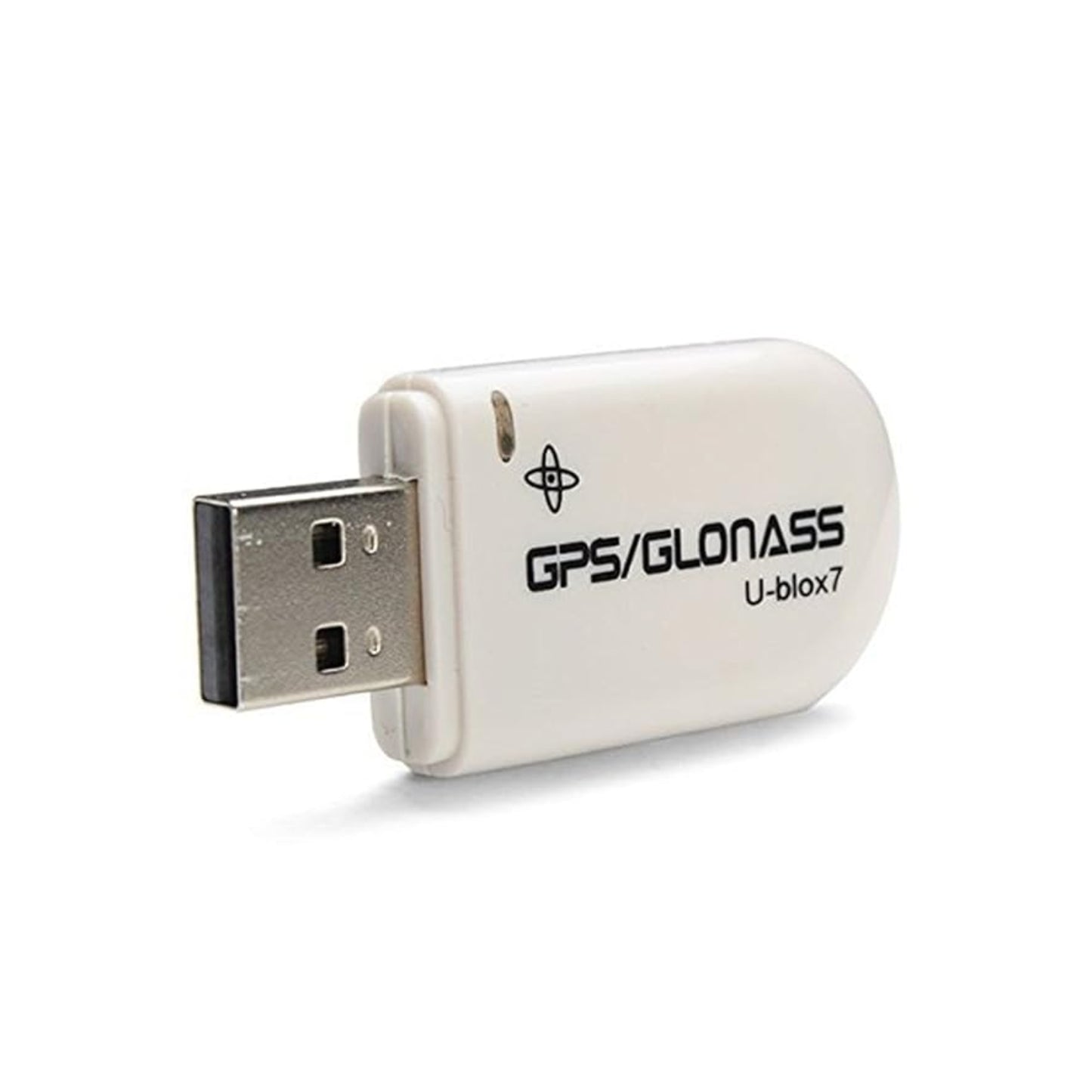

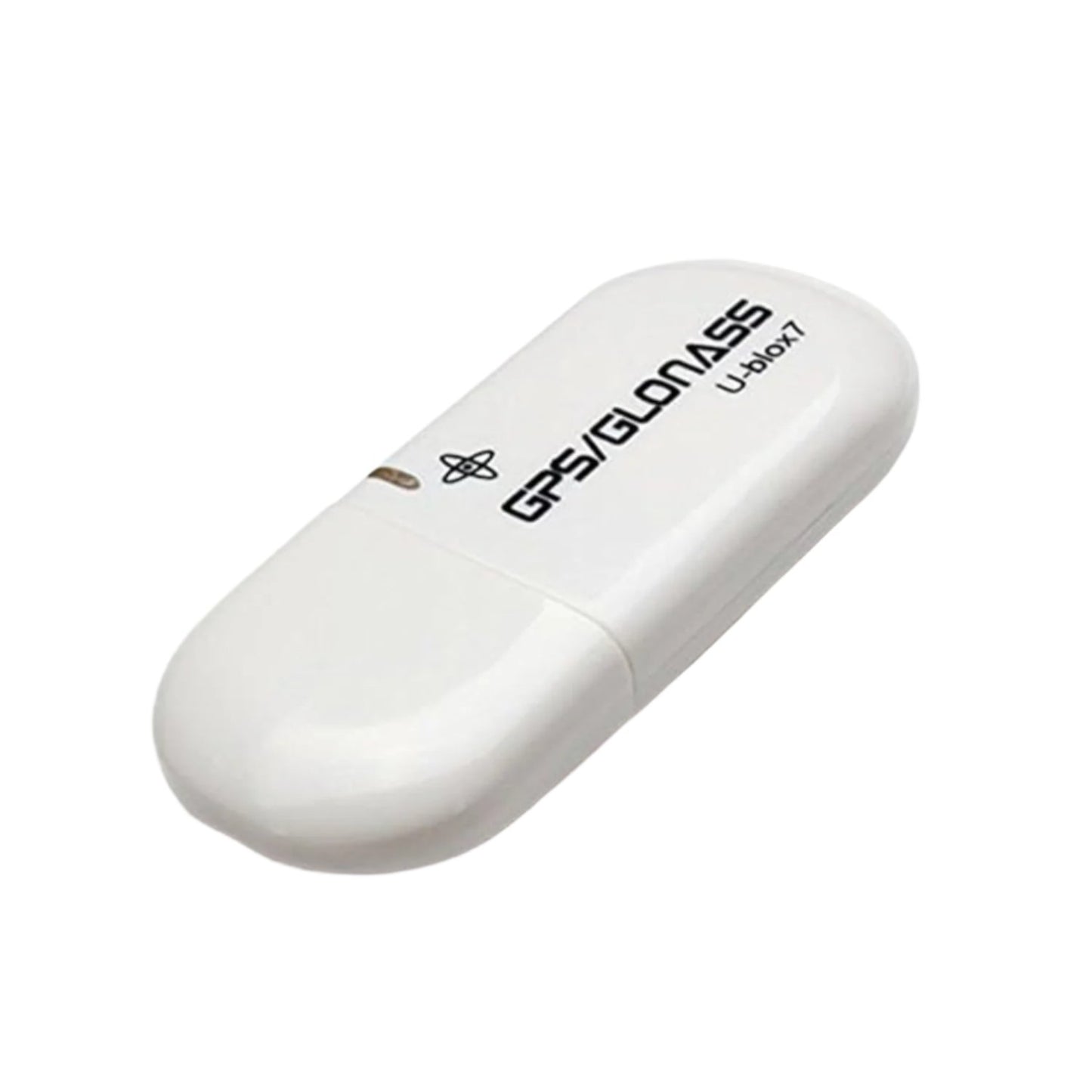

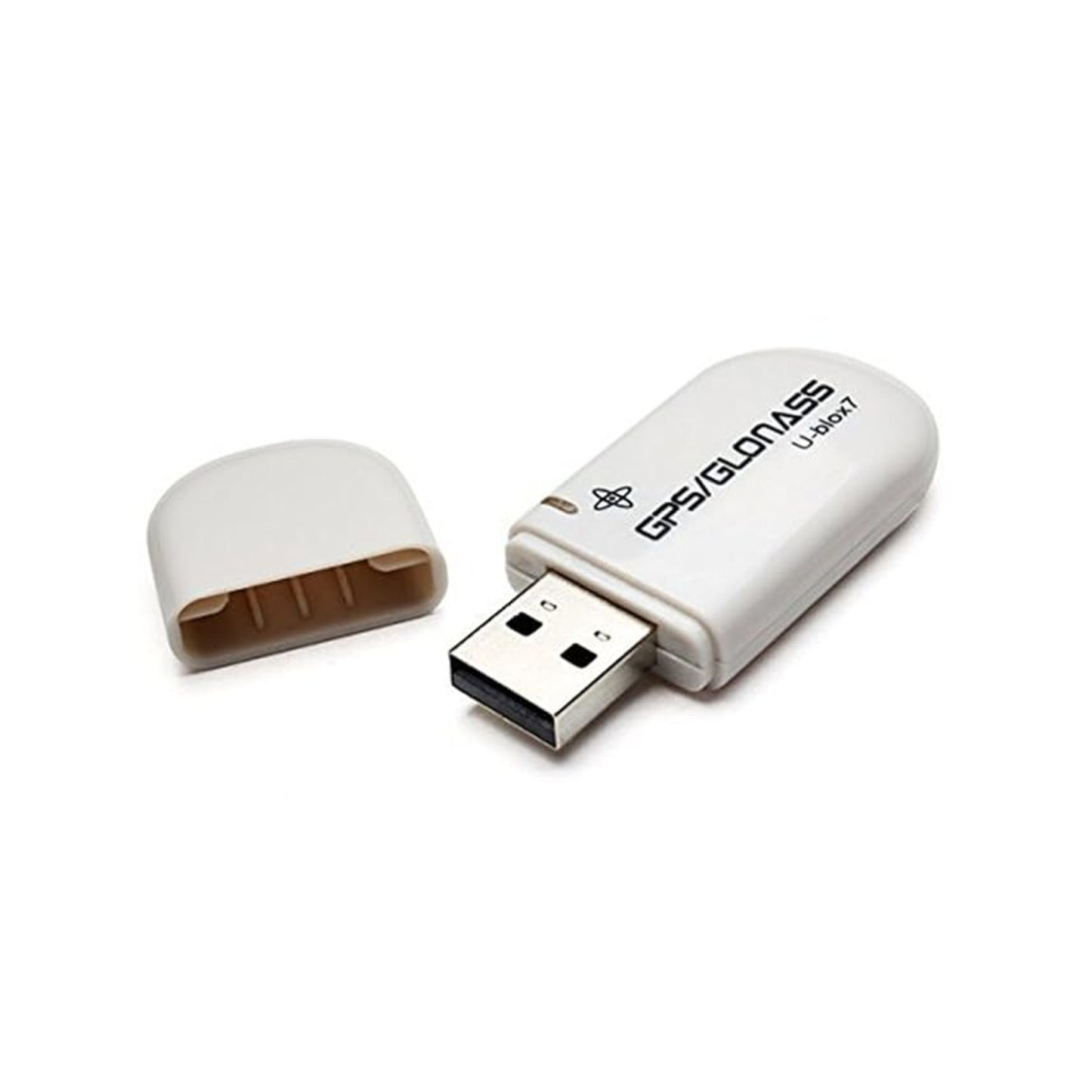

1 x VK-172 GPS Module
