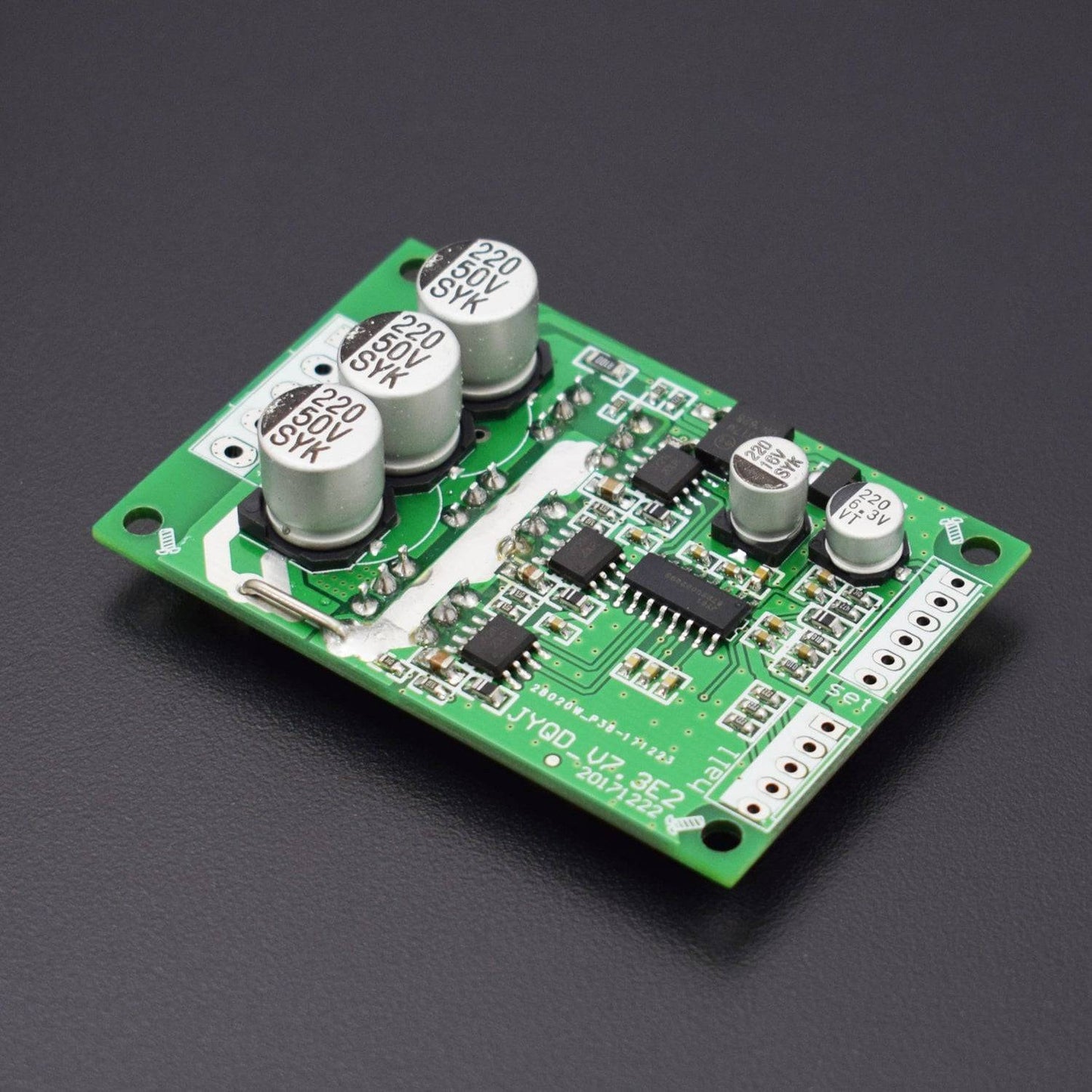

JYQD V7.3E2 DC 12V-36V 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board- RS1091

JYQD V7.3E2 DC 12V-36V 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board- RS1091

SKU:RS1091

In stock

Regular price Rs. 1,020.00
Regular price Sale price Rs. 1,020.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model: JYQD-V7.3E2
  • Operating Voltage: DC 12V-36V
  • Operating Current: ≤15A
  • Drive Power: ≤500W
  • Operating Temperature: -20~85℃

Description:

This is a JYQD V7.3E2 DC 12V-36V 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board. This Brushless Motor Controller DC 12-36V 500W PWM Driver Board is used for the 3-phase brushless sensor-less motor, but not suit for all 3-phase brushless sensor-less motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor no-load working current is too large, the speed is not stable, the efficiency is low, and can’t start up with a load.) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect.

Specification:

  • Model: JYQD-V7.3E2
  • Operating Voltage: DC 12V-36V
  • Operating Current: ≤15A
  • Drive Power: ≤500W
  • Operating Temperature: -20~85℃
  • Speed Control: 0.1V~5V or PWM Input
  • Over-current Protection: Yes
  • Steering Control: Yes

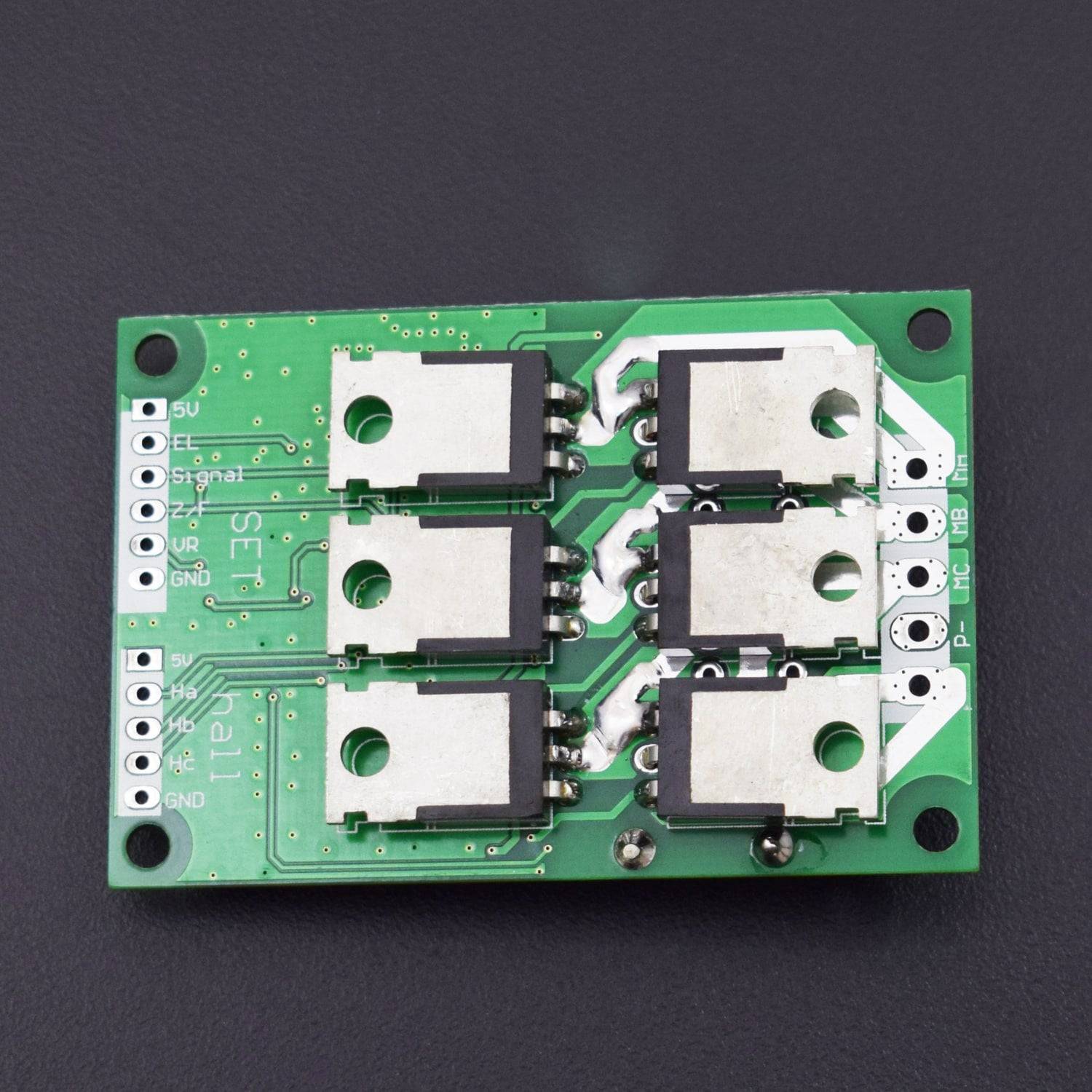

Pin Description:

1. Control Port:

  • Z/F: Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
  • VR:Speed control port. Analogue voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm, connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
  • GND:Used for Drive board internal control

2. Power Port:

  • MA: Motor phase A
  • MB: Motor phase B
  • MC: Motor phase C
  • GND: DC-
  • VCC: DC +

Caution:

  • Confirm that the voltage and power parameters of the motor do not exceed the range specified.
  • Applicable to hall brushless dc motor with Hall at 120°, not all manufacturers' Hall line sequences are corresponding, you can adjust the Hall line sequence or motor three-phase line sequence according to the actual situation, to achieve the best driving effect.
  • JYQD-V7.3E2 is a driver board without housing and heatsink, it can drive the motor below 100 watts without any heatsink but needs normal ventilation.
  • The 5V output port on the drive board is forbidden to connecting to external power equipment. It is only applicable to an external potentiometer or switch for speed adjustment, commutation and enabling operation

Package Included:

1 x JYQD V7.3E2 DC 12V-36V 500W Brushless Motor Controller Hall Motor Balanced Car Driver Board
