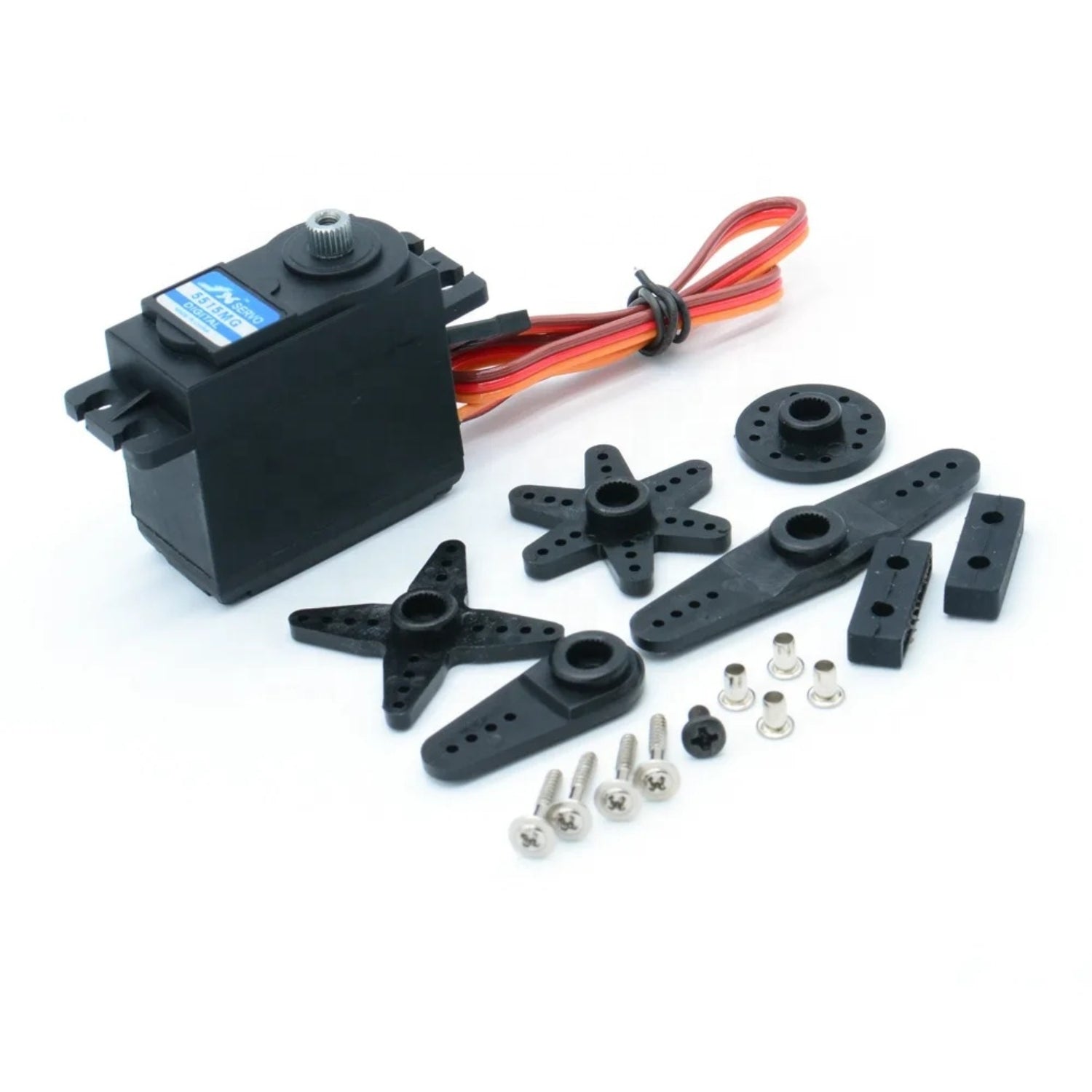

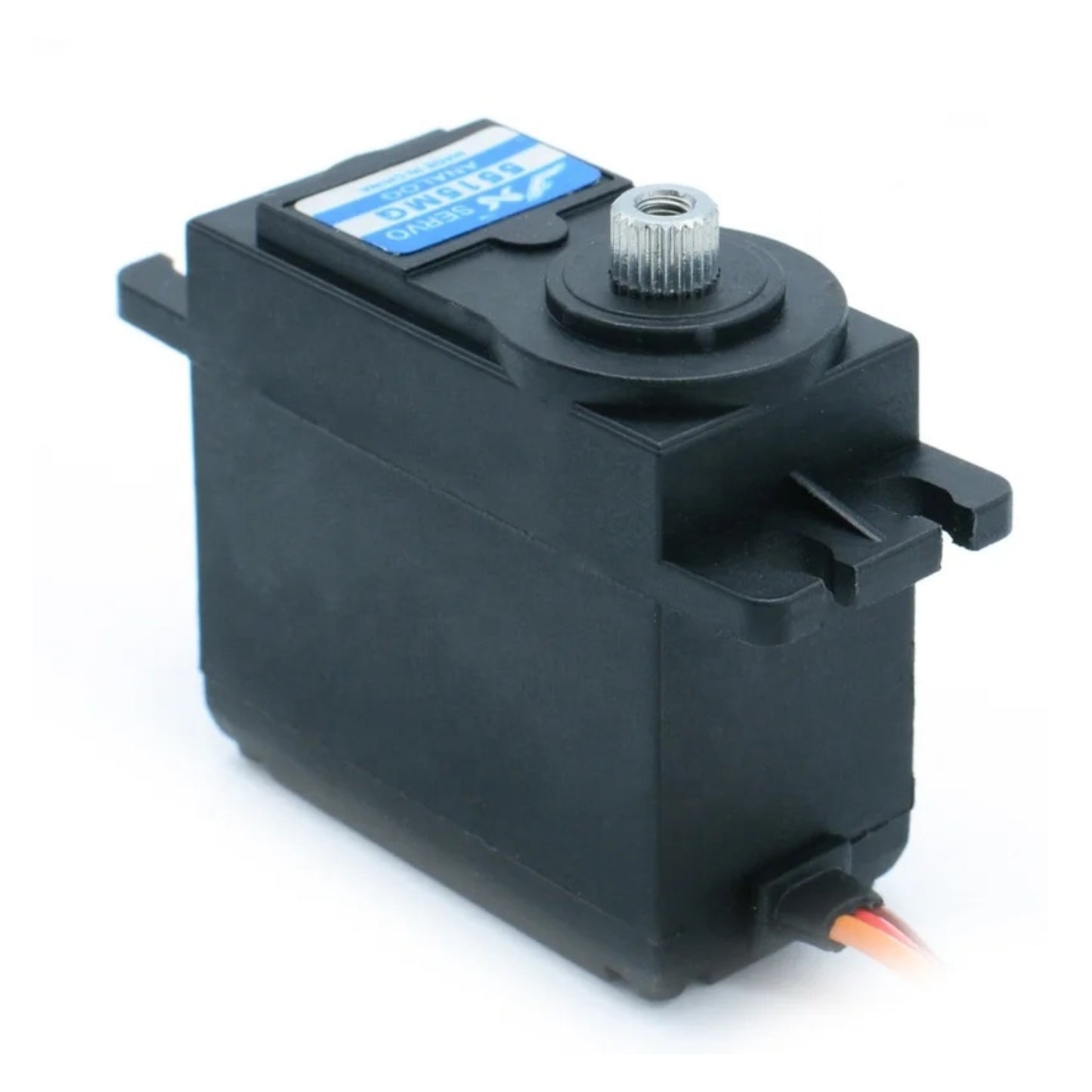

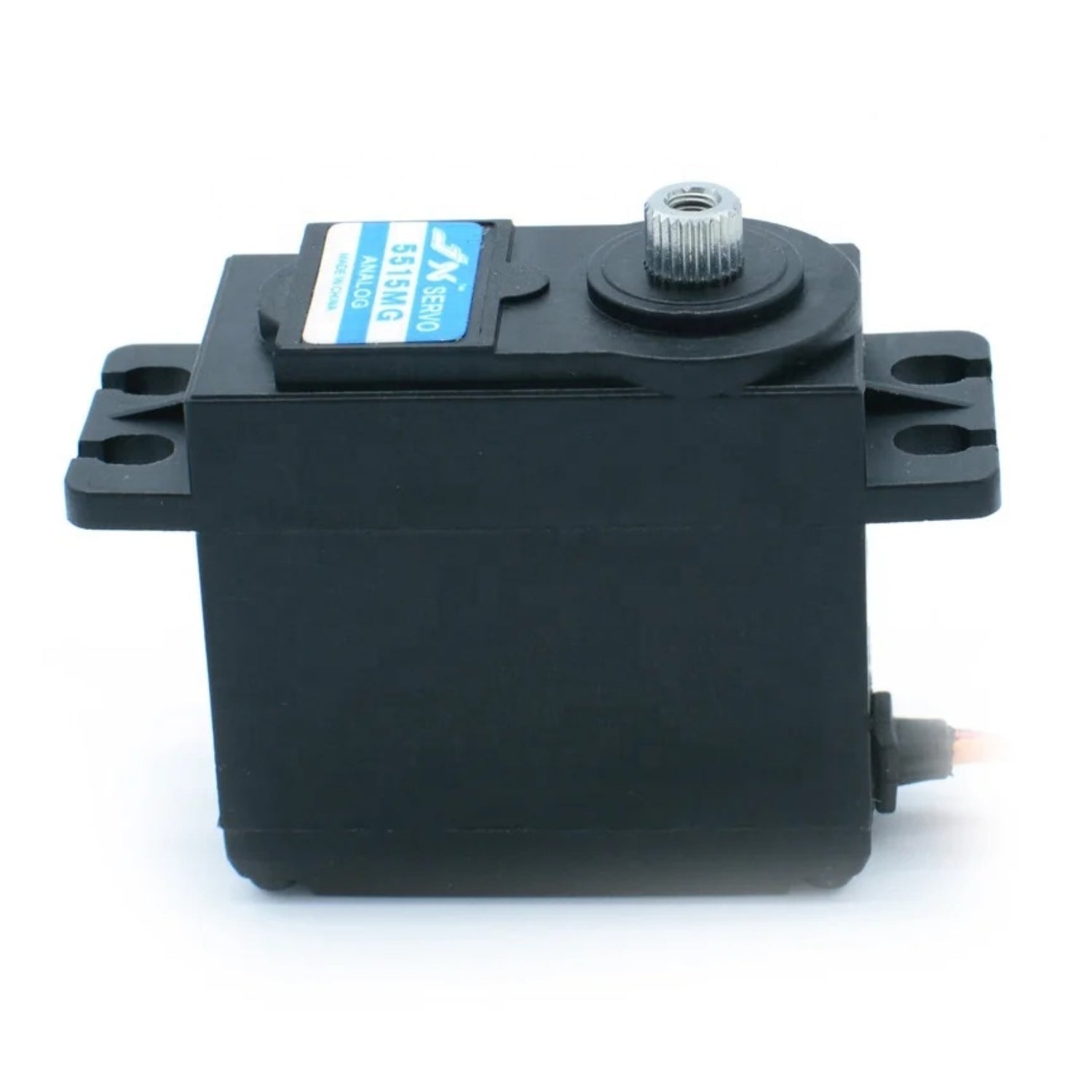

JX Servo PS-5515MG 15kg Metal Gear Digital Servo 60g High Torque Standard Servo with Core Motor For RC Models

JX Servo PS-5515MG 15kg Metal Gear Digital Servo 60g High Torque Standard Servo with Core Motor For RC Models

In stock

Rs. 749.00
Rs. 749.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This high-performance servo delivers a tight dead band of just 4μs and a fast operating speed of 0.16 sec/60° at 6V. With an impressive stall torque of 15.32 kg-cm (212.79 oz/in) at 6V, it is engineered for demanding projects. Built with 2BB bearings for smooth, durable operation and a 265mm JR connector wire, this servo ensures precise and reliable control.

Specifications:

  • Dead band: 4μs-1520μs /50hz
  • Operating Speed (4.8V): 0.18 sec/60°
  • Operating Speed (6V): 0.16 sec/60°
  • Stall Torque (4.8V): 14.25 kg.cm (197.93 oz/in)
  • Stall Torque (6V):  15.32 kg-cm (212.79 oz/in)
  • Connector Wire Length: JR  265 mm (10.43in)
  •  Bearing: 2BB

Features:

  • High-Performance: Delivers a tight 4μs dead band and a fast 0.16 sec/60° operating speed.
  • High Torque: Provides an impressive 15.32 kg-cm of stall torque for demanding projects.
  • Built to Last: Features 2BB bearings for smooth and reliable operation

Package Included:

1 x JX Servo PS-5515MG 15KG Metal Gear Digital Servo
