JX Servo PS-5513MG High-Torque 13KG Analog Standard Servo 0.18s Speed High-Precision Metal Gears & Dual Ball Bearings For RC Cars & Robots

JX Servo PS-5513MG High-Torque 13KG Analog Standard Servo 0.18s Speed High-Precision Metal Gears & Dual Ball Bearings For RC Cars & Robots

In stock

Rs. 1,789.00
Rs. 1,789.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo is meticulously engineered for superior accuracy and strength. It's incredibly narrow 4μs dead band guarantees instantaneous response to your commands (operating at 1520μs / 50Hz). Achieve rapid and fluid movements with operating speeds of 0.20 seconds per 60 degrees at 4.8V, accelerating to a blazing 0.18 seconds per 60 degrees when powered by 6V. Generating significant force, it boasts a stall torque of 11.75 kg·cm (163.21 oz/in) at 4.8V, increasing to a formidable 13.06 kg·cm (181.40 oz/in) at 6V. The integration of two ball bearings (2BB) drastically minimizes friction, extending the servo's lifespan and ensuring consistently smooth performance.

Specification:

  • Dead band: 4μs, 1520μs / 50hz
  • Operating Speed (4.8V): 0.20sec/60°
  • Operating Speed (6V): 0.18 sec/60°
  • Stall Torque (4.8V): 11.75kg.cm (163.21oz/in)
  • Stall Torque (6V):  13.06 kg-cm (181.40 oz/in)
  • Bearing: 2BB

Features:

  • Pinpoint Accuracy & Instant Response: Features an ultra-tight 4μs dead band (1520μs / 50Hz) for immediate command execution.
  • Blazing Fast Speeds: Delivers 0.20s/60° (4.8V) and a quicker 0.18s/60° (6V) for rapid movements.
  • Formidable Torque: Boasts 11.75 kg·cm (4.8V) / 13.06 kg·cm (6V) stall torque for superior strength.
  • Smooth & Durable Performance: Equipped with 2BB (dual ball bearings) to reduce friction and extend lifespan.

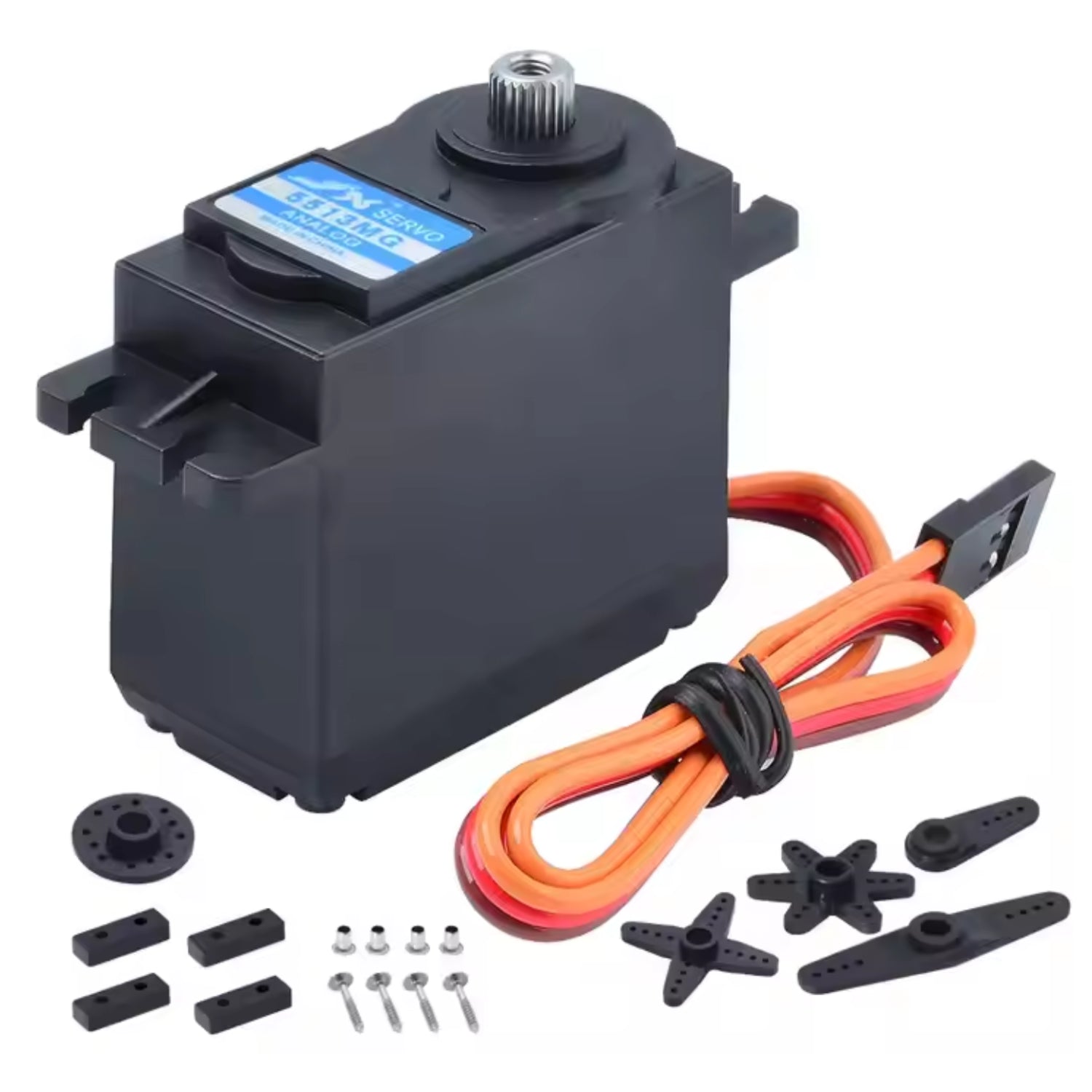

Package Included:

1 x JX Servo PS-5513MG 13KG Analog Standard Servo
