• JX Servo PS-5509MG 9KG Analog Metal Gear Servo
  • PS-5509MG High-Torque Analog RC Servo
  • Dual Ball Bearings
  • RC Cars & Boats
  • JX Servo PS-5509MG
1 5

JX Servo

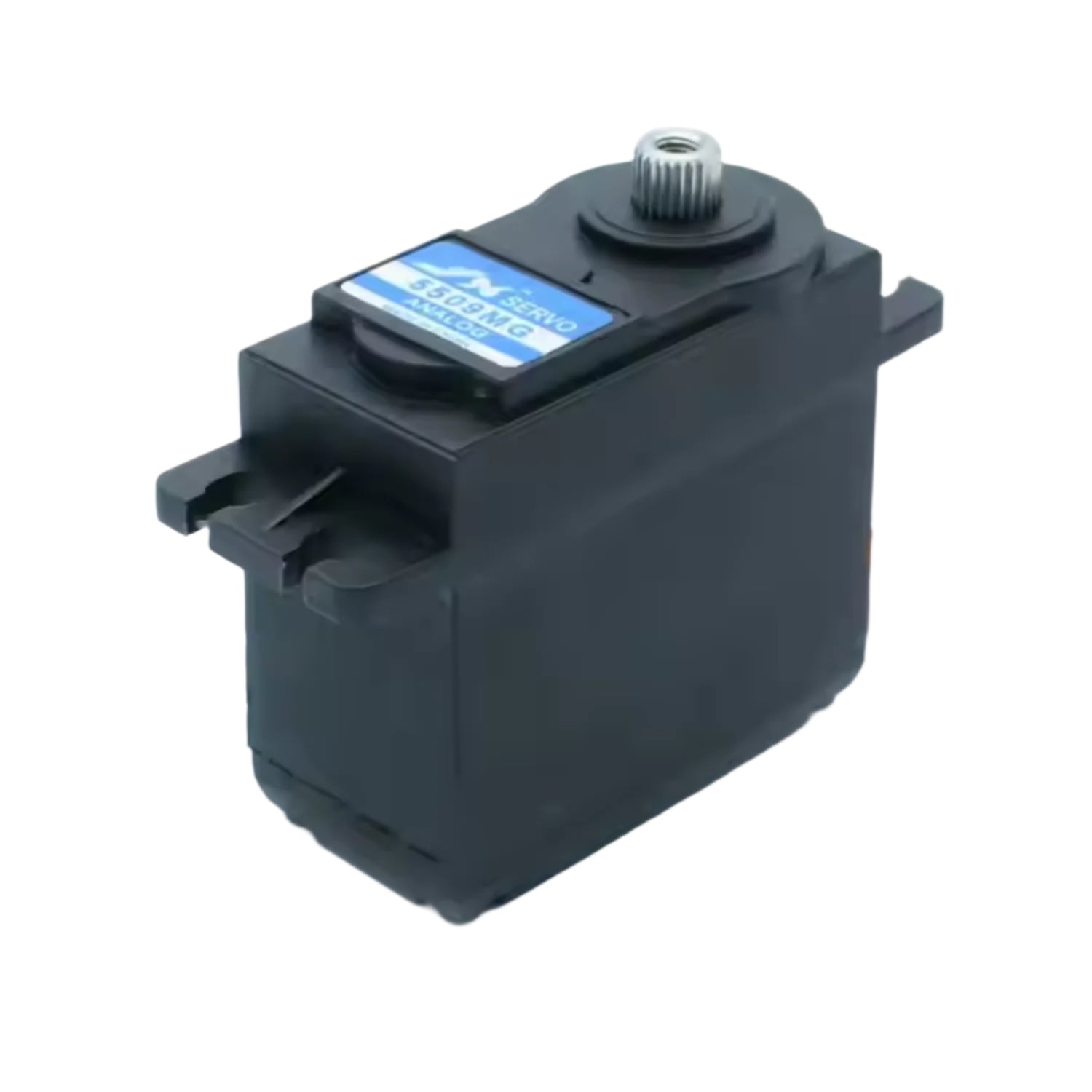

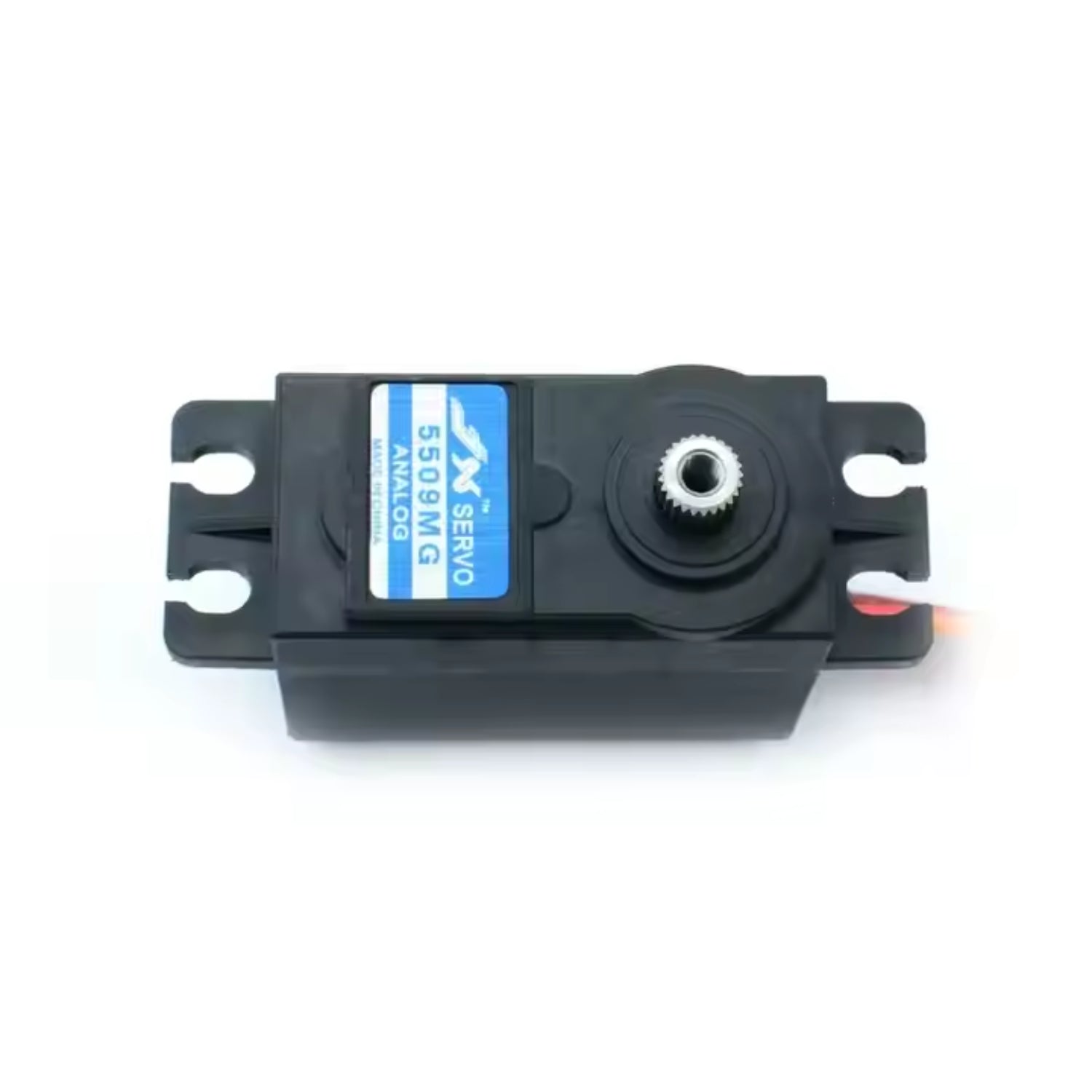

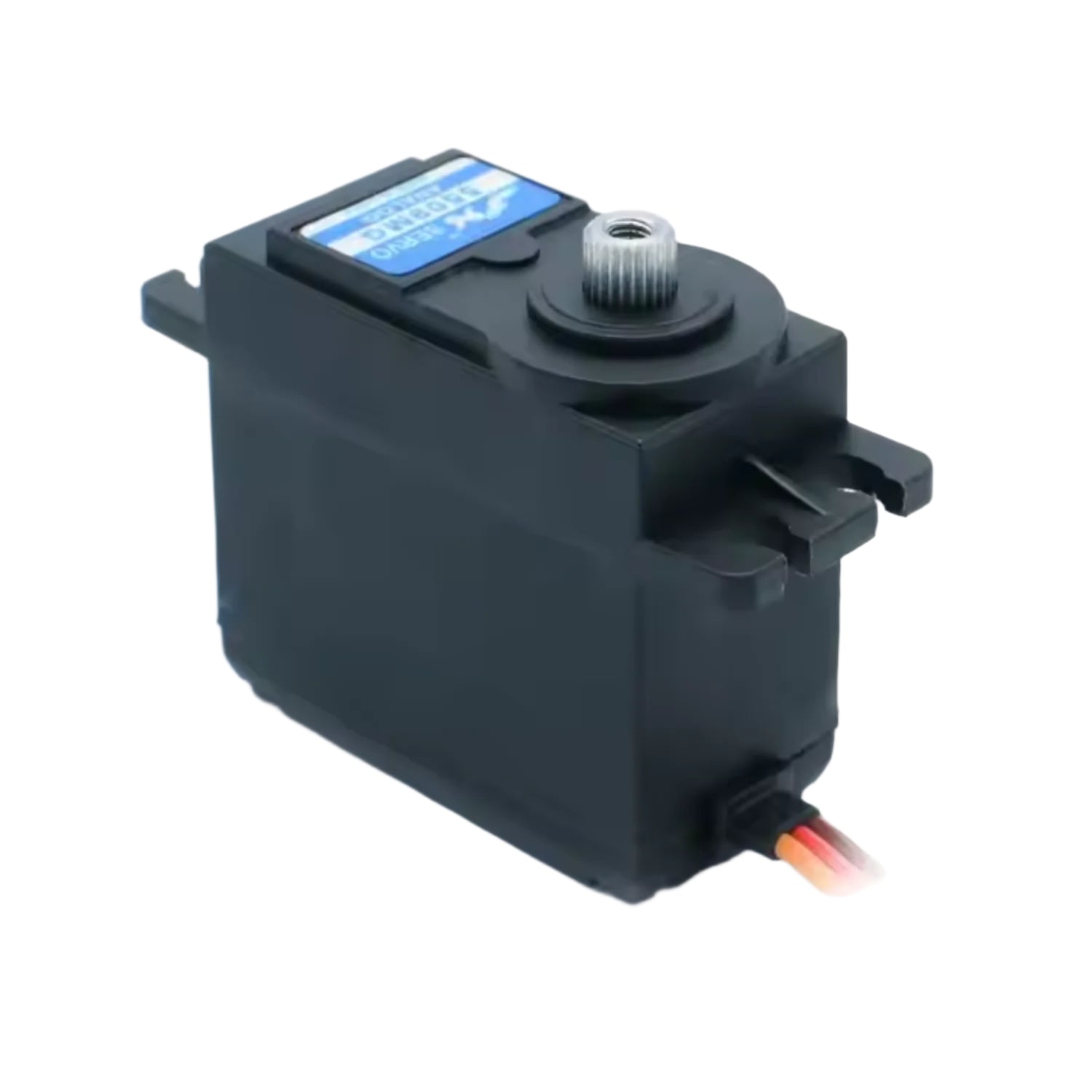

JX Servo PS-5509MG High-Torque 9KG Analog Standard Servo With Durable Metal Gears And Dual Ball Bearings For RC Cars Boats & Airplanes

JX Servo PS-5509MG High-Torque 9KG Analog Standard Servo With Durable Metal Gears And Dual Ball Bearings For RC Cars Boats & Airplanes

In stock

Rs. 1,759.00
Rs. 1,759.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This servo is engineered for superior accuracy and power. It's incredibly narrow 4μs dead band ensures instantaneous response to commands (operating at 1520μs / 50Hz). Achieve rapid movements with operating speeds of 0.15 seconds per 60 degrees at 4.8V and a blazing 0.13 seconds per 60 degrees when powered by 6V. Generating significant force, it boasts a stall torque of 8.65 kg·cm (120.15 oz/in) at 4.8V, increasing to a robust 9.35 kg·cm (129.88 oz/in) at 6V. The inclusion of two ball bearings (2BB) minimizes friction, prolonging the servo's life and maintaining consistent performance.

Specifications:

  • Dead band: 4μs, 1520μs / 50hz
  • Operating Speed (4.8V): 0.15 sec/60°
  • Operating Speed (6V): 0.13 sec/60°
  • Stall Torque (4.8V): 8.65 kg.cm (120.15 oz/in)
  • Stall Torque (6V):  9.35 kg-cm (129.88 oz/in)
  • Bearing: 2BB

Features:

  • Ultra-Responsive Control: Features a tiny 4μs dead band (1520μs / 50Hz) for instantaneous command response.
  • Blazing Fast Speeds: Achieves 0.15s/60° (4.8V) and an even faster 0.13s/60° (6V).
  • High-Torque Power: Delivers 8.65 kg·cm (4.8V) / 9.35 kg·cm (6V) stall torque for demanding tasks.
  • Smooth & Durable: Equipped with 2BB (dual ball bearings) to minimize friction, enhance performance, and prolong lifespan.
  • Superior Accuracy: Engineered for pinpoint precision and consistent operation.

Package Included:

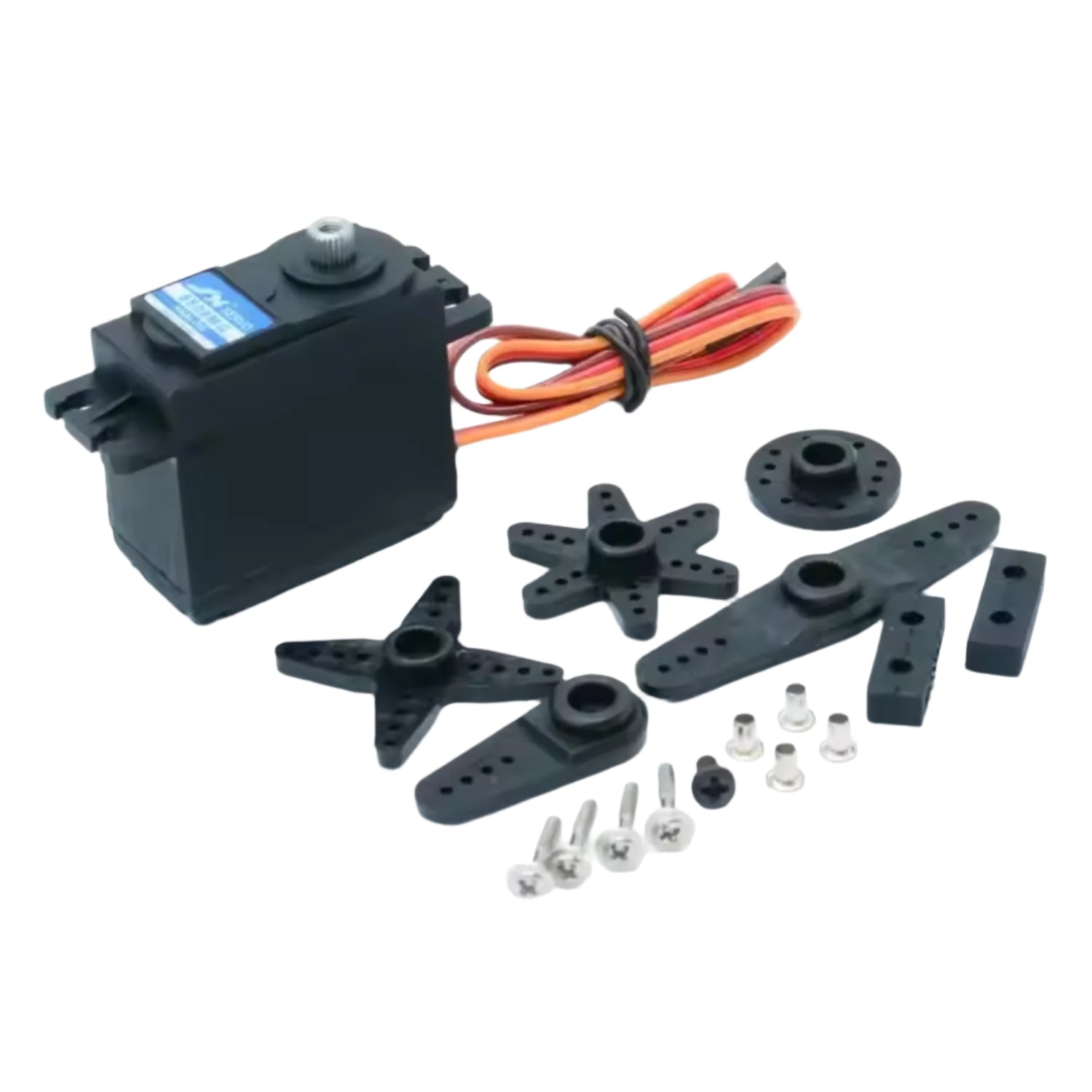

1 x JX Servo PS-5509MG High-Torque 9KG Analog Standard Servo
