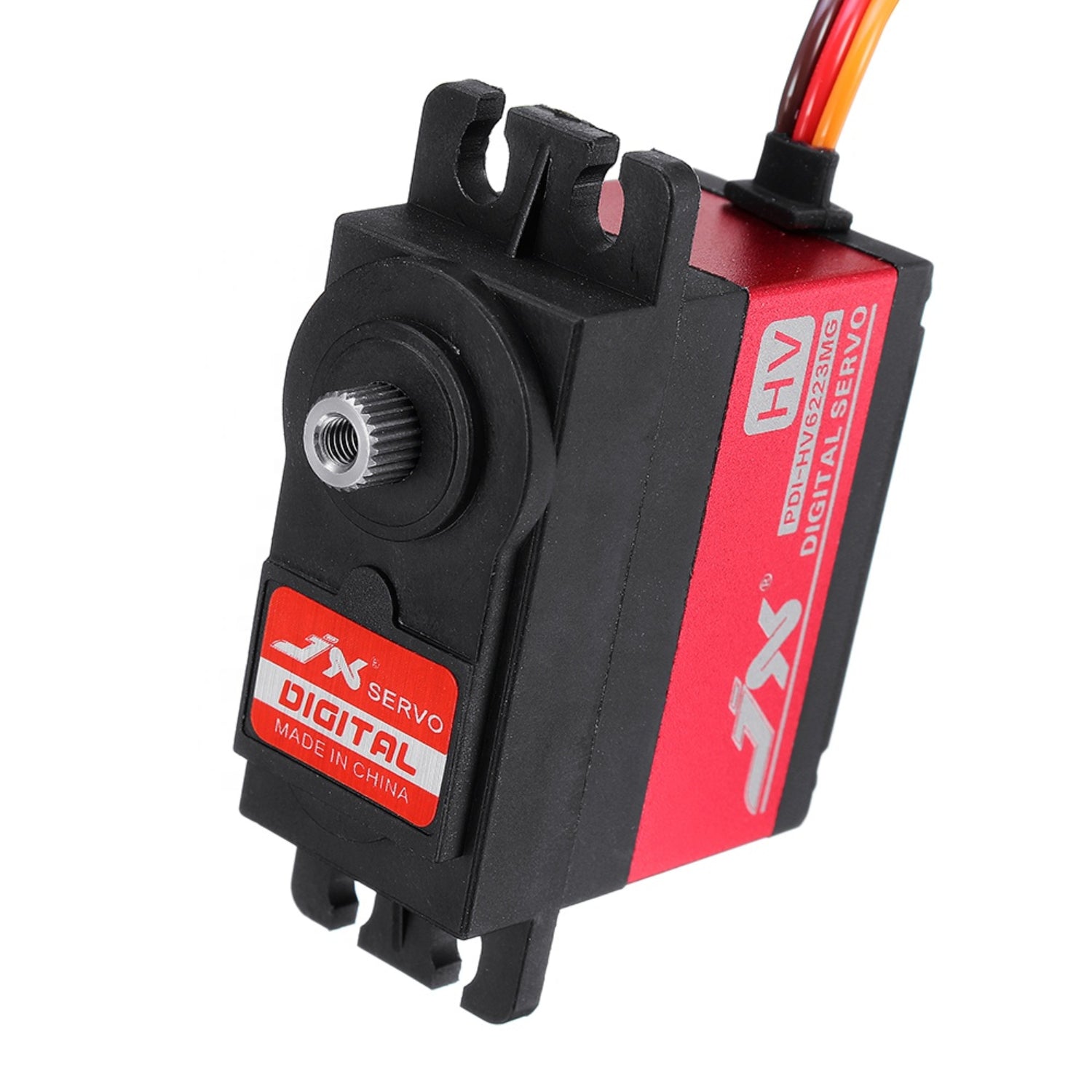

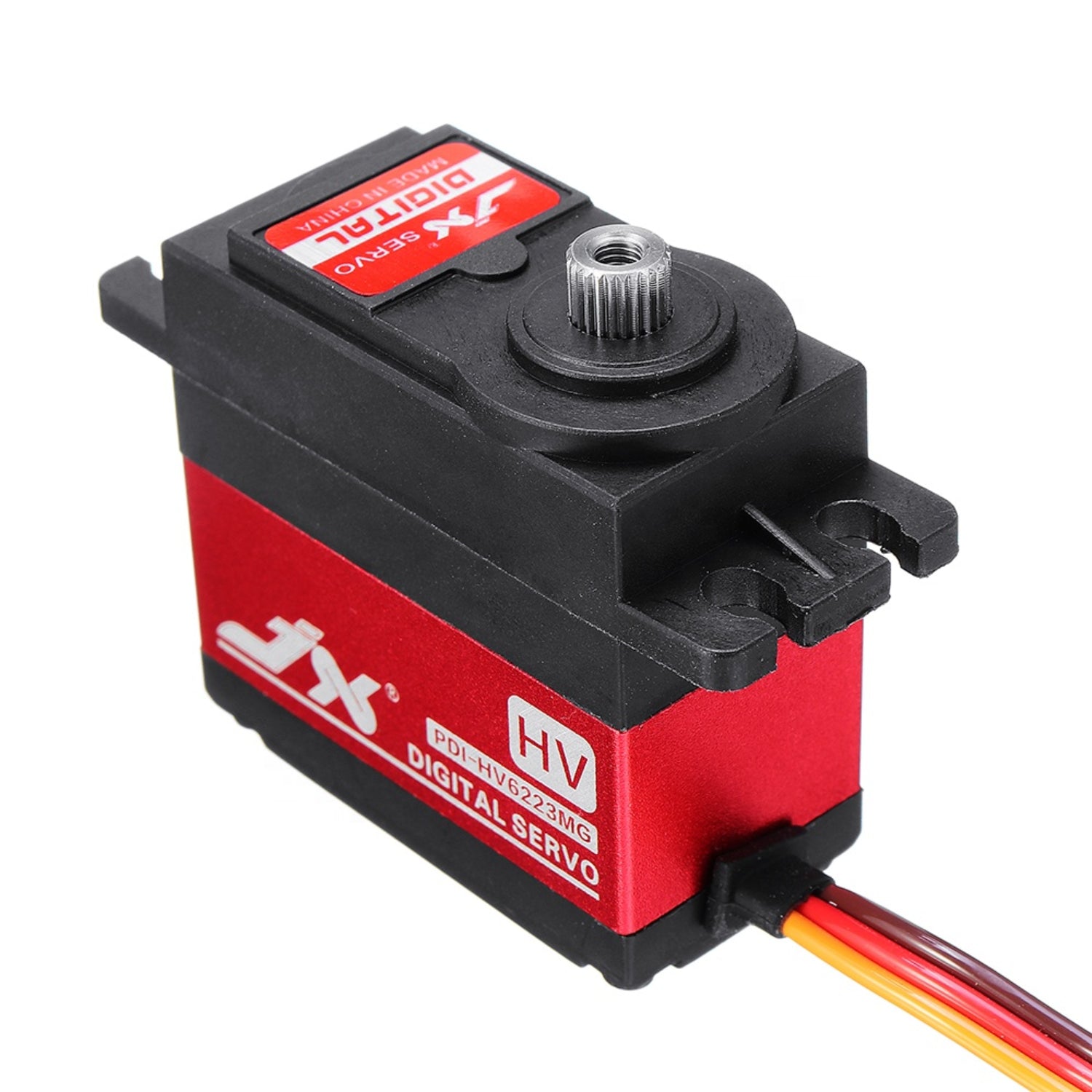

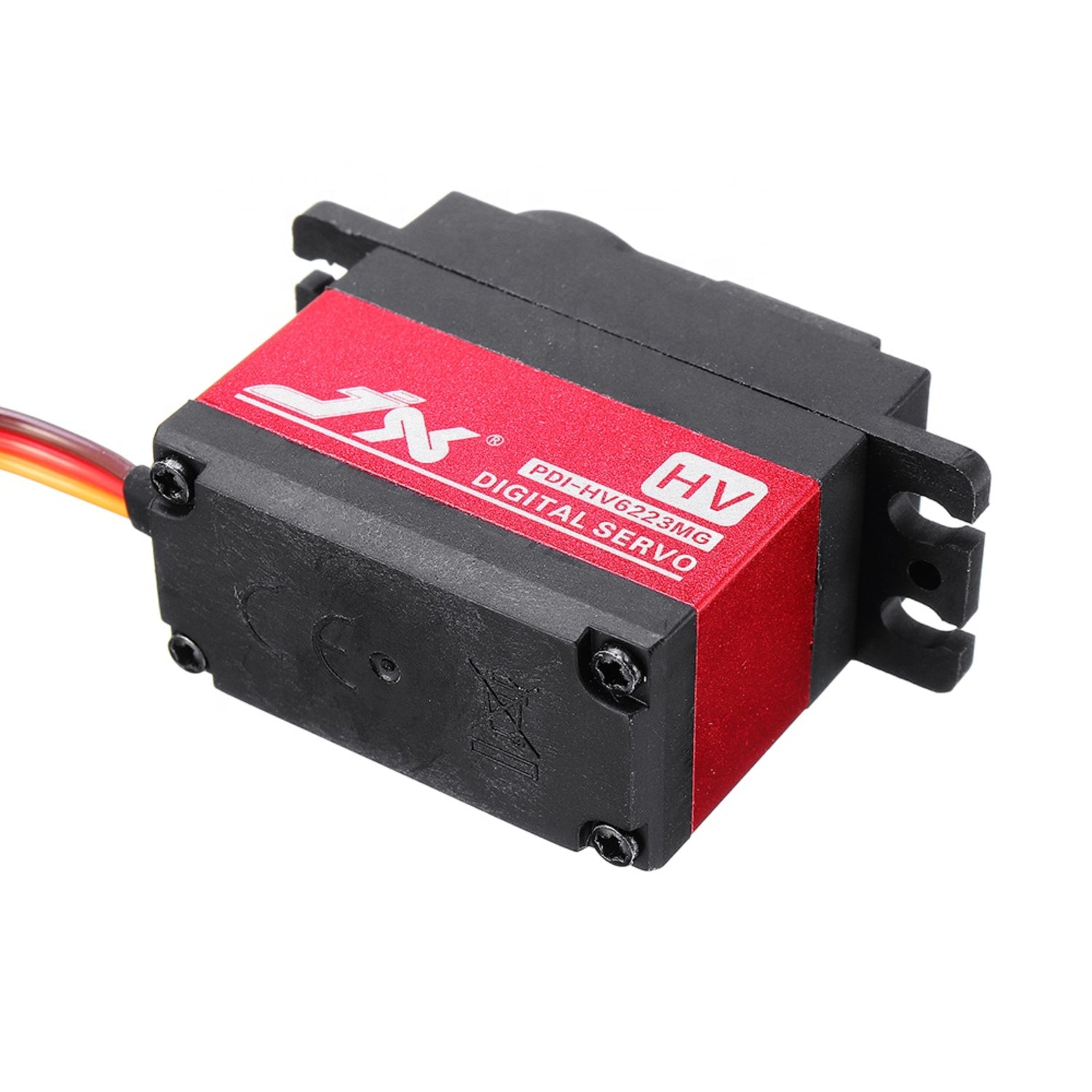

JX Servo PDI-HV6223MG 23KG Coreless HV Digital Servo for Demanding RC & Robotic Projects

JX Servo PDI-HV6223MG 23KG Coreless HV Digital Servo for Demanding RC & Robotic Projects

In stock

Rs. 1,140.00
Rs. 1,140.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The JX Servo PDI-HV6223MG is the pinnacle of high-performance servo technology, engineered for the most demanding RC and robotic projects. Combining a powerful 23KG of torque with the lightning-fast response of a coreless motor, this high-voltage (HV) digital servo is the definitive choice for enthusiasts and professionals who refuse to compromise on speed, strength, or reliability.

Specifications:

  • Dead band: 2μs, 1520μs / 330hz
  • Operating Speed (6.0V): 0.12 sec/60°
  • Operating Speed (8.4V): 0.10 sec/60°
  • Stall Torque (6.0V): 19.2 kg-cm
  • Stall Torque (8.4V): 25 kg-cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB

Features:

  • High-performance HV digital standard servo

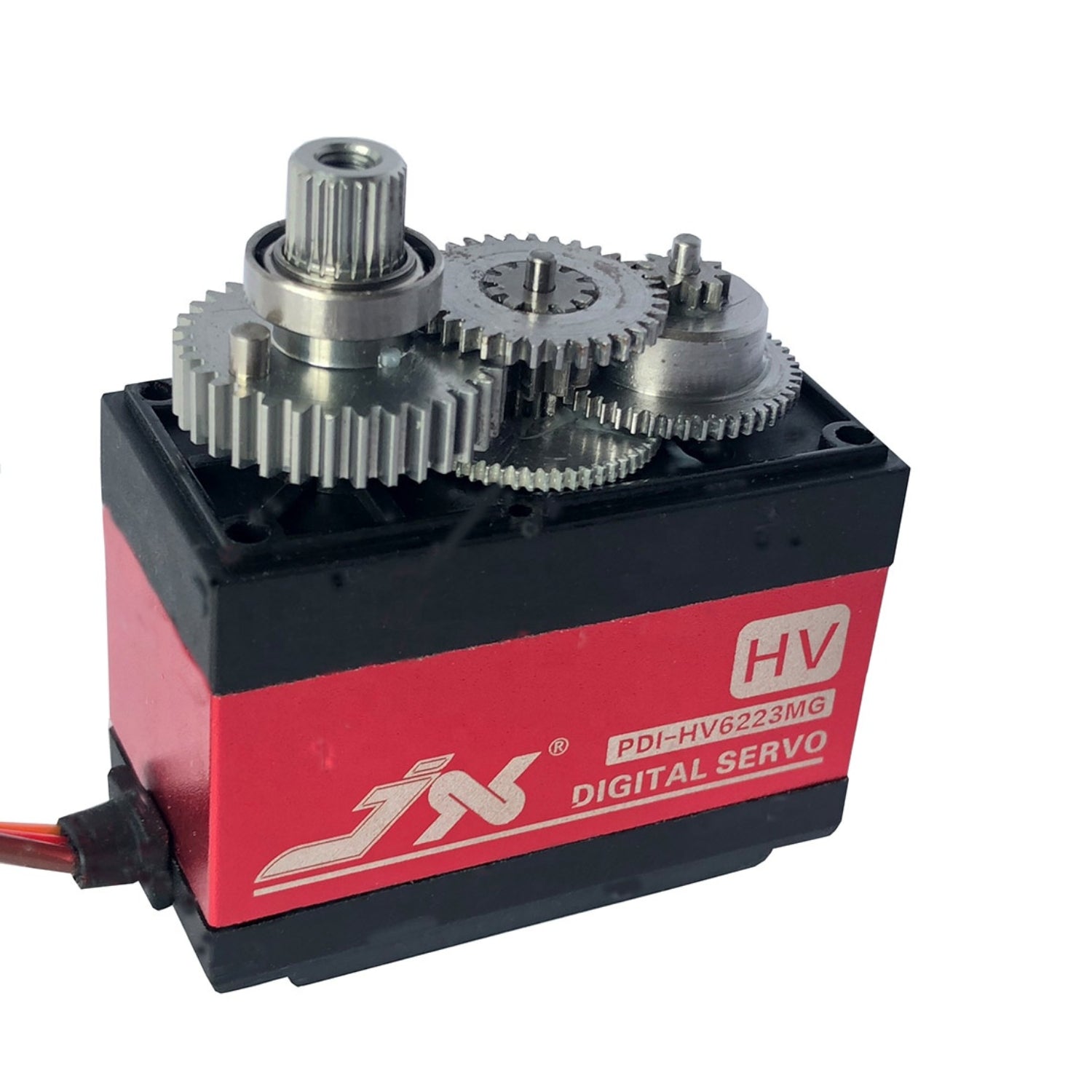

  • High-precision Taiwan-made aluminium gears with hard anodizing
  • CNC aluminium middle Shell
  • Dual ball bearings

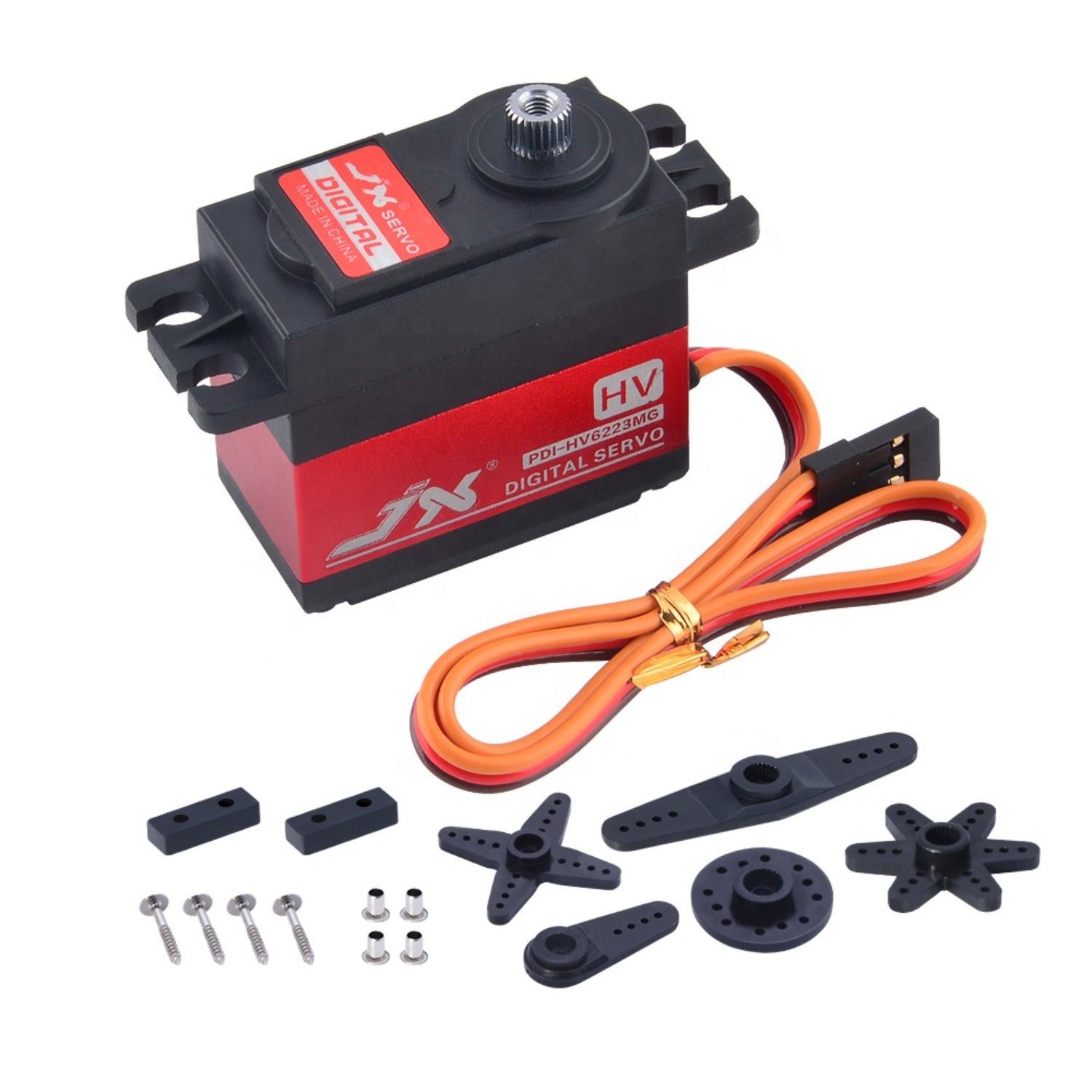

Package Included:

1 x JX Servo PDI-HV6223MG 23KG High Torque Coreless Digital Servo
