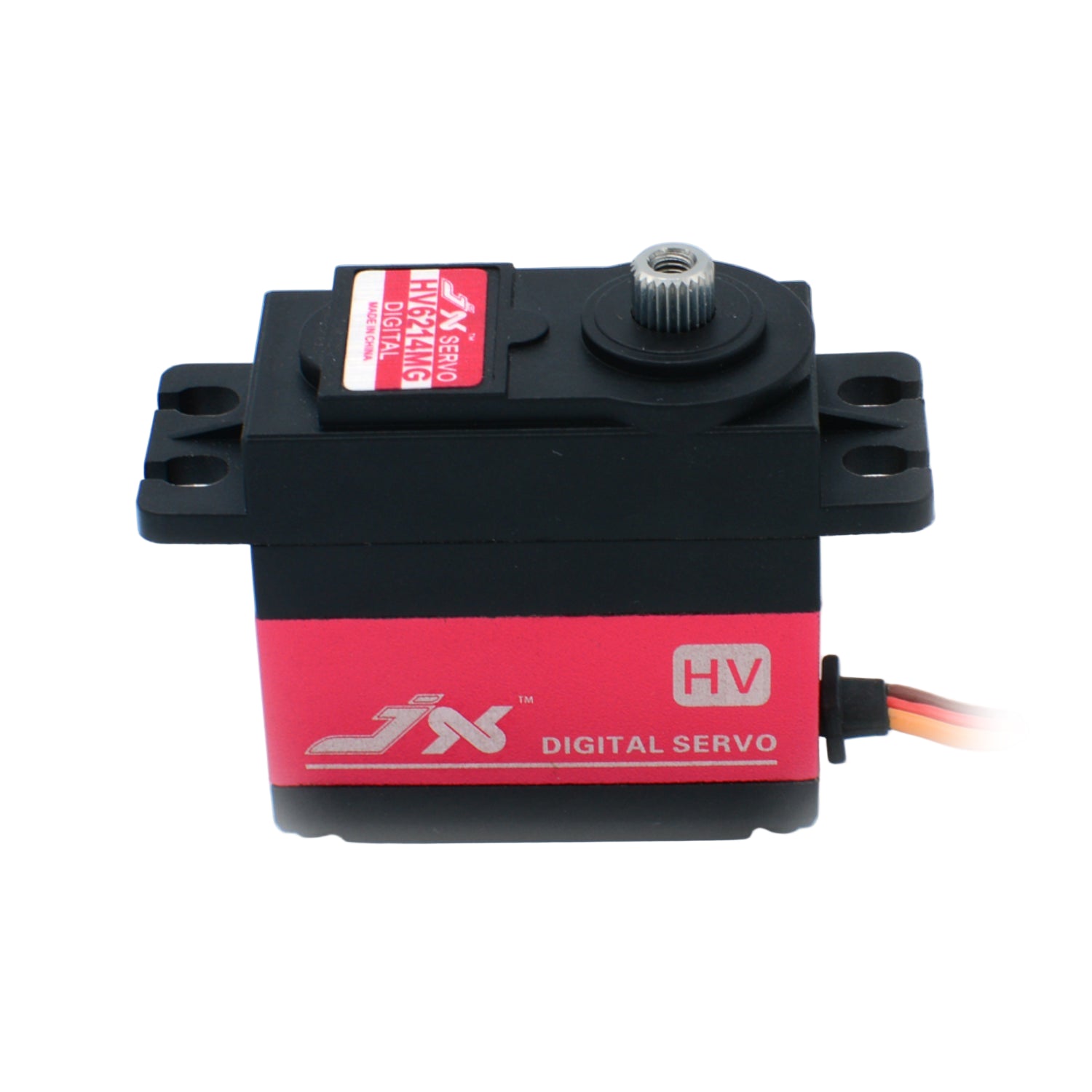

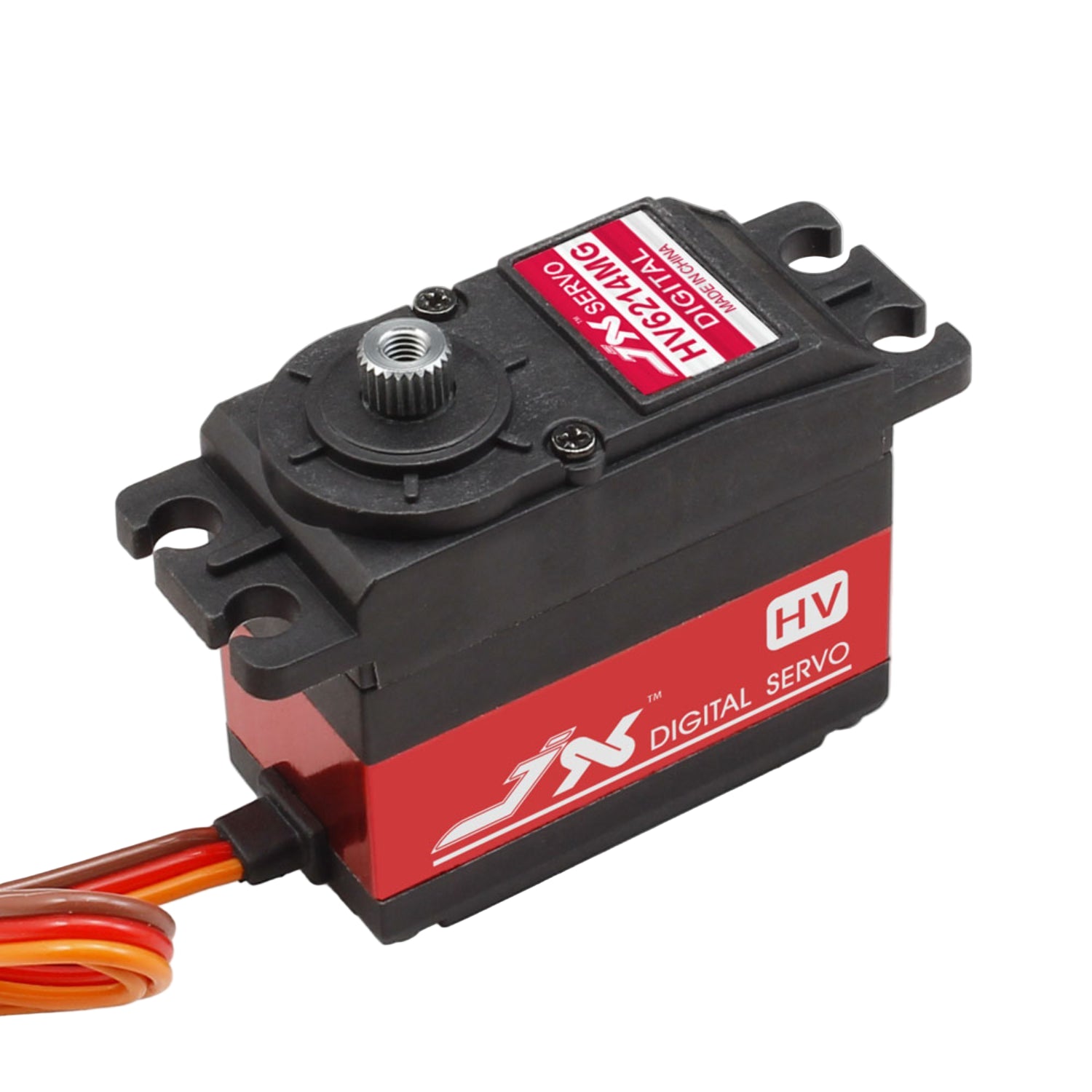

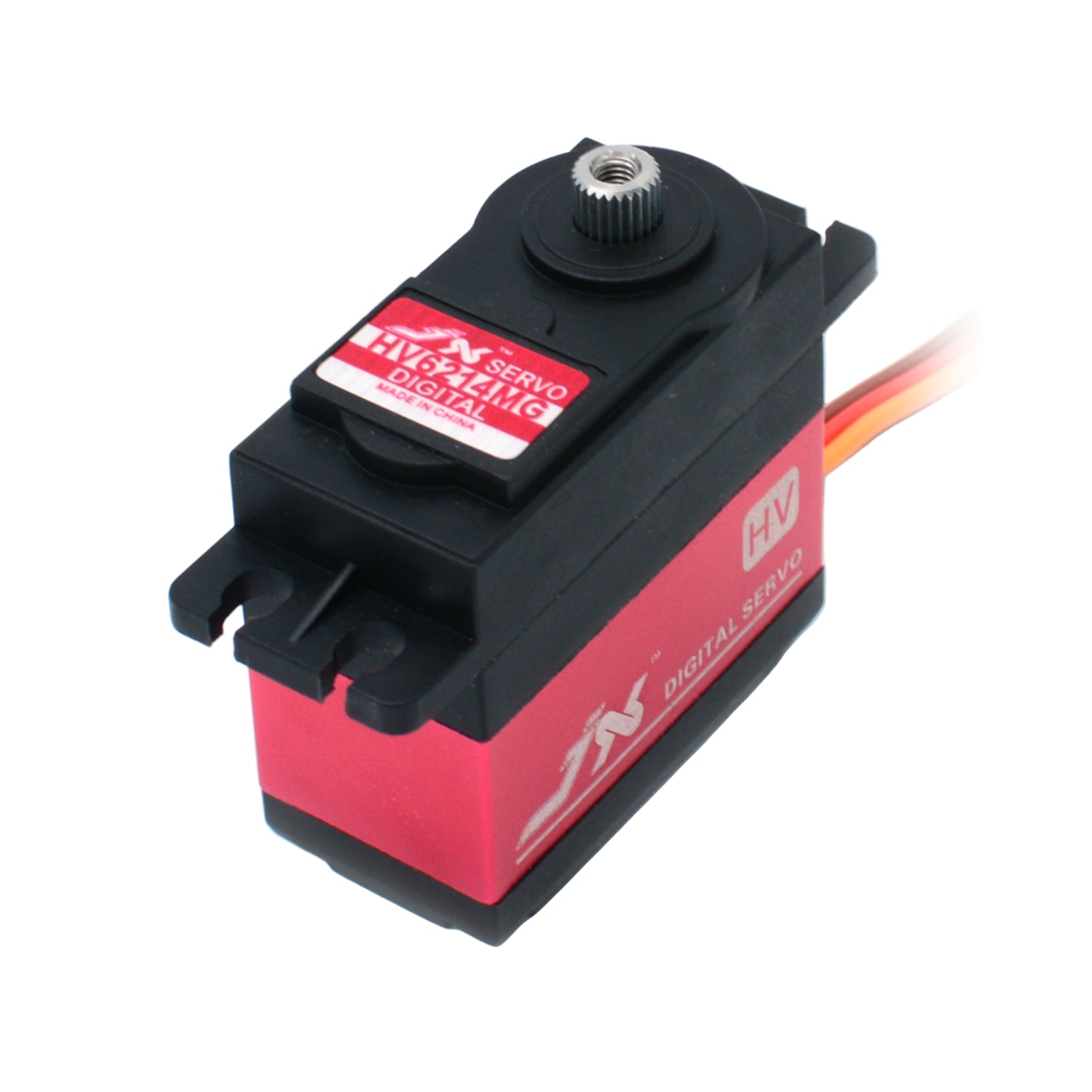

JX Servo PDI-HV6214MG Coreless HV Digital Metal Gear Servo 14KG High Torque Digital Servo for High-Performance RC Cars & Aircraft
JX Servo PDI-HV6214MG Coreless HV Digital Metal Gear Servo 14KG High Torque Digital Servo for High-Performance RC Cars & Aircraft
SKU:
In stock
Regular price
Rs. 999.00
Regular price
Sale price
Rs. 999.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Engineered for the demands of high-performance applications, the JX Servo PDI-HV6214MG is a top-tier coreless digital servo that combines rapid response with exceptional power. With a high-voltage (HV) capability and a robust 14KG of torque, this servo is the ultimate choice for serious RC enthusiasts, drone pilots, and robotic developers who require uncompromising reliability and speed.
Specifications:
- Pulse width: 1000-2000μs=90°
- Pulse width: 500-2500μs=180°
- Dead band: 2μs 1520μs / 330hz
- Motor: high-quality core motor
- Operating Speed (6V): 0.18sec/60°
- Operating Speed (7.4V): 0.16 sec/60°
- Stall Torque (6V): 12.8kg-cm (177.7oz/in)
- Stall Torque (7.4V): 14.6 kg-cm (205.53oz/in)
- Connector Wire Length: JR 265 mm (10.43in)
- Bearing: 2BB
Features:
- High-performance digital standard servo
- High-precision Taiwan-made aluminium gears with hard anodizing
- CNC aluminium middle Shel
-
Dual ball bearings
Package Included:
1 x JX Servo PDI-HV6214MG 14KG High Torque Coreless HV Digital Servo
