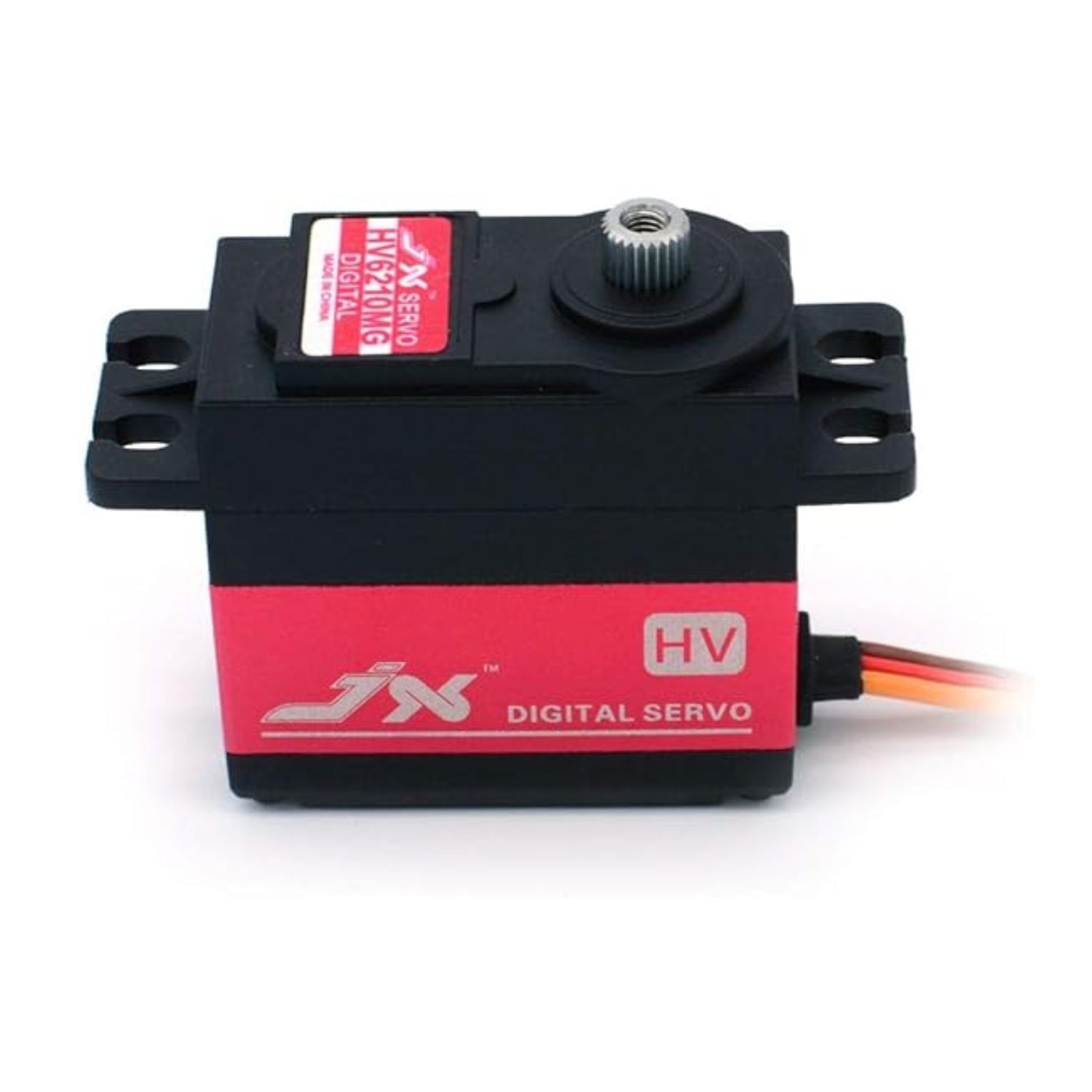

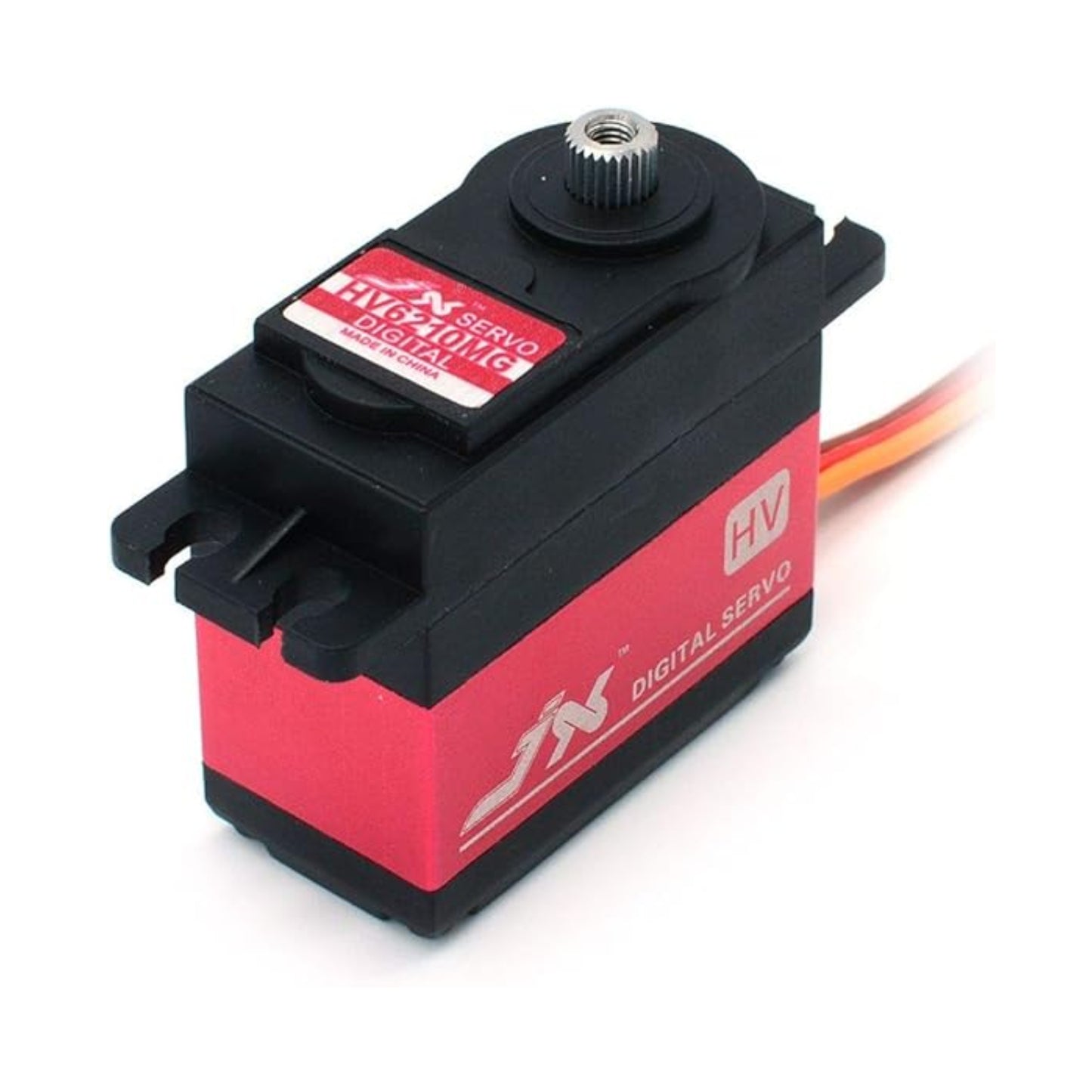

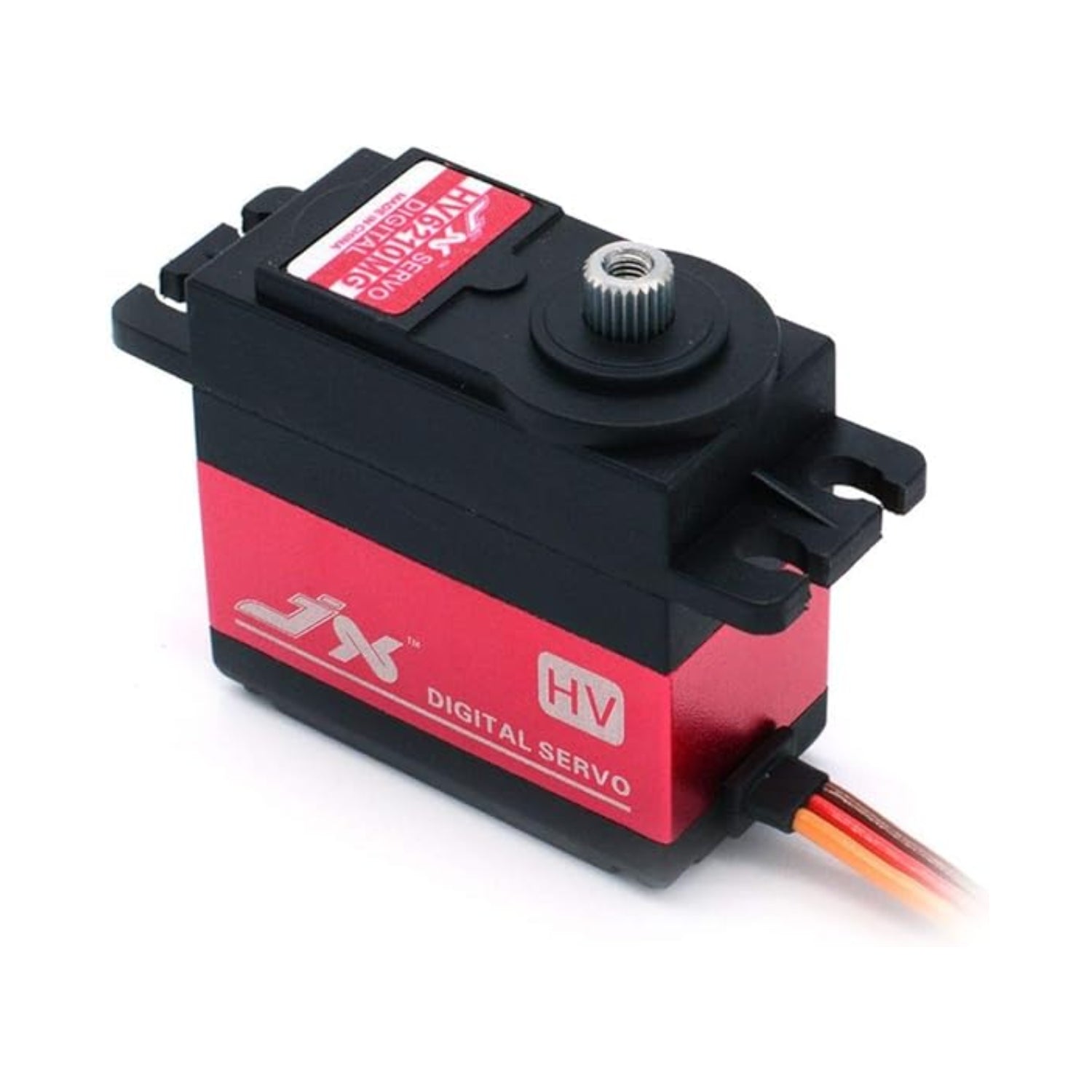

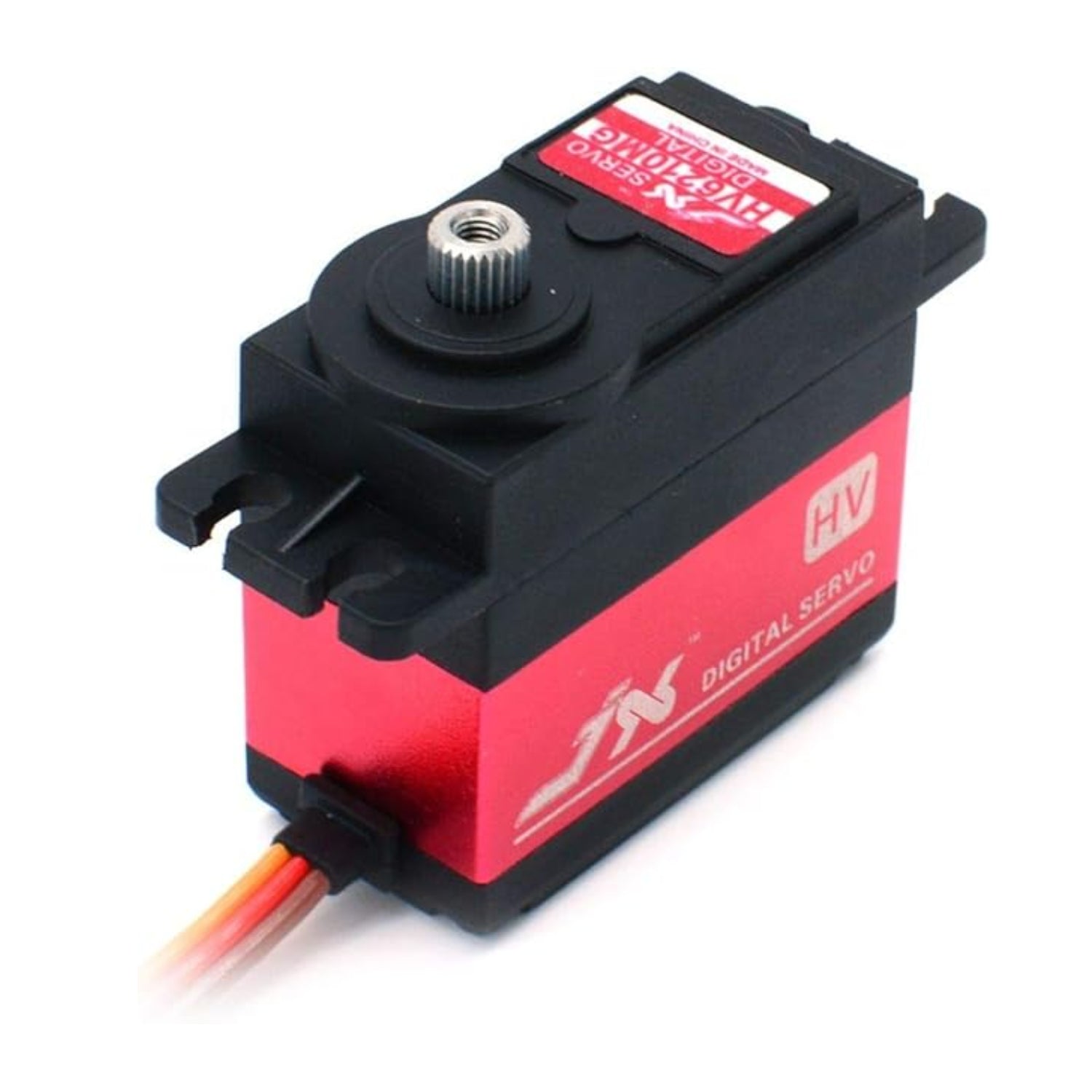

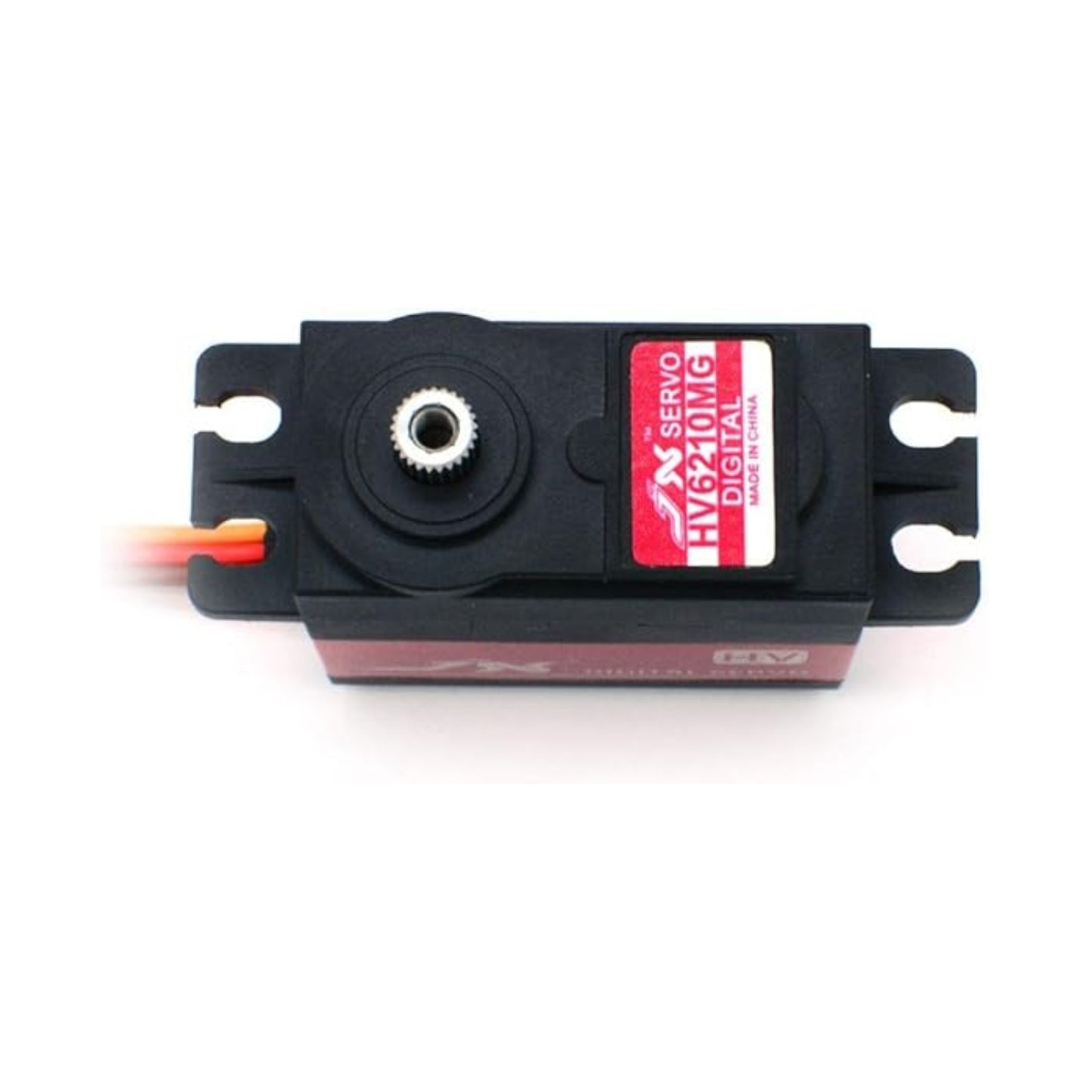

JX Servo PDI-HV6210MG Digital Servo 10KG High-Torque Metal Gear Servo For RC Airplanes, Drones, Helicopters, and Robotics

JX Servo PDI-HV6210MG Digital Servo 10KG High-Torque Metal Gear Servo For RC Airplanes, Drones, Helicopters, and Robotics

In stock

Rs. 979.00
Rs. 979.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

Get superior performance with the JX Servo PDI-HV6210MG. This servo operates on high-voltage batteries for maximum power and efficiency. With 10KG of torque and a durable full metal gear construction, it is built for reliability. Its fast response and accurate positioning make it the perfect choice for high-performance RC vehicles and robotics projects.

Specifications:

  • Dead band: 2μs, 1520μs / 330hz
  • Motor: high-quality core motor
  • Operating Speed (6V): 0.15 sec/60°
  • Operating Speed (7.4V): 0.13 sec/60°
  • Stall Torque (6V): 9.35 kg-cm (129.88 oz/in)
  • Stall Torque (7.4V):  11.22kg-cm (155.5oz/in)
  • Connector Wire Length: JR  265 mm (10.43in)
  • Bearing: 2BB

Features:

  • Ultra-responsive & Jitter-free: Highlights the 2μs dead band.
  • High-precision Control: Emphasizes the servo's accuracy.
  • Smooth & Stable Operation: Describes the effect of the 330Hz refresh rate.
  • High-quality Core Motor: Focuses on the internal component for reliability.
  • Consistent & Reliable Performance: A general-purpose keyword for the servo's overall function.

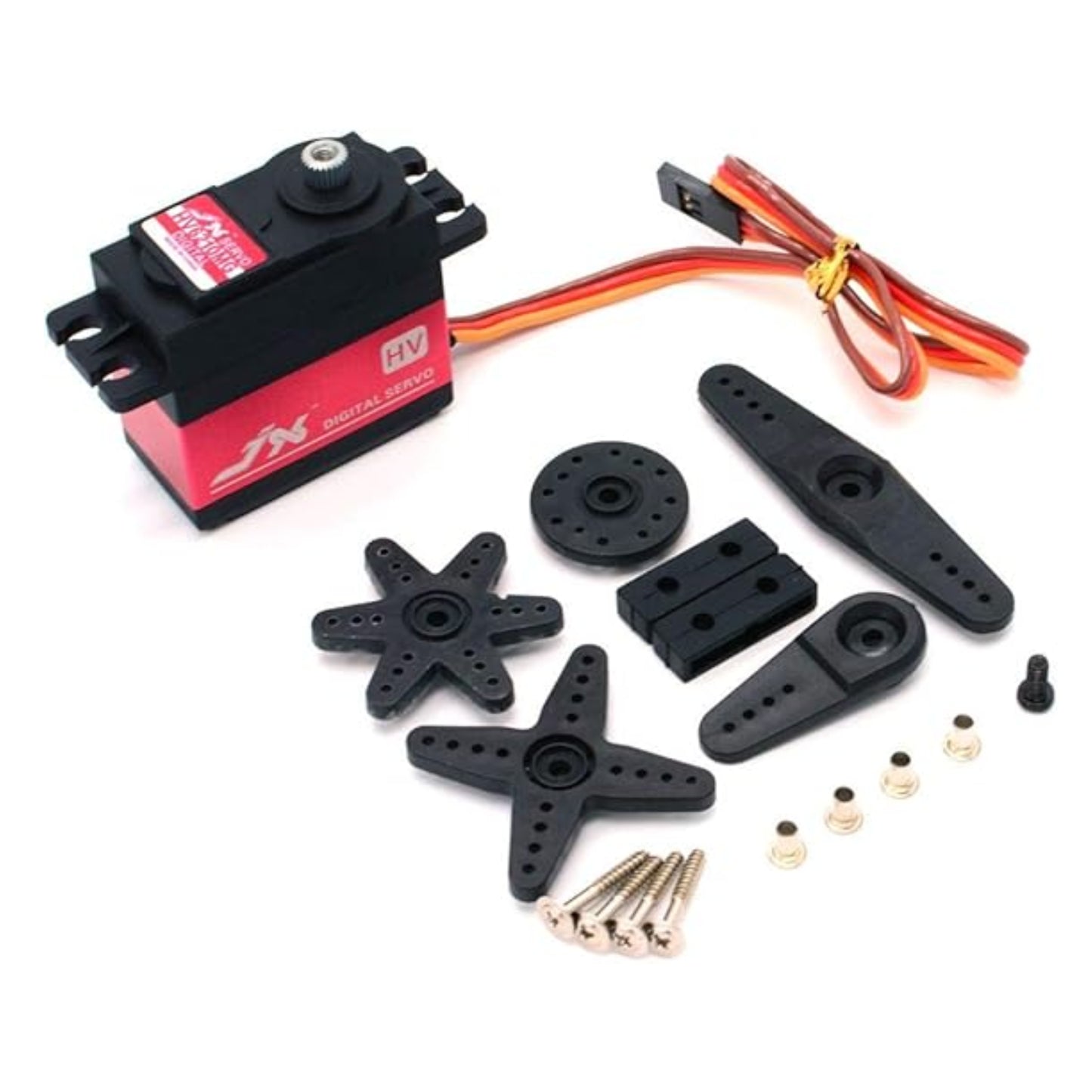

Package Included:

1 x JX Servo PDI-HV6210MG High Voltage Digital Metal Gear Servo
