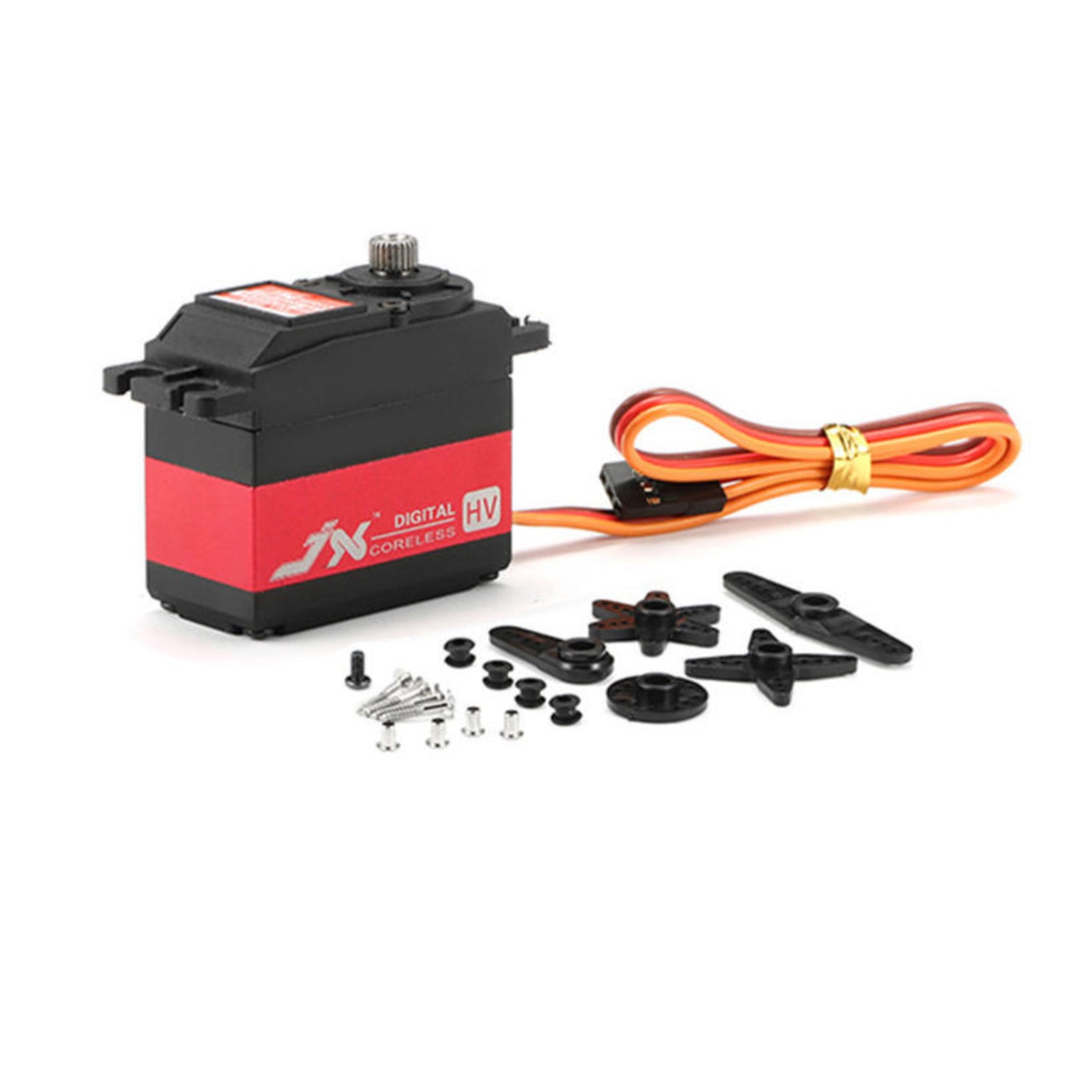

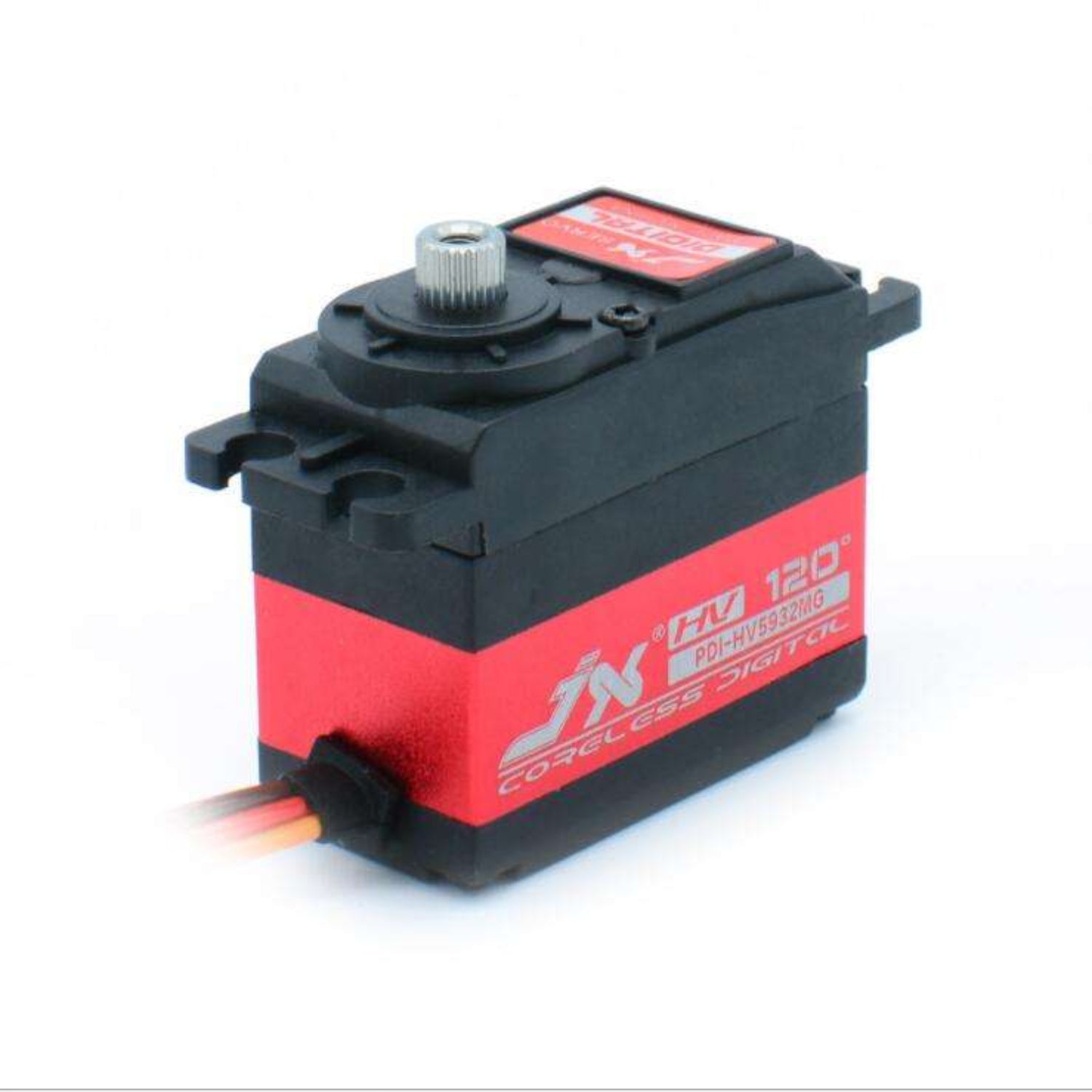

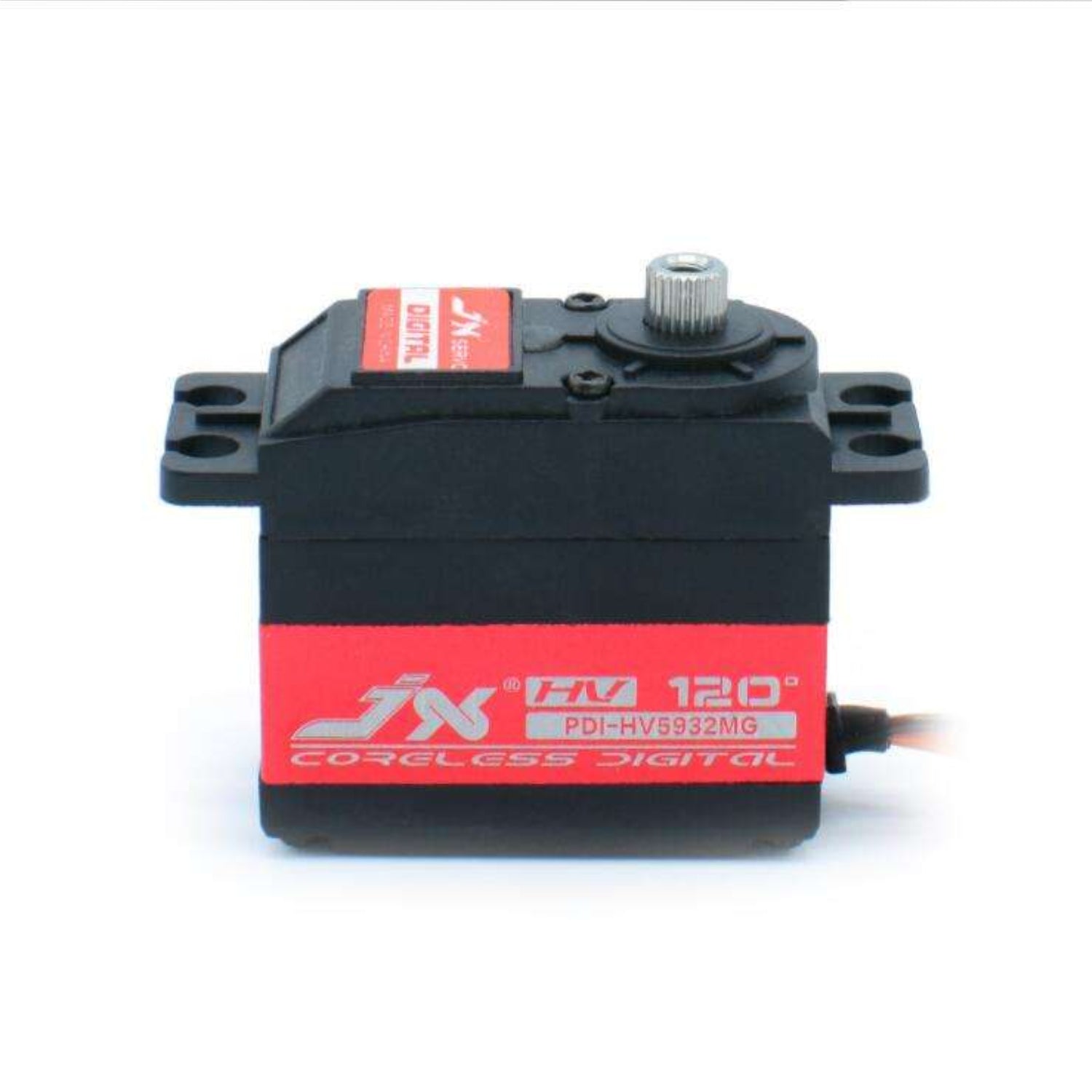

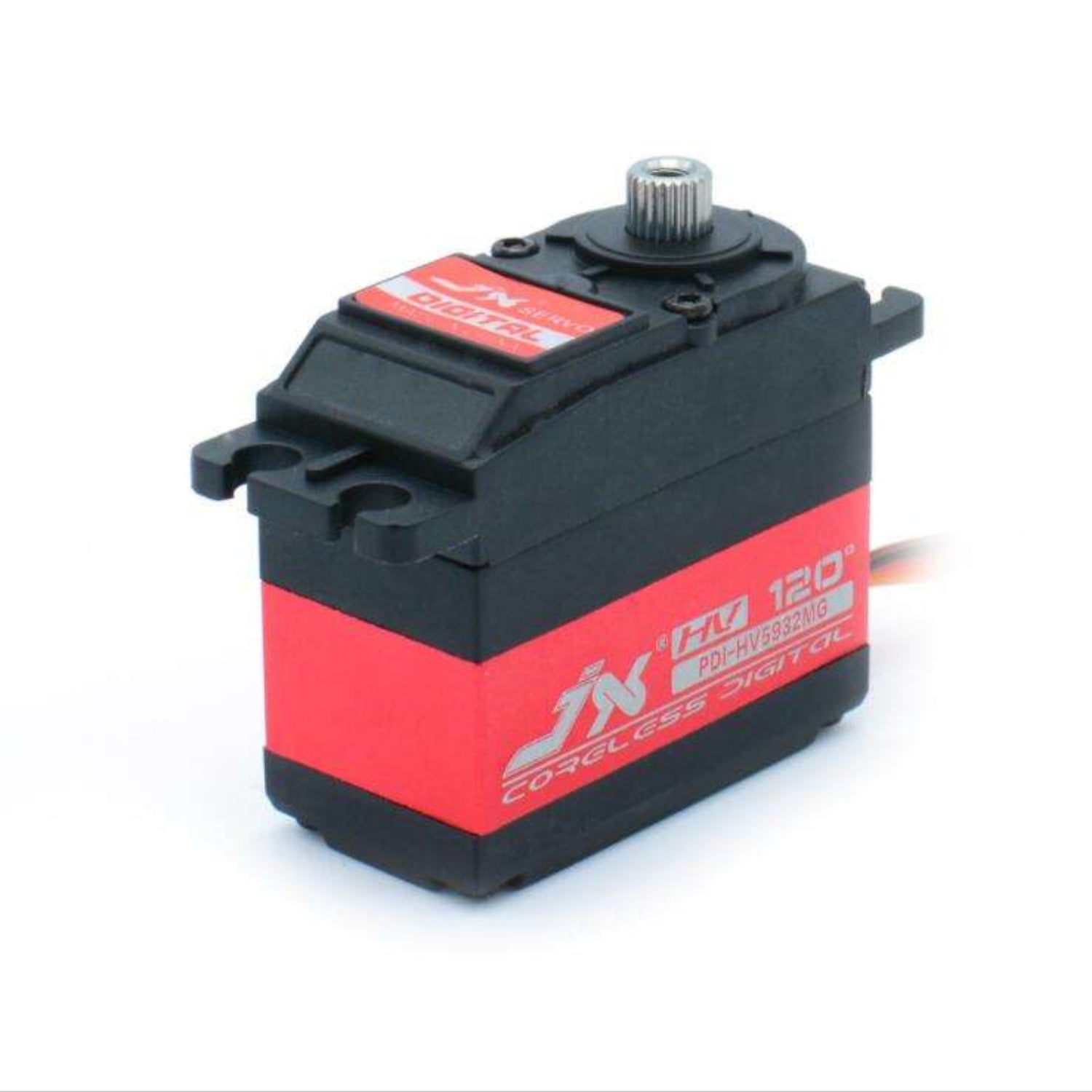

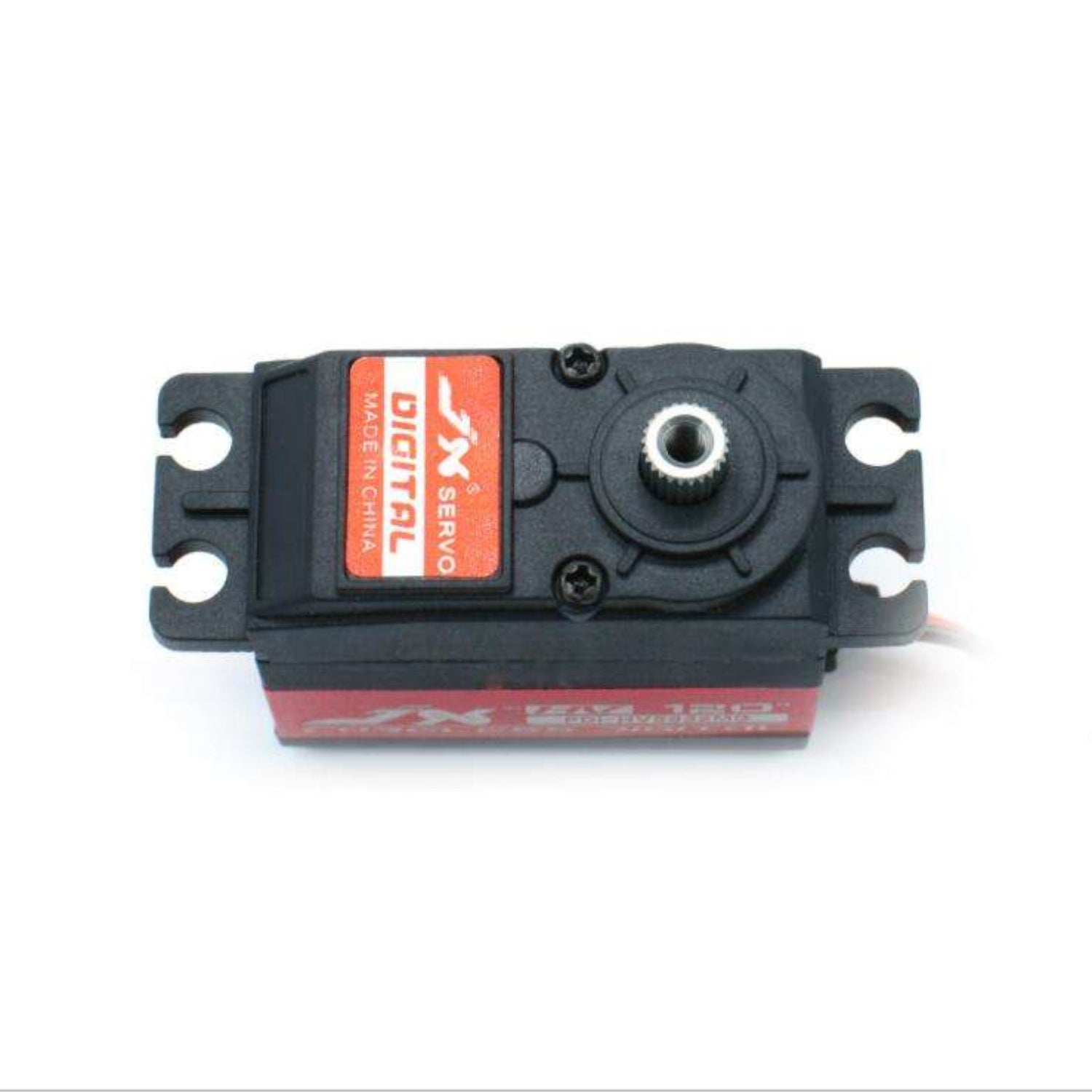

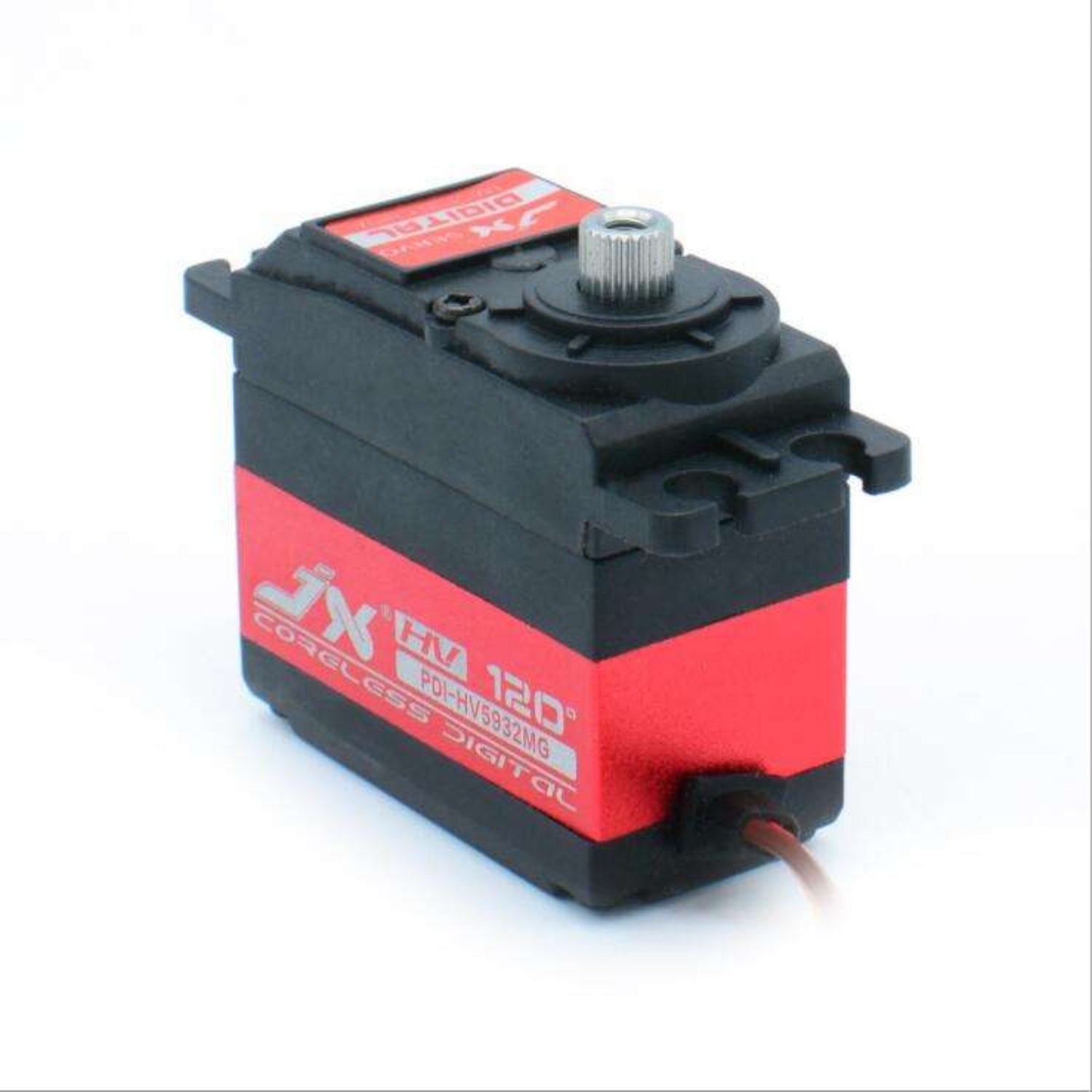

JX Servo PDI-HV5932MG Digital Metal Gear Servo 32KG High-Torque Servo for RC Models & Robotics

JX Servo PDI-HV5932MG Digital Metal Gear Servo 32KG High-Torque Servo for RC Models & Robotics

In stock

Rs. 2,550.00
Rs. 2,550.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

JX PDI-HV5932MG servo. This high-voltage digital servo is engineered to deliver a massive 30KG of torque, making it the perfect choice for applications that demand immense strength and control.

This servo features a full metal gear set that can withstand heavy loads and extreme conditions. The 180-degree steering capability and high-speed coreless motor provide lightning-fast and accurate movement, giving you superior command over your model.

Specifications:

  • Dead band: 2μs 1520μs / 330hz
  • Motor: coreless motor
  • Operating Speed (6.0V): 0.12sec/60°
  • Operating Speed (8.4V): 0.1sec/60°
  • Stall Torque (6.0V): 25.2 kg-cm (239.55oz/in)
  • Stall Torque (8.4V): 32.3 kg-cm (281.89 oz/in)
  • Connector Wire Length: JR 265 mm (10.43in)
  • Bearing: 2BB

Features:

  • High-performance and high-voltage standard digital servo.
  • High-precision metal gear.
  • Coreless motor and dual ball bearing.
  • CNC aluminous mesochite.

Package Included:

1 x JX Servo PDI-HV5932MG Heavy-Duty High-Torque Digital Servo
