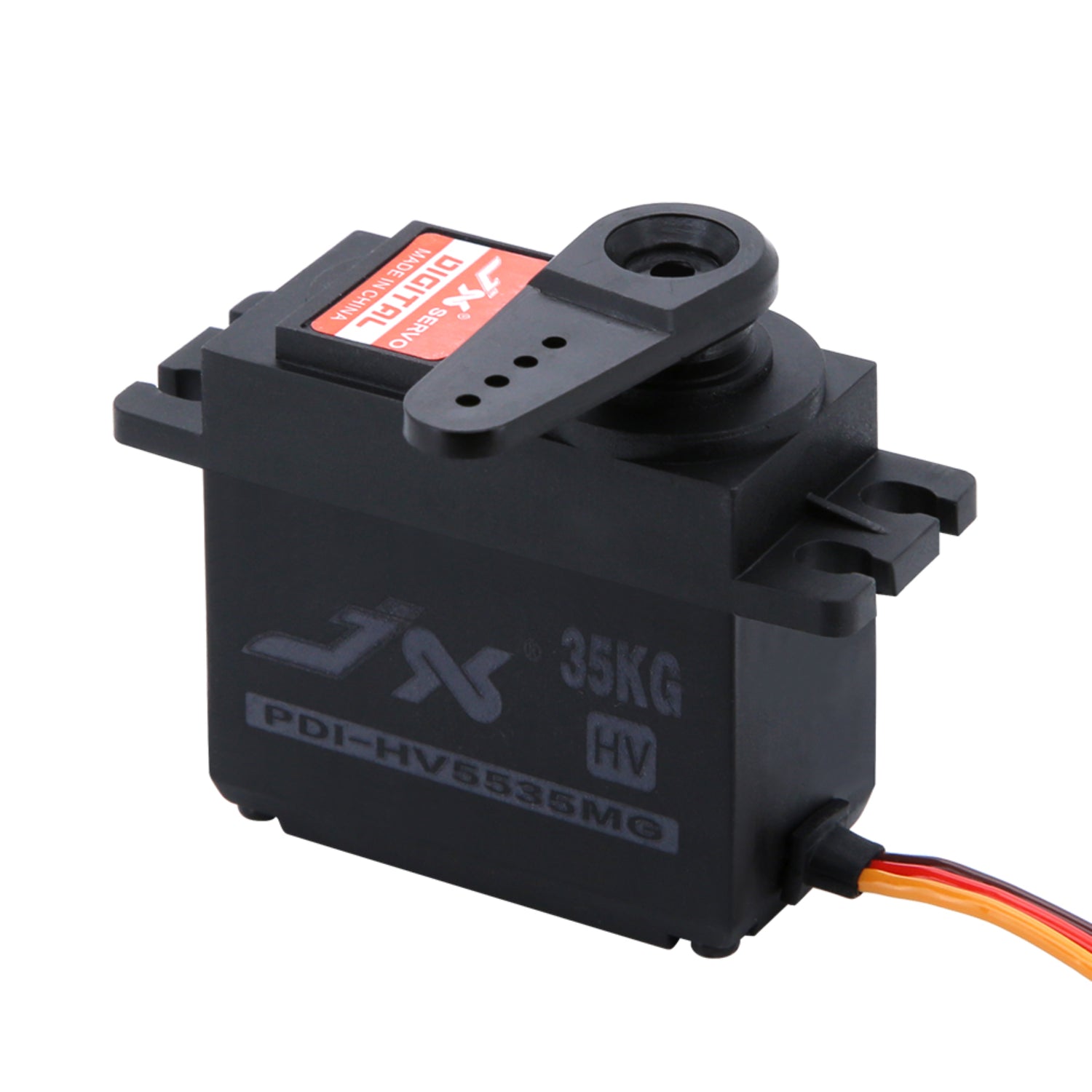

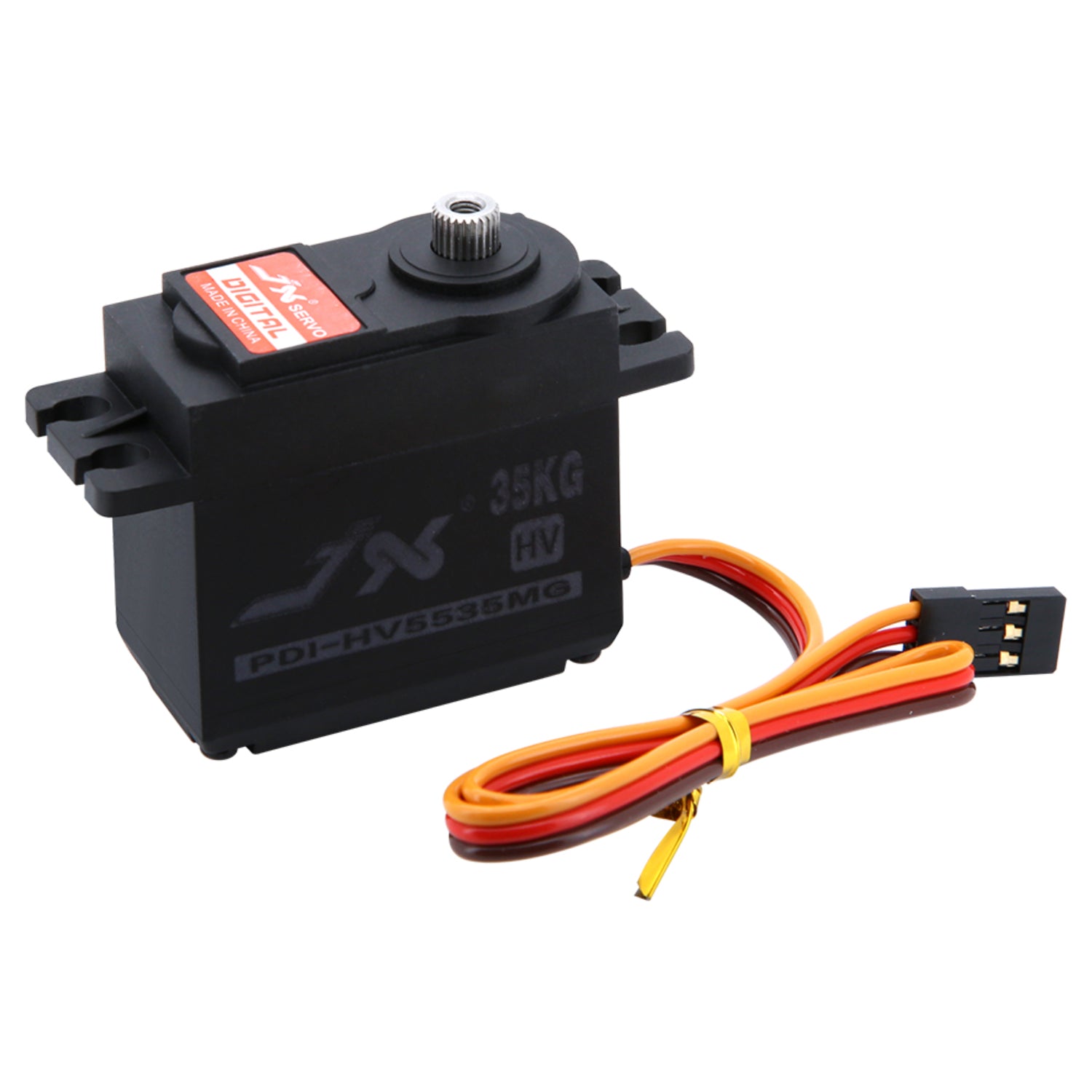

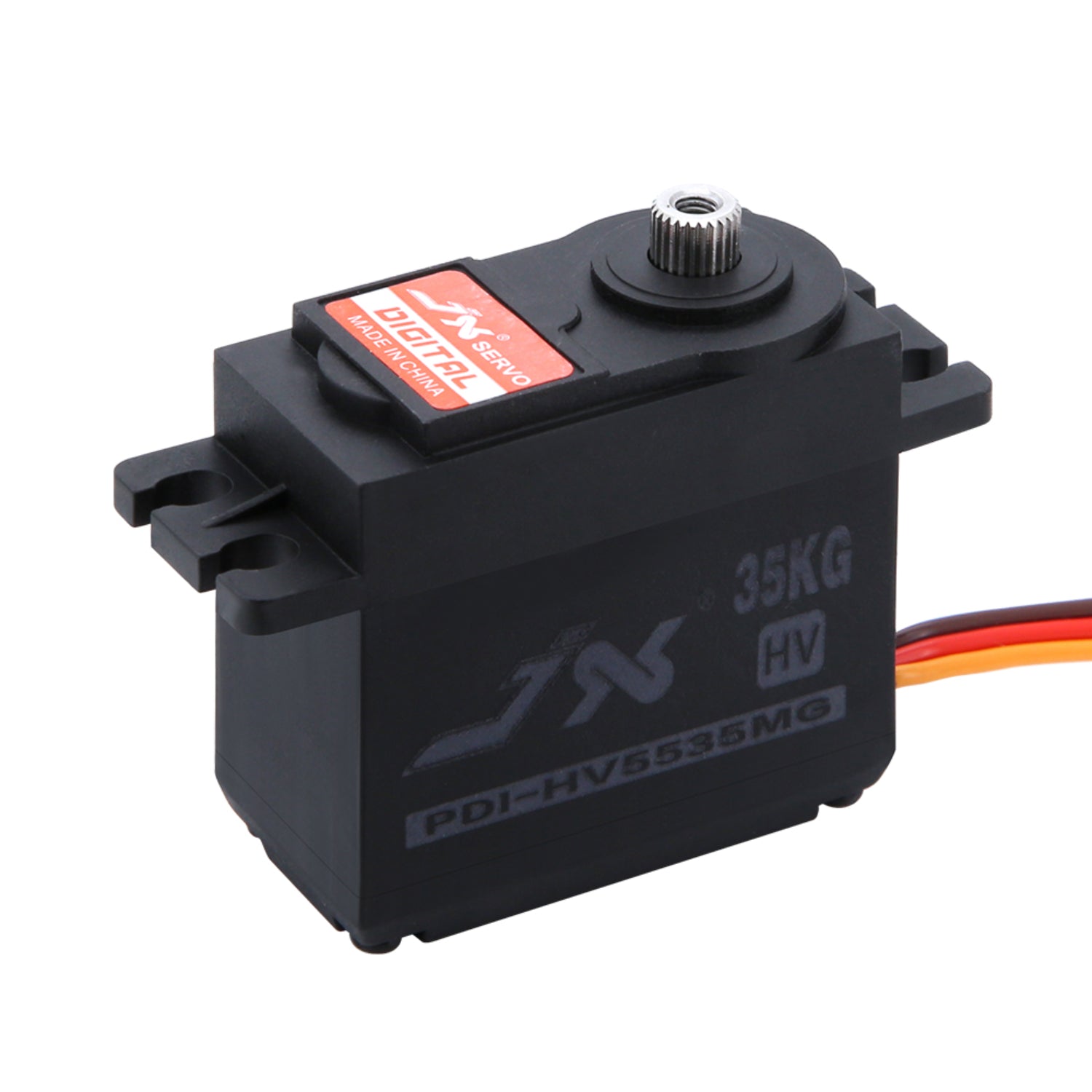

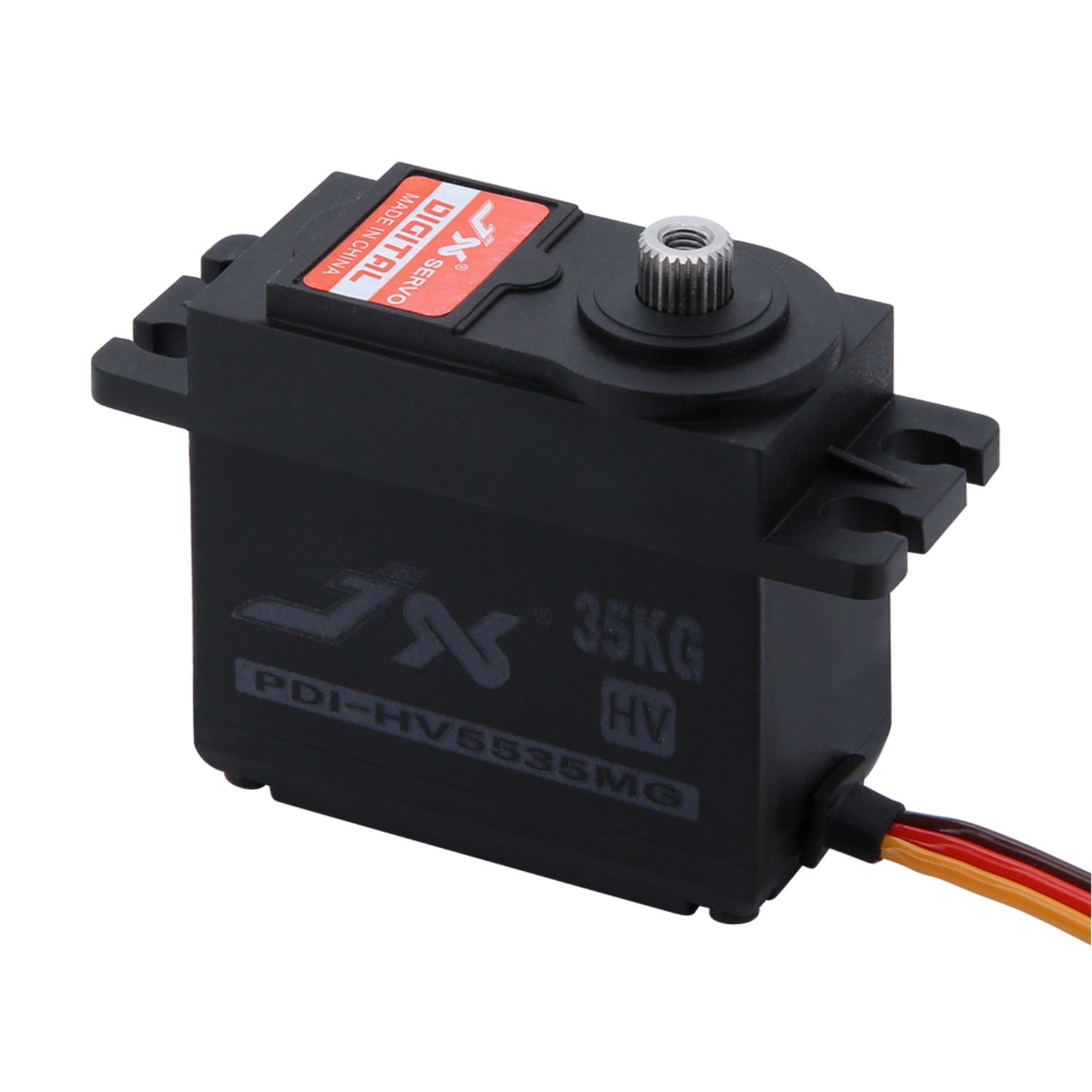

JX Servo PDI-HV5535MG HV Digital Metal Gear Servo With 35KG High Torque For High-Performance RC Cars & Industrial Automation

JX Servo PDI-HV5535MG HV Digital Metal Gear Servo With 35KG High Torque For High-Performance RC Cars & Industrial Automation

In stock

Rs. 1,100.00
Rs. 1,100.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The JX Servo PDI-HV5535MG is a masterclass in high-performance engineering, delivering a phenomenal 35KG of torque to meet the most rigorous demands of high-performance RC cars and industrial automation. This high-voltage (HV) digital servo is built for professionals and serious hobbyists who need a component that is as reliable as it is powerful, ensuring your most ambitious projects are executed with absolute confidence.

Specifications:

  • Dead band: 2μs
  • Working frequence:1520μs / 330hz
  • Motor: High Quality Core Motor
  • Voltage Range:6.0-8.4V
  • Operating Speed (6.0V): 0.15 sec/60°
  • Operating Speed (8.4V): 0.13sec/60°
  • Stall Torque (6.0V): 26.8 kg-cm
  • Stall Torque (8.4V): 34.6 kg-cm
  • Connector Wire Length: JR  260 mm
  • Bearing: 2BB

Features:

  • Ultra-fast and precise control thanks to a minuscule 2μs dead band
  • Powered by a high-quality core motor> for consistent, reliable performance.
  • Blistering speeds of up to 0.13 sec/60° at 8.4V
  • Smooth and stable operation with a rapid 330Hz refresh rate

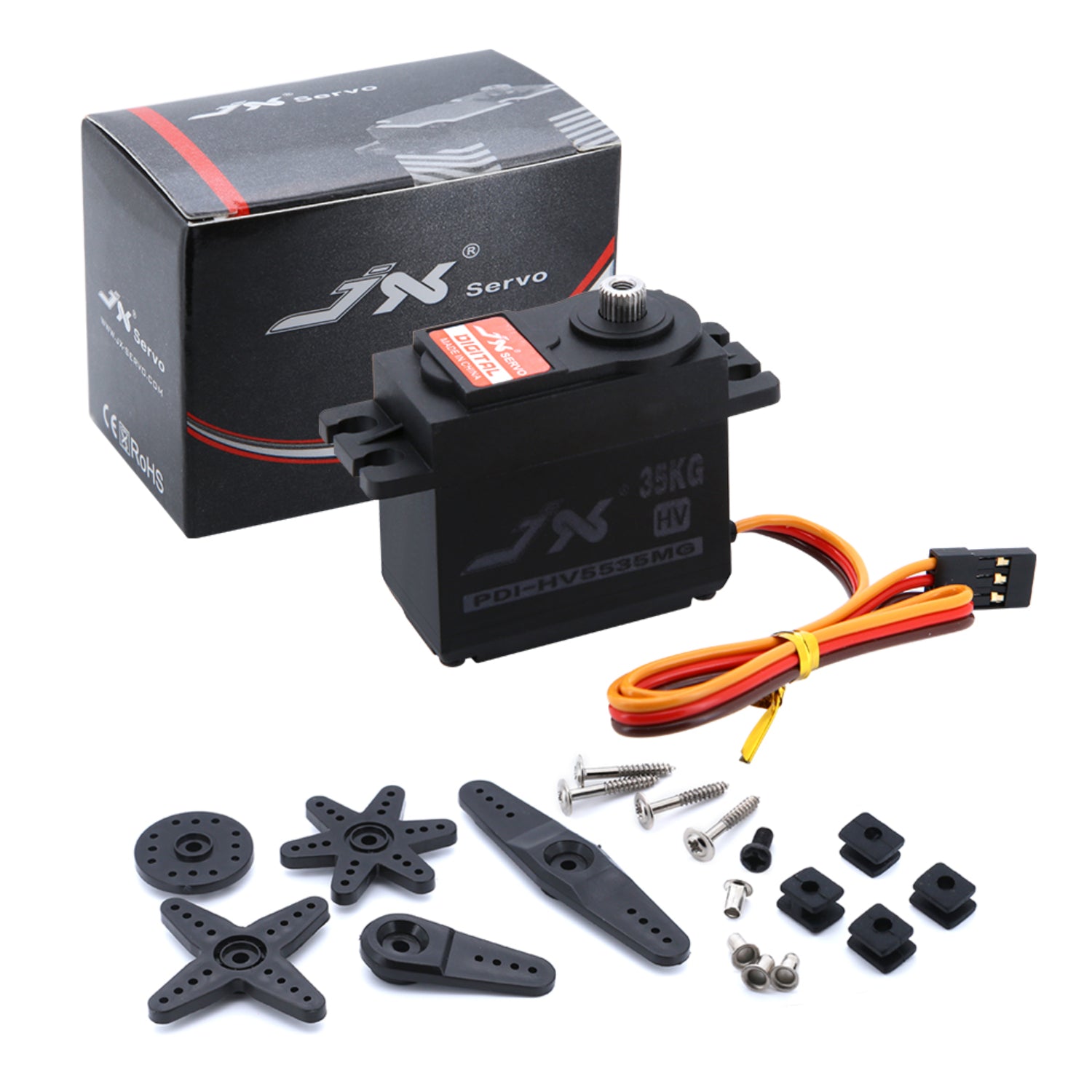

Package Included:

1 x JX Servo PDI-HV5535MG High Voltage Metal Gear Digital Servo
