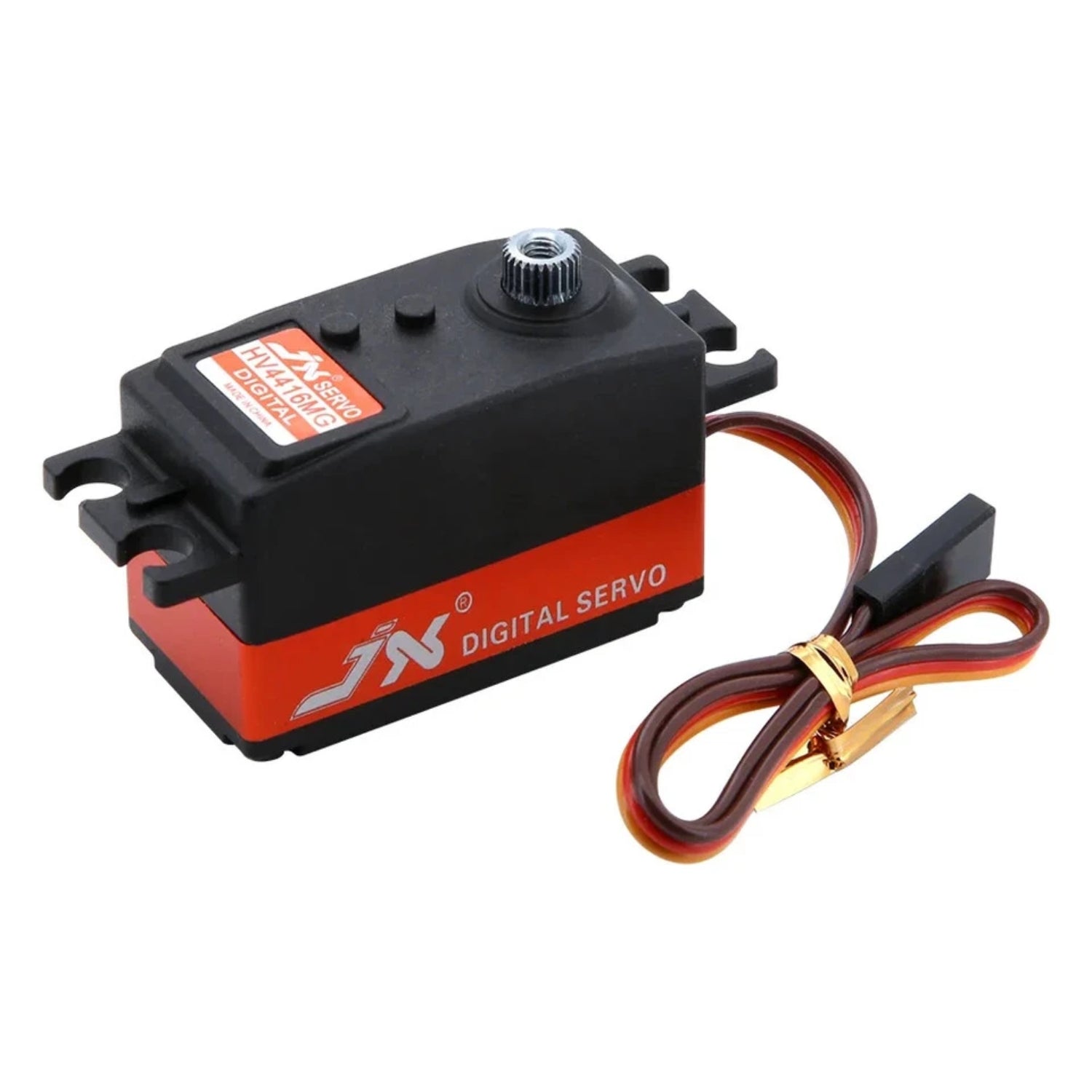

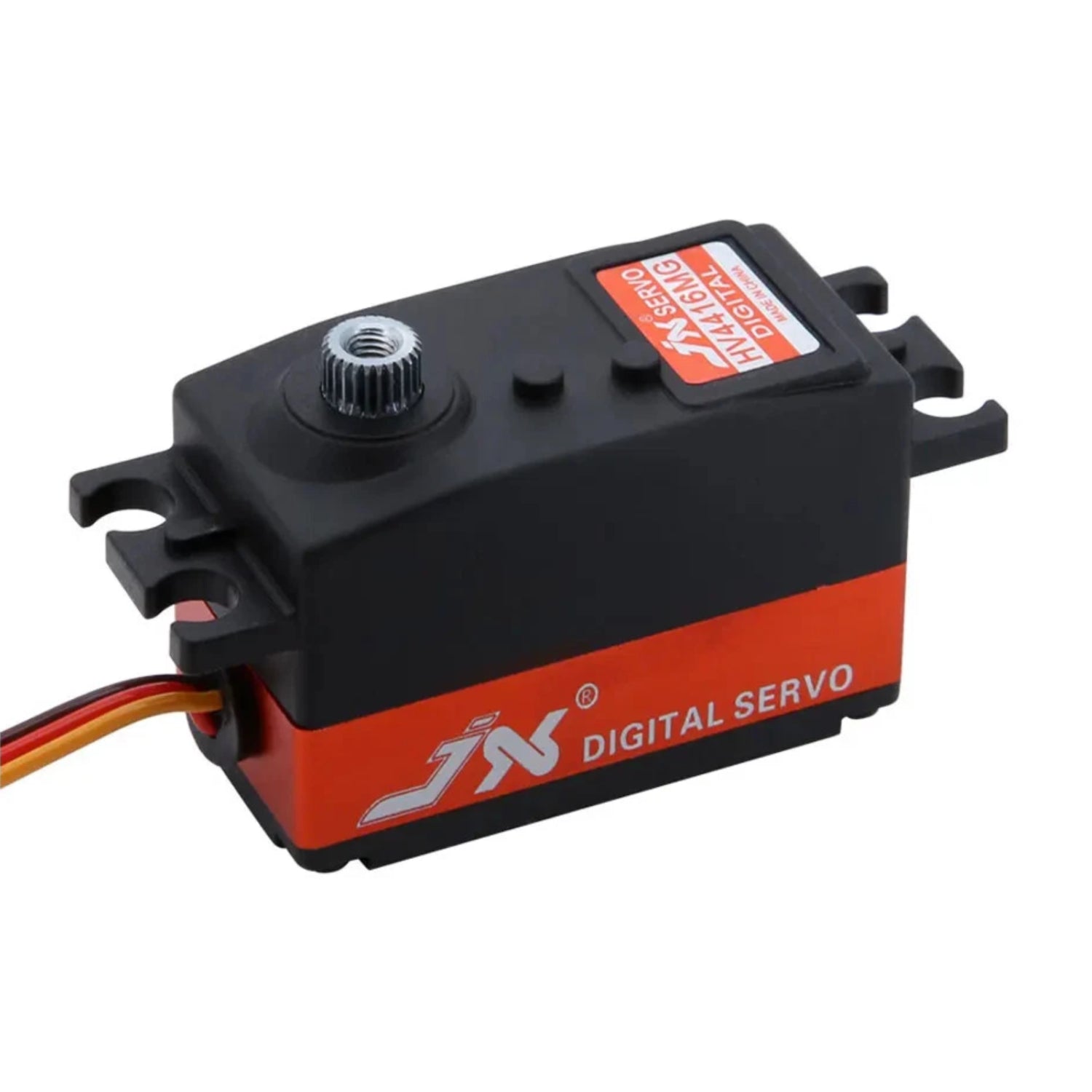

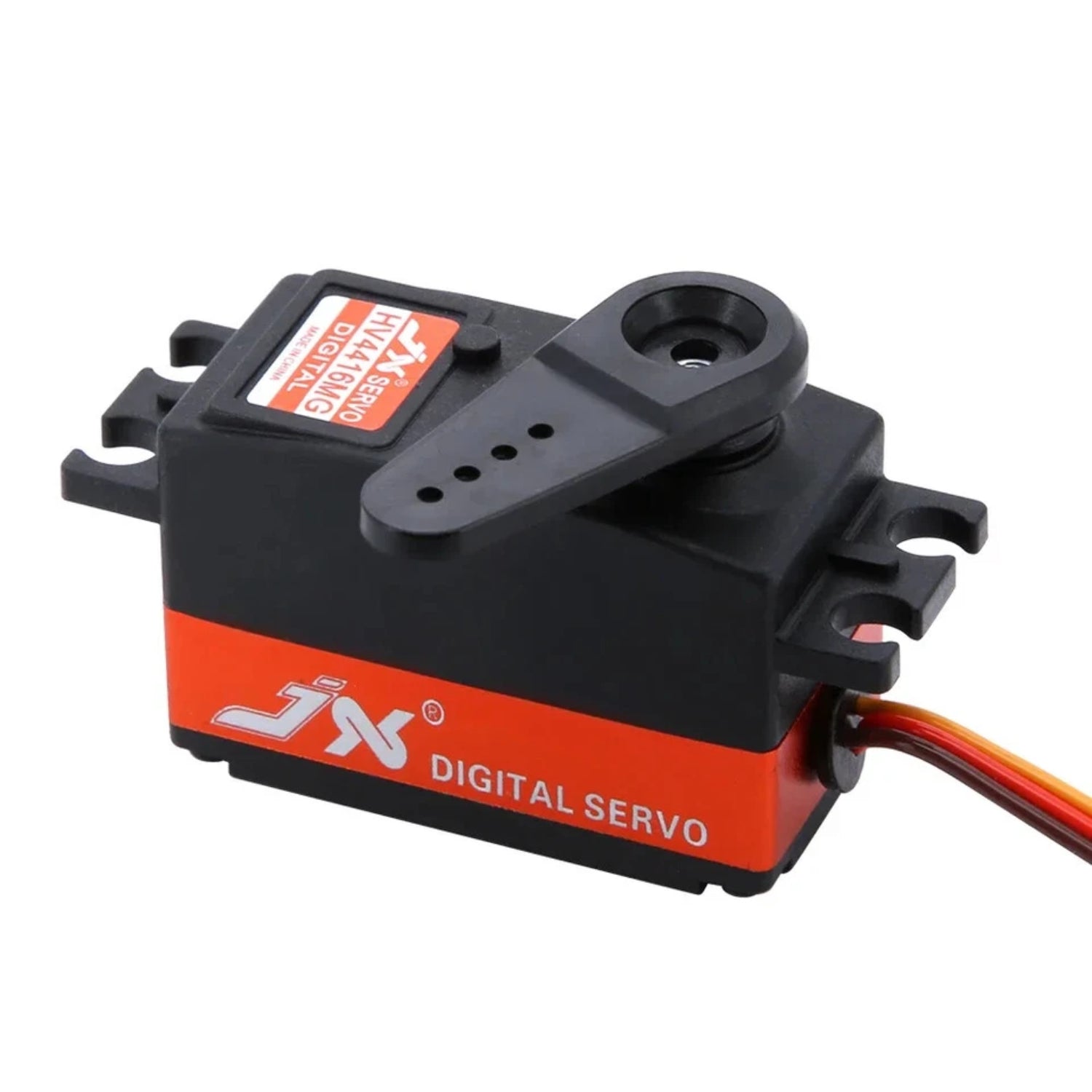

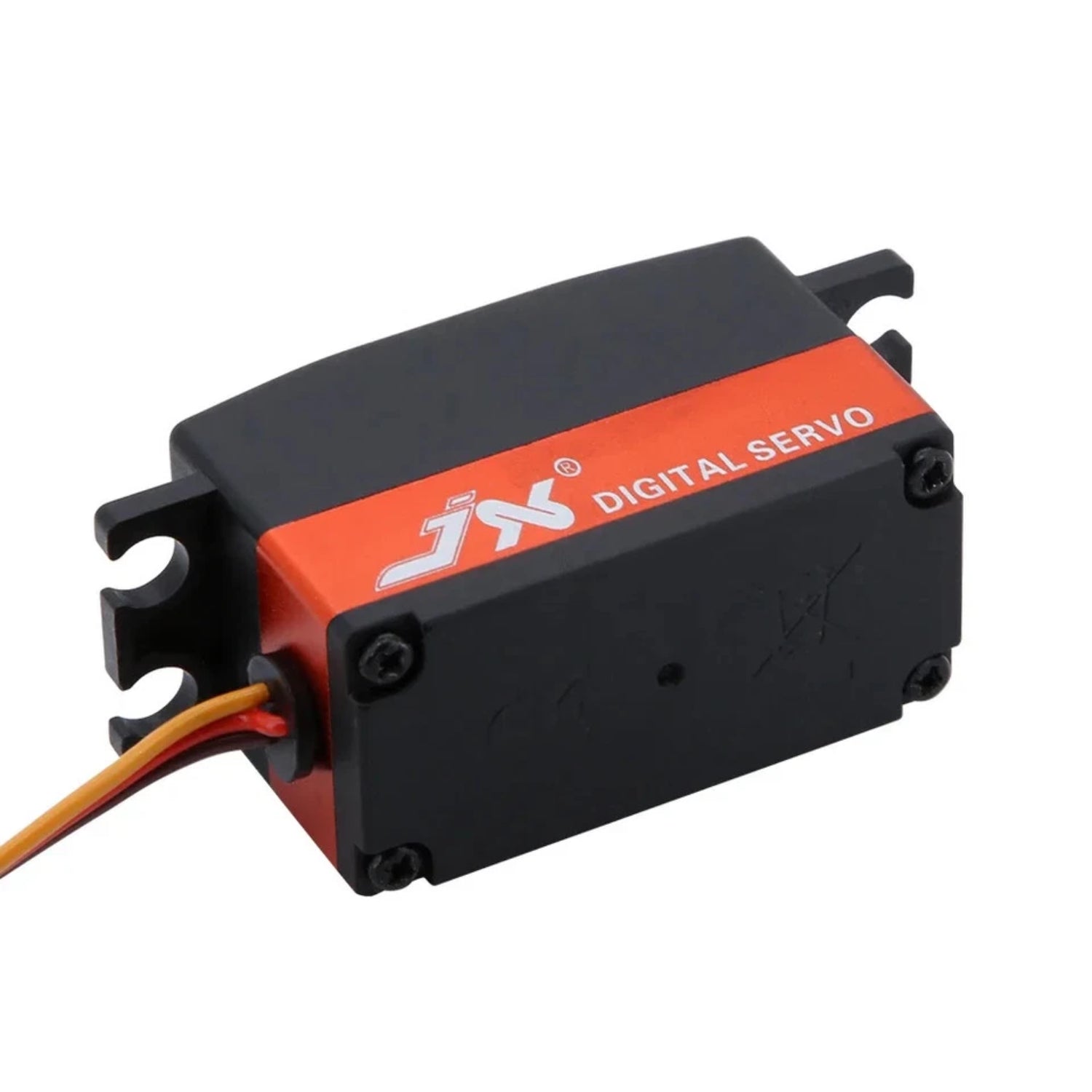

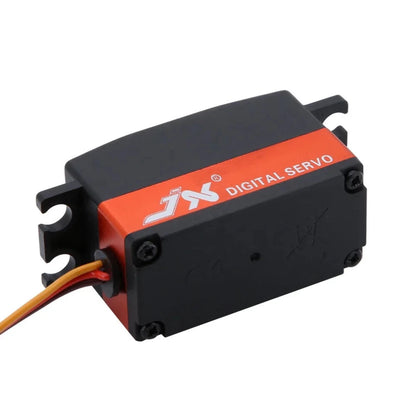

JX Servo PDI-HV4416MG 16KG 4.8V-6.0V Metal Gear Digital Servo Coreless Motor For RC Airplanes, Helicopters, and Cars

Description:

The JX Servo PDI-HV4416MG is a high-performance digital servo designed for a wide range of demanding applications. At its core, a coreless motor provides lightning-fast response and exceptional efficiency, ensuring smooth, precise control for your model. Built for strength and durability, this servo delivers an impressive 16kg of torque, allowing it to handle heavy loads with ease. The robust metal gears provide superior resistance to wear and impact, ensuring a long and reliable lifespan even under the toughest conditions. Operating on a standard 4.8V to 6.0V voltage range, the PDI-HV4416MG is the perfect upgrade for RC airplanes, helicopters, and cars, providing the power and precision needed for both competition and everyday use. Sources

Specifications:

• Dead band: 2μs
• Working frequence:1520μs / 330hz
• Motor: High Quality Core Motor

• Voltage Range: 6.0-8.4V
• Operating Speed (6.0V): 0.11 sec/60°
• Operating Speed (8.4V): 0.09sec/60°
• Stall Torque (6.0V): 12.6 kg-cm
• Stall Torque (8.4V): 15.6 kg-cm
• Connector Wire Length: JR 220 mm
• Bearing: 2BB


Features:

• High-performance HV digital standard servo
• High-precision Taiwan-made aluminium gears with hard anodizing
• CNC aluminium middle Shell
• Dual ball bearings

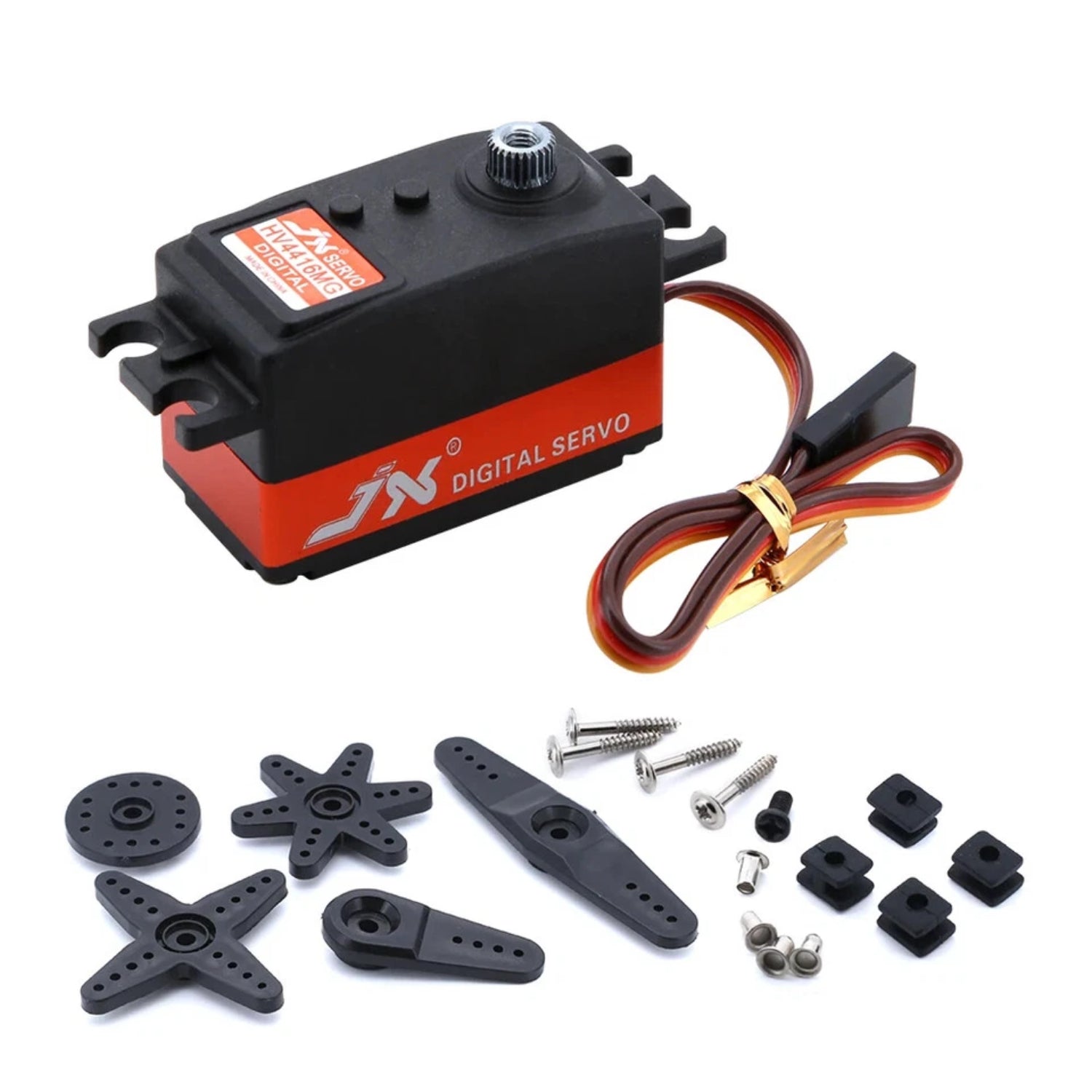

Package Included:

1 x JX Servo PDI-HV4416MG High-Voltage Metal Gear Digital Servo
