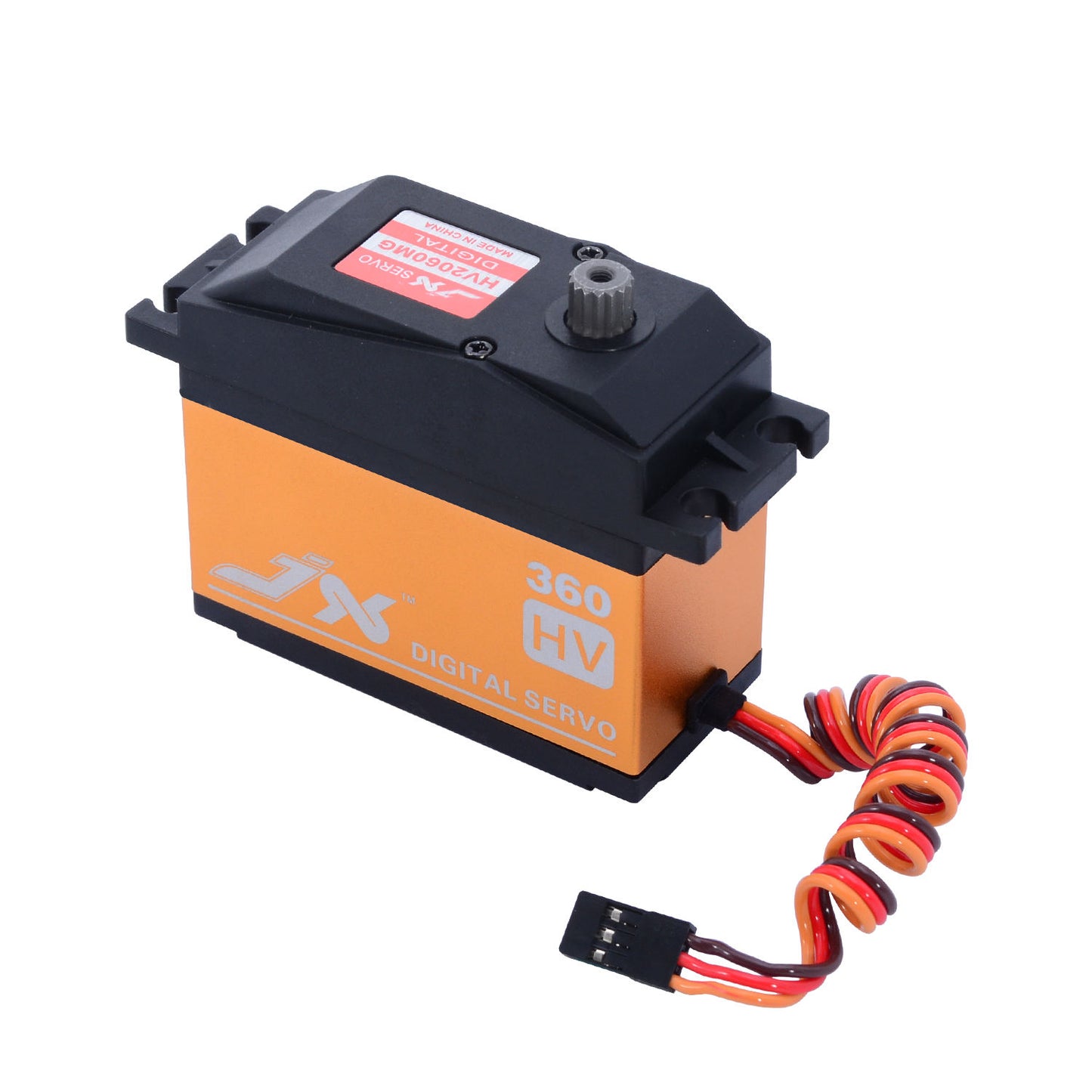

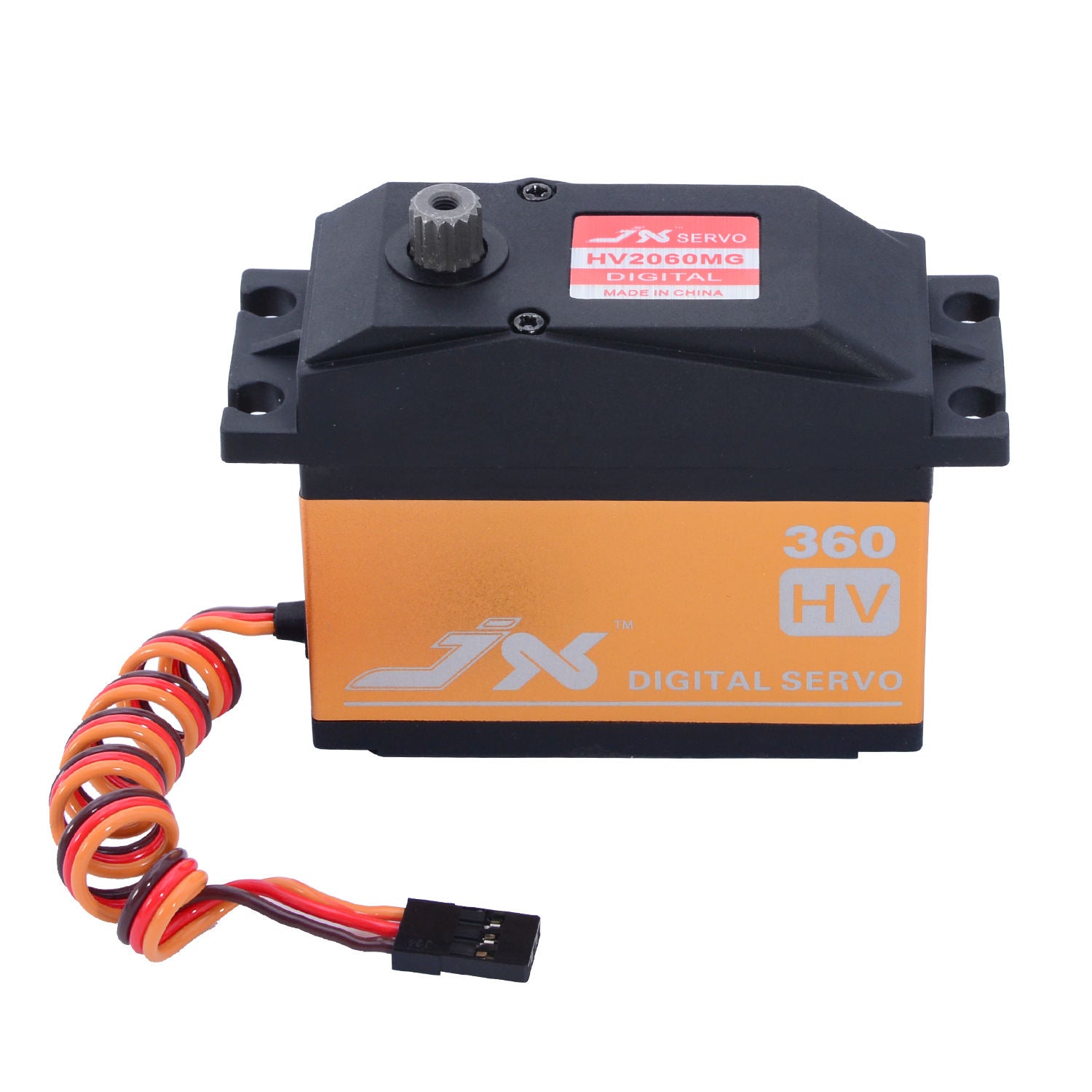

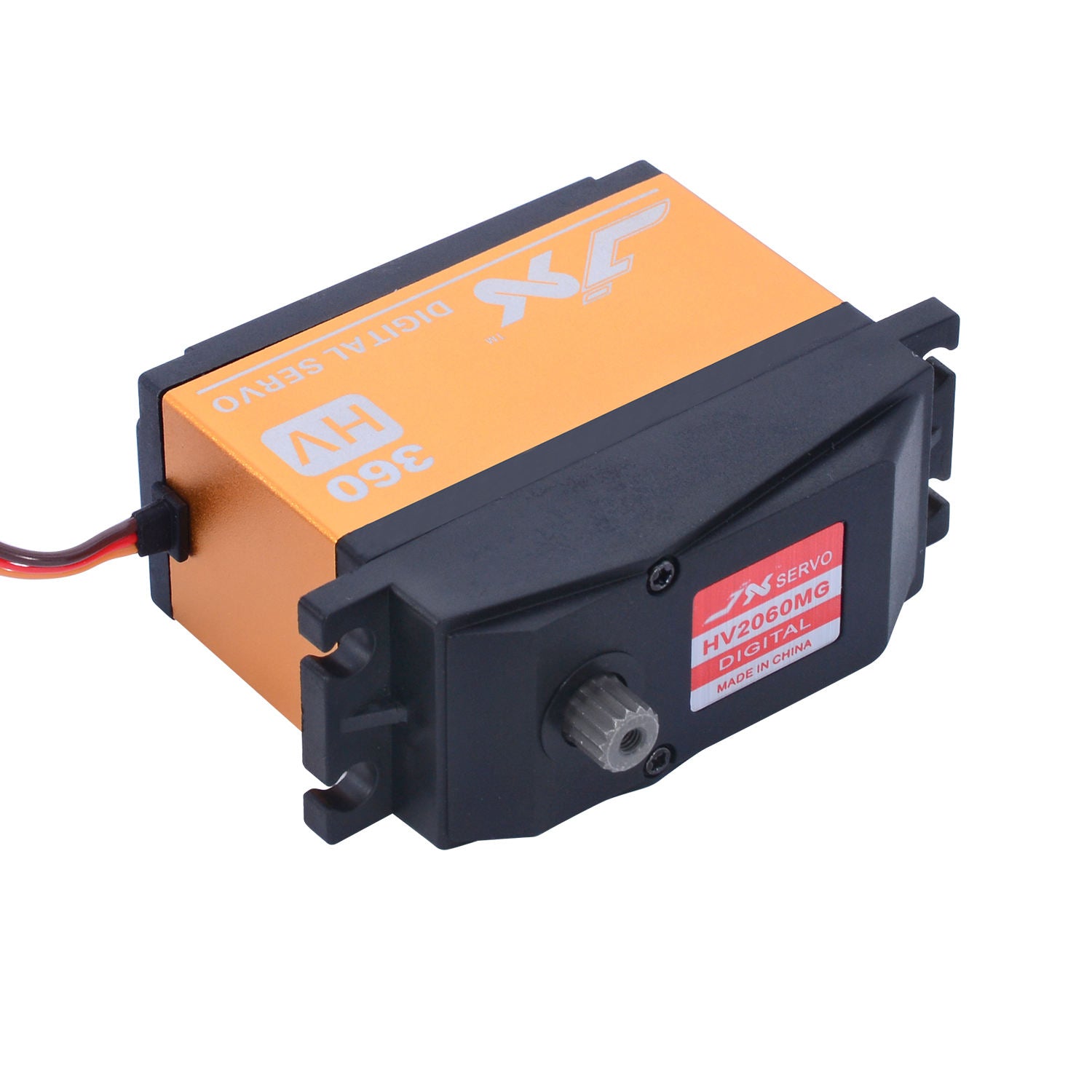

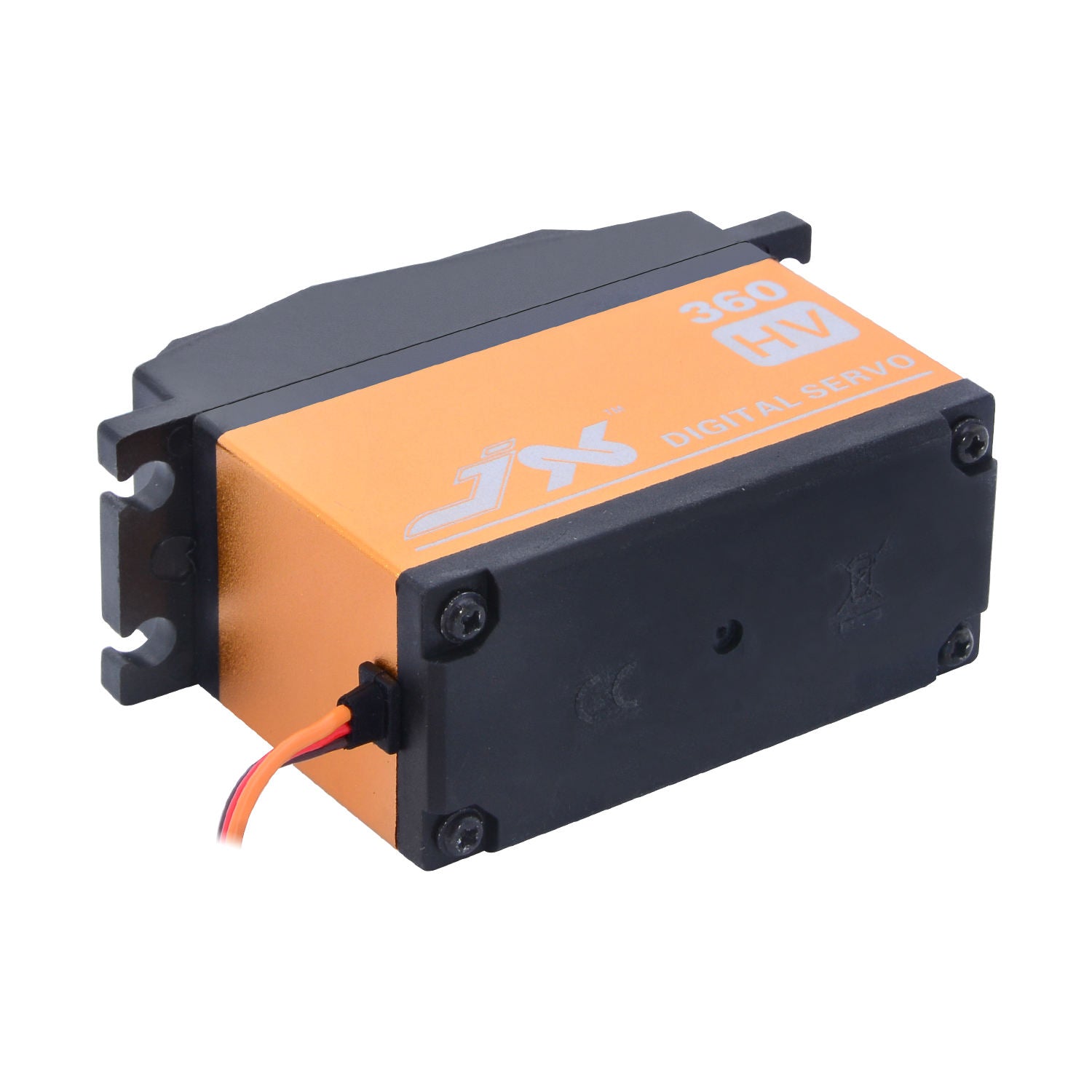

JX Servo PDI-HV2060MG-360° 62kg High-Torque Servo Motor 360° Continuous Rotation Servo Motor For Robotics & Industrial Use

JX Servo PDI-HV2060MG-360° 62kg High-Torque Servo Motor 360° Continuous Rotation Servo Motor For Robotics & Industrial Use

In stock

Rs. 3,540.00
Rs. 3,540.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This high-performance servo is engineered for applications that require constant, uninterrupted motion. The JX Servo PDI-HV2060MG-360° is a continuous rotation servo, providing a full 360-degree range of motion, which is essential for wheels, robotic drivetrains, and winches.

The servo’s design combines immense power with robust durability. It delivers a massive 62kg of torque, ensuring it can handle extreme, heavy-duty loads. The model’s designation indicates its high-voltage (HV) capability, allowing it to operate efficiently with higher power systems. It is built to last with a durable all-metal gear set, housed within a rugged aluminum case that helps with heat dissipation.

Specifications:

  • Dead band: 4μs
  • Working frequency: 1520μs / 330Hz
  • Operating Voltage:  DC6.0V-7.4V
  • Motor: high-quality core motor
  • Operating Temperature Range: -20 to + 60°C
  • Operating Speed (6.0V): 0.15sec/60°
  • Operating Speed (7.4V): 0.13sec/60°
  • Stall Torque (7.4V): 62kg.cm
  • suit for 1/5 RC CAR
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB

Features:

  • High-performance and high-torque standard digital servo.
  • High-precision metal gear.
  • Full CNC aluminium Shell structure.
  • Dual ball bearing.

Package Included:

1 x JX Servo PDI-HV2060MG-360° 62kg High-Torque 360° Continuous Rotation Servo
