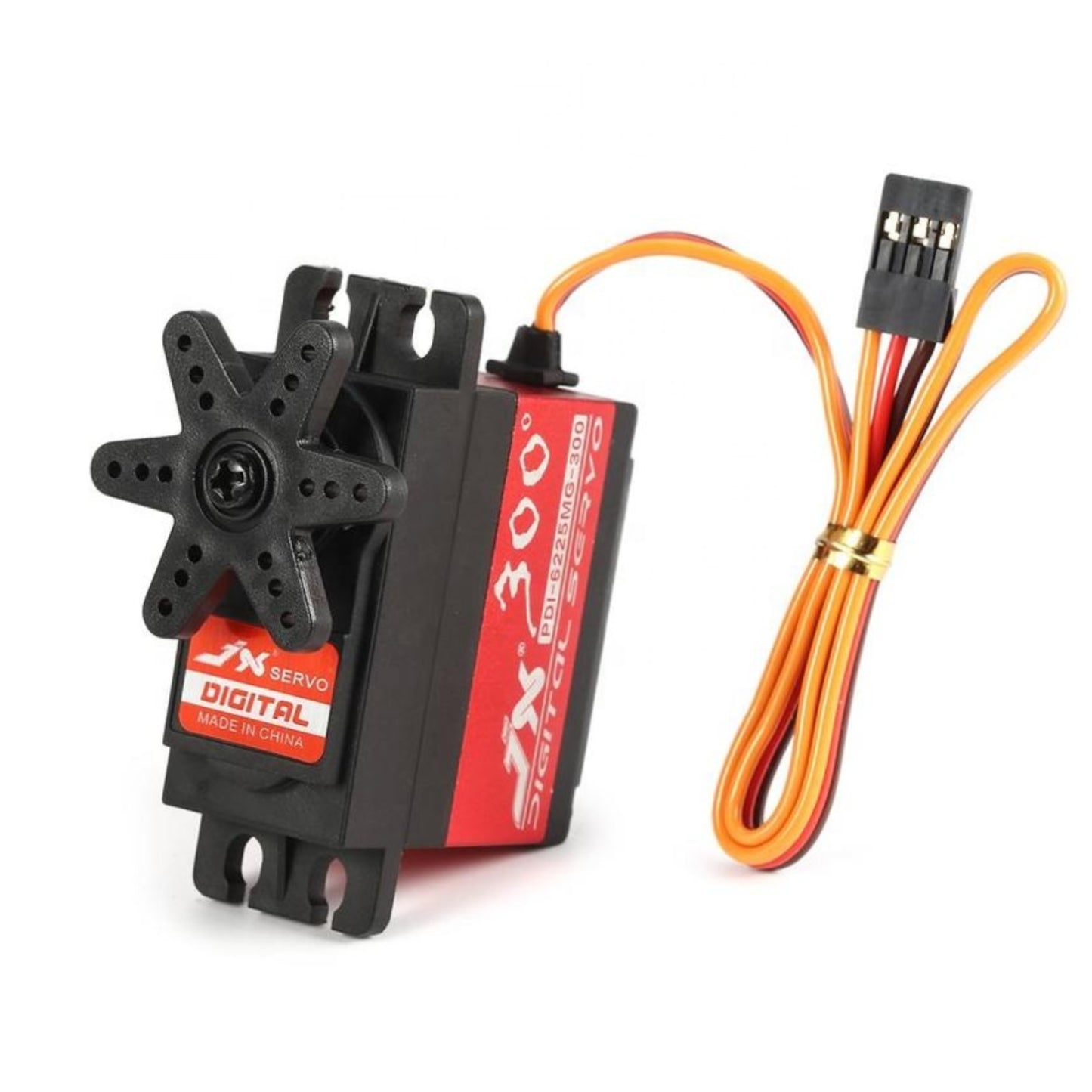

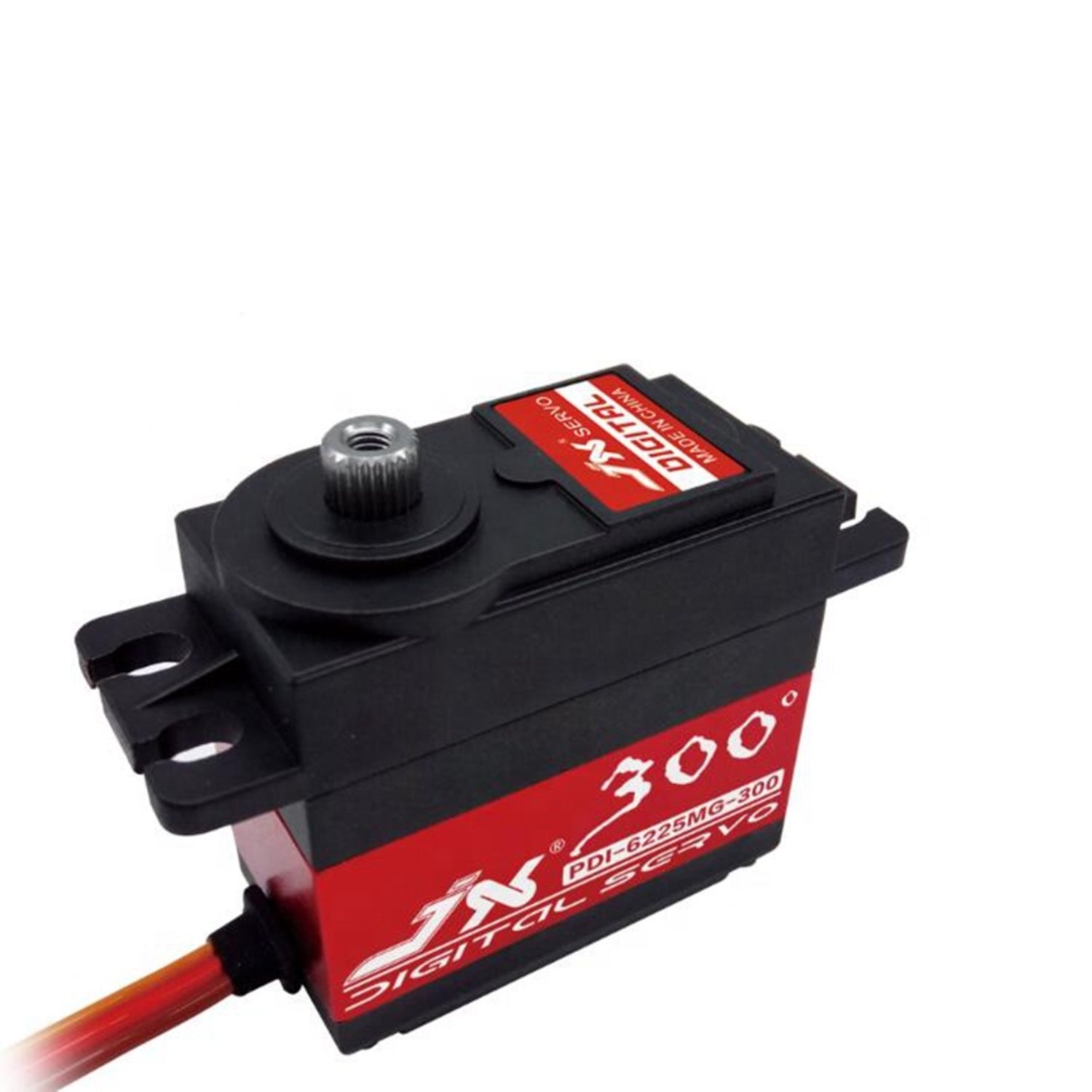

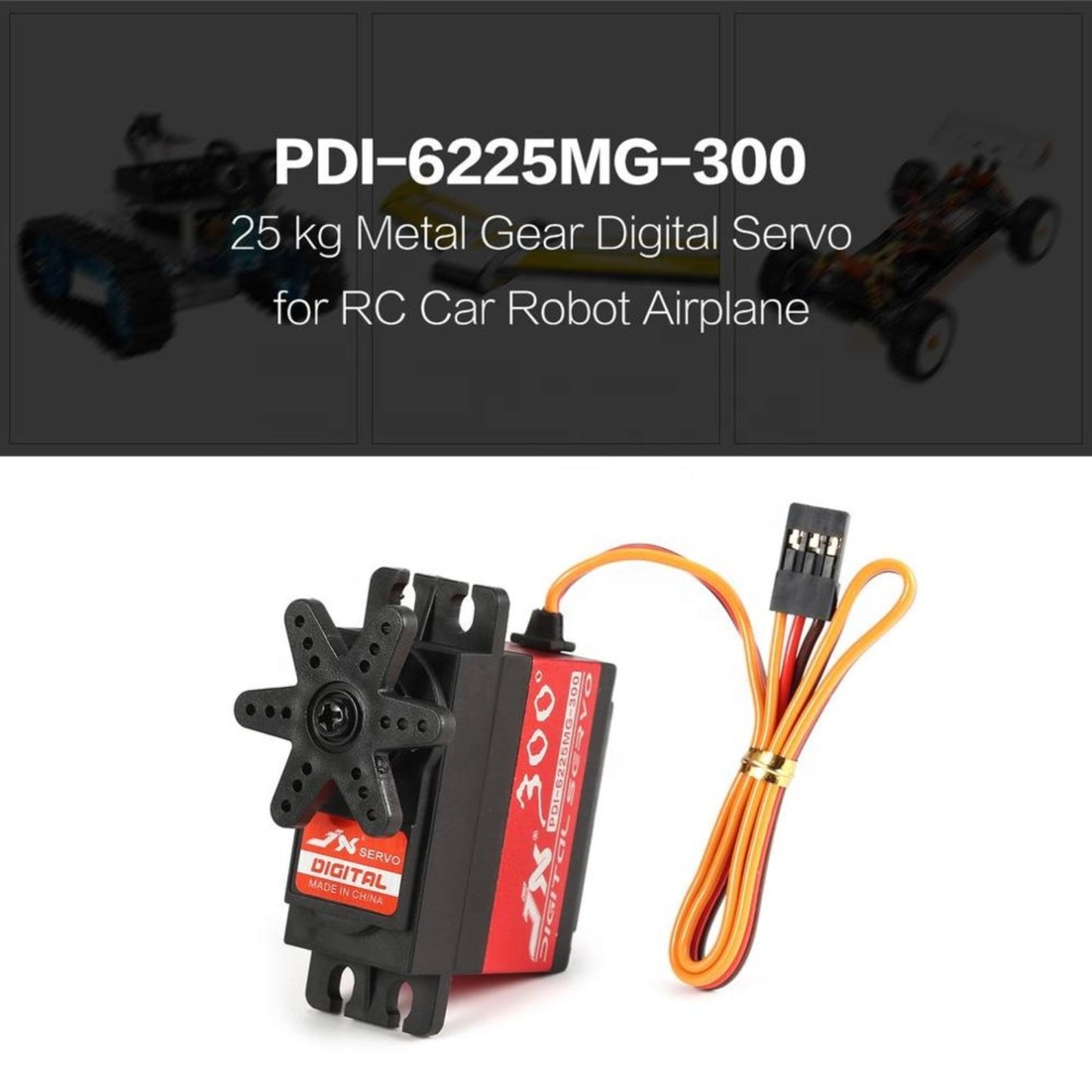

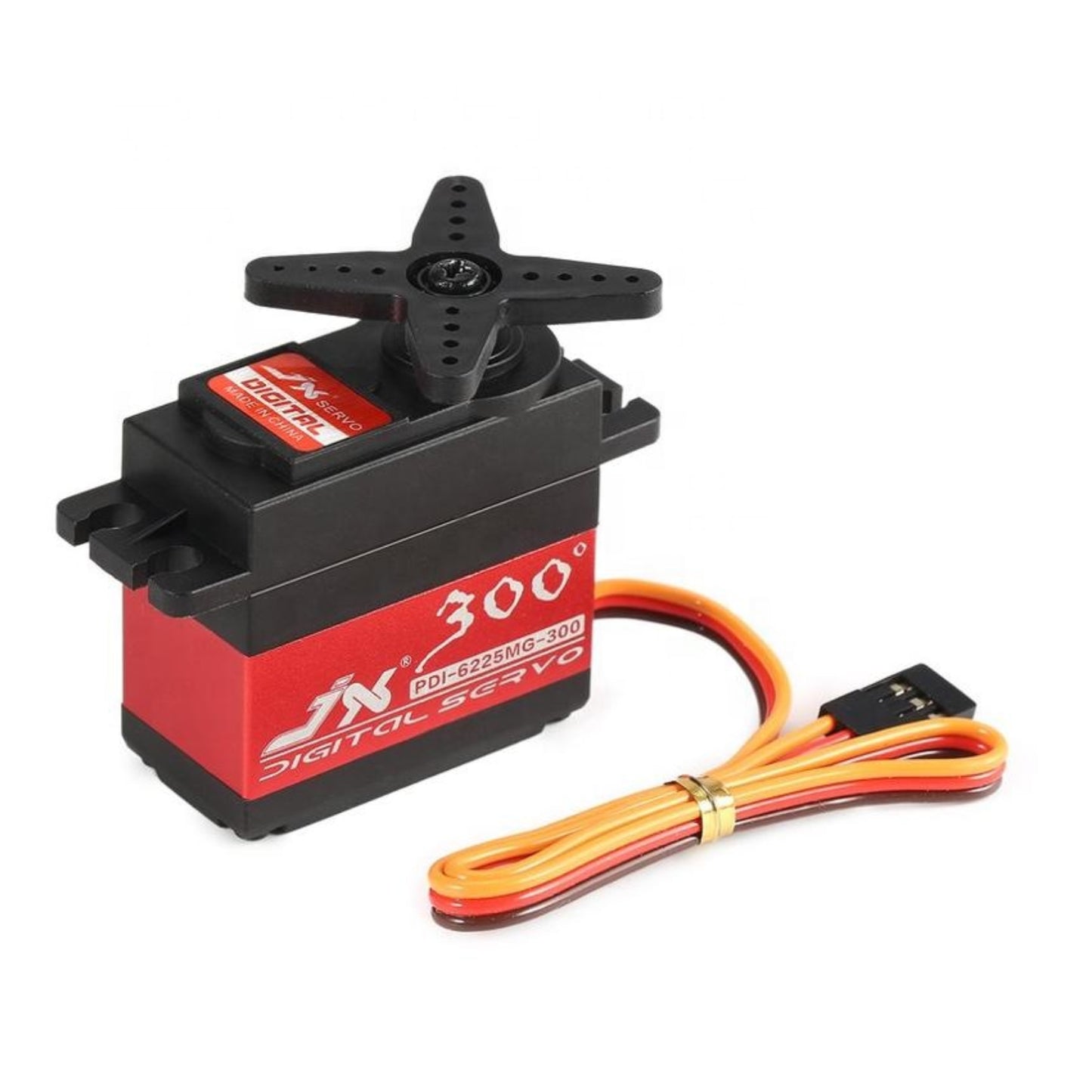

JX Servo PDI-6225MG-300° Digital Servo 25KG High Torque 300° Metal Gear Digital Servo for RC Car, Robotics, and Industrial Use

JX Servo PDI-6225MG-300° Digital Servo 25KG High Torque 300° Metal Gear Digital Servo for RC Car, Robotics, and Industrial Use

In stock

Rs. 1,099.00
Rs. 1,099.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This high-performance digital servo delivers a powerful 25KG of torque combined with an impressive 300° rotation angle. Built with a full metal gear train, it offers superior durability and reliability, making it the ideal choice for demanding projects in RC, robotics, and industrial automation.

Specifications:

  • Pulse width: 800-2200μs=180°
  • Pulse width: 500-2500μs=320°
  • Dead band: 2μs    1520μs / 330hz
  • Operating Speed (4.8V): 0.25 sec/60°
  • Operating Speed (6V): 0.21 sec/60°
  • Stall Torque (4.8V): 19.9 kg-cm
  • Stall Torque (6V):  25.3 kg-cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB

Features:

  • High-performance digital  standard servo
  • High-precision Taiwan-made aluminium gears with hard anodizing
  • CNC aluminium middle Shel
  • Dual ball bearing

Package Included:

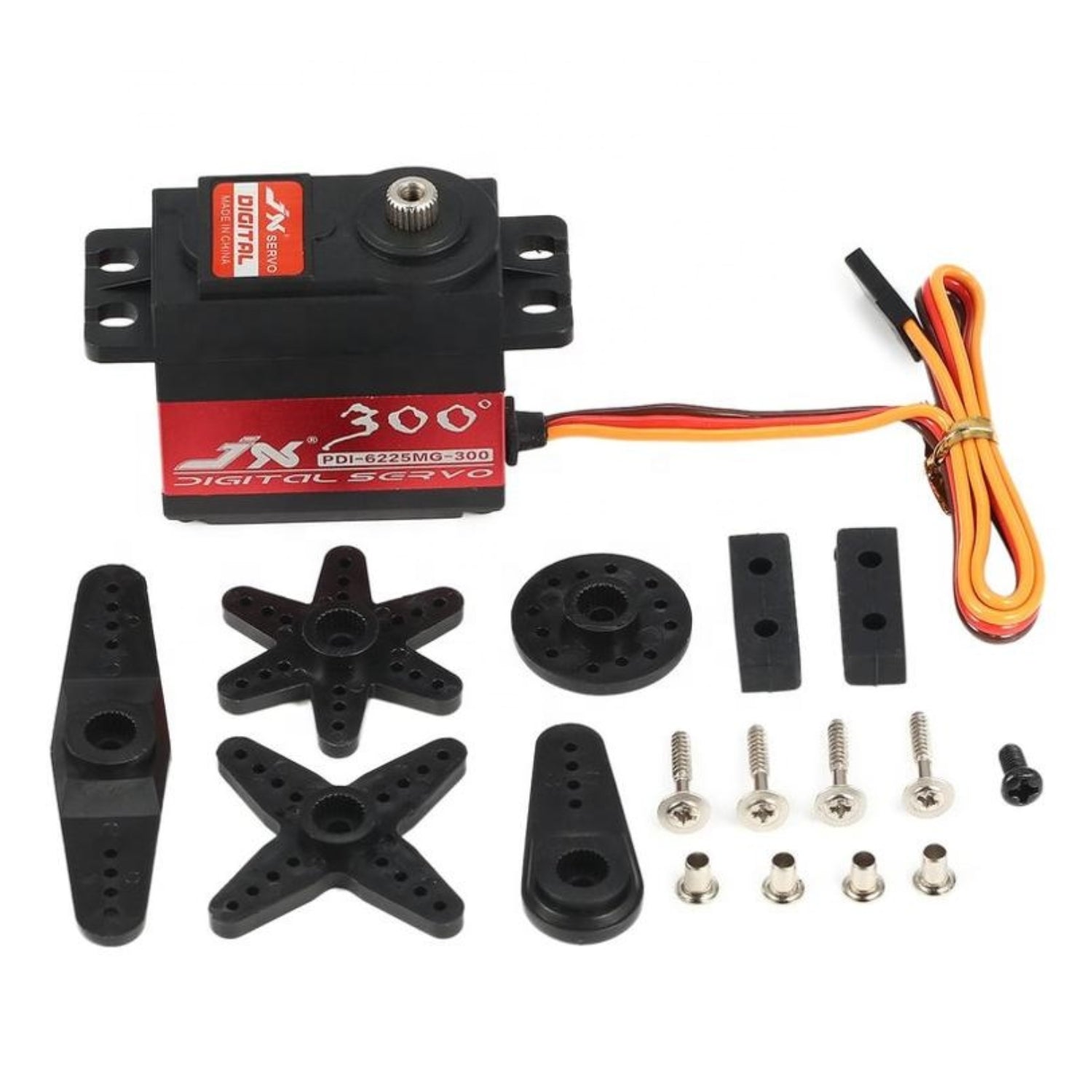

1 x JX Servo PDI-6225MG-300 25KG 300° High Torque Metal Gear Digital Servo
