JX Servo PDI-6221MG-360° Continuous Rotation Servo 20KG Torque Digital Metal Gear Servo For Reliable Robotic & Industrial Applications

JX Servo PDI-6221MG-360° Continuous Rotation Servo 20KG Torque Digital Metal Gear Servo For Reliable Robotic & Industrial Applications

In stock

Rs. 1,120.00
Rs. 1,120.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

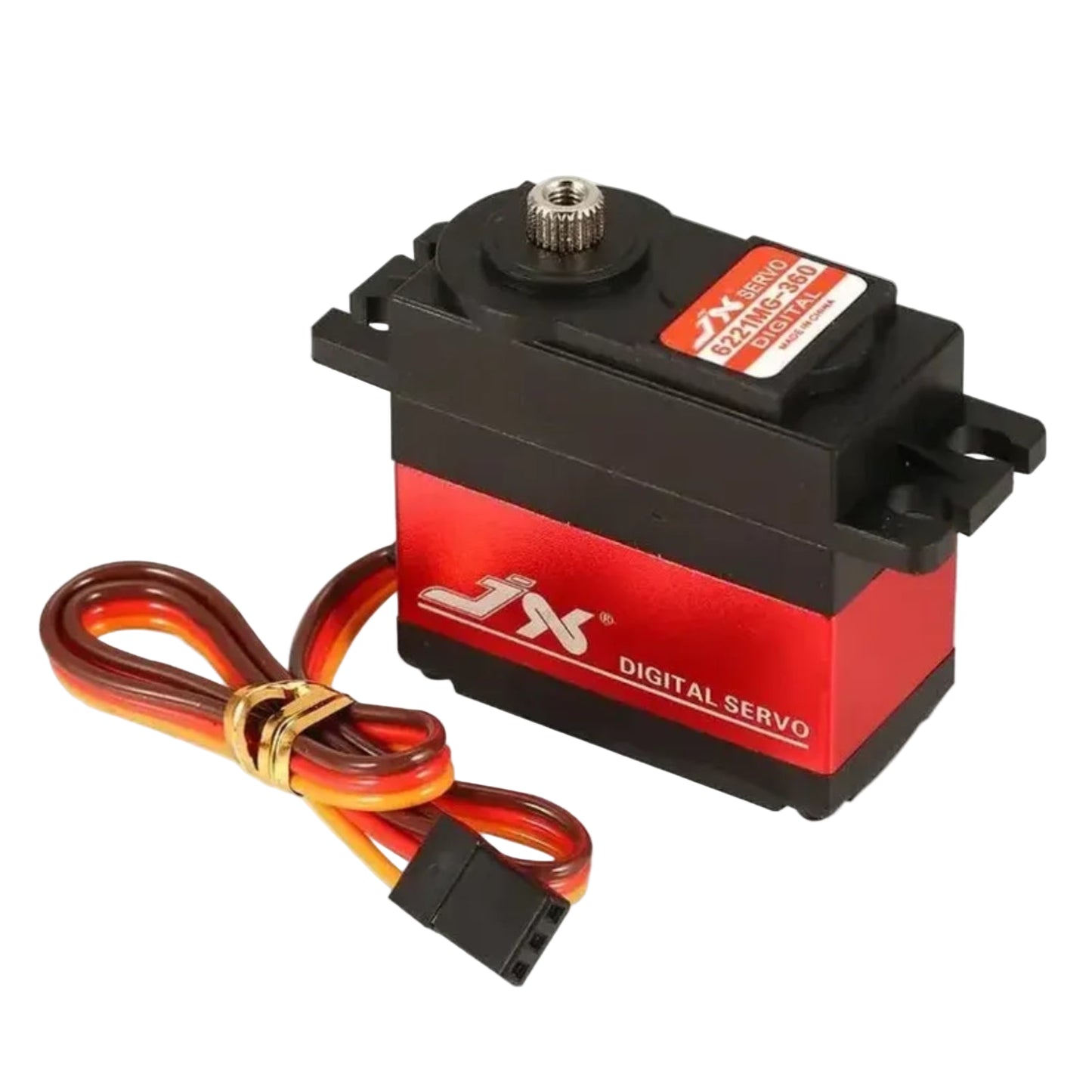

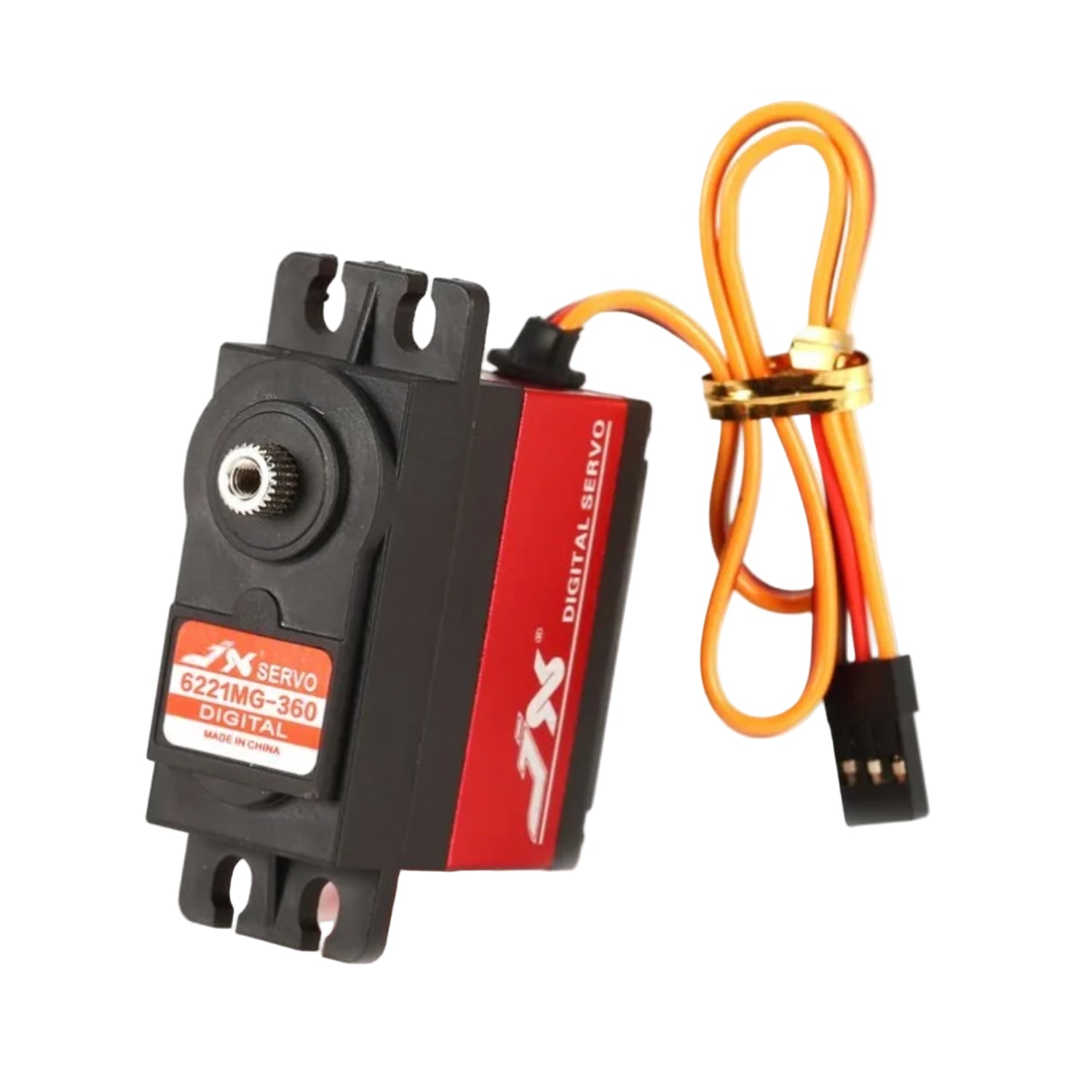

The JX Servo PDI-6221MG-360° is a high-performance continuous rotation digital servo engineered for projects that demand unwavering power and precision. With an impressive 20KG of torque, this servo provides the brute strength needed to handle heavy loads, making it an ideal choice for a wide range of applications from advanced robotics and automation to educational and industrial projects.

Specifications:

  • Angle: 360°Continuous rotation
  • Pulse width:500-2500μs
  • Dead band: 2μs    1520μs / 330hz
  • Operating Speed (4.8V): 53T/S
  • Operating Speed (6V):  65T/S
  • Stall Torque (4.8V): 17.25 kg-cm
  • Stall Torque (6V):  20.32 kg-cm
  • Connector Wire Length: JR  265 mm
  • Bearing: 2BB

Features:

  • High-performance digital standard servo
  • High-precision Taiwan-made aluminium gears with hard anodizing
  • CNC aluminium middle Shel
  • Dual ball bearings

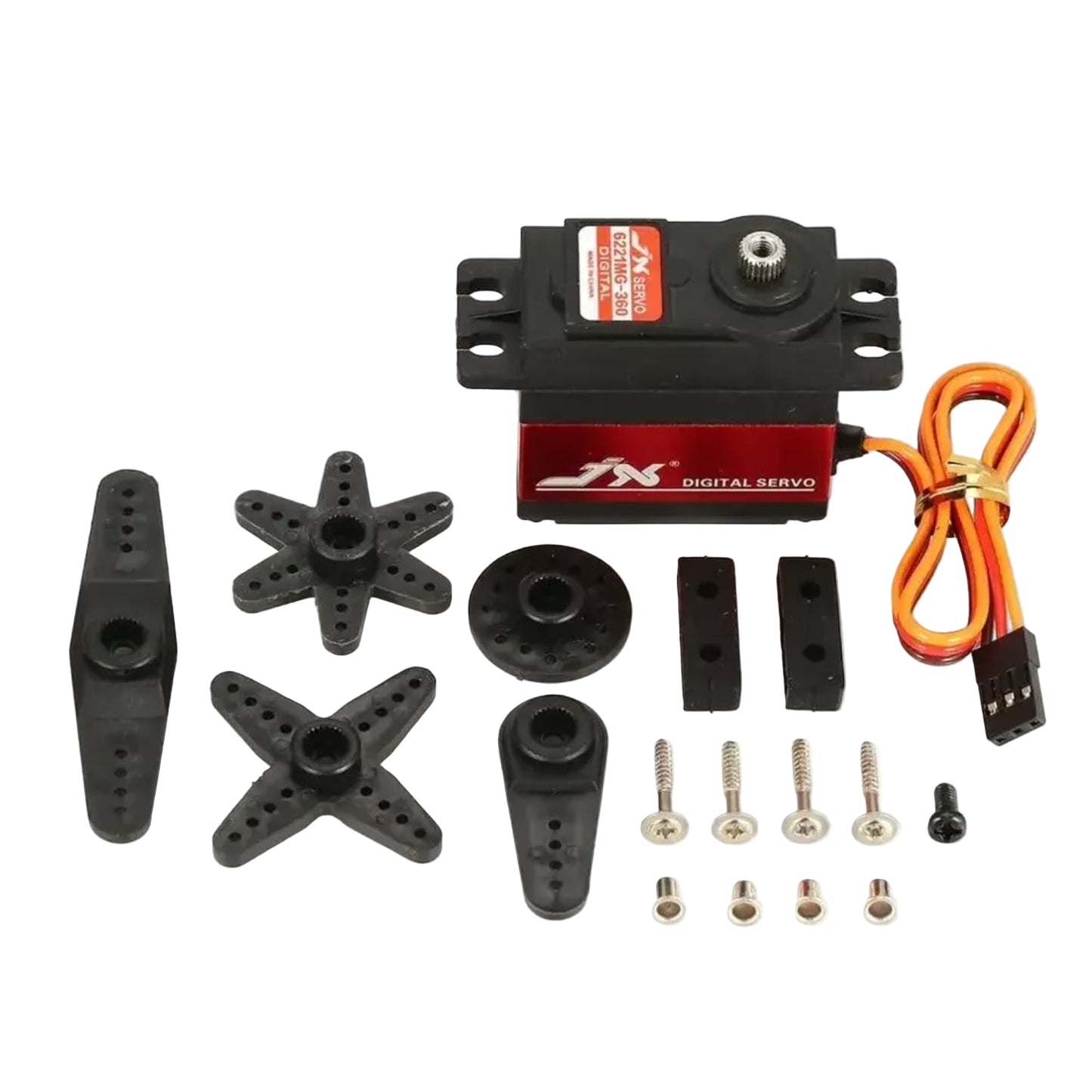

Package Included:

1 x JX Servo PDI-6221MG-360 Continuous Rotation Digital Metal Gear Servo
