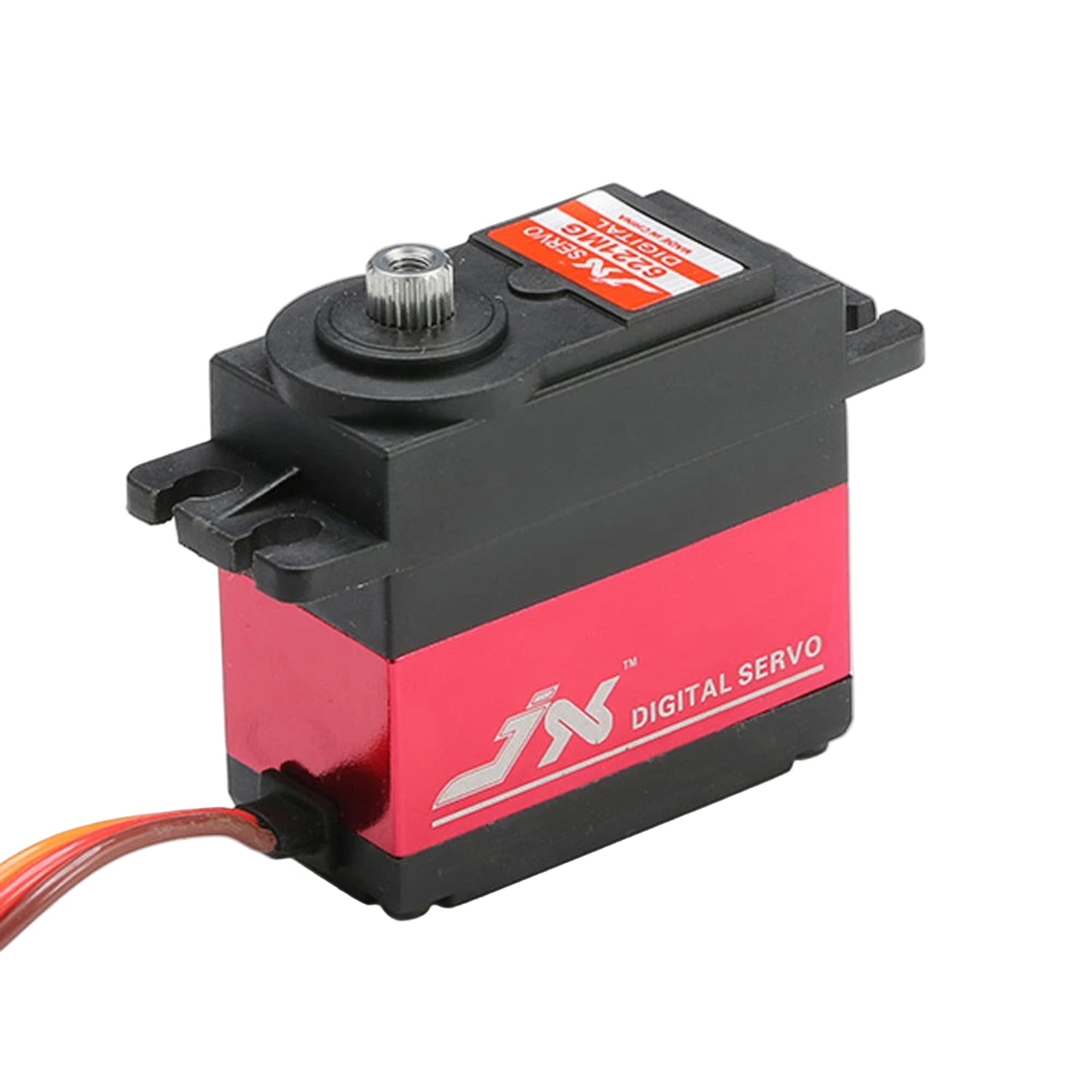

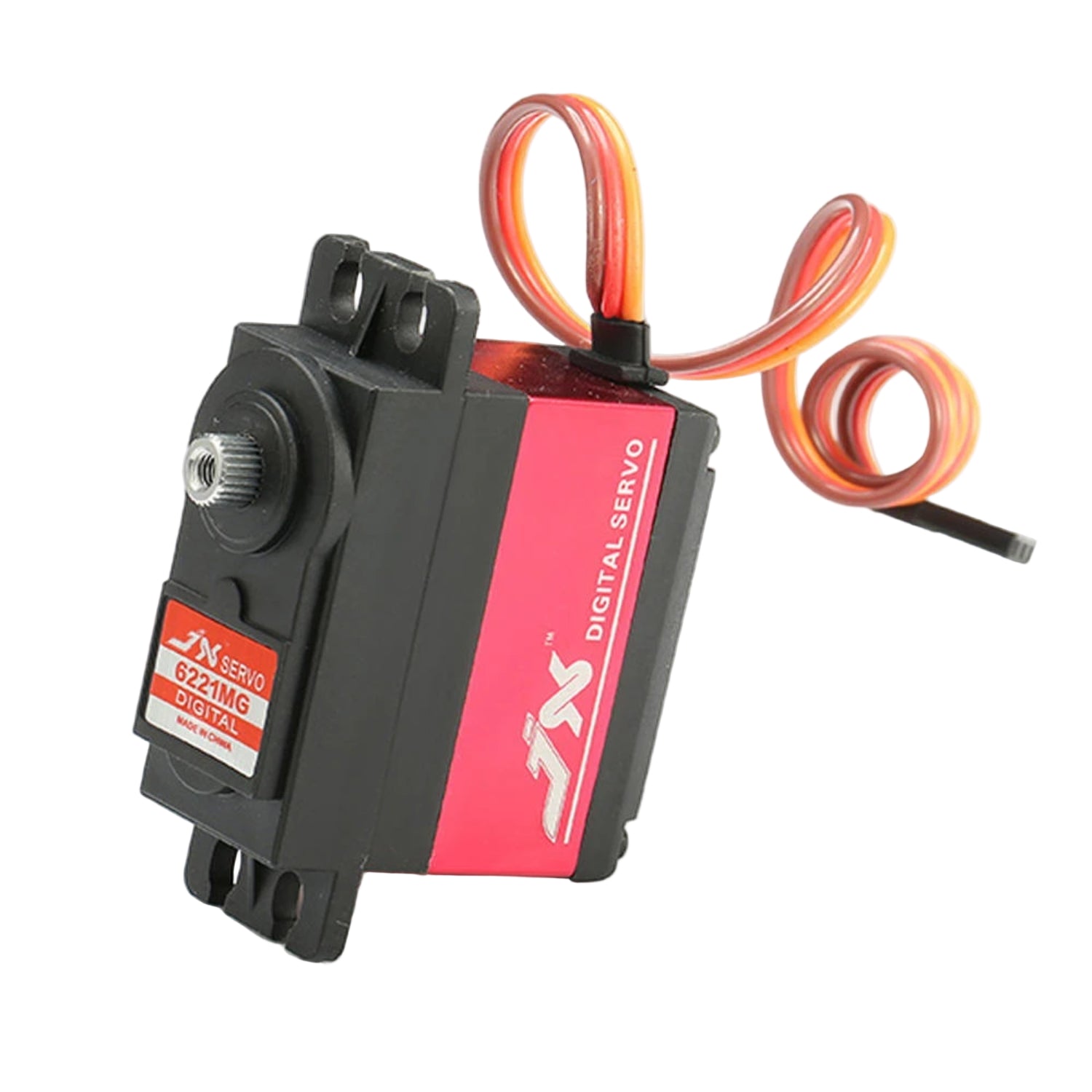

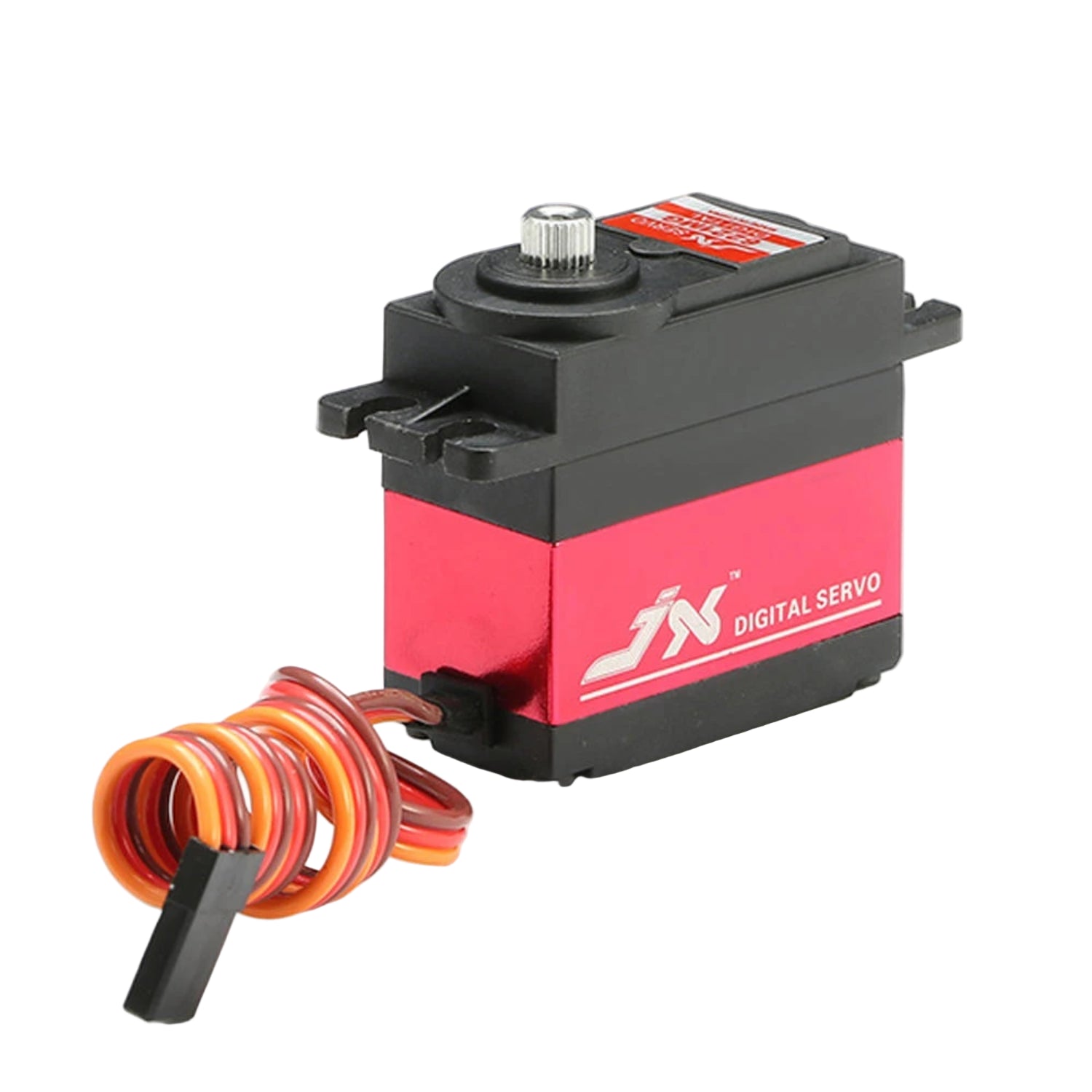

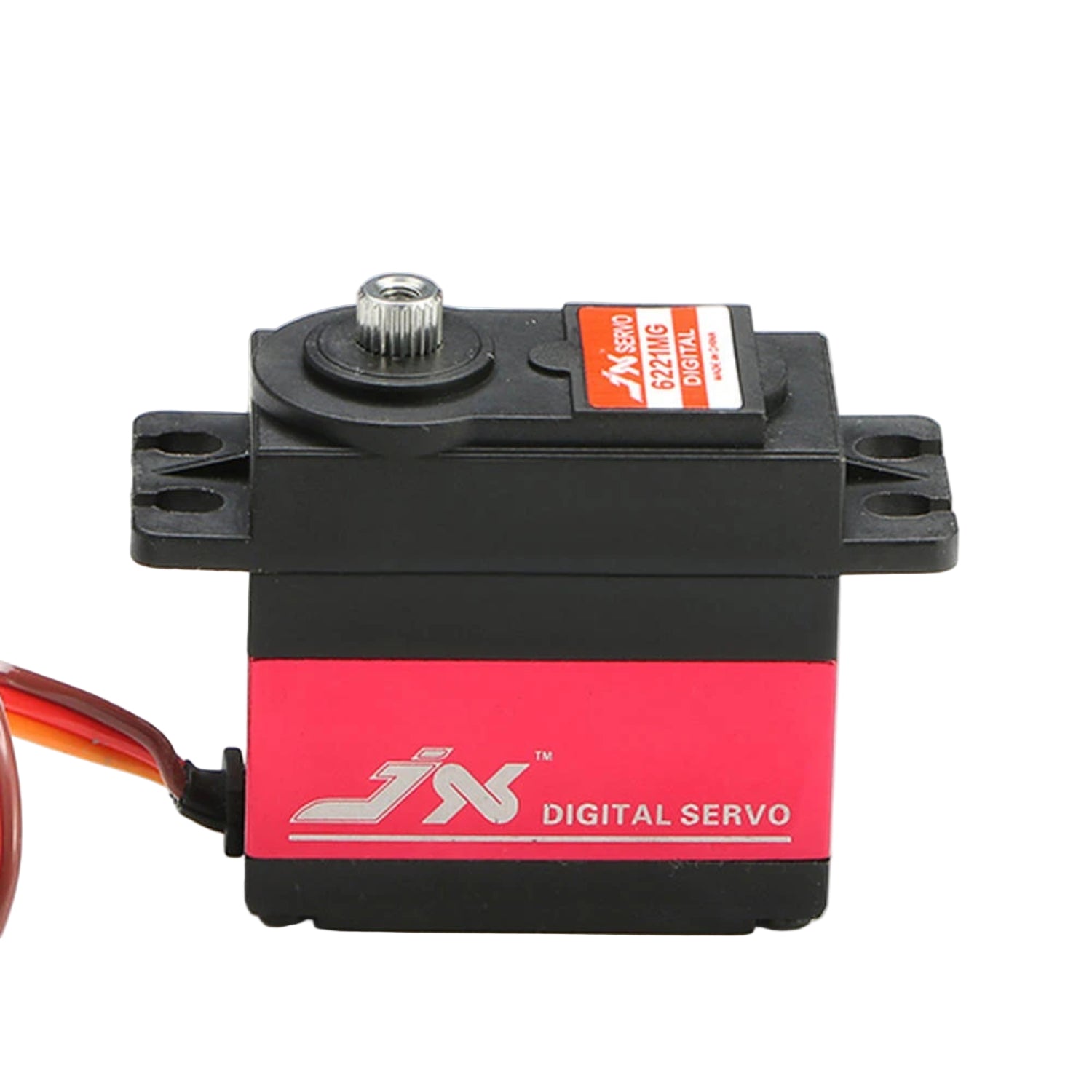

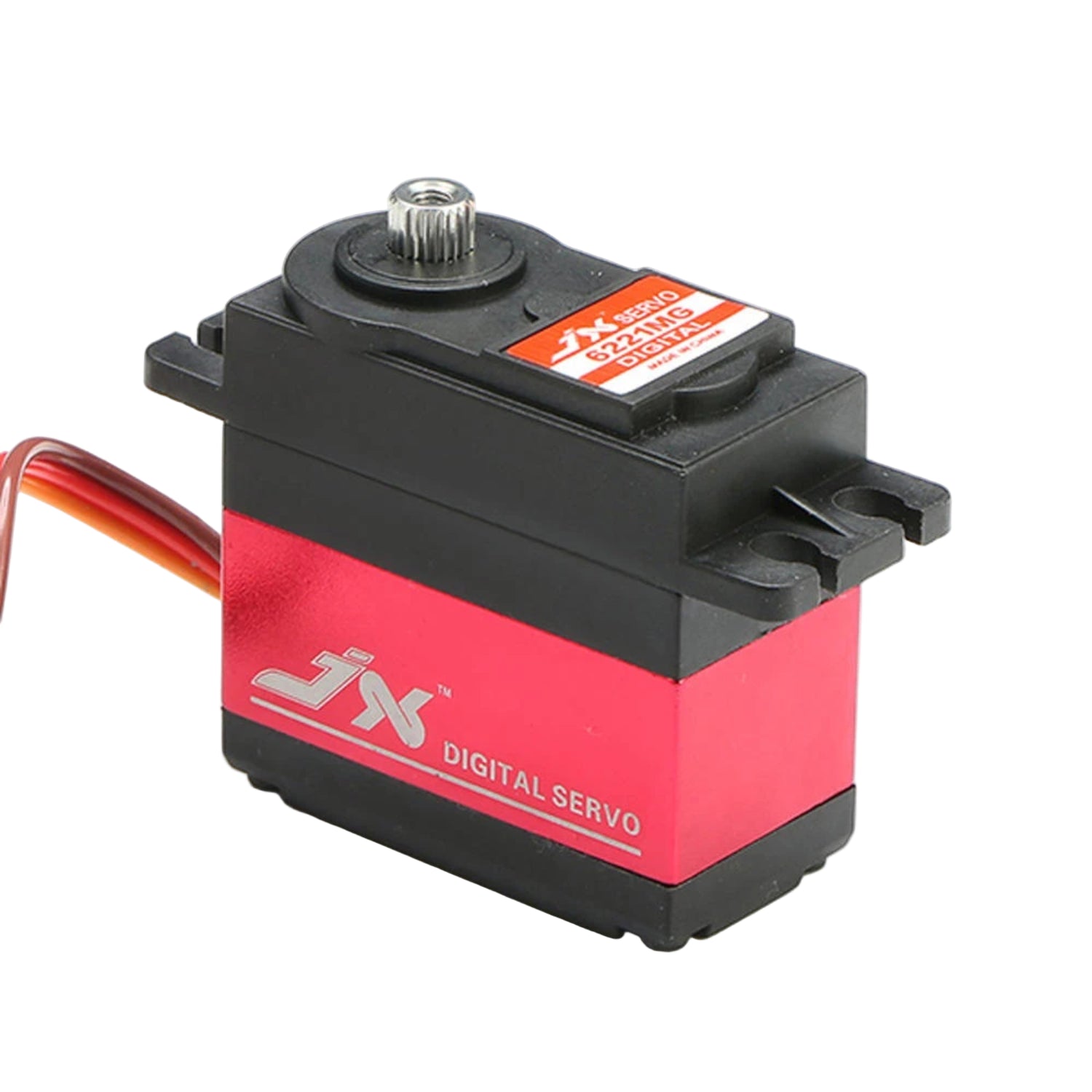

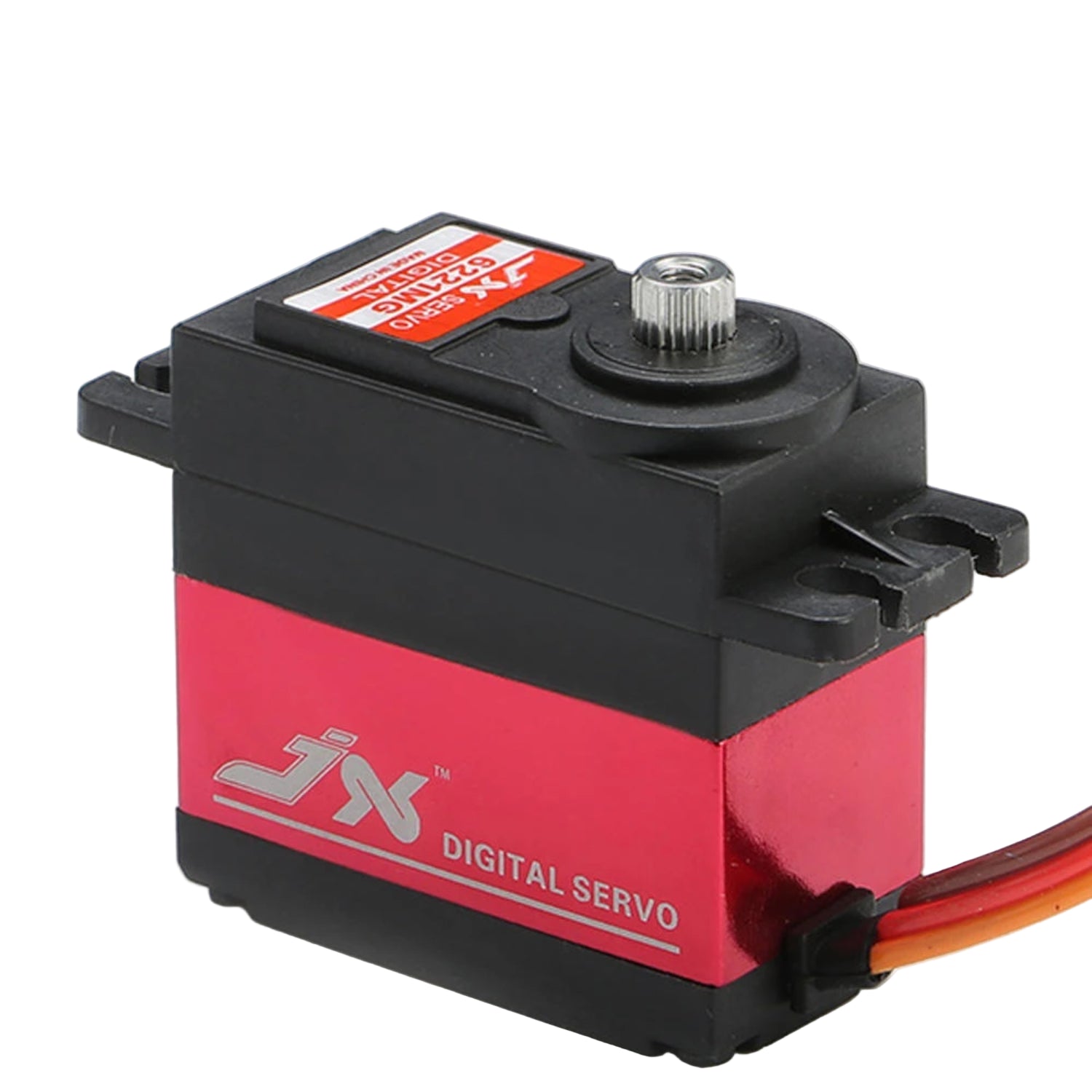

JX Servo PDI-6221MG 20KG High Torque 180° Metal Gear Digital Servo for RC Car, Robot, Boat, and Airplane - RS7510

JX Servo PDI-6221MG 20KG High Torque 180° Metal Gear Digital Servo for RC Car, Robot, Boat, and Airplane - RS7510

RS7510

Low stock: 2 left

Rs. 999.00
Rs. 999.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

A high-performance digital servo engineered for demanding RC and robotics applications. This servo is the ultimate upgrade for anyone seeking a robust and reliable solution. With a massive 20KG of torque and durable full metal gears, it is built to handle the toughest challenges and provide precise, responsive movement.

Specifications:

  • Max Angle:180°
  • Pulse width:1000-2000μs=90°
  • Pulse width:500-2500μs=180°
  • Dead band: 2μs 1520μs / 330hz
  • Operating Speed (4.8V): 0.18 sec/60°
  • Operating Speed (6V): 0.16 sec/60°
  • Stall Torque (4.8V): 17.25 kg-cm (239.55oz/in)
  • Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)
  • Connector Wire Length: JR 265 mm (10.43in)
  • Bearing: 2BB

Features:

  • Versatile 180° Rotation: Provides a full range of motion for various projects.
  • Dual Pulse Width Compatibility: Works with both standard (1000-2000μs for 90°) and extended (500-2500μs for 180°) signals.
  • Ultra-responsive Control: A minuscule 2μs dead band ensures precise, jitter-free movements.
  • Smooth Stable Operation: A rapid 330Hz refresh rate guarantees reliable performance.

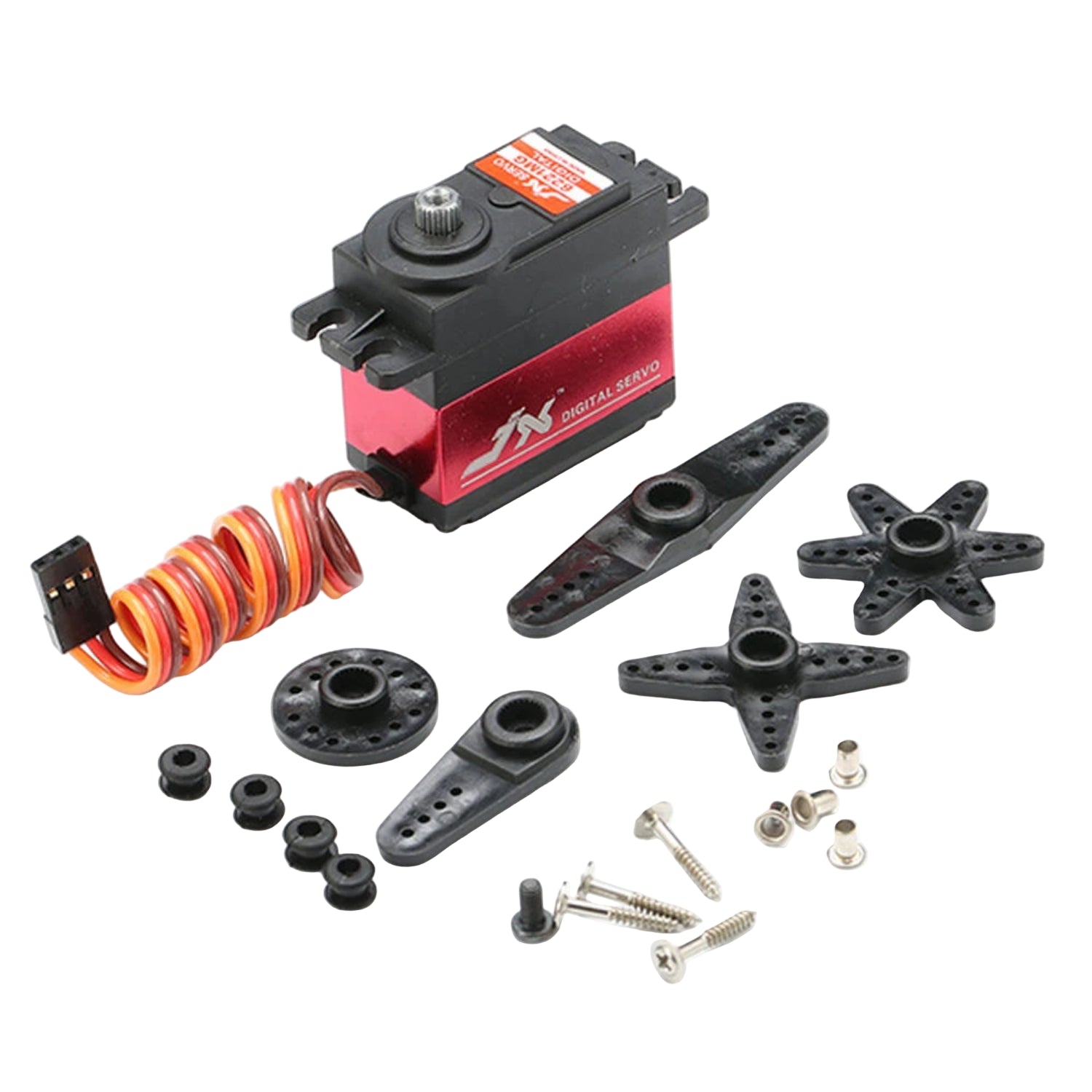

Package Included:

1 x JX Servo PDI-6221MG 20KG High Torque 180° Metal Gear Digital Servo
